Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
.
IMPORTANT:
Clean any existing corrosion from the battery terminal bolt flange and battery cable end.

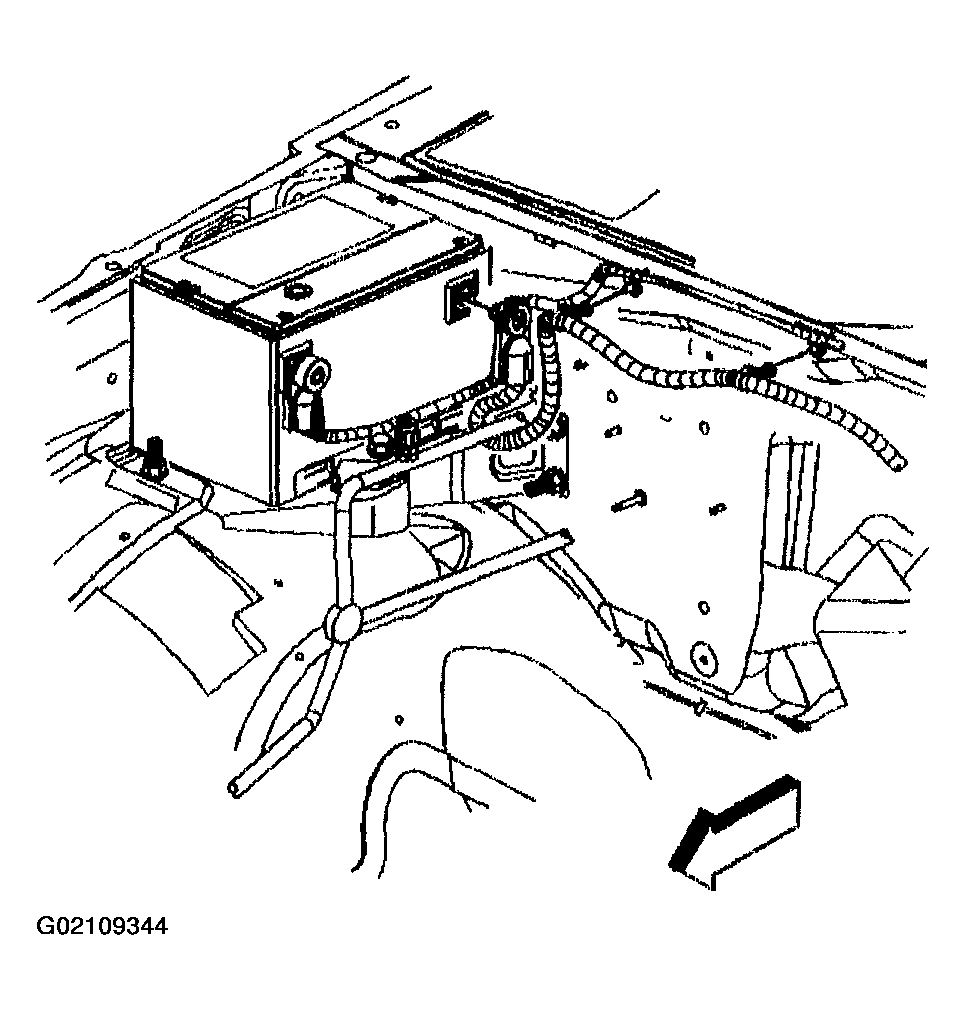

- Install the negative battery cable.NOTE: Refer to FASTENER NOTICE .
- Tighten the negative battery cable bolt.
Tighten
Tighten the bolt to 17 N.m (13 lb ft).
