Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Remove the drive belt.
  3. Remove the fan clutch. Refer to Fan Clutch Replacement .
  4. Reposition the outlet hose clamp at the water pump.
  5. Remove the outlet hose from the water pump.

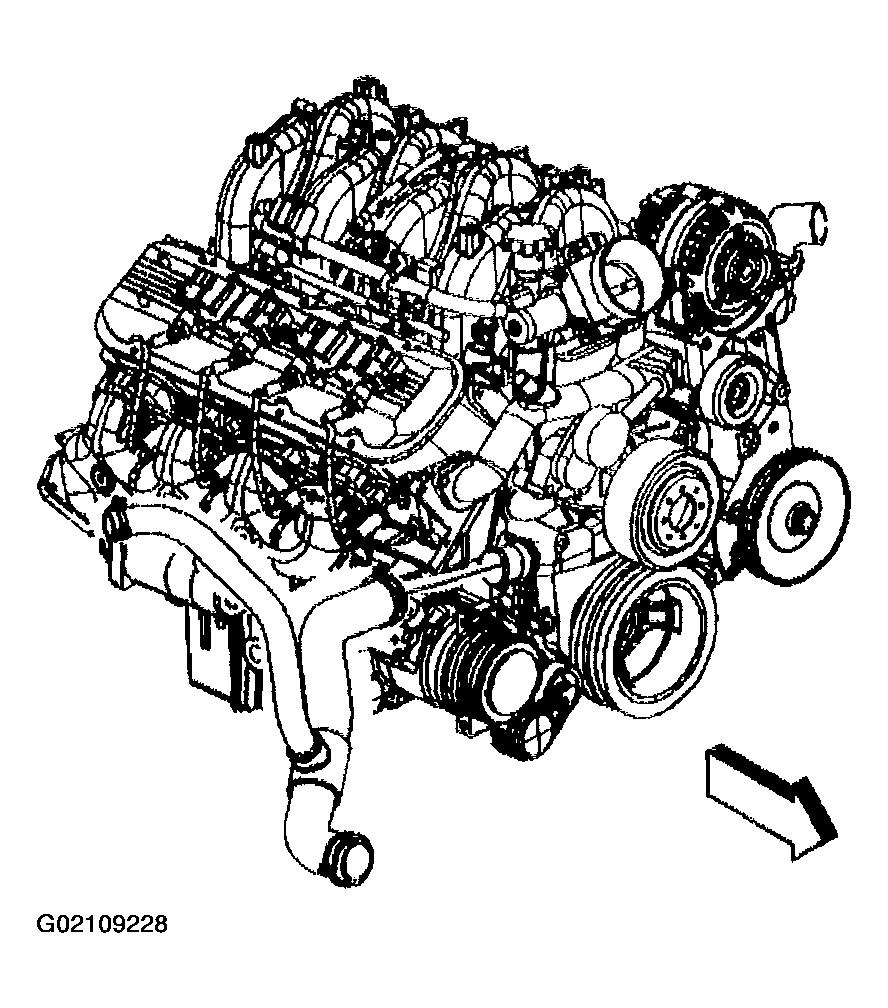

    Fig 1: Remove Outlet Hose
    G02109228Courtesy of GENERAL MOTORS CORP.
  6. Reposition the bypass hose clamps at the water pump and water crossover.
  7. Remove the bypass hose.

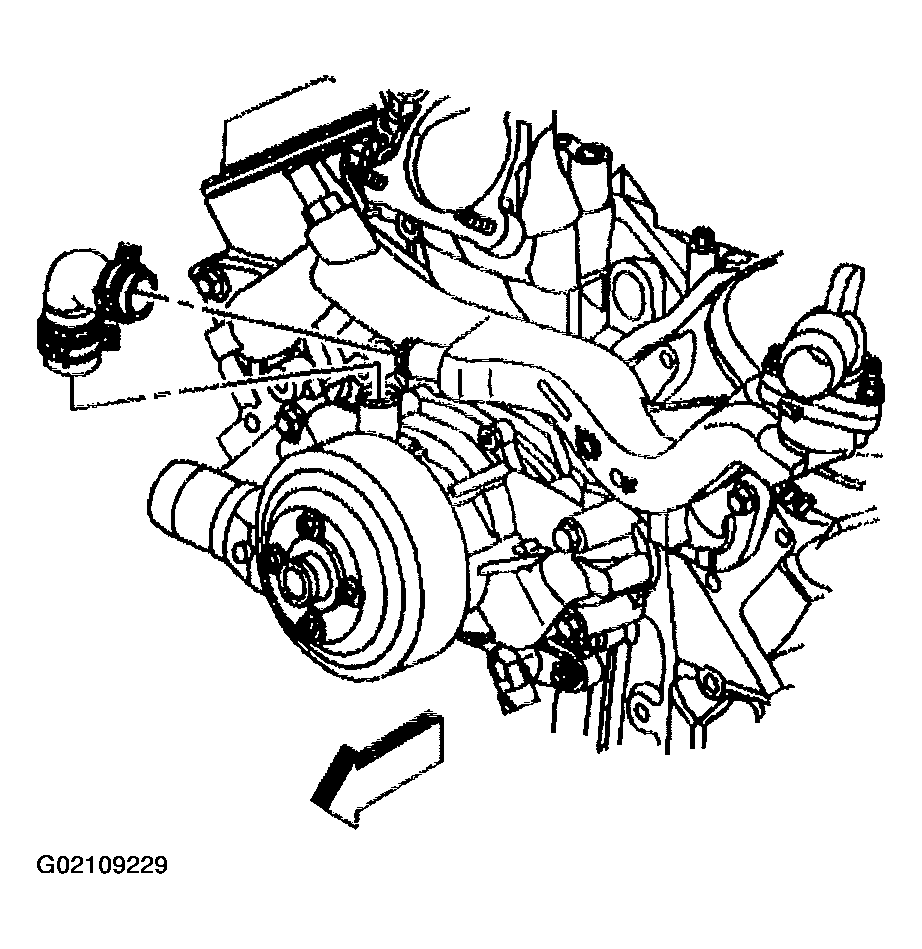

    Fig 2: Remove Bypass Hose
    G02109229Courtesy of GENERAL MOTORS CORP.
  8. Remove the water pump bolts.
  9. Remove the water pump.
  10. Remove and discard the water pump gaskets.

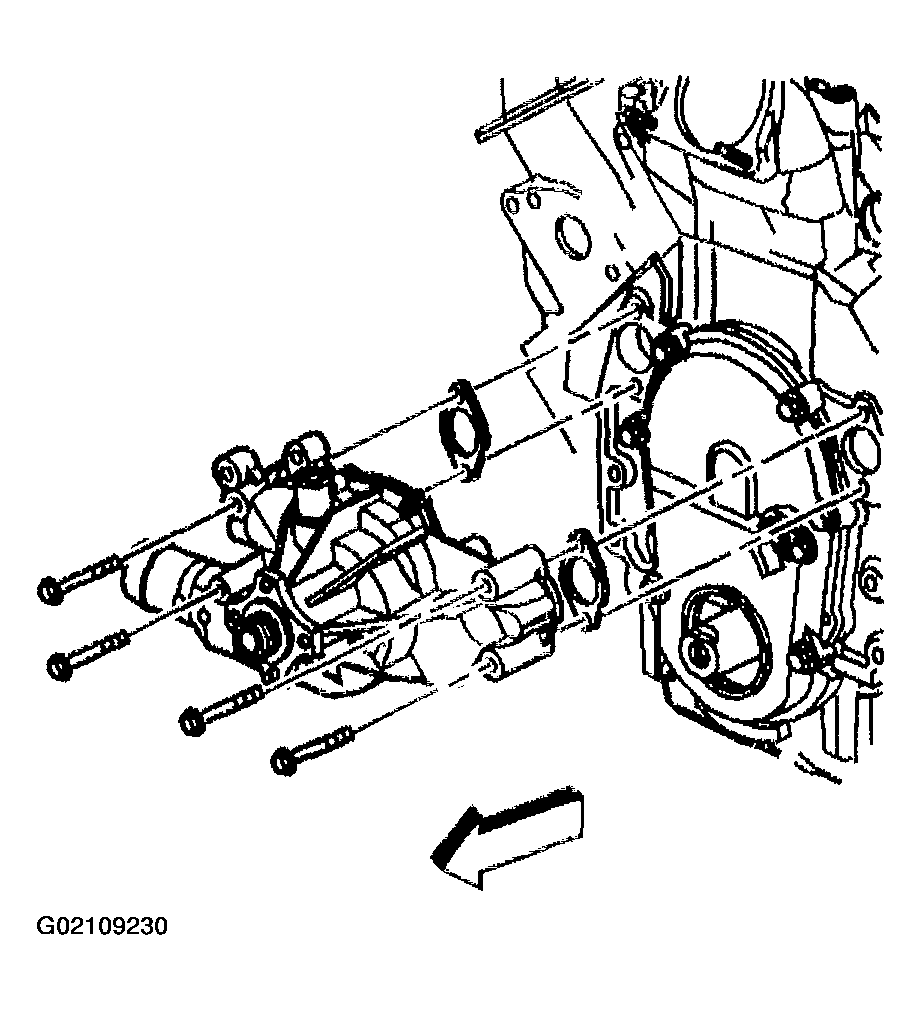

    Fig 3: Remove Water Pump, Gasket & Bolts
    G02109230Courtesy of GENERAL MOTORS CORP.
