Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Reposition the surge tank inlet hose clamp from the radiator.
  3. Remove the surge tank inlet hose from the radiator.

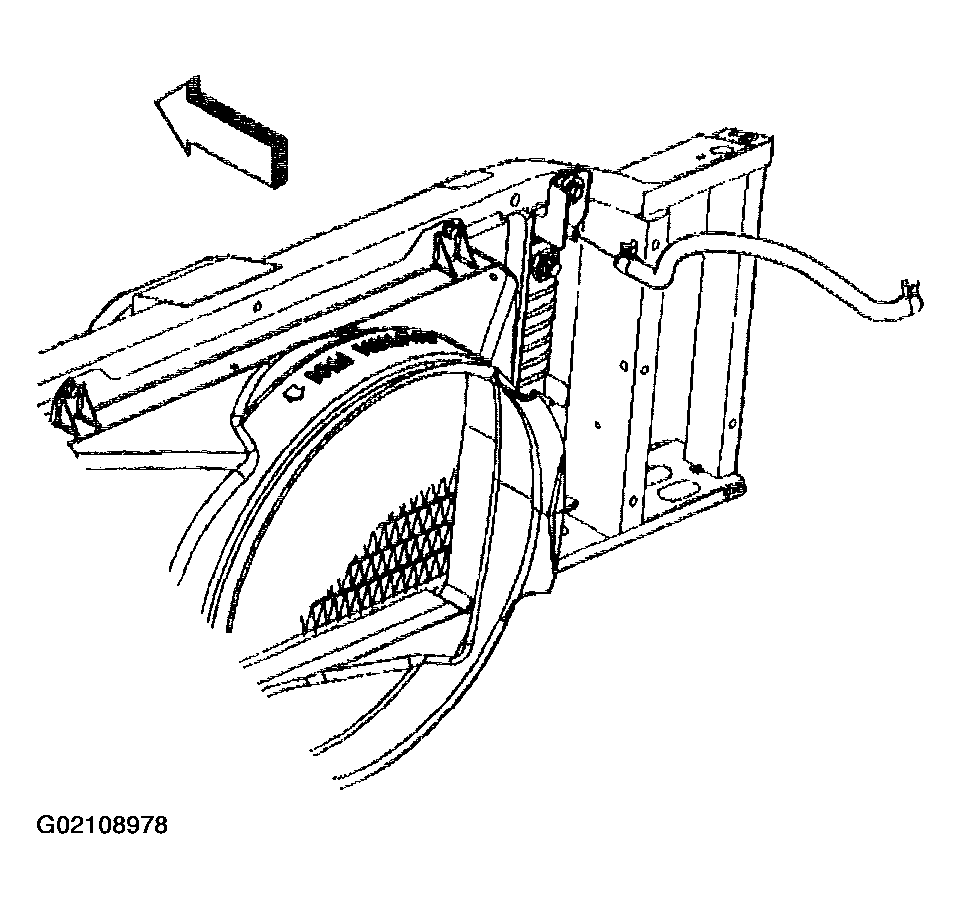

    Fig 1: Remove Surge Tank Inlet Hose From Radiator
    G02108978Courtesy of GENERAL MOTORS CORP.
  4. Reposition the surge tank inlet hose clamp from the surge tank.
  5. Remove the surge tank inlet hose (1) from the surge tank.

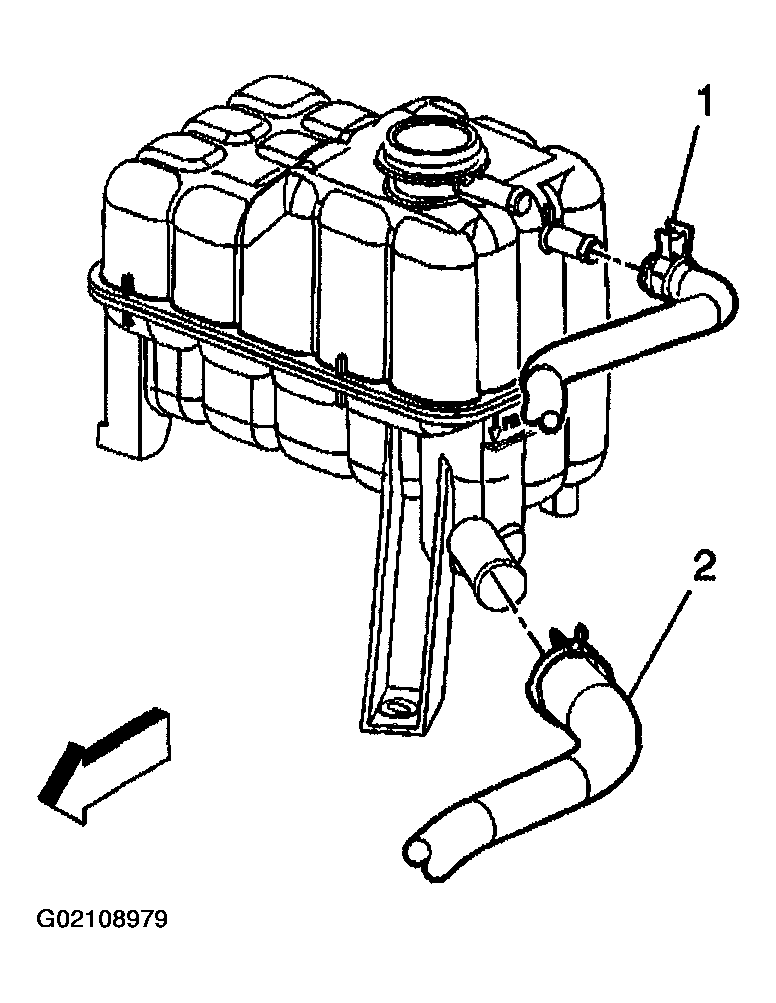

    Fig 2: Remove Surge Tank Inlet Hose From Surge Tank
    G02108979Courtesy of GENERAL MOTORS CORP.
