Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the surge tank inlet hose (1) to the surge tank.
Position the surge tank inlet hose clamp to the surge tank.

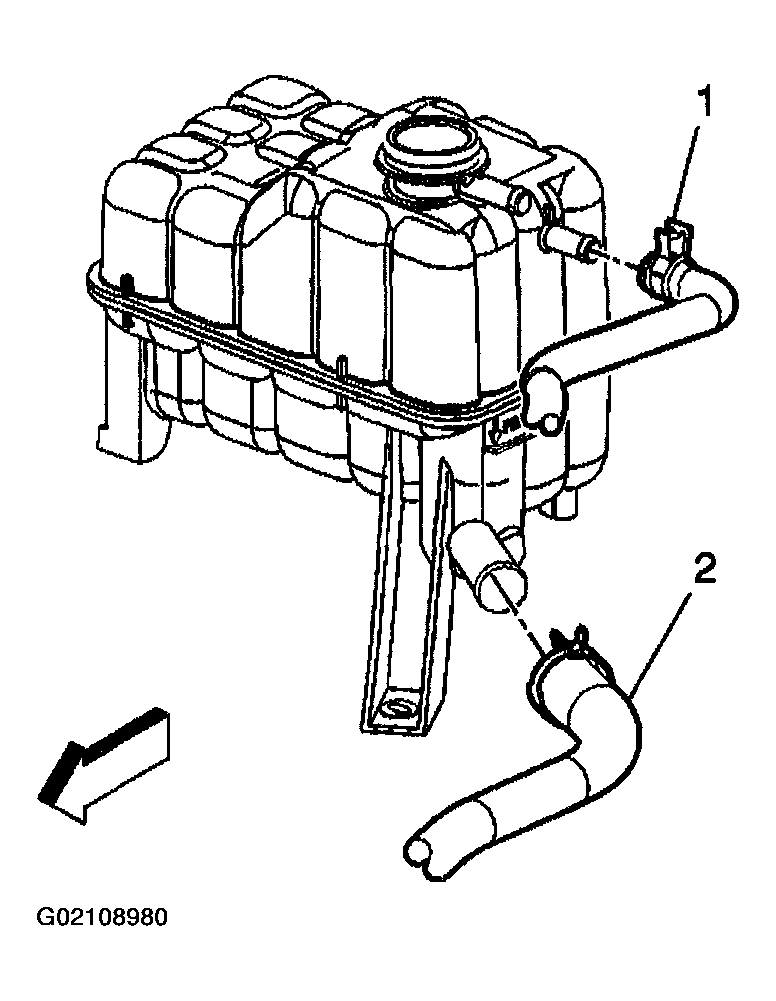

Fig 1: Install Surge Tank Inlet Hose To Surge Tank
Courtesy of GENERAL MOTORS CORP.
Install the surge tank inlet hose to the radiator.
Position the surge tank inlet hose clamp to the radiator.
Fill the cooling system. Refer to Draining and Filling Cooling System .

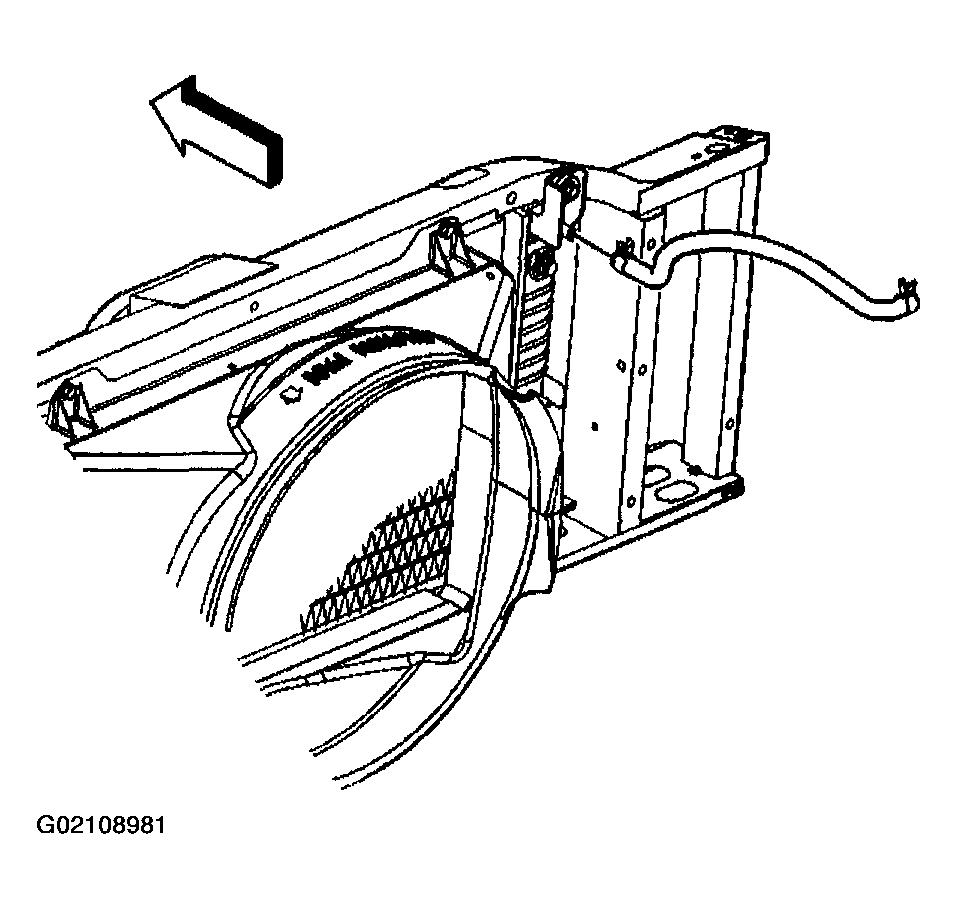

Fig 2: Install Surge Tank Inlet Hose To Surge Radiator
Courtesy of GENERAL MOTORS CORP.
