Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the outlet hose from the water pump.
Position the outlet hose clamp the water pump.

Fig 1: Install Outlet Hose
Courtesy of GENERAL MOTORS CORP.
Install the surge tank outlet hose (2) from the surge tank.
Position the surge tank outlet hose clamp at the surge tank.

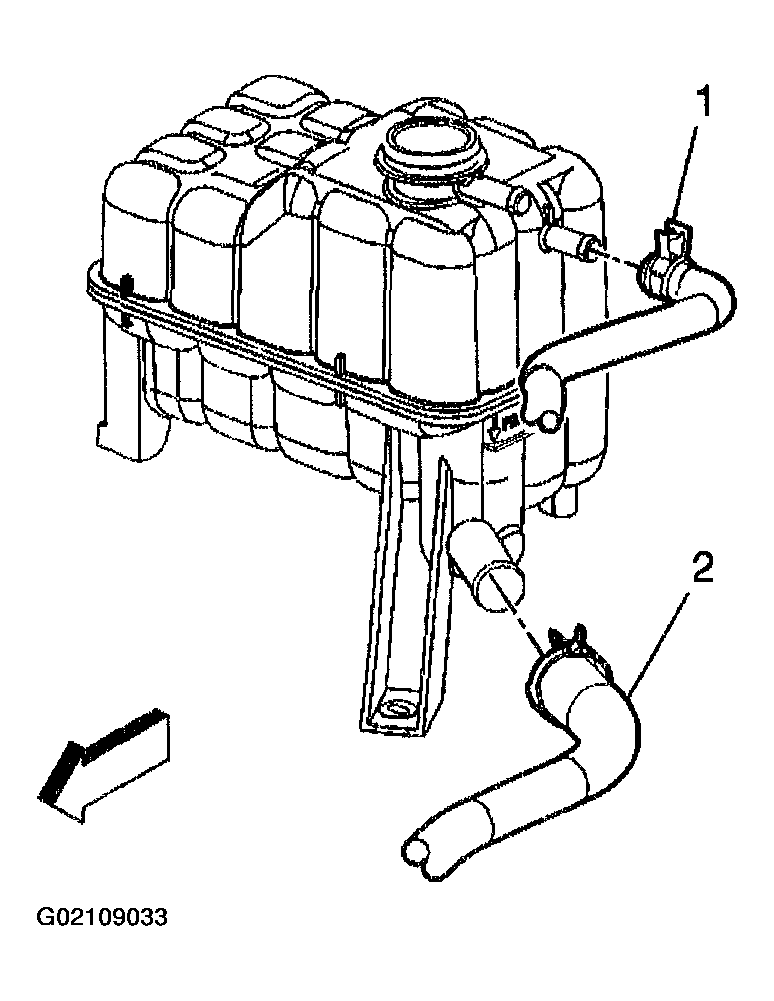

Fig 2: Install Surge Tank Outlet Hose
Courtesy of GENERAL MOTORS CORP.
Install the radiator outlet hose to the radiator.
Position the outlet hose clamp at the radiator.
Fill the cooling system. Refer to Draining and Filling Cooling System .

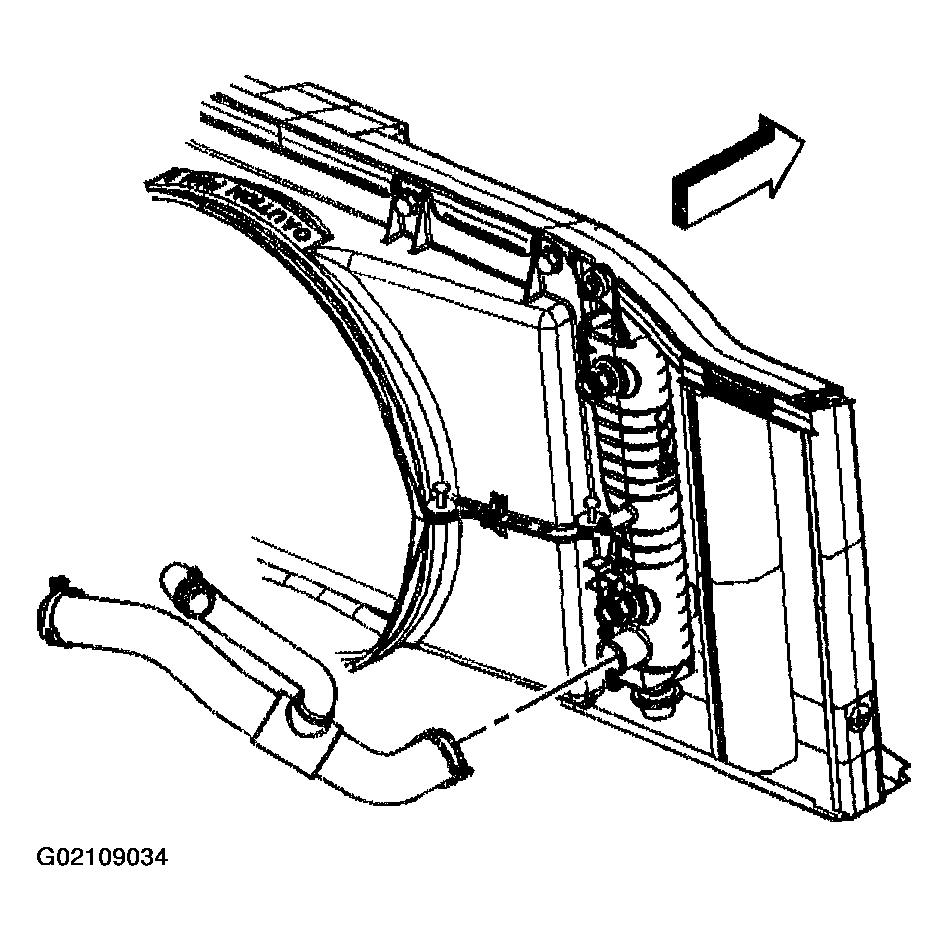

Fig 3: Install Radiator Outlet Hose
Courtesy of GENERAL MOTORS CORP.
