Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Loosen the air cleaner outlet duct clamps at the following locations:
    • Throttle body
    • Mass airflow/intake air temperature (MAF/IAT) sensor
  3. Remove the radiator inlet hose clip from the outlet duct.
  4. Remove the air cleaner outlet duct.

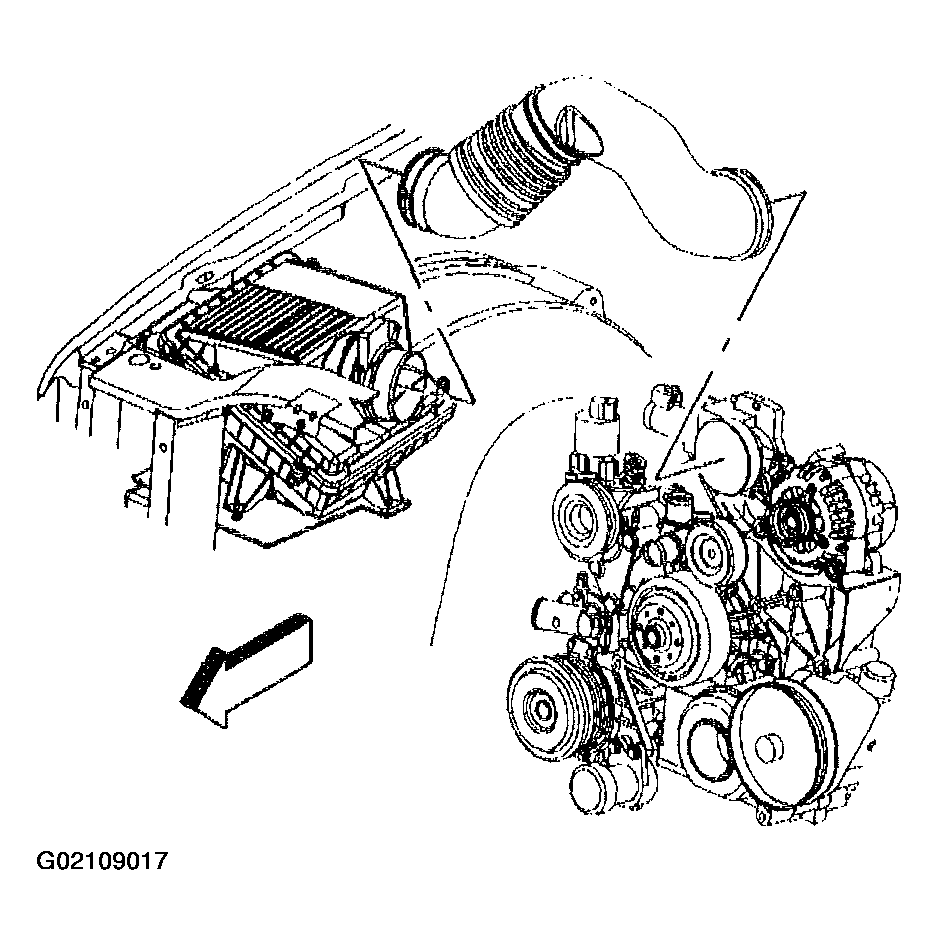

    Fig 1: Remove Air Cleaner Outlet Duct
    G02109017Courtesy of GENERAL MOTORS CORP.
  5. Reposition the outlet hose clamp at the water pump.
  6. Remove the outlet hose from the water pump.

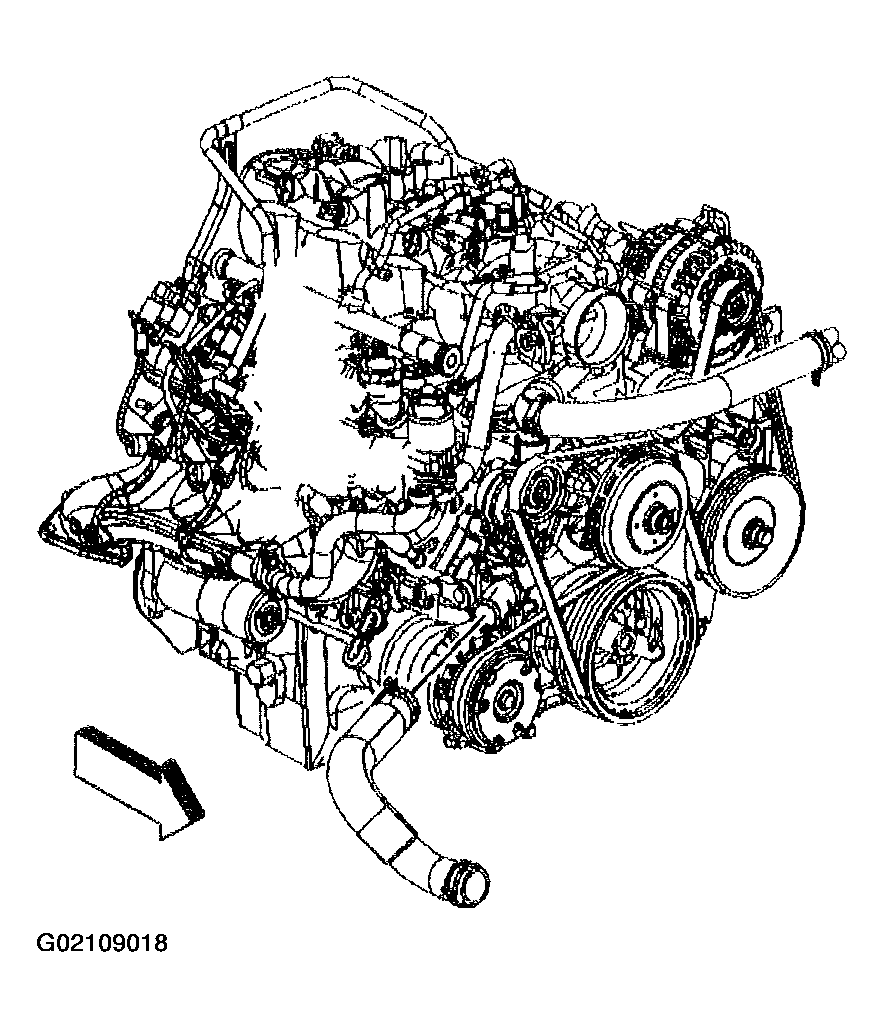

    Fig 2: Remove Outlet Hose
    G02109018Courtesy of GENERAL MOTORS CORP.
  7. Reposition the outlet hose clamp at the radiator.
  8. Remove the outlet hose from the radiator.

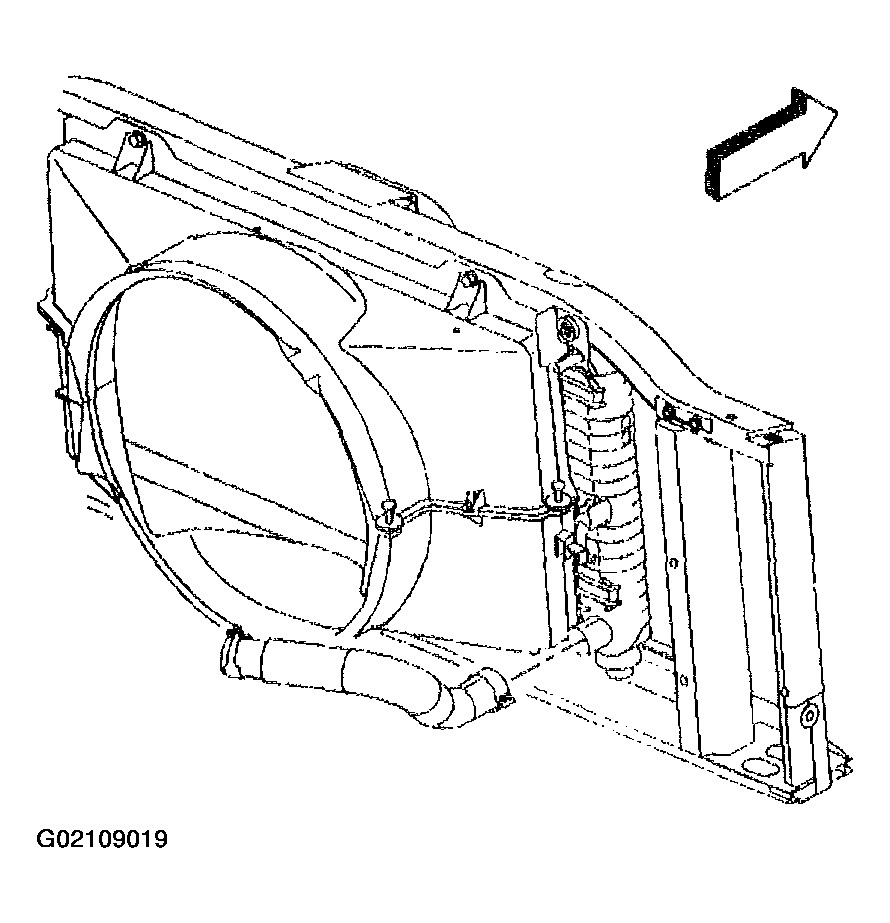

    Fig 3: Remove Outlet Hose
    G02109019Courtesy of GENERAL MOTORS CORP.
