Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator outlet hose to the radiator.

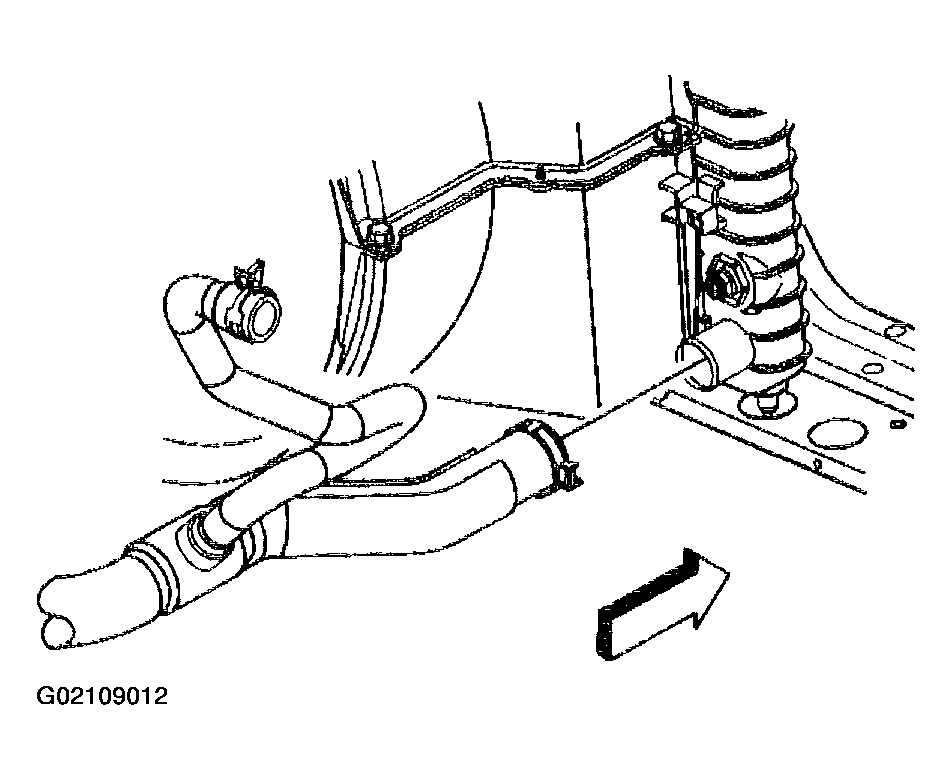

    Fig 1: Install Radiator Outlet Hose
    G02109012Courtesy of GENERAL MOTORS CORP.
  2. Install the radiator outlet hose to the water pump.
  3. Install the radiator outlet hose to the surge tank.

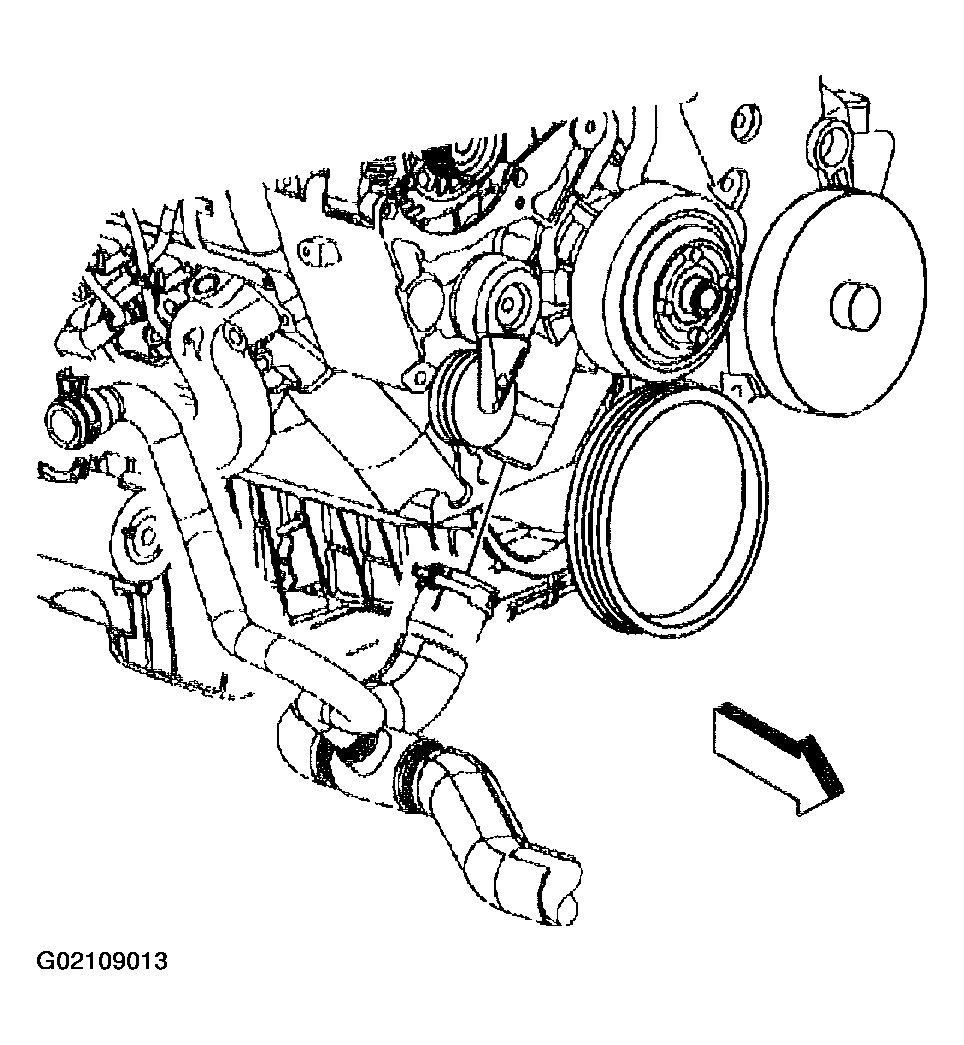

    Fig 2: Install Radiator Outlet Hose
    G02109013Courtesy of GENERAL MOTORS CORP.
  4. Align the hinge clip with the lip on the throttle body.

    Install the air inlet tube and resonator to the throttle body by pivoting the air inlet tube and resonator downward until the mounting stud is through the hole in the air inlet tube.

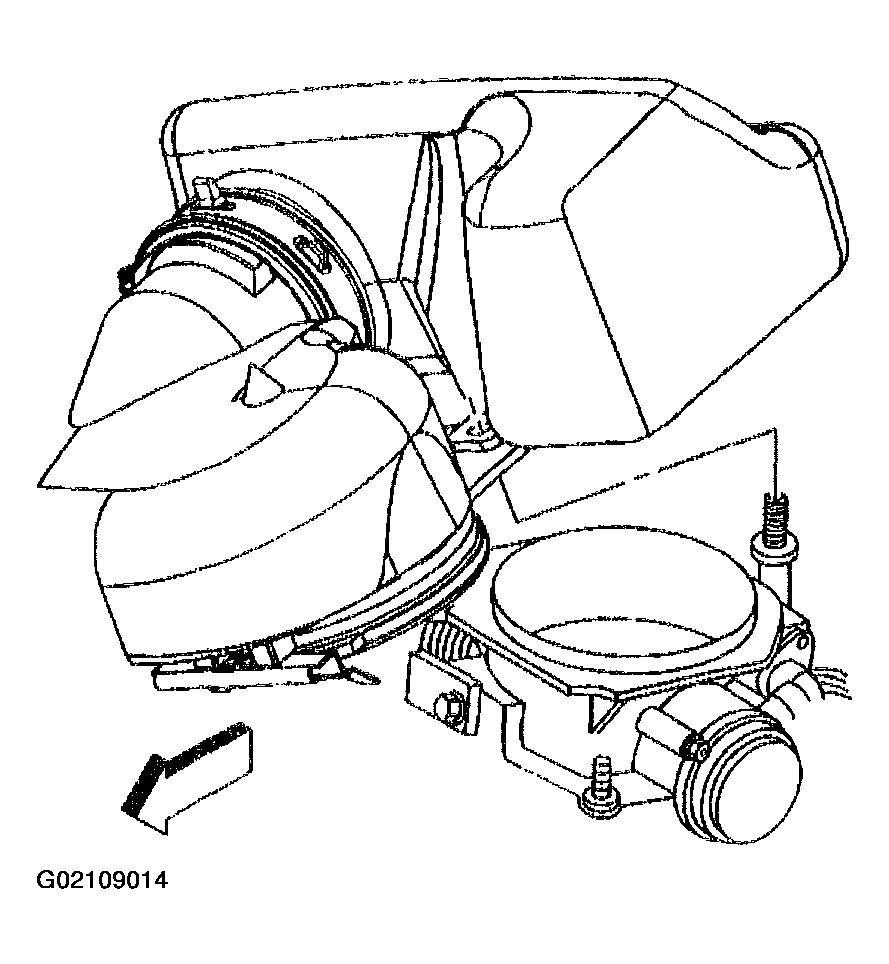

    Fig 3: Install Air Inlet Tube & Resonator
    G02109014Courtesy of GENERAL MOTORS CORP.
  5. Install the resonator retaining wing nut.
  6. Connect the PCV hose to the air cleaner outlet duct.

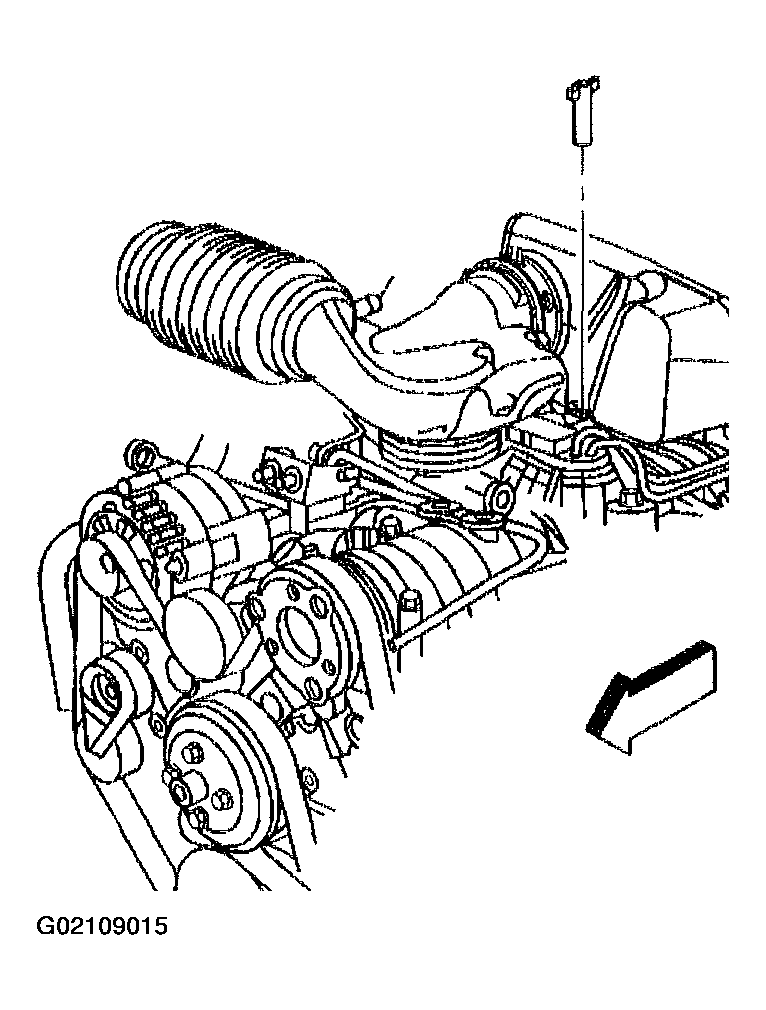

    Fig 4: Install Resonator Retaining Wing Nut
    G02109015Courtesy of GENERAL MOTORS CORP.
  7. Connect the MAF/IAT sensor assembly harness connector.
  8. Fill the cooling system. Refer to Draining and Filling Cooling System .

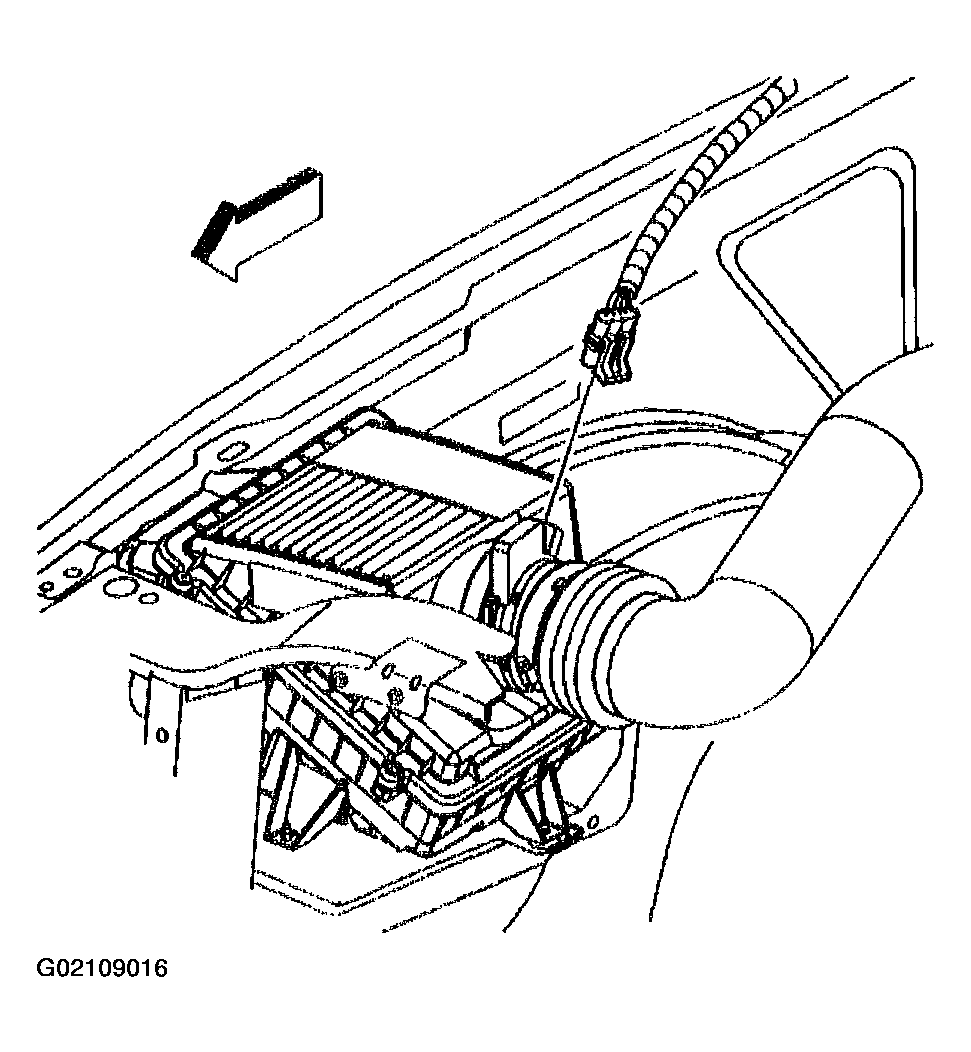

    Fig 5: Connect MAF/IAT Sensor Assembly Harness Connector
    G02109016Courtesy of GENERAL MOTORS CORP.
