Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Most truck models use a spring-type hose clamp at the hose connections. When using this type of clamp, install the radiator hoses on dry, non-painted surfaces in order to ensure proper sealing. Reusing the spring-type clamps on aftermarket hoses is not recommended.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Reposition the inlet hose clamp at the radiator.
  3. Remove the inlet hose from the radiator.

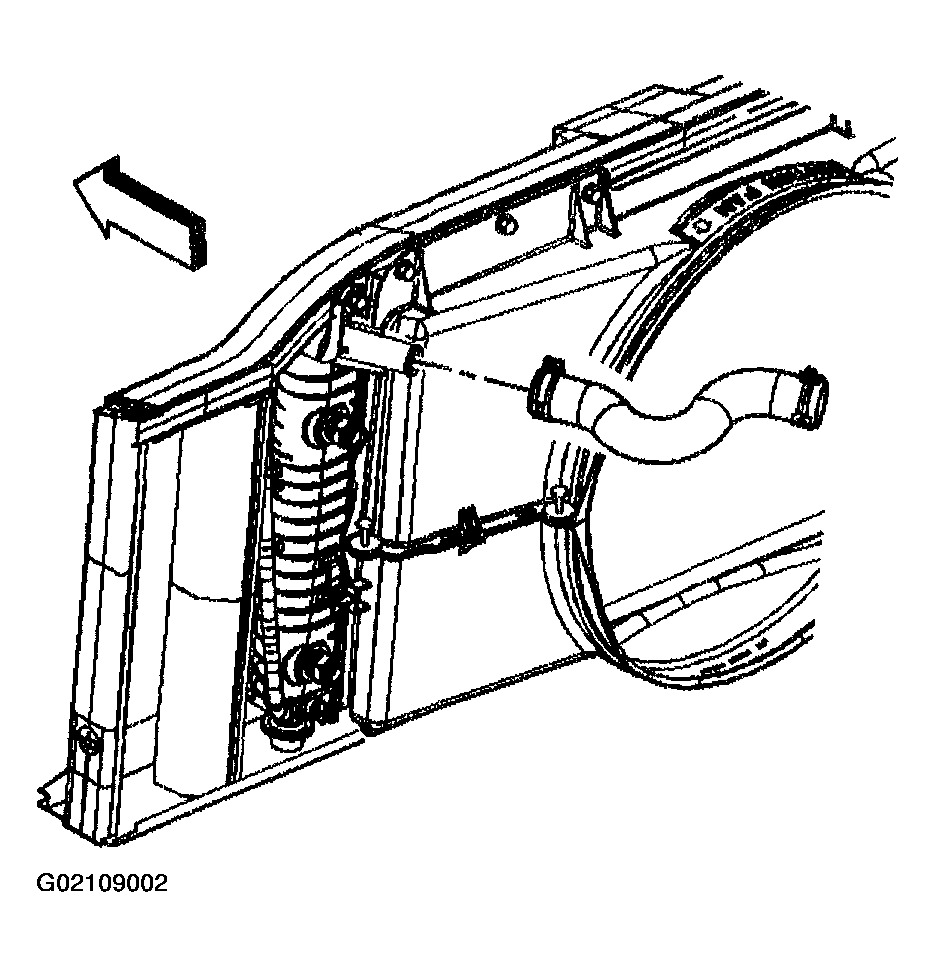

    Fig 1: Remove Inlet Hose
    G02109002Courtesy of GENERAL MOTORS CORP.
  4. Reposition the inlet hose clamp at the water crossover.
  5. Remove the inlet hose from the water crossover.

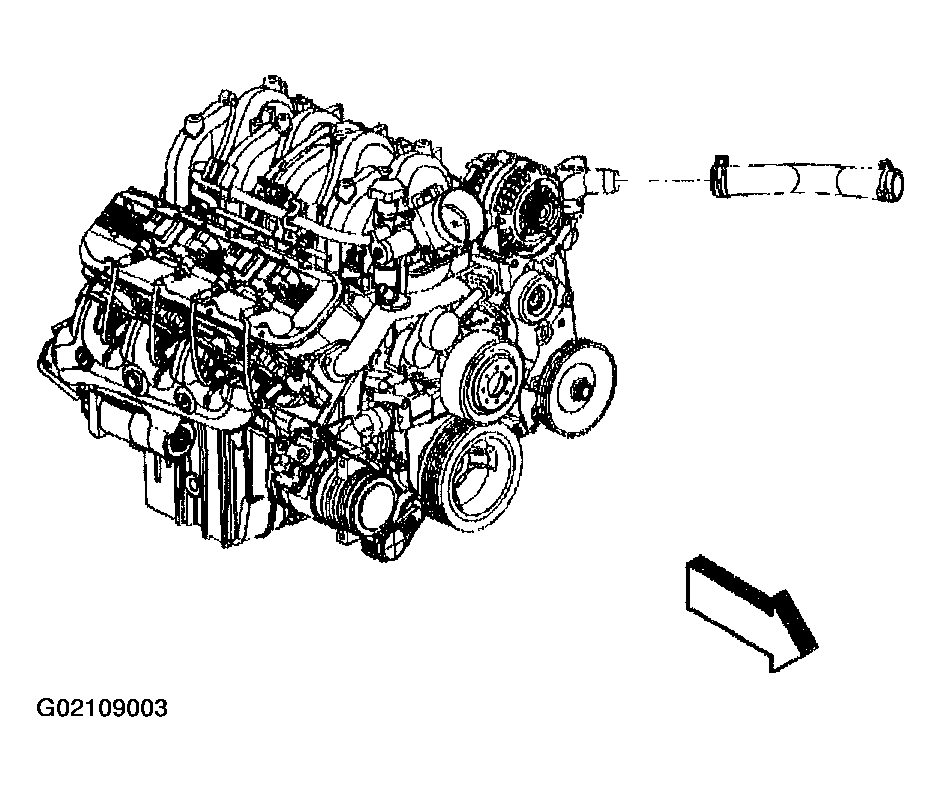

    Fig 2: Remove Inlet Hose
    G02109003Courtesy of GENERAL MOTORS CORP.
