Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the inlet hose to the water crossover.
Position the inlet hose clamp at the water crossover.

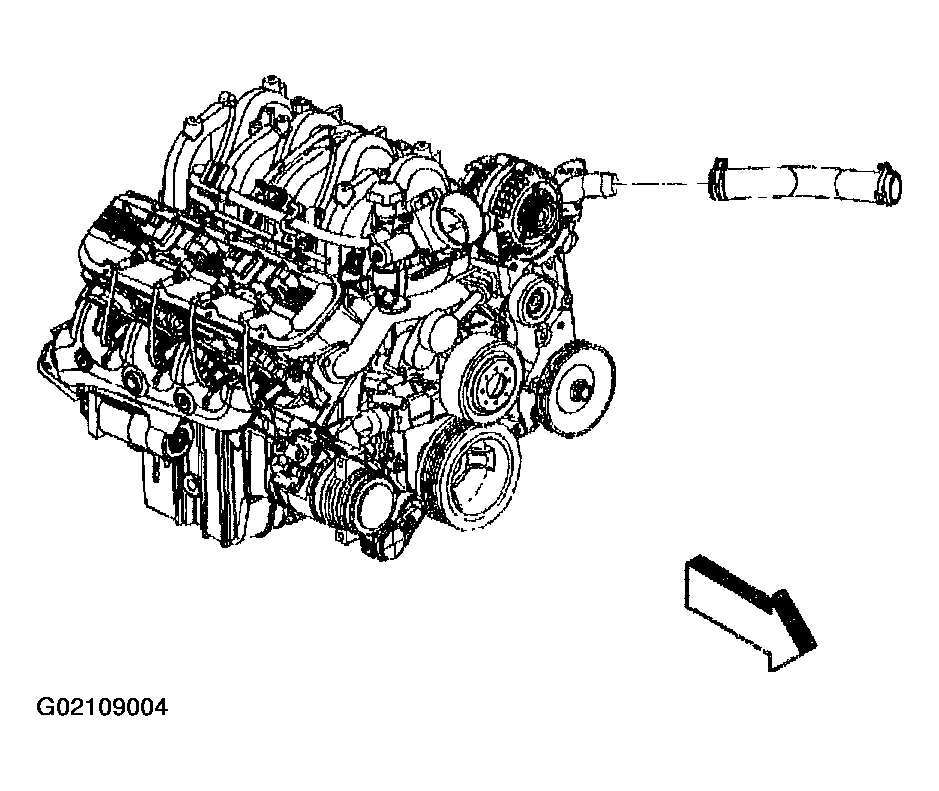

Fig 1: Install Inlet Hose
Courtesy of GENERAL MOTORS CORP.
Install the inlet hose to the radiator.
Position the inlet hose clamp at the radiator.
Fill the cooling system. Refer to Draining and Filling Cooling System .

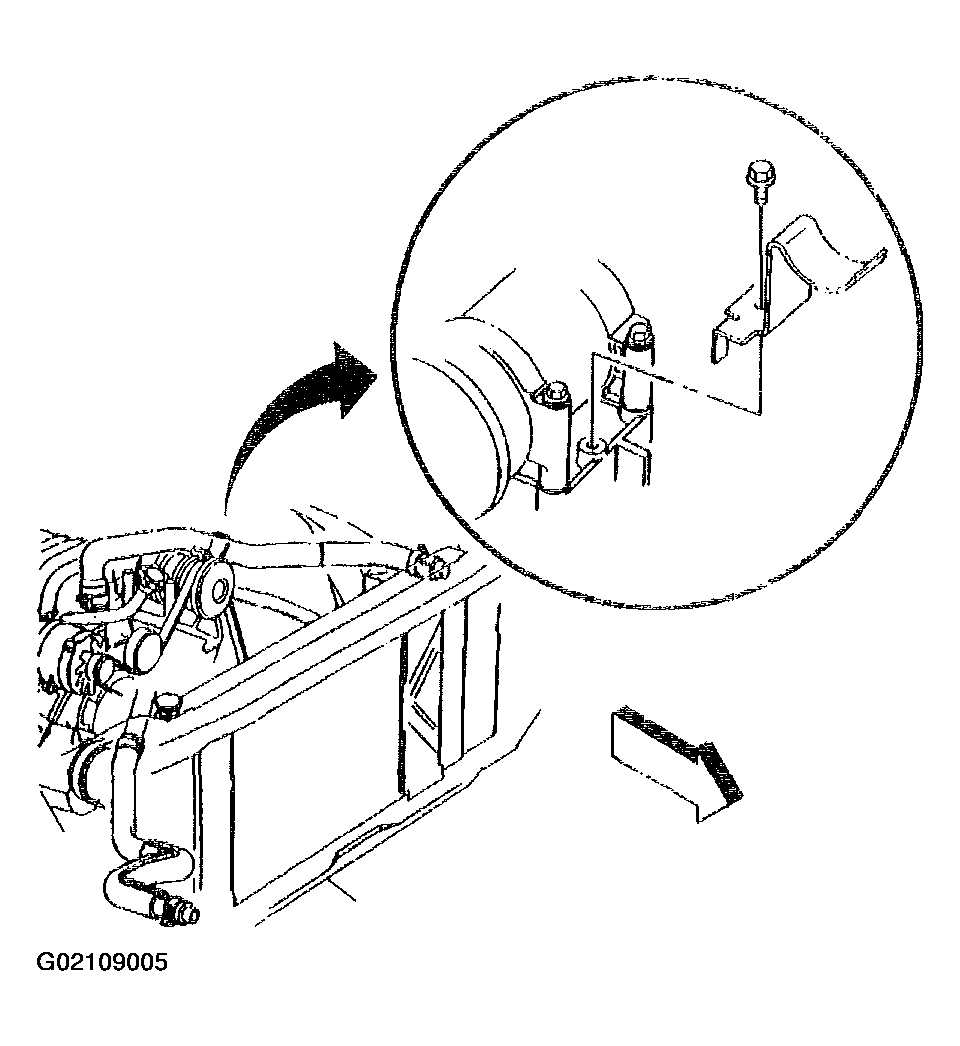

Fig 2: Inlet Hose & Clamp
Courtesy of GENERAL MOTORS CORP.
