Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant. Refer to Draining and Filling Cooling System .
  2. Move the hose clamps back on the radiator inlet hose.
  3. Remove the radiator inlet hose from the radiator.
  4. Remove the radiator inlet hose from the water outlet tube.

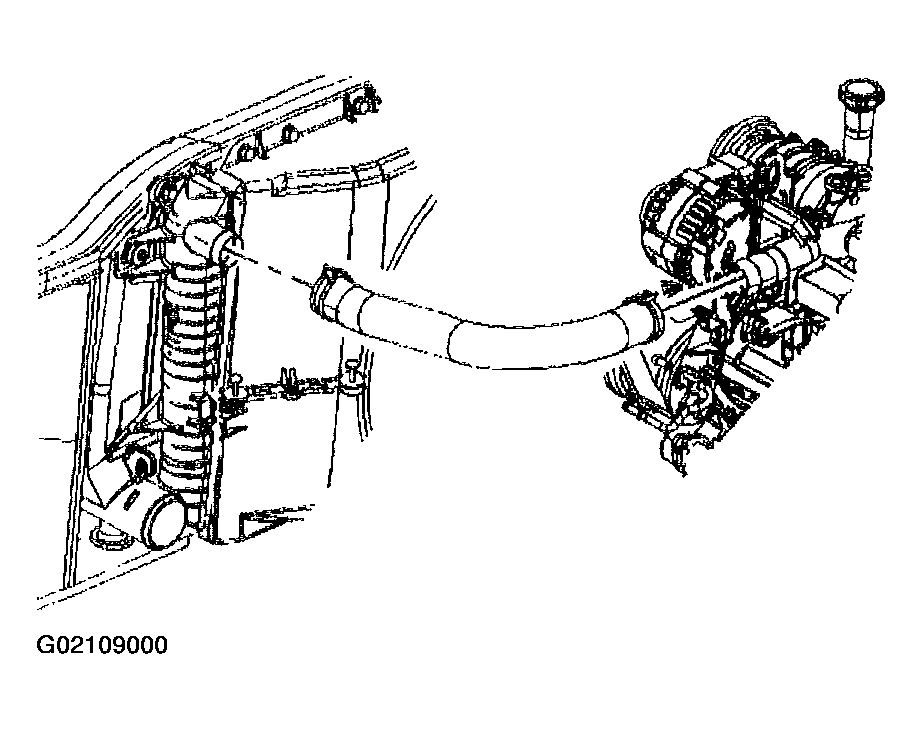

    Fig 1: Removing Radiator Inlet Hose
    G02109000Courtesy of GENERAL MOTORS CORP.
