Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator inlet hose to the water outlet tube.
  2. Install the radiator inlet hose to the radiator.
  3. Install the hose clamps on the radiator outlet hose.
  4. Fill the engine coolant. Refer to Draining and Filling Cooling System .

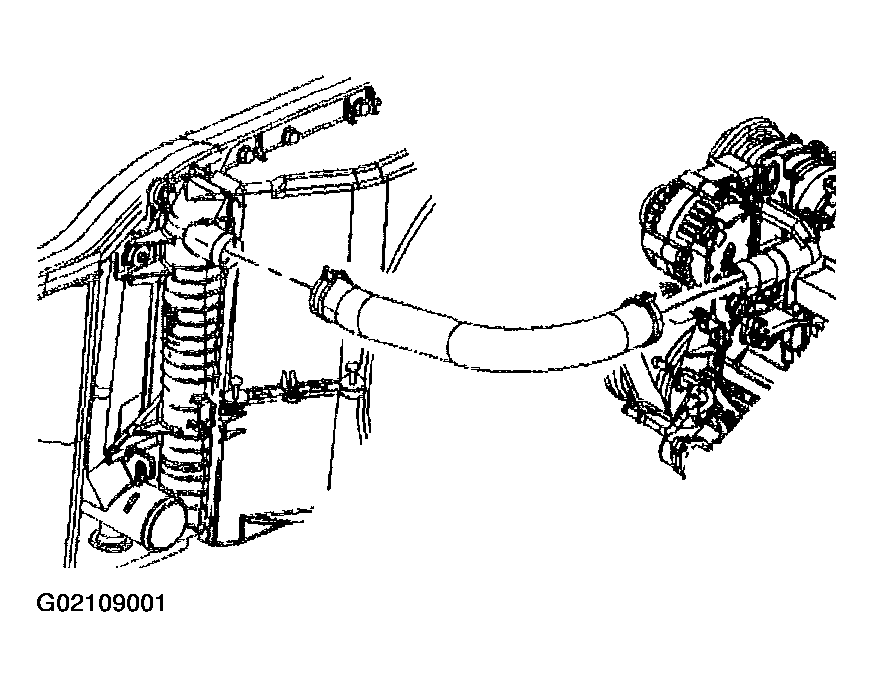

    Fig 1: Install Radiator Inlet Hose
    G02109001Courtesy of GENERAL MOTORS CORP.
