Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator air upper baffle.
  2. Install the radiator air upper baffle retainers.

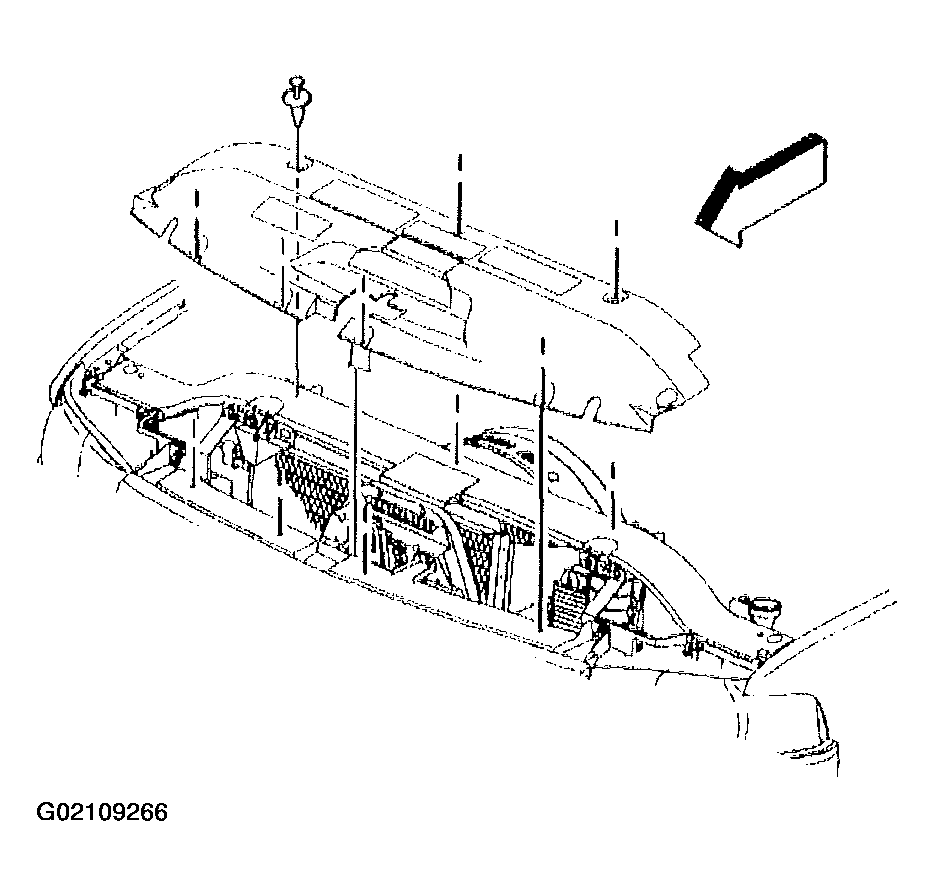

    Fig 1: Install Radiator Air Upper Baffle & Retainers
    G02109266Courtesy of GENERAL MOTORS CORP.
