Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator. Refer to Radiator Replacement .
  2. Remove the radiator air baffle retainers.
  3. Remove the radiator air baffles.

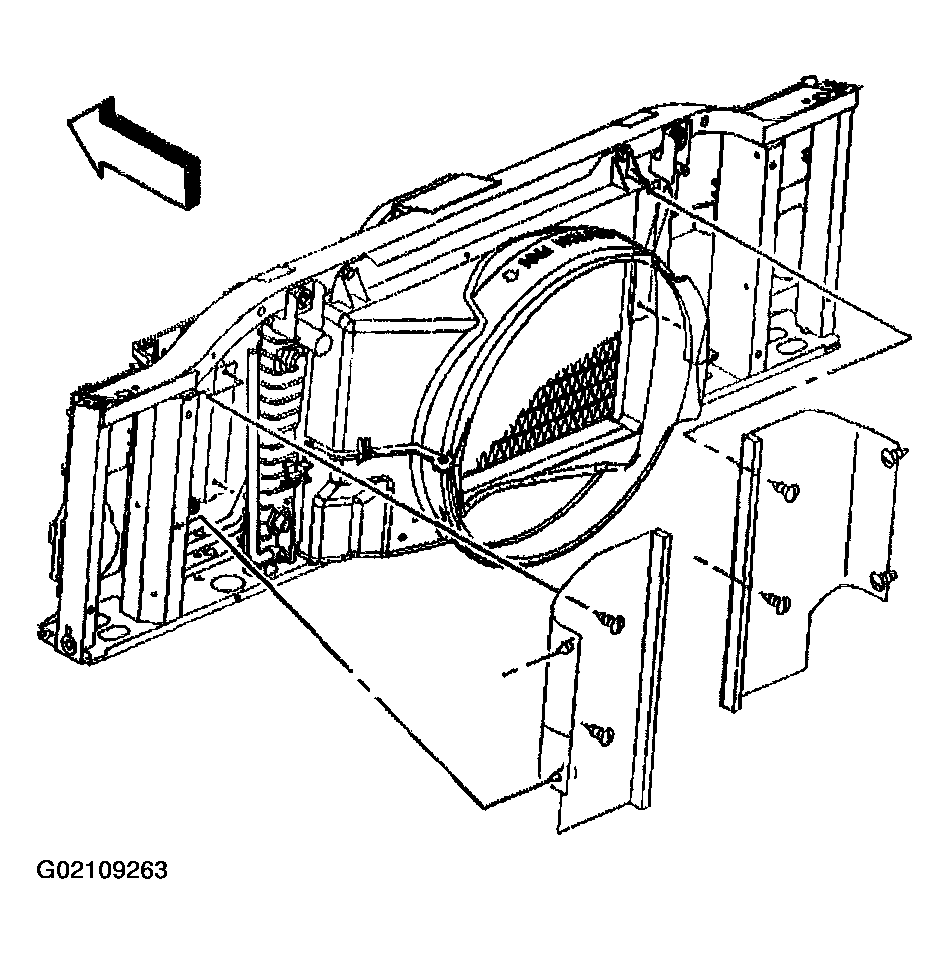

    Fig 1: Remove Radiator Air Baffles & Retainers
    G02109263Courtesy of GENERAL MOTORS CORP.
