Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator air baffles.
  2. Install the radiator air baffle retainers.
  3. Install the radiator. Refer to Radiator Replacement

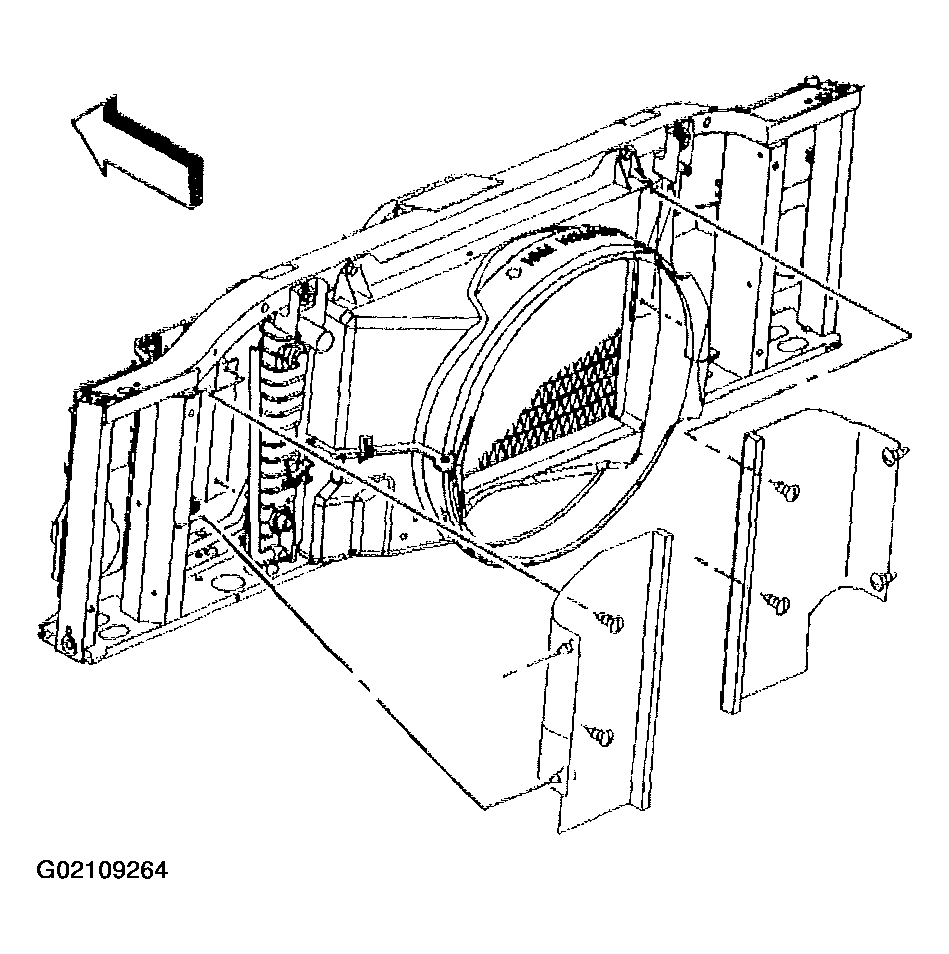

    Fig 1: Install Radiator Air Baffles & Retainers
    G02109264Courtesy of GENERAL MOTORS CORP.
