Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cooling fan. Refer to Fan Replacement .
  2. If equipped with engine oil cooler, remove the oil cooler hose clip from the lower fan shroud.
  3. Lift the lower fan shroud up in order to disengage the fan shroud from the retaining clips on the radiator.

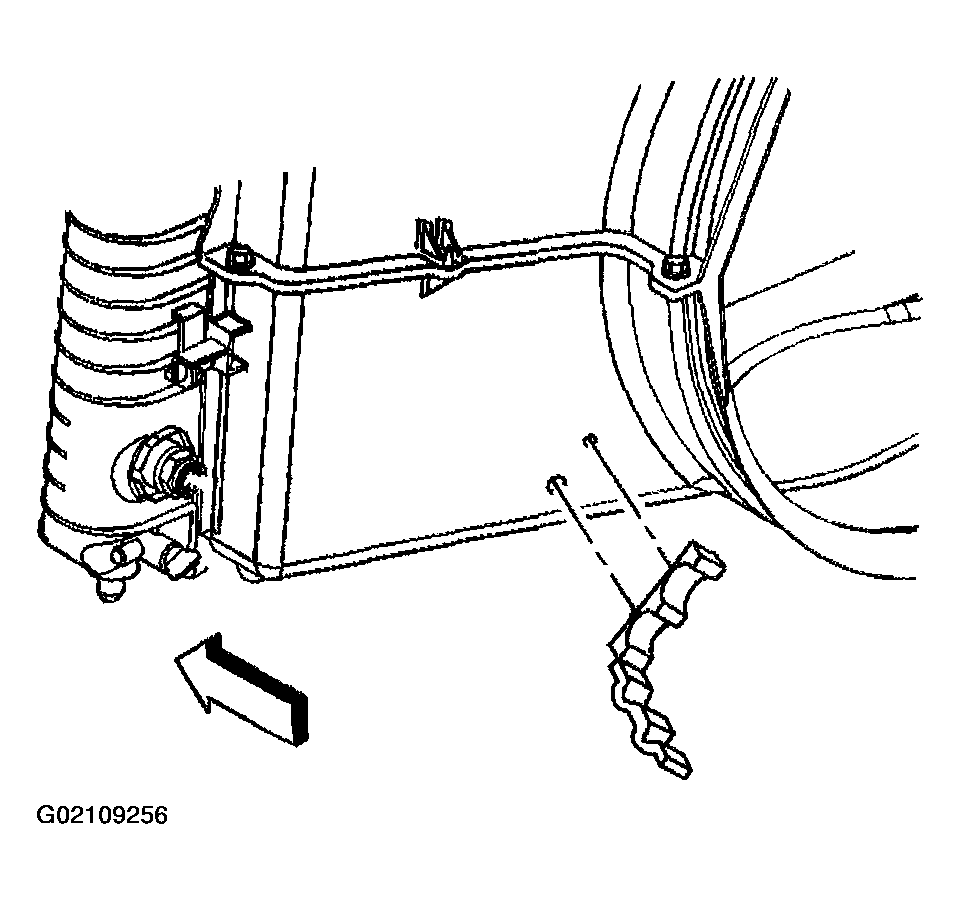

    Fig 1: Remove Oil Cooler Hose Clip
    G02109256Courtesy of GENERAL MOTORS CORP.
