Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower fan shroud to the retaining clips on the radiator and firmly push down.
  2. If equipped with the engine oil cooler, Install the oil cooler hose clip to the lower fan shroud.
  3. Install the cooling fan. Refer to Fan Replacement .

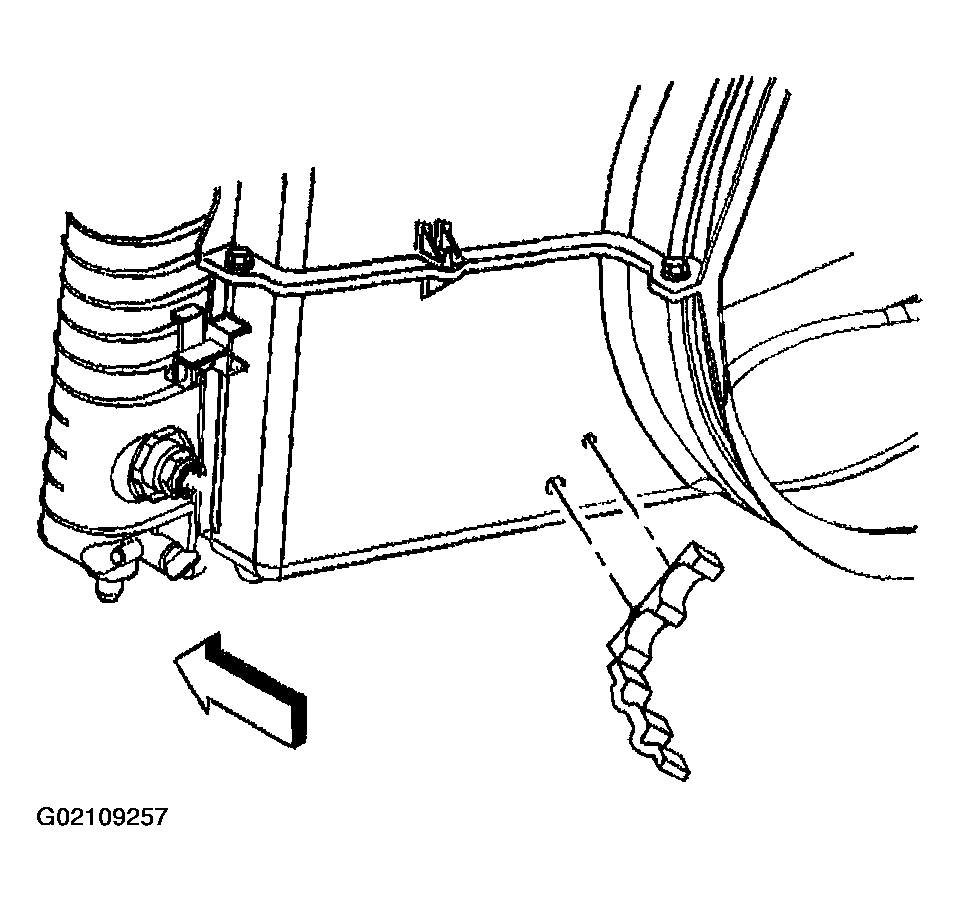

    Fig 1: Install Oil Cooler Hose Clip
    G02109257Courtesy of GENERAL MOTORS CORP.
