Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

The optional oil cooler is either an integral part of the radiator or a separate unit placed in front of the radiator. The cooler lines and hoses are serviceable.

Remove the oil cooler lines from the radiator. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .
Open the oil cooler hose clip located on the lower fan shroud.
Remove the oil cooler hoses from the clip.
Raise and suitably support the vehicle. Refer to JACKING AND LIFTING .

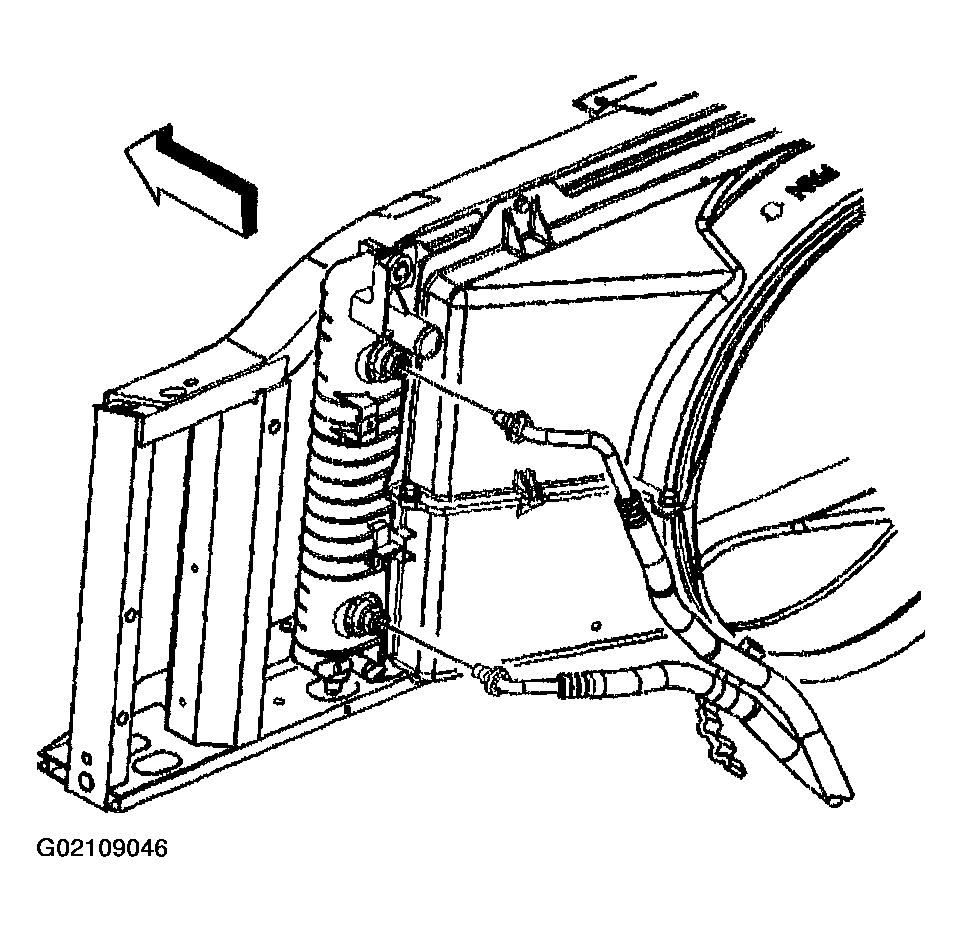

Fig 1: Remove Oil Cooler Hoses
Courtesy of GENERAL MOTORS CORP.
If equipped, remove the engine shield bolts.
Remove the engine shield.

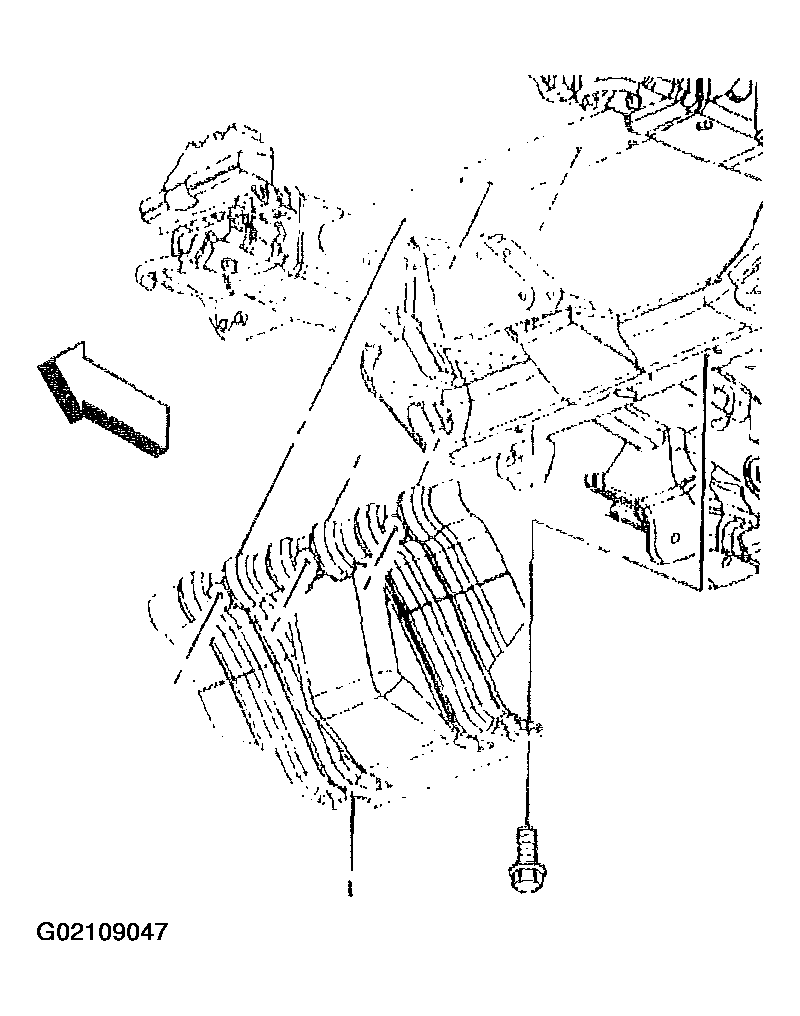

Fig 2: Remove Engine Shield
Courtesy of GENERAL MOTORS CORP.
If equipped with the a 6.0L engine, perform the following:
1. 7.1. Remove the oil cooler hose bracket bolt (1).
2. 7.2. Remove the oil cooler hose adapter bolts (2).
3. 7.3. Remove the oil cooler hose assembly and gasket.
  Discard the gasket.
4. 7.4. Inspect the fittings, connectors and cooler hoses for damage or distortion.

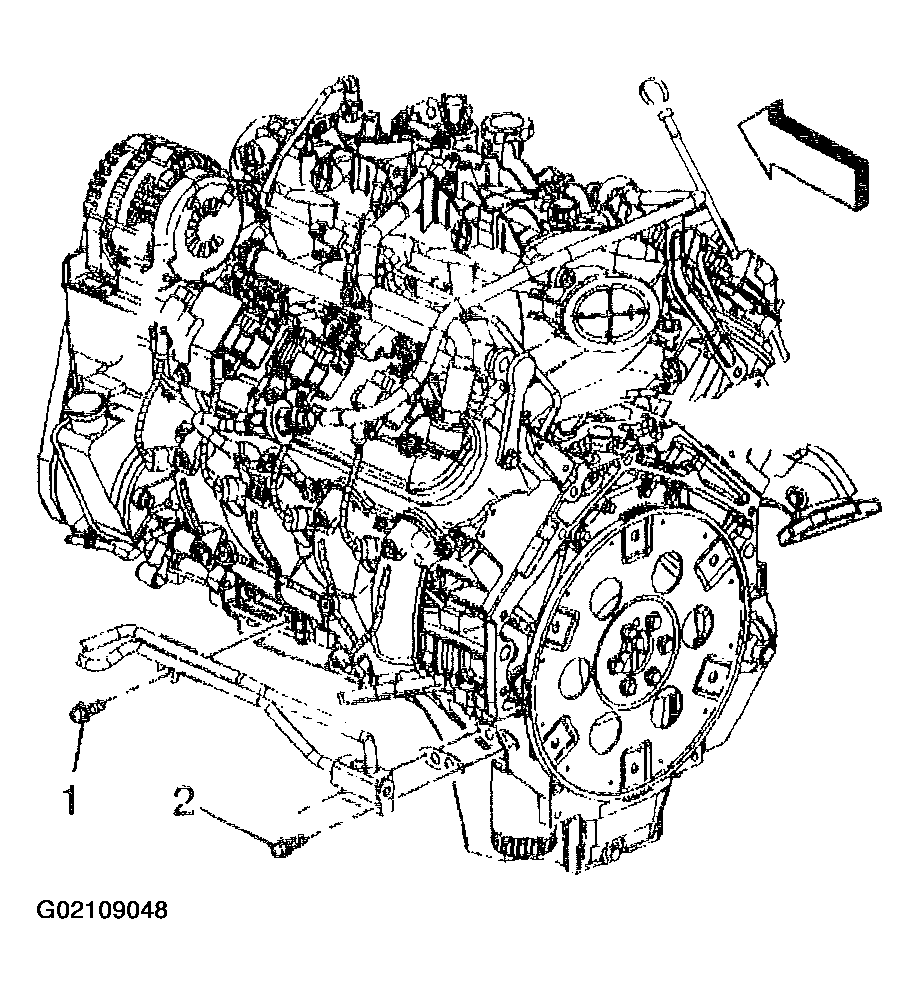

Fig 3: Remove Oil Cooler Hose Bracket & Hose Adapter Bolts
Courtesy of GENERAL MOTORS CORP.
If equipped with a 8.1L engine, perform the following:
1. 8.1. Remove the oil cooler hose bracket bolt.
2. 8.2. Disconnect the quick connect fittings (1) at the engine. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .
3. 8.3. Remove the oil cooler hose assembly.
4. 8.4. Inspect the fittings, connectors and cooler hoses for damage or distortion.

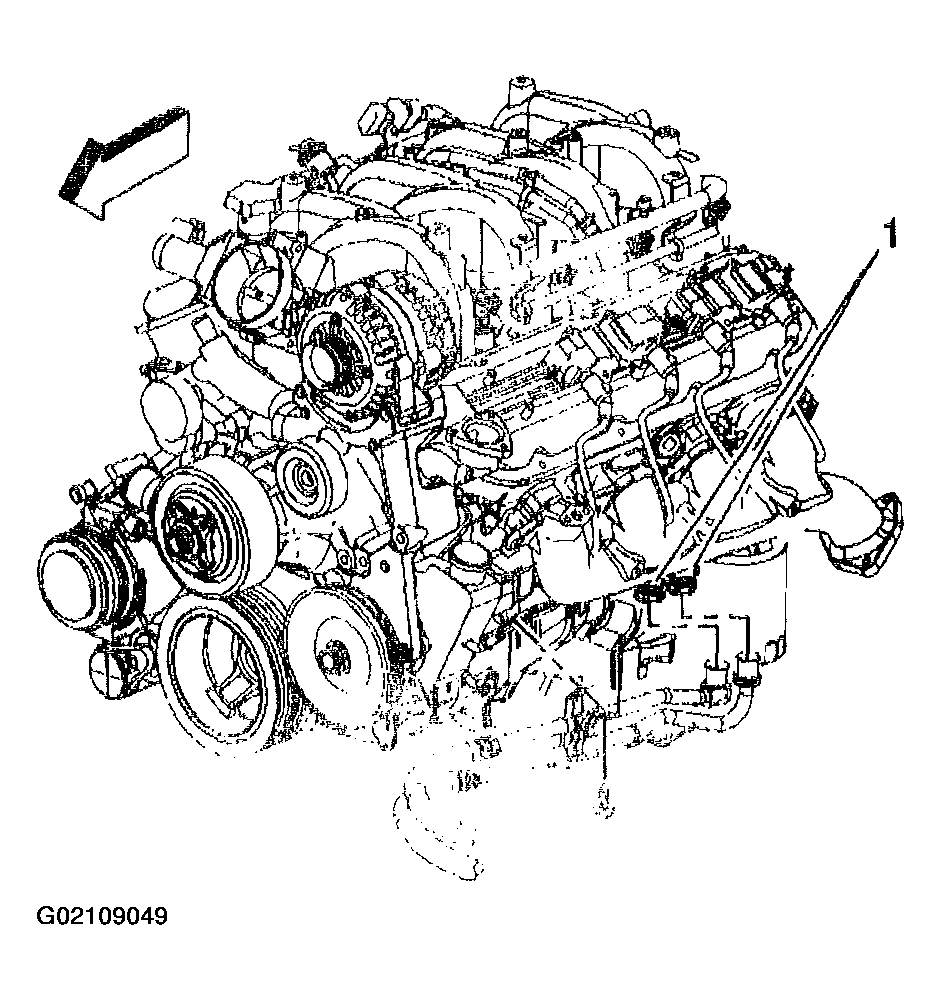

Fig 4: Disconnect Quick Connect Fittings
Courtesy of GENERAL MOTORS CORP.
