Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fan pulley spacer.
  2. Install the fan pulley.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the fan pulley bolts/nuts.

    Tighten

    Tighten the bolts/nuts to 46 N.m (34 lb ft).

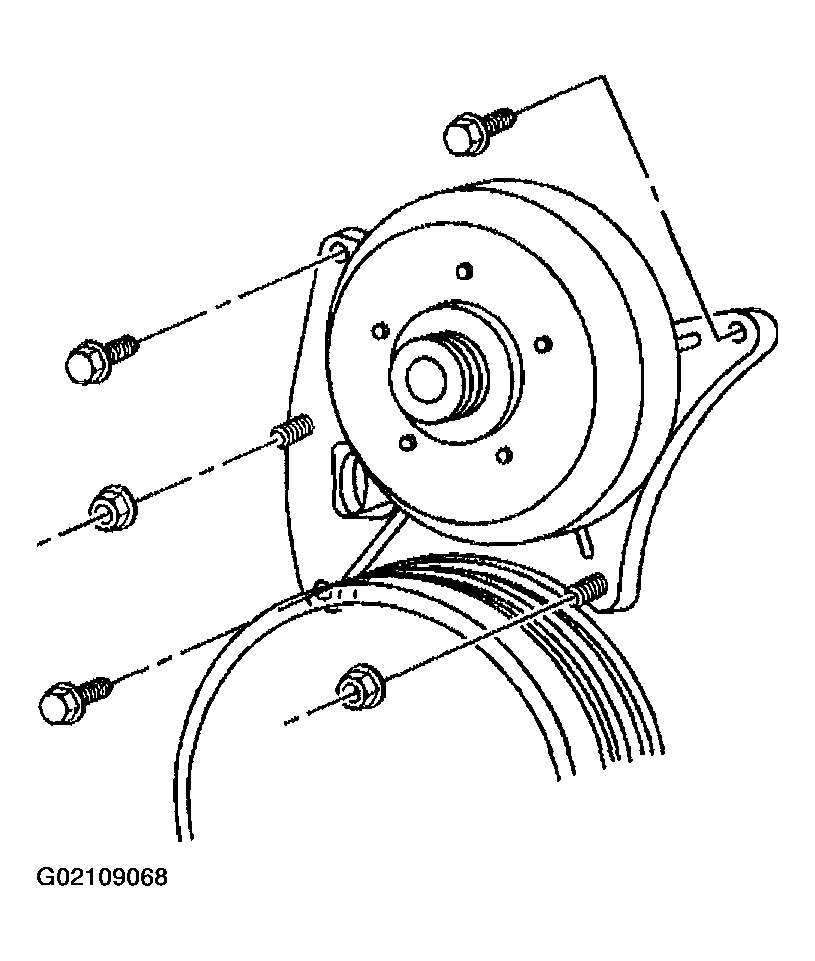

    Fig 1: Installing Fan Pulley, Spacer & Bolts/Nuts
    G02109068Courtesy of GENERAL MOTORS CORP.
  4. Connect the CMP sensor electrical connector (1).
  5. Install the fan clutch. Refer to Fan Clutch Replacement .

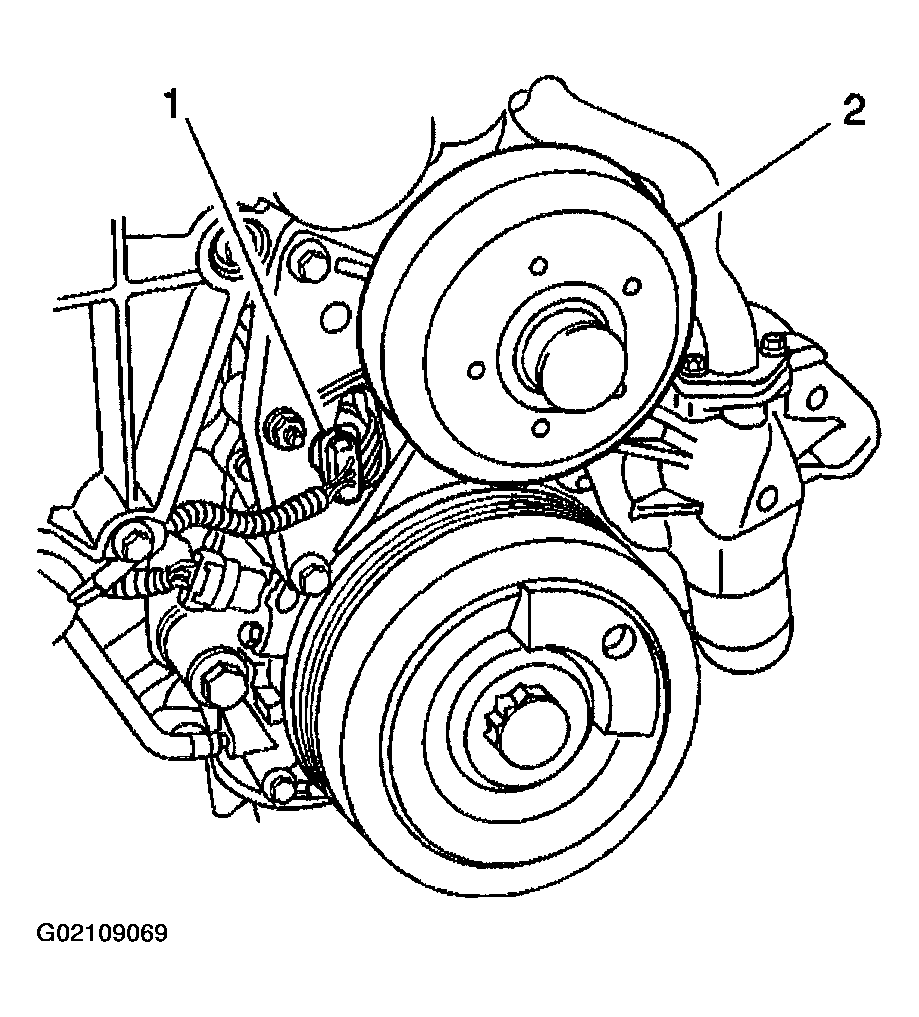

    Fig 2: Connect CMP Sensor Electrical Connector
    G02109069Courtesy of GENERAL MOTORS CORP.
