Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Coat the O-ring seal and the cleaned surface of the plug opening with water resistant high-temperature grease lubricant GM P/N 1052196 (Canadian P/N 5264008), or the equivalent.
IMPORTANT: Avoid element contact with the inside walls of the engine block.
Align the coolant heater element to point towards the top of the engine.
Tightly push the coolant heater into the engine block.

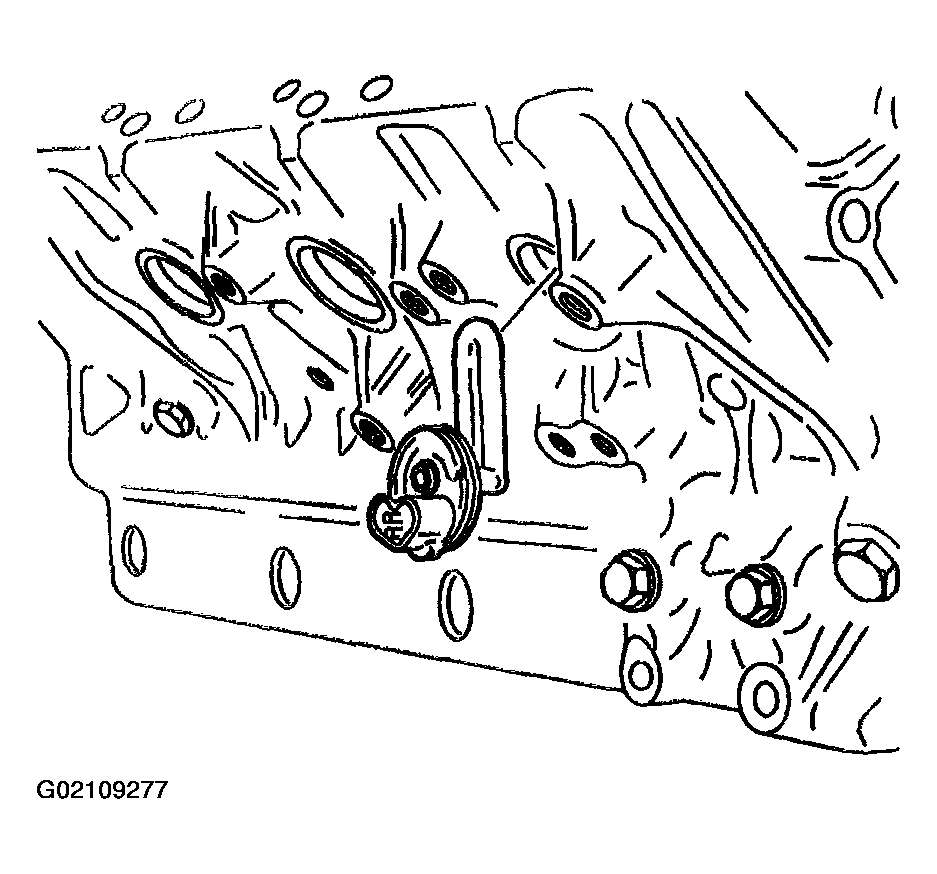

Fig 1: Install Coolant Heater
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Tighten the bolt on the engine coolant heater until both of the locking wings draw tightly against the inner wall of the engine block.
Tighten

Tighten the bolt to 2 N.m (18 lb in).

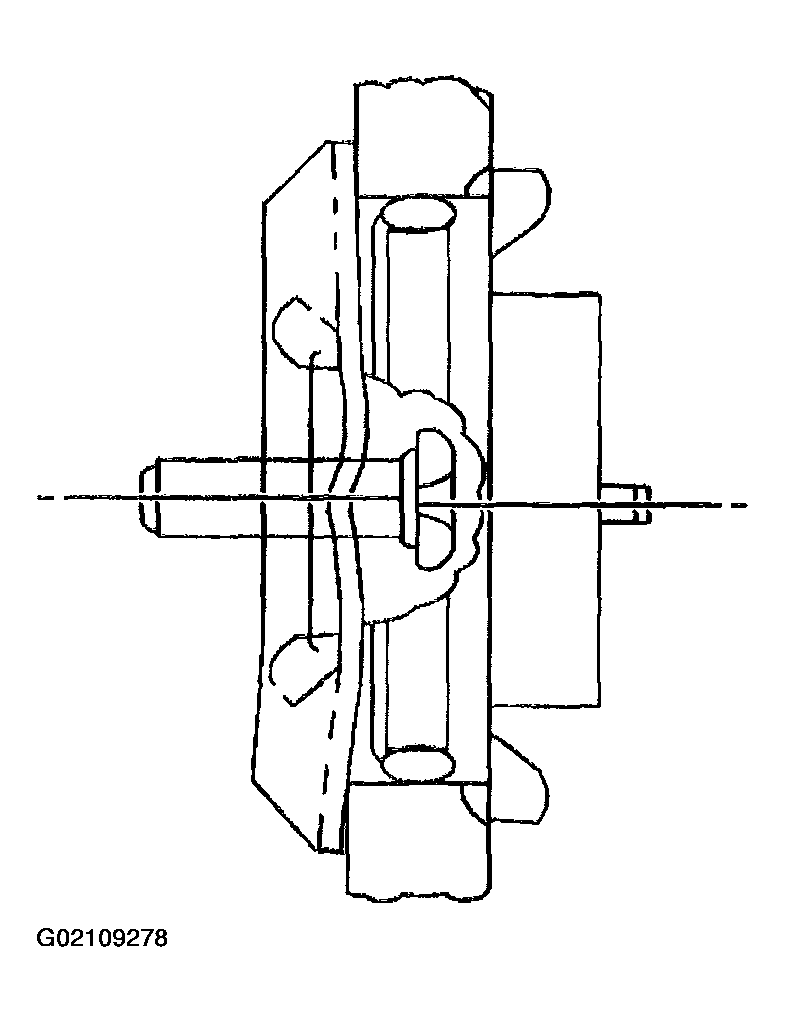

Fig 2: View Of Proper Installation For Engine Coolant Heater Bolt
Courtesy of GENERAL MOTORS CORP.

NOTE: The heater cord must not touch the engine, hot pipes, manifold, or any moving parts. Route the cord to the left front of the engine compartment securing with tie straps as necessary to prevent damage.
Connect the heater cord to the coolant heater.
Install the right engine mount.
Install the right front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
Fill the cooling system. Refer to Draining and Filling Cooling System .
Inspect for coolant leaks.

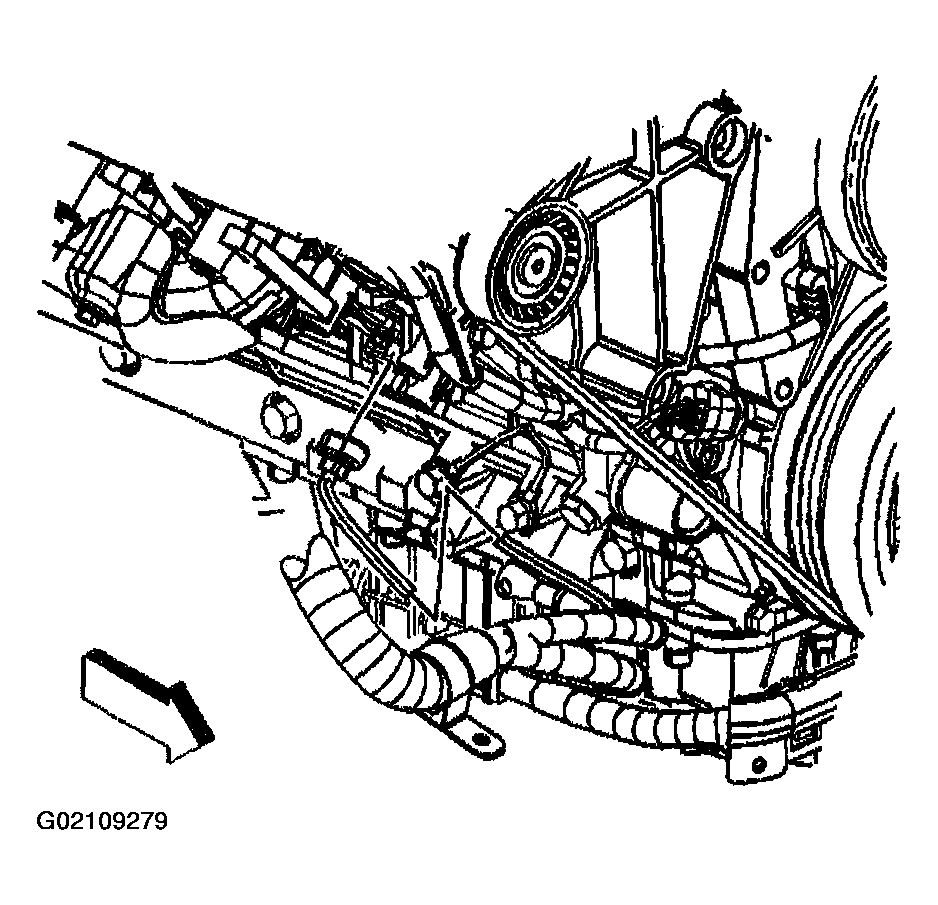

Fig 3: Connect Heater Cord
Courtesy of GENERAL MOTORS CORP.
