Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the coolant air bleed hose (1) to the pipe (2).
Position the coolant air bleed hose clamp at the pipe.

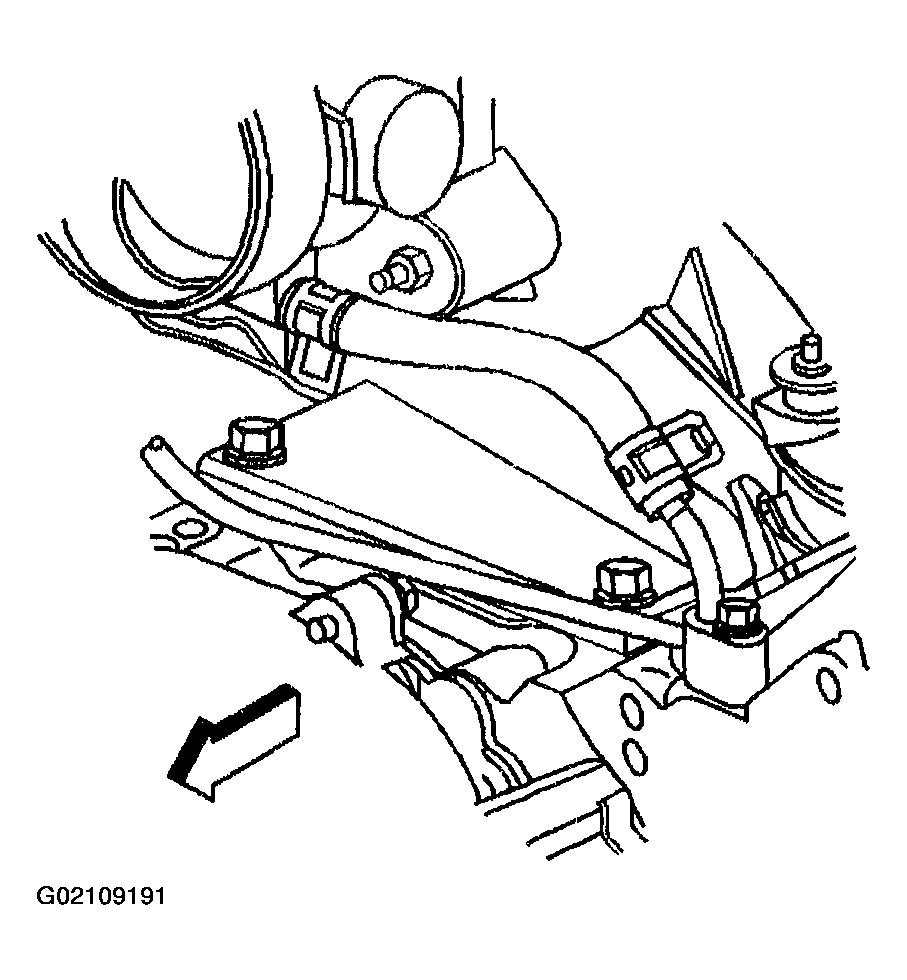

Fig 1: Coolant Air Bleed Hose & Pipe
Courtesy of GENERAL MOTORS CORP.
Install the coolant air bleed hose to the throttle body.
Position the coolant air bleed hose clamp at the throttle body.
Add engine coolant, if necessary.

Fig 2: Install Coolant Air Bleed Hose
Courtesy of GENERAL MOTORS CORP.
