Thread Repair Specifications

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

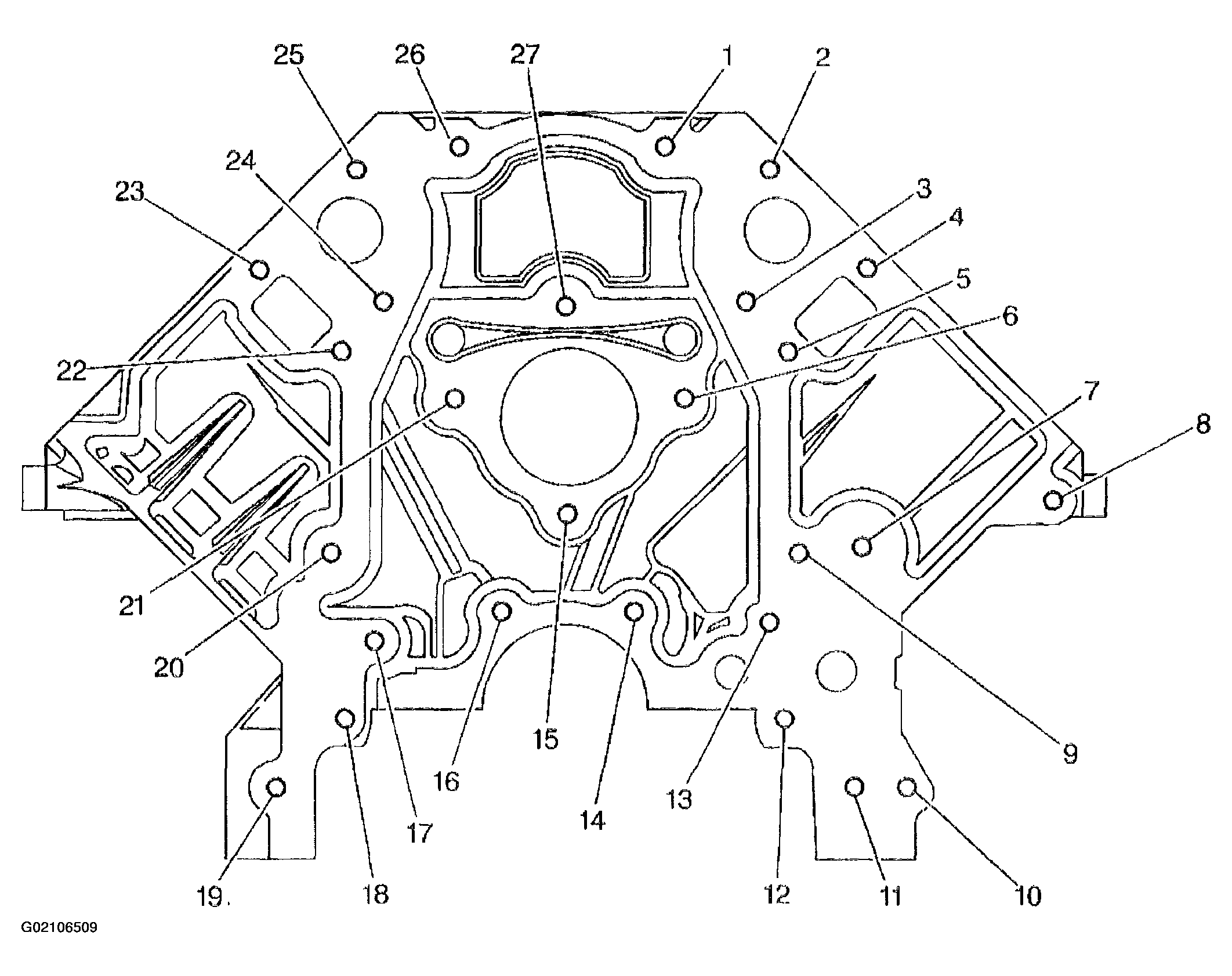

Fig 1: Engine Block - Front View
G02106509Courtesy of GENERAL MOTORS CORP.

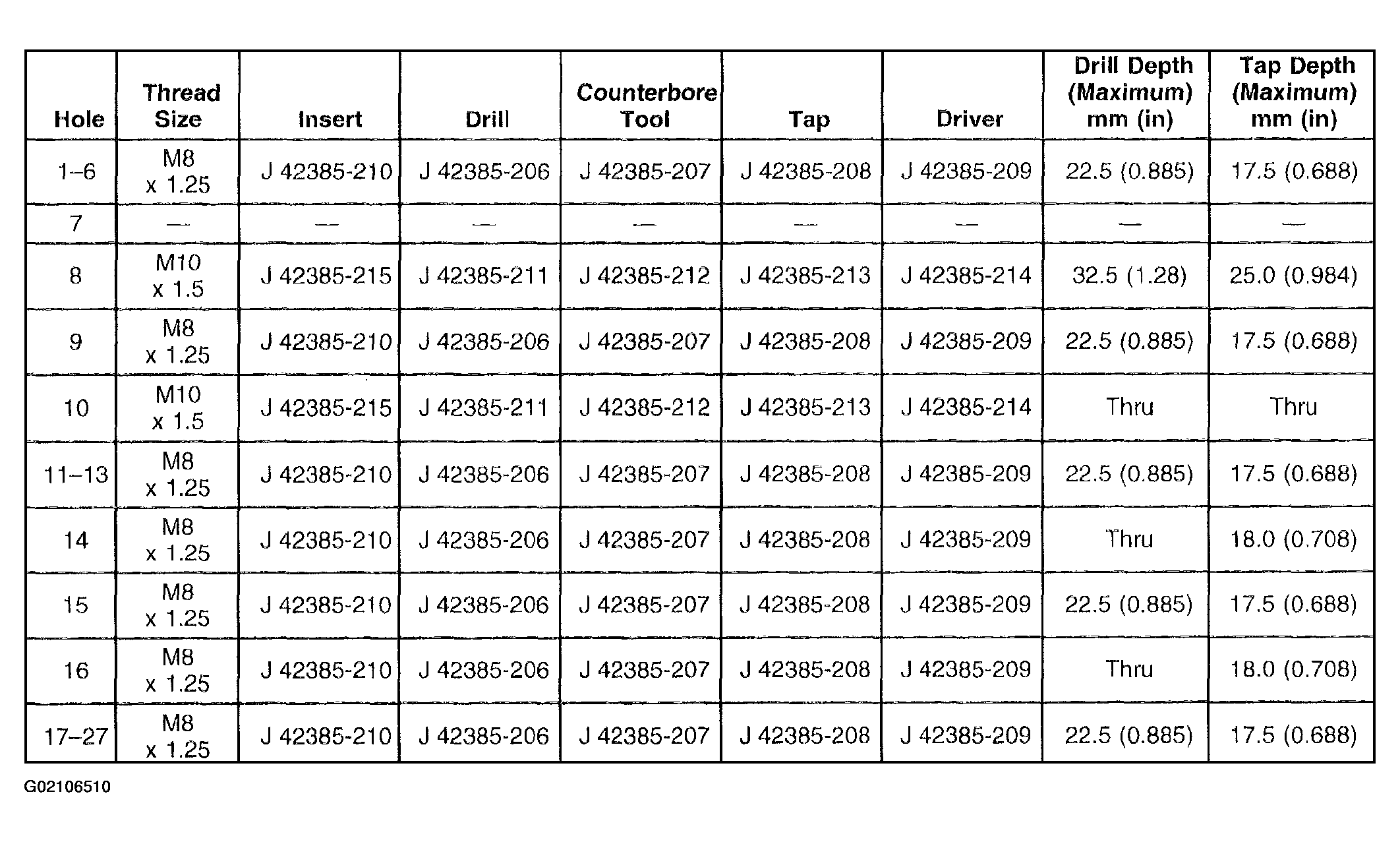

Fig 2: Engine Block - Front View
G02106510Courtesy of GENERAL MOTORS CORP.

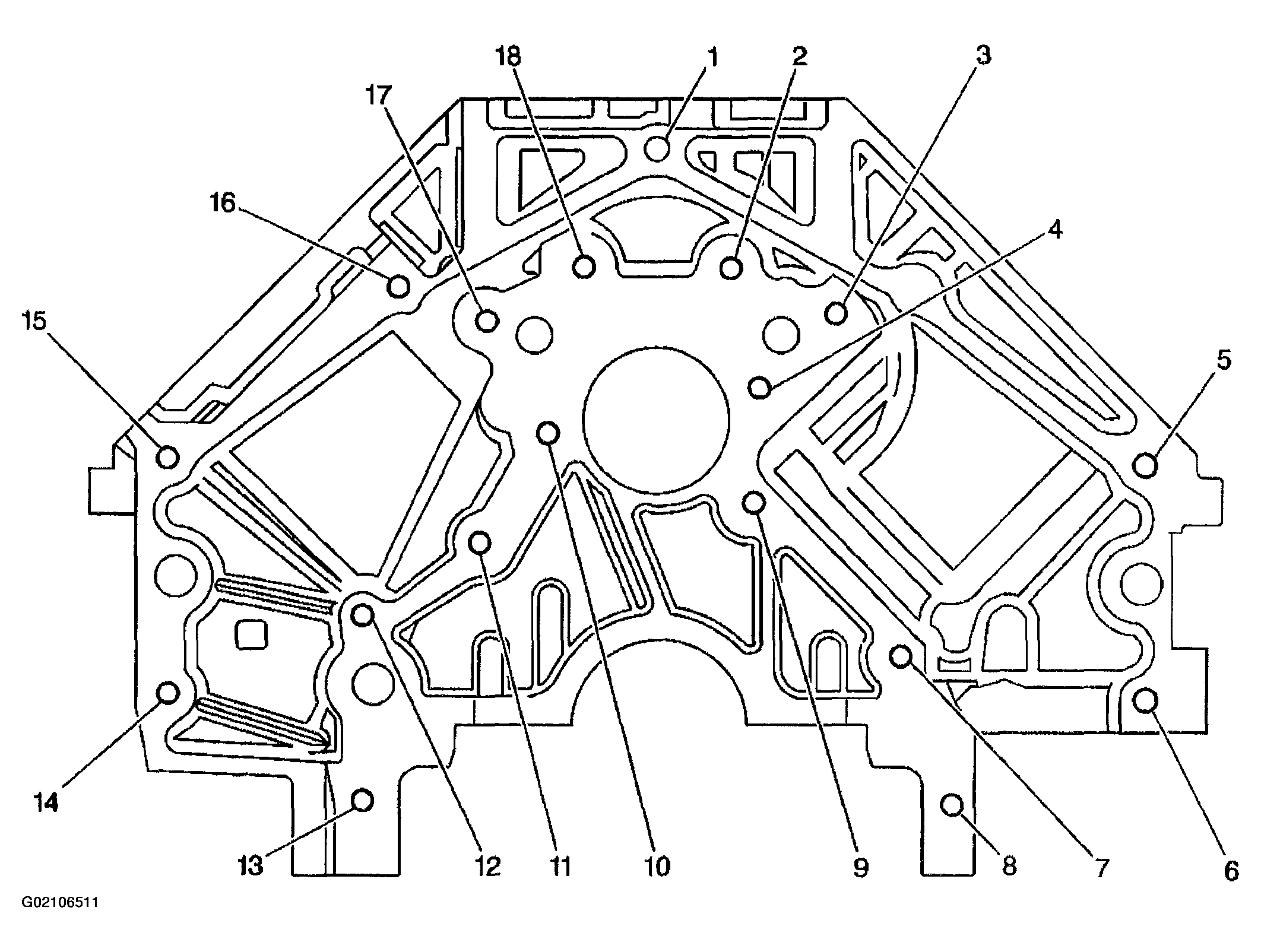

Fig 3: Engine Block - Rear View
G02106511Courtesy of GENERAL MOTORS CORP.

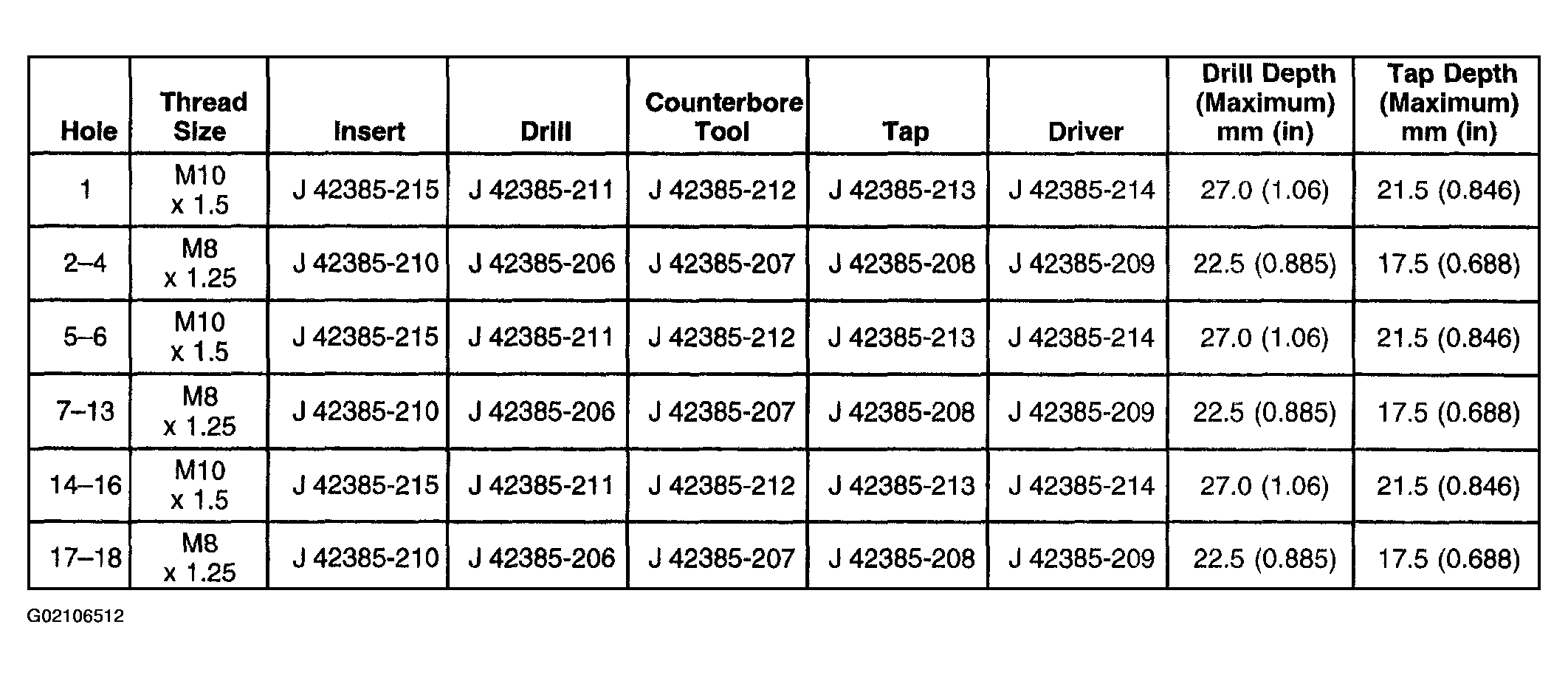

Fig 4: Engine Block - Rear View
G02106512Courtesy of GENERAL MOTORS CORP.

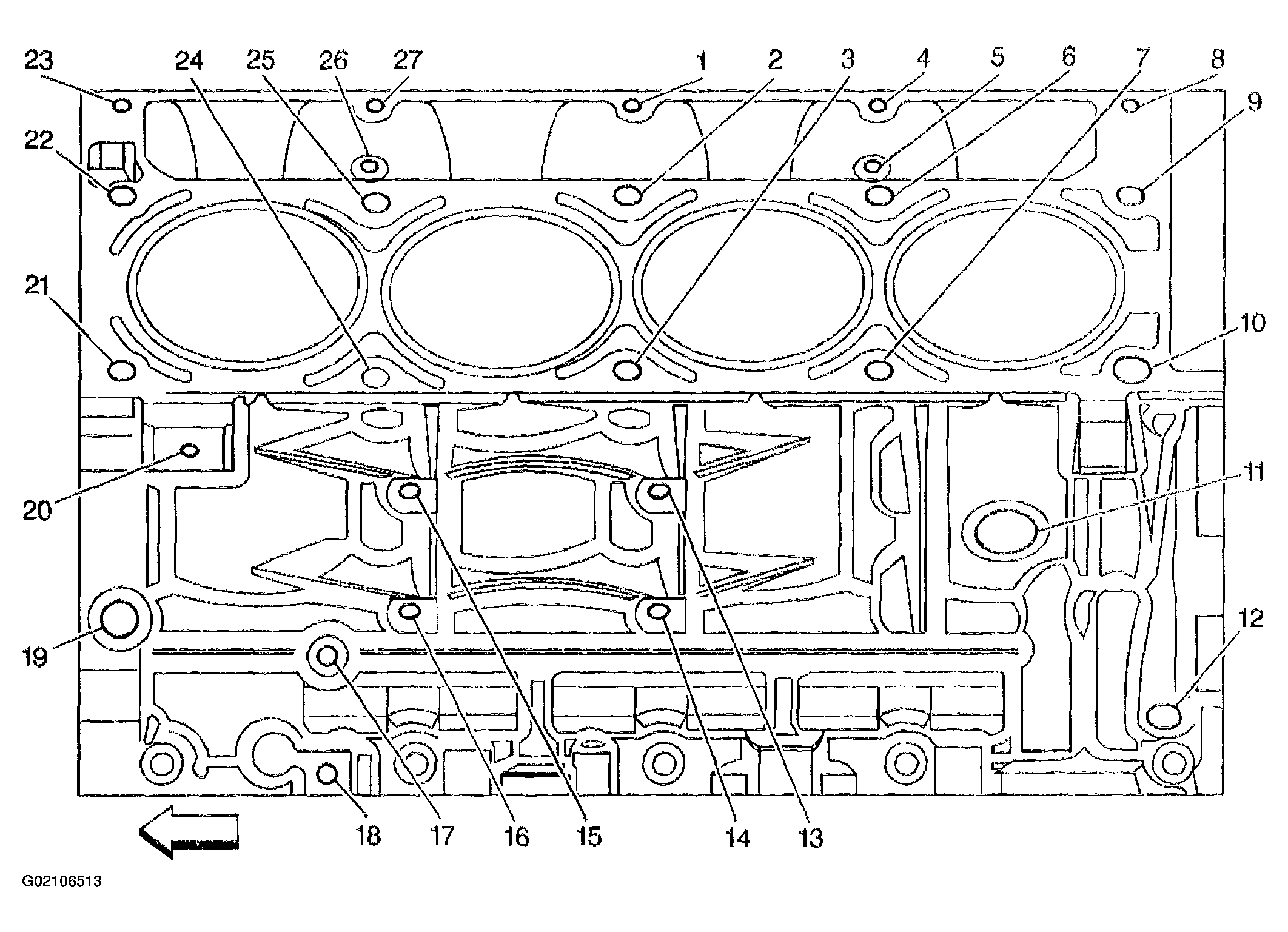

Fig 5: Engine Block - Left Side View
G02106513Courtesy of GENERAL MOTORS CORP.

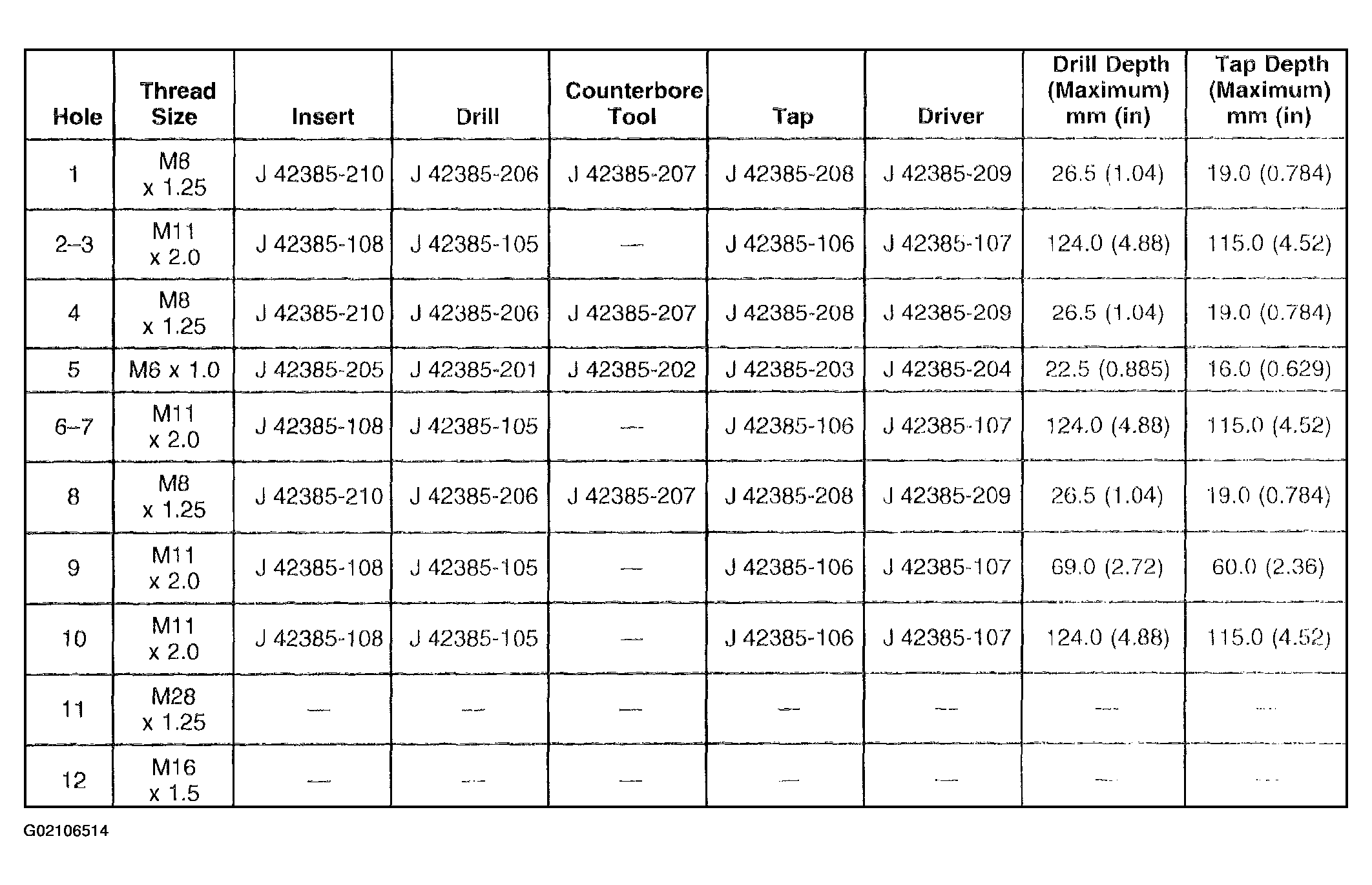

Fig 6: Engine Block - Left Side (1 Of 2)
G02106514Courtesy of GENERAL MOTORS CORP.

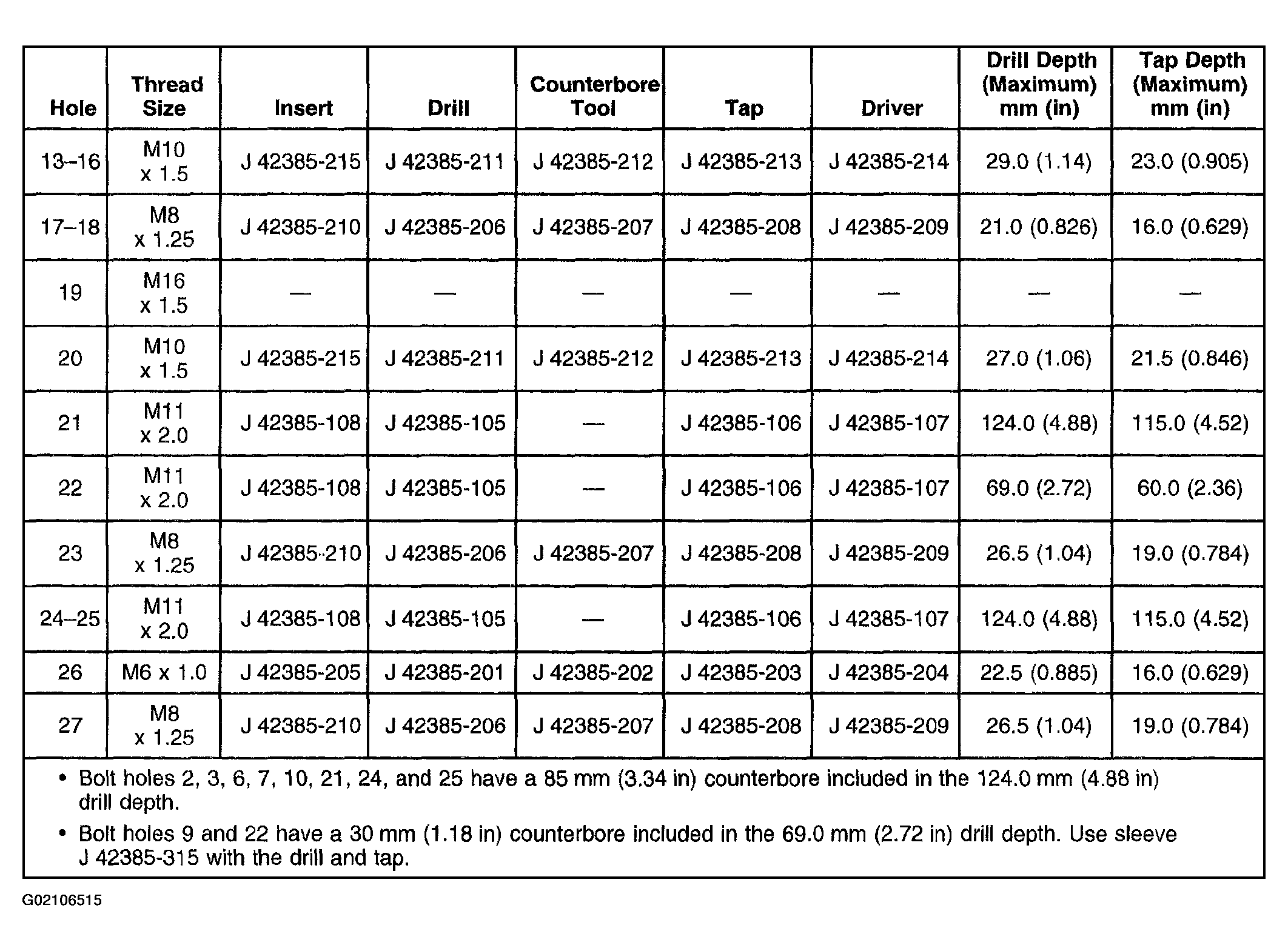

Fig 7: Engine Block - Left Side (2 Of 2)
G02106515Courtesy of GENERAL MOTORS CORP.

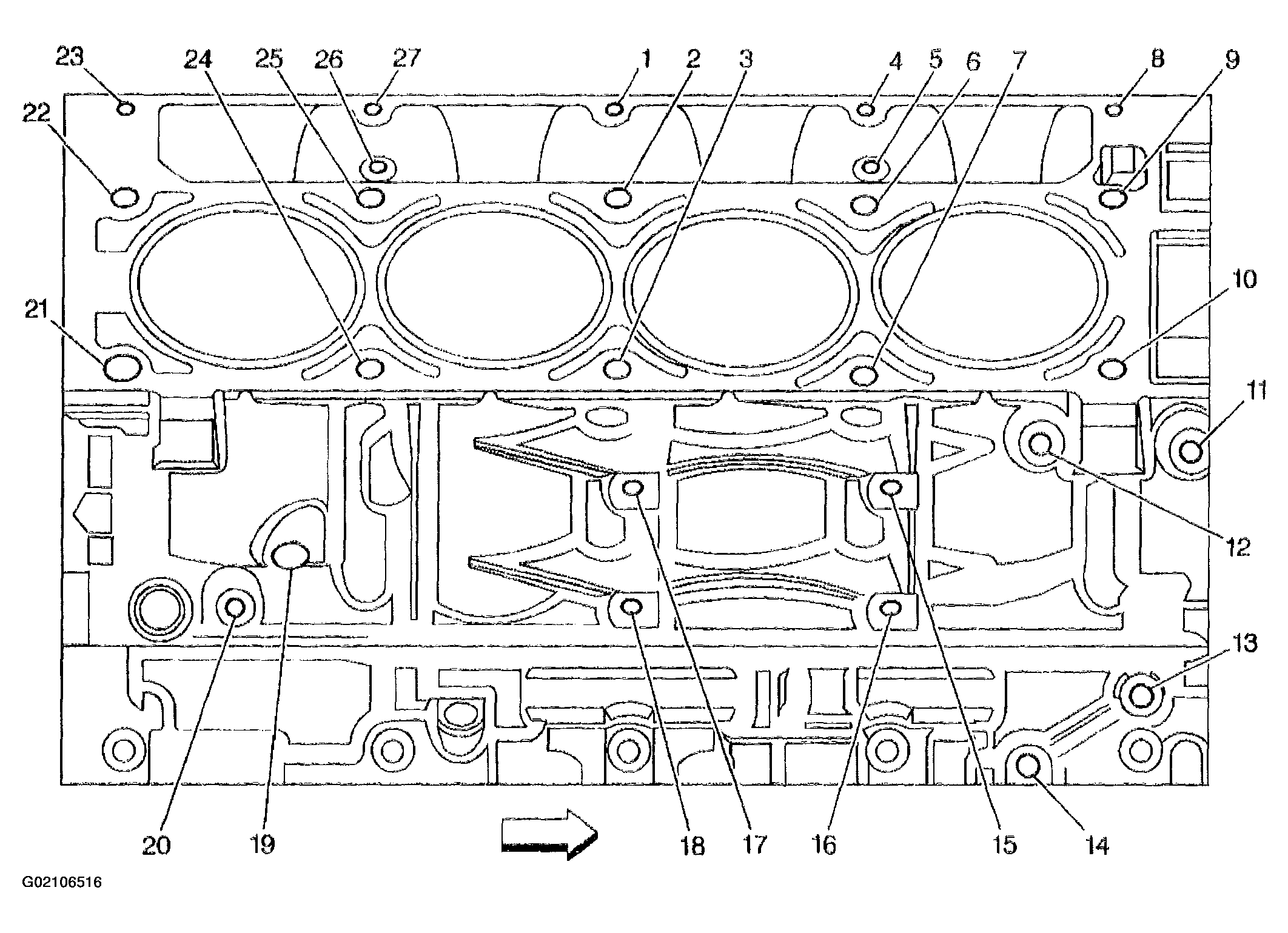

Fig 8: Block - Right Side View
G02106516Courtesy of GENERAL MOTORS CORP.

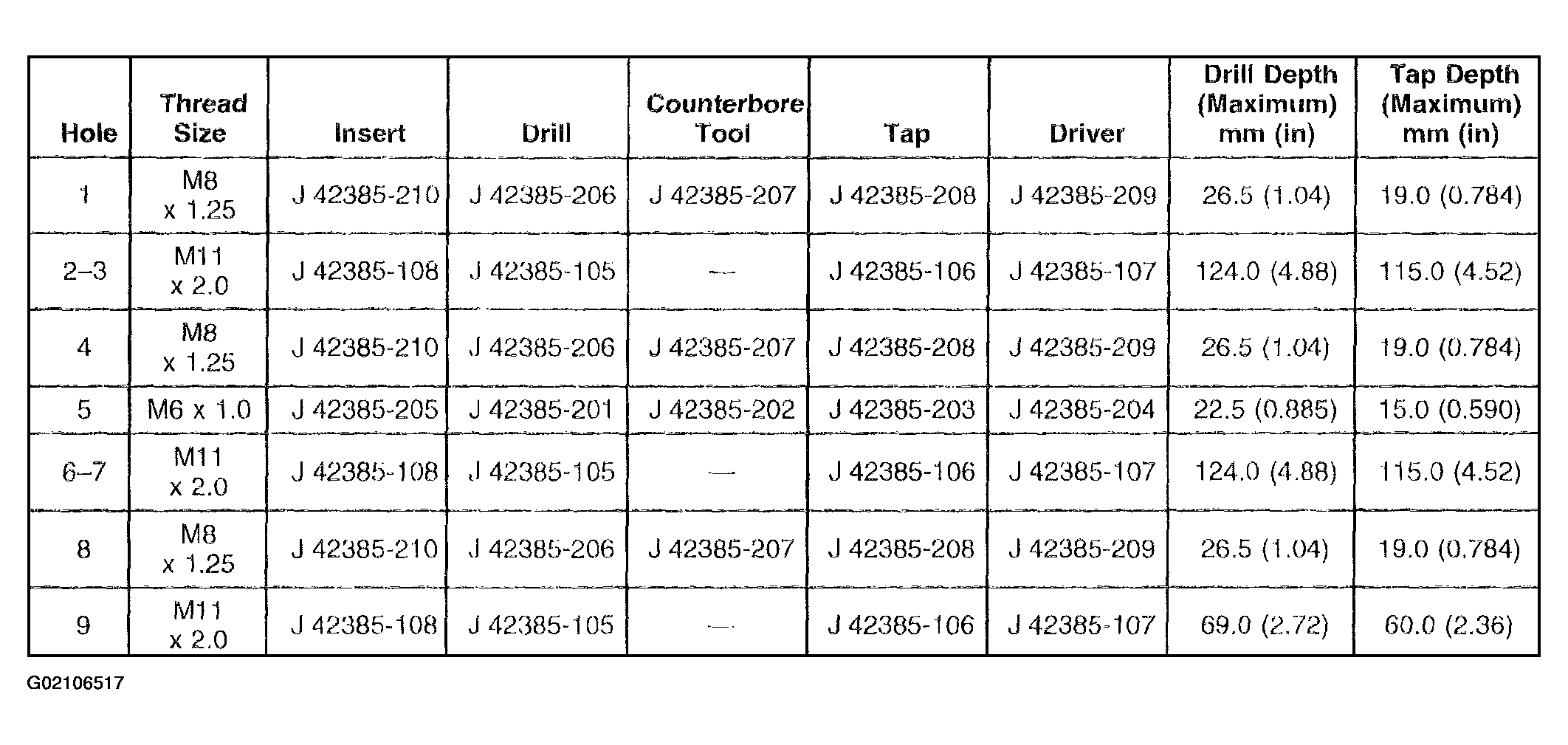

Fig 9: Engine Block - Right Side View (1 Of 2)
G02106517Courtesy of GENERAL MOTORS CORP.

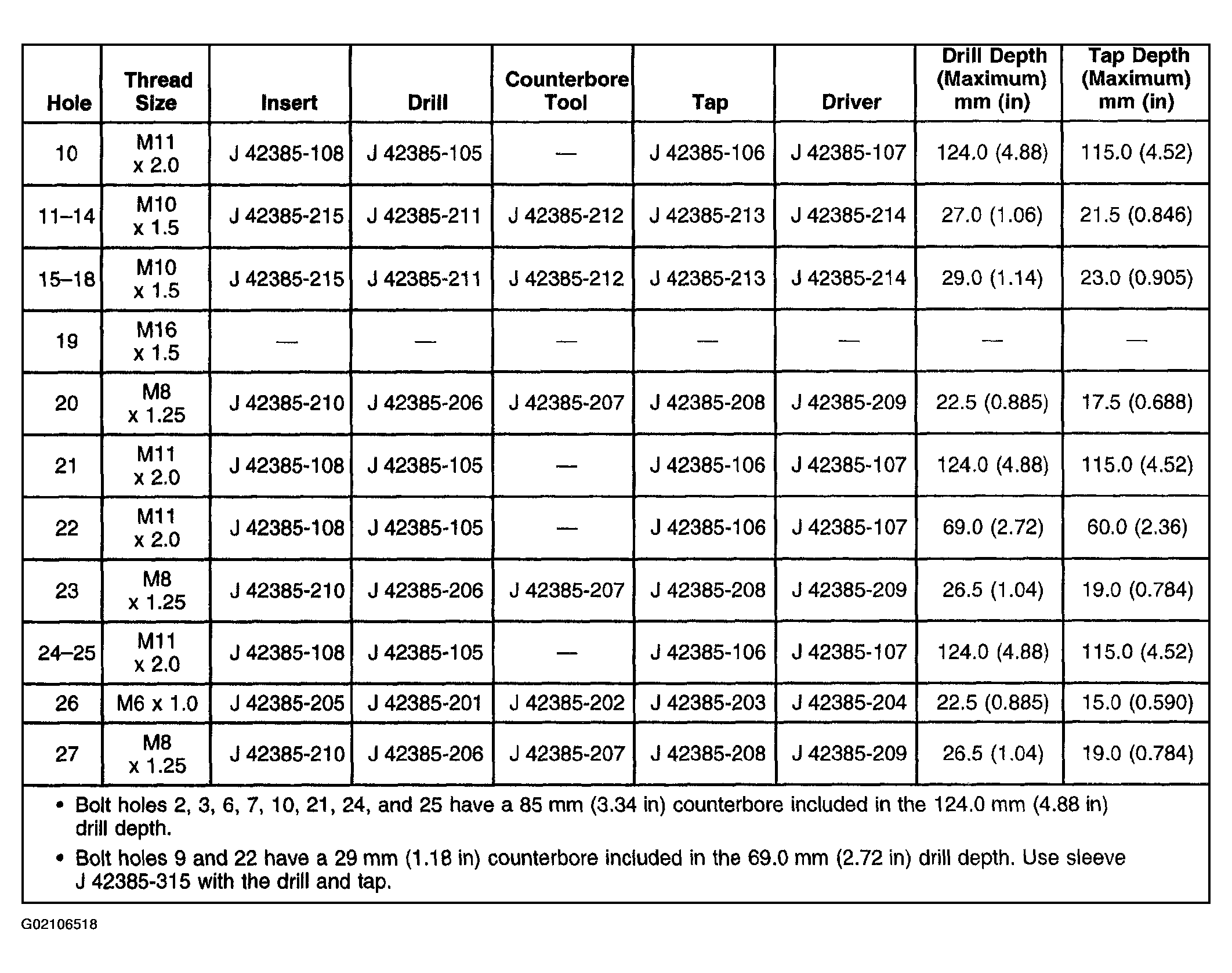

Fig 10: Engine Block - Right Side View (2 Of 2)
G02106518Courtesy of GENERAL MOTORS CORP.

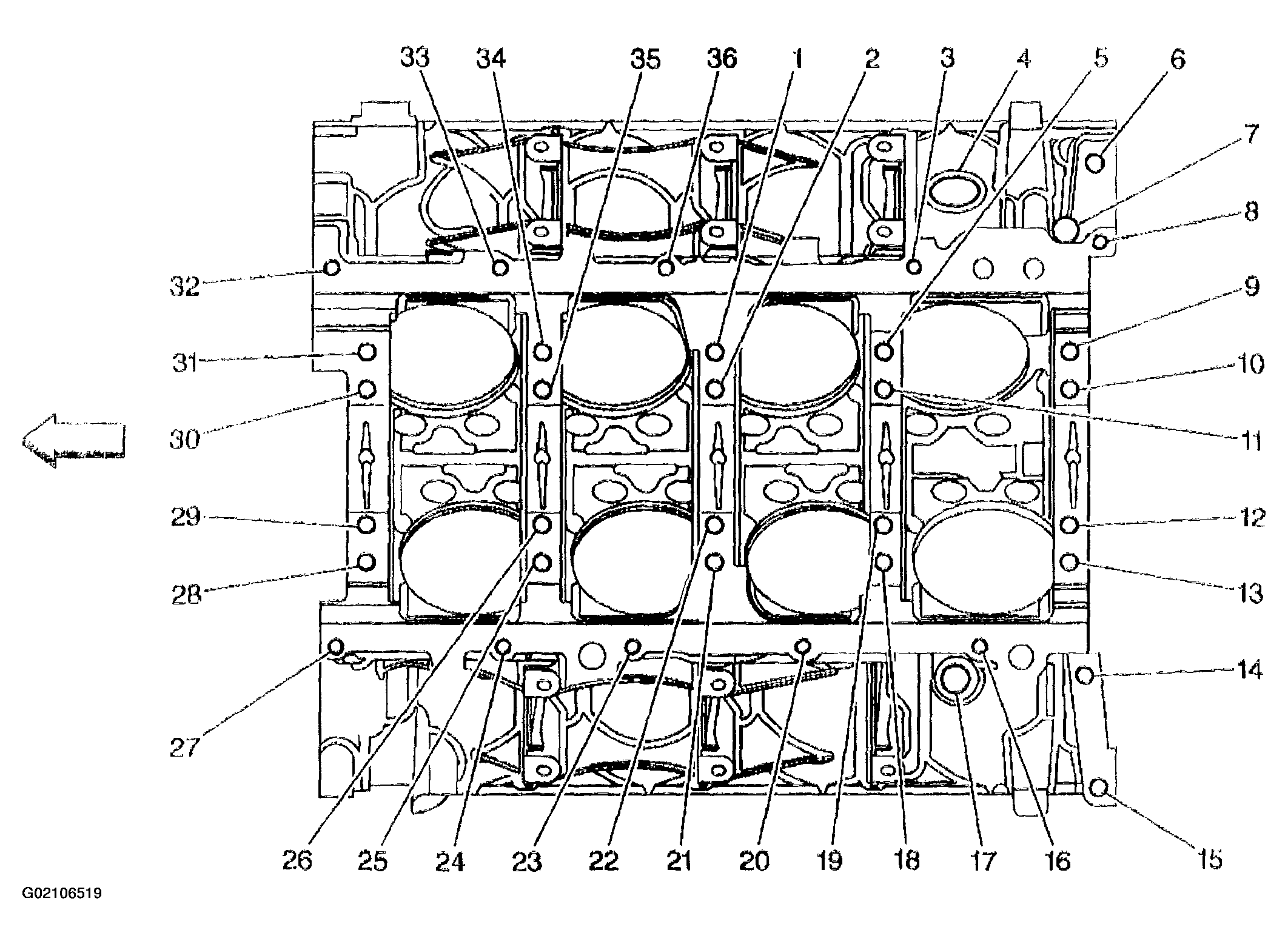

Fig 11: Engine Block - Bottom View
G02106519Courtesy of GENERAL MOTORS CORP.

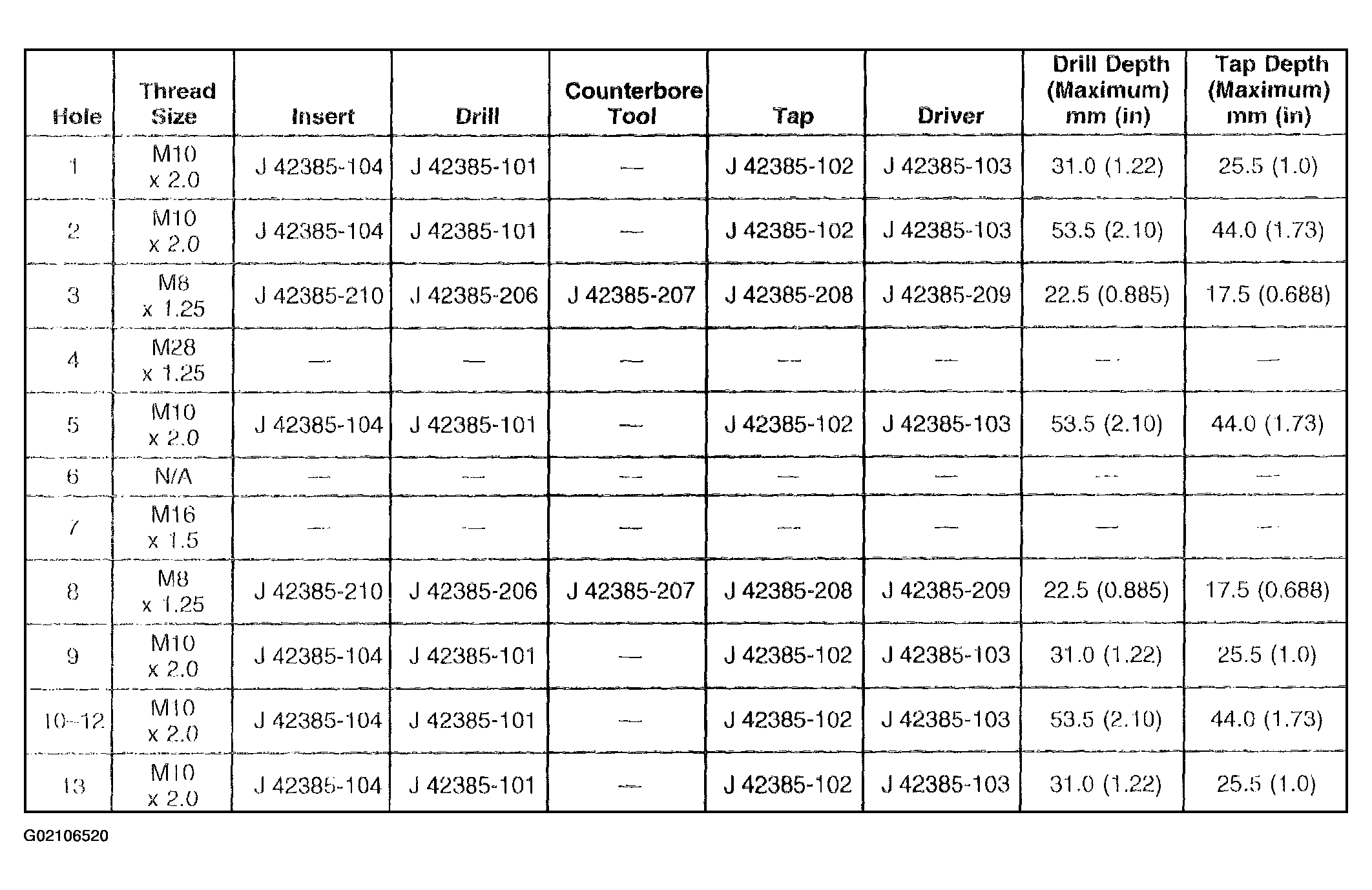

Fig 12: Engine Block - Bottom (1 Of 2)
G02106520Courtesy of GENERAL MOTORS CORP.

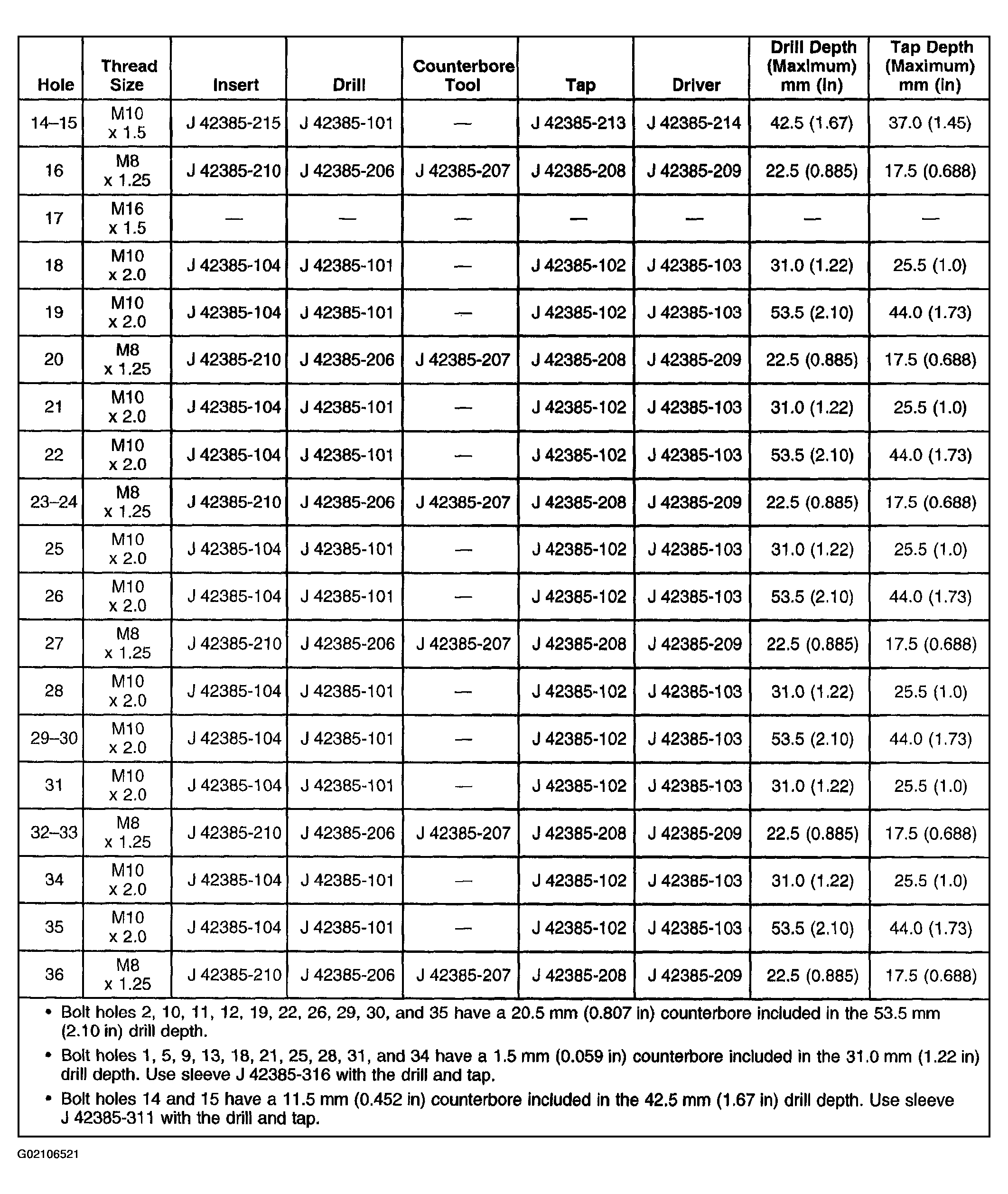

Fig 13: Engine Block - Bottom (2 Of 2)
G02106521Courtesy of GENERAL MOTORS CORP.

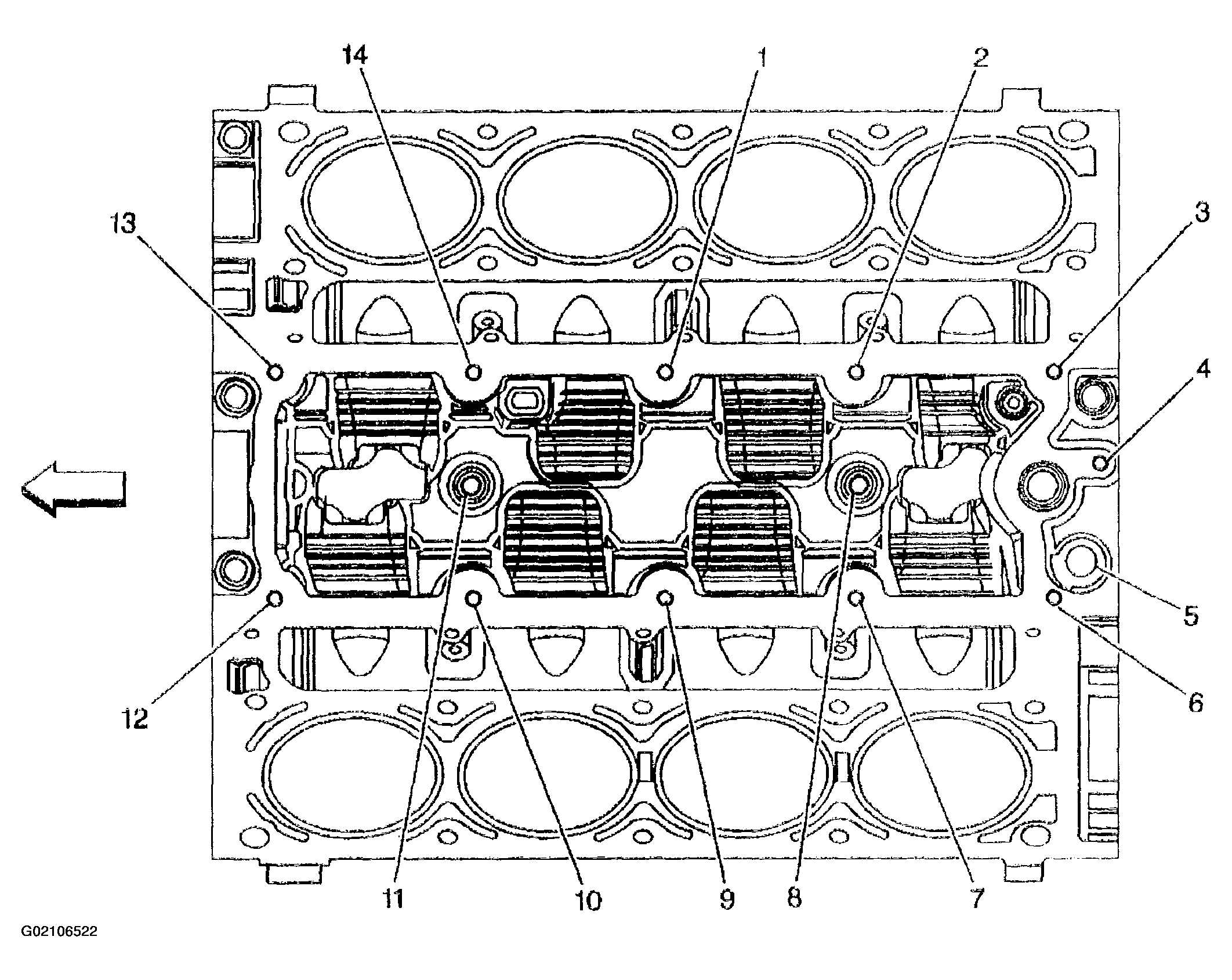

Fig 14: Engine Block - Top View
G02106522Courtesy of GENERAL MOTORS CORP.

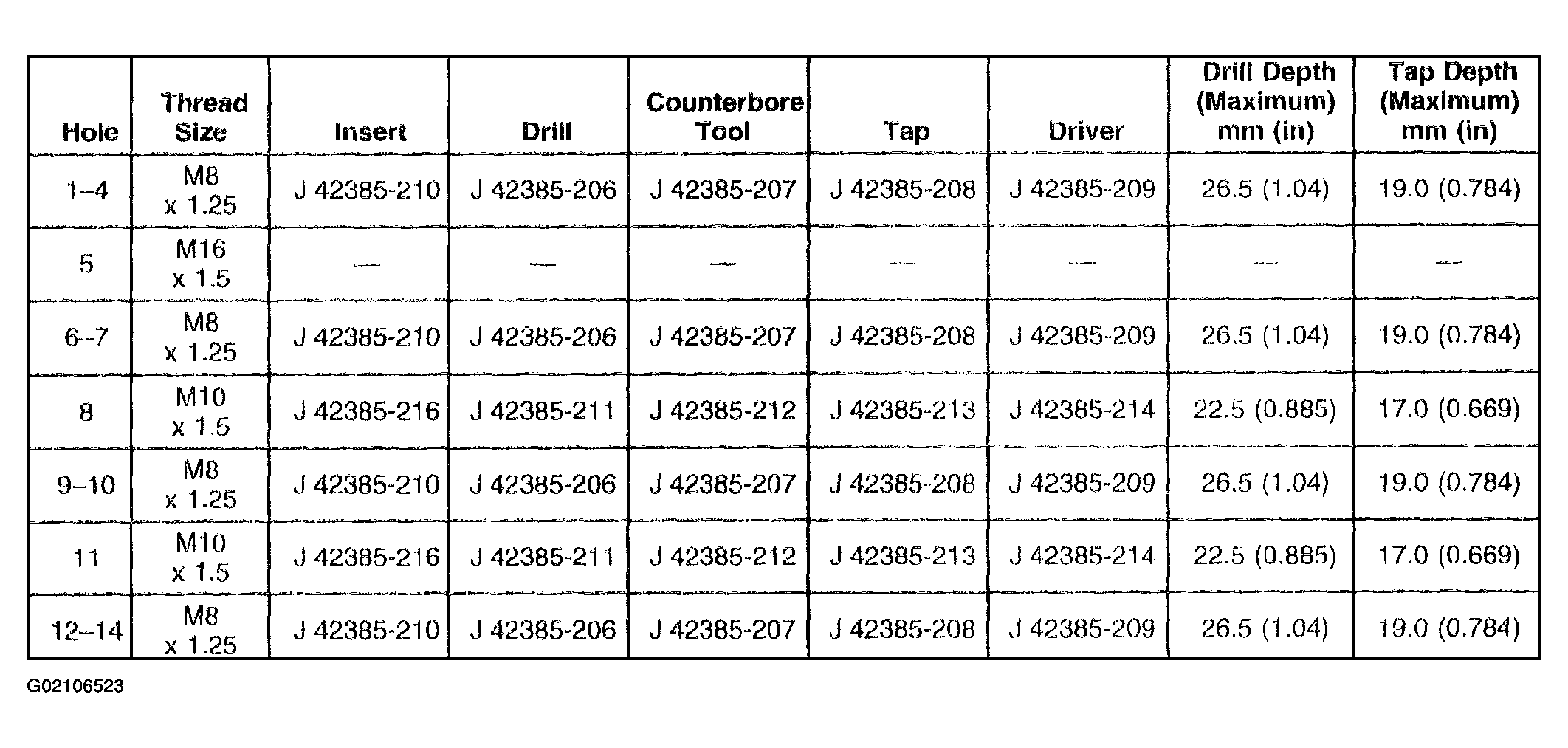

Fig 15: Engine Block - Top View
G02106523Courtesy of GENERAL MOTORS CORP.

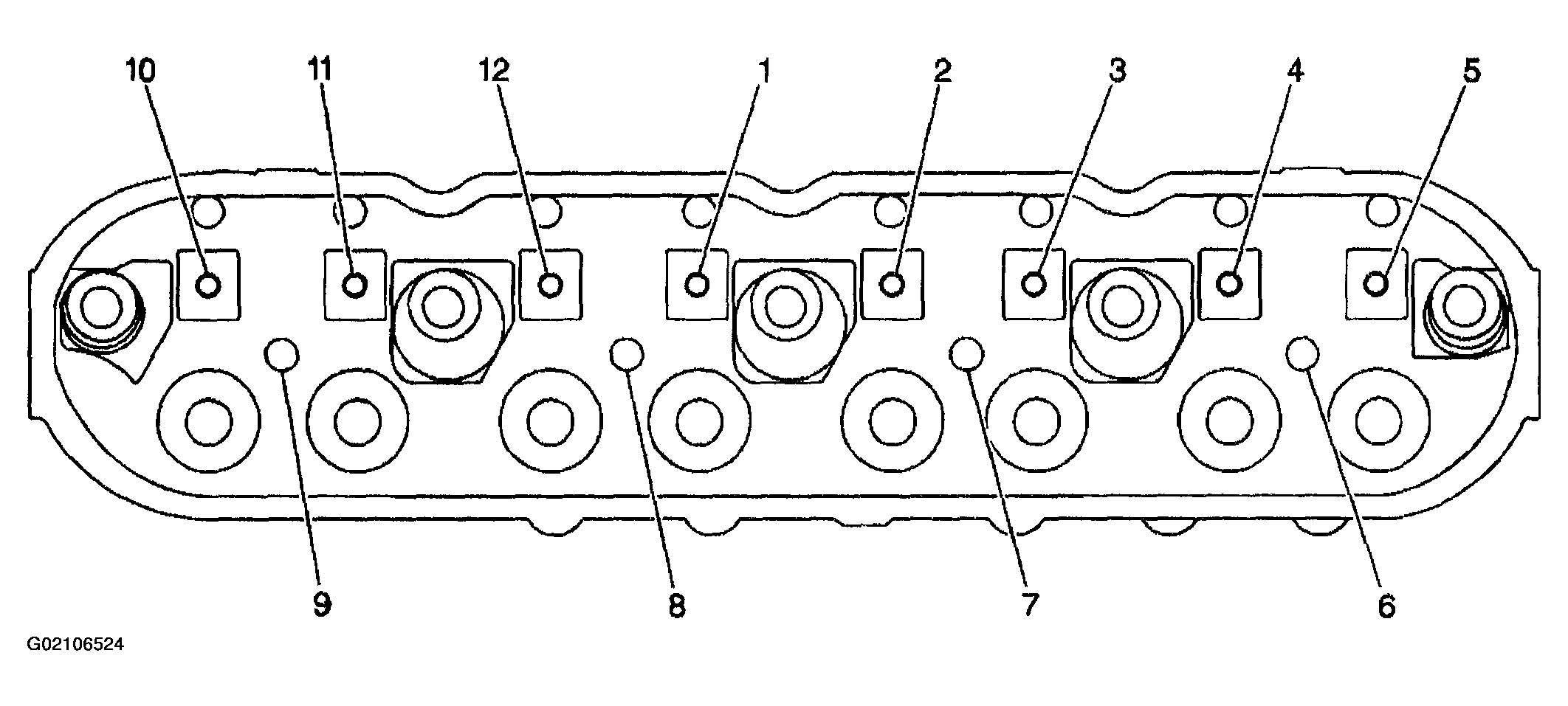

Fig 16: Cylinder Head - Top View
G02106524Courtesy of GENERAL MOTORS CORP.
Fig 17: Cylinder Head - Top View
G02106525Courtesy of GENERAL MOTORS CORP.

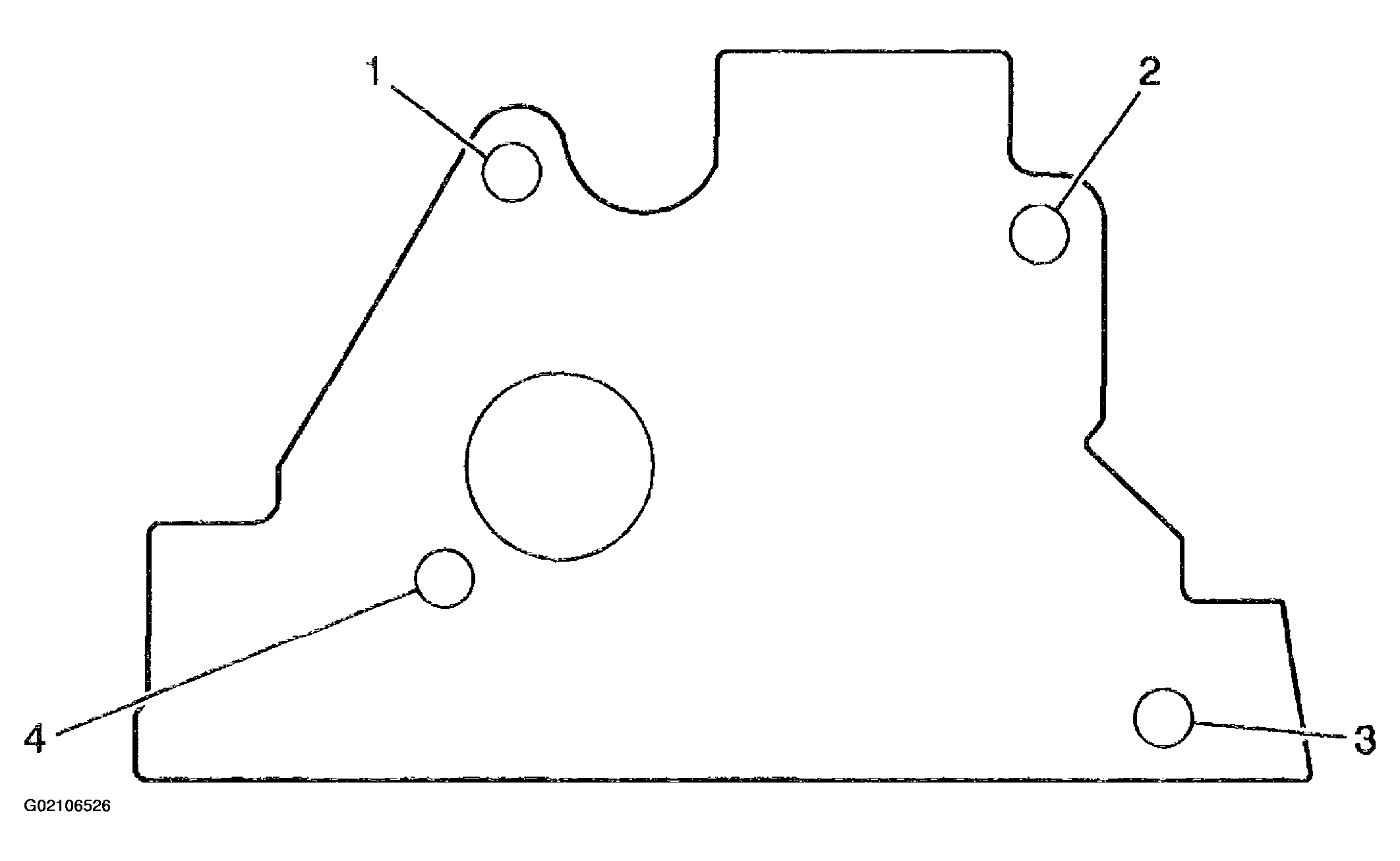

Fig 18: Cylinder Head - End View
G02106526Courtesy of GENERAL MOTORS CORP.

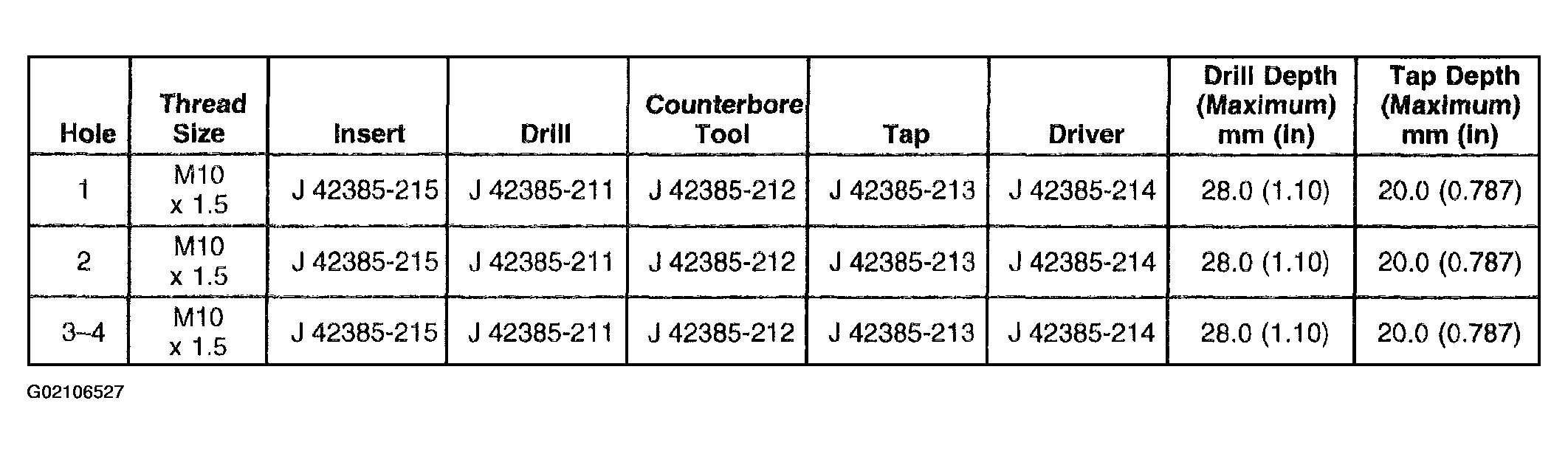

Fig 19: Cylinder Head - End View
G02106527Courtesy of GENERAL MOTORS CORP.

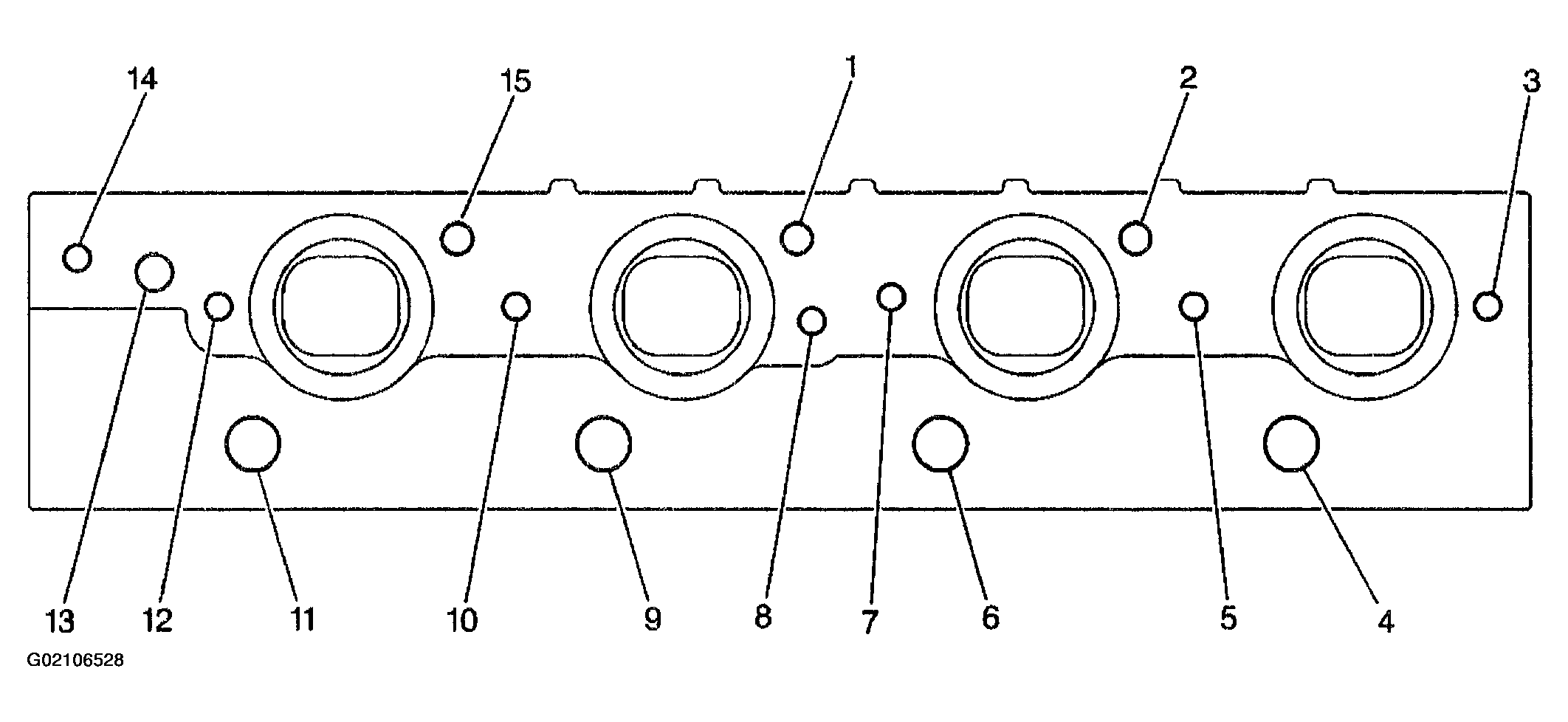

Fig 20: Cylinder Head - Exhaust Manifold Deck View
G02106528Courtesy of GENERAL MOTORS CORP.

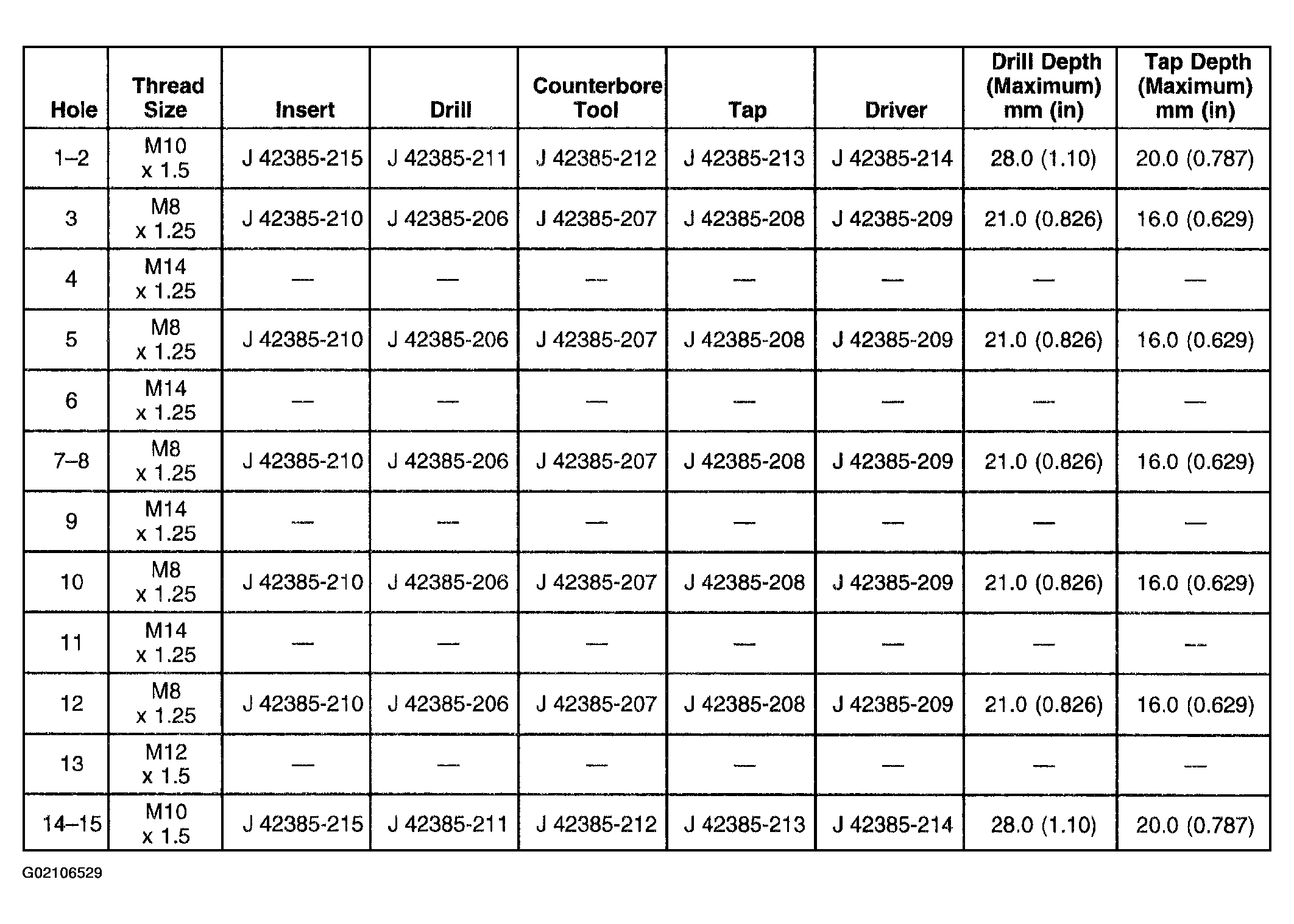

Fig 21: Cylinder Head - Exhaust Manifold Deck View
G02106529Courtesy of GENERAL MOTORS CORP.

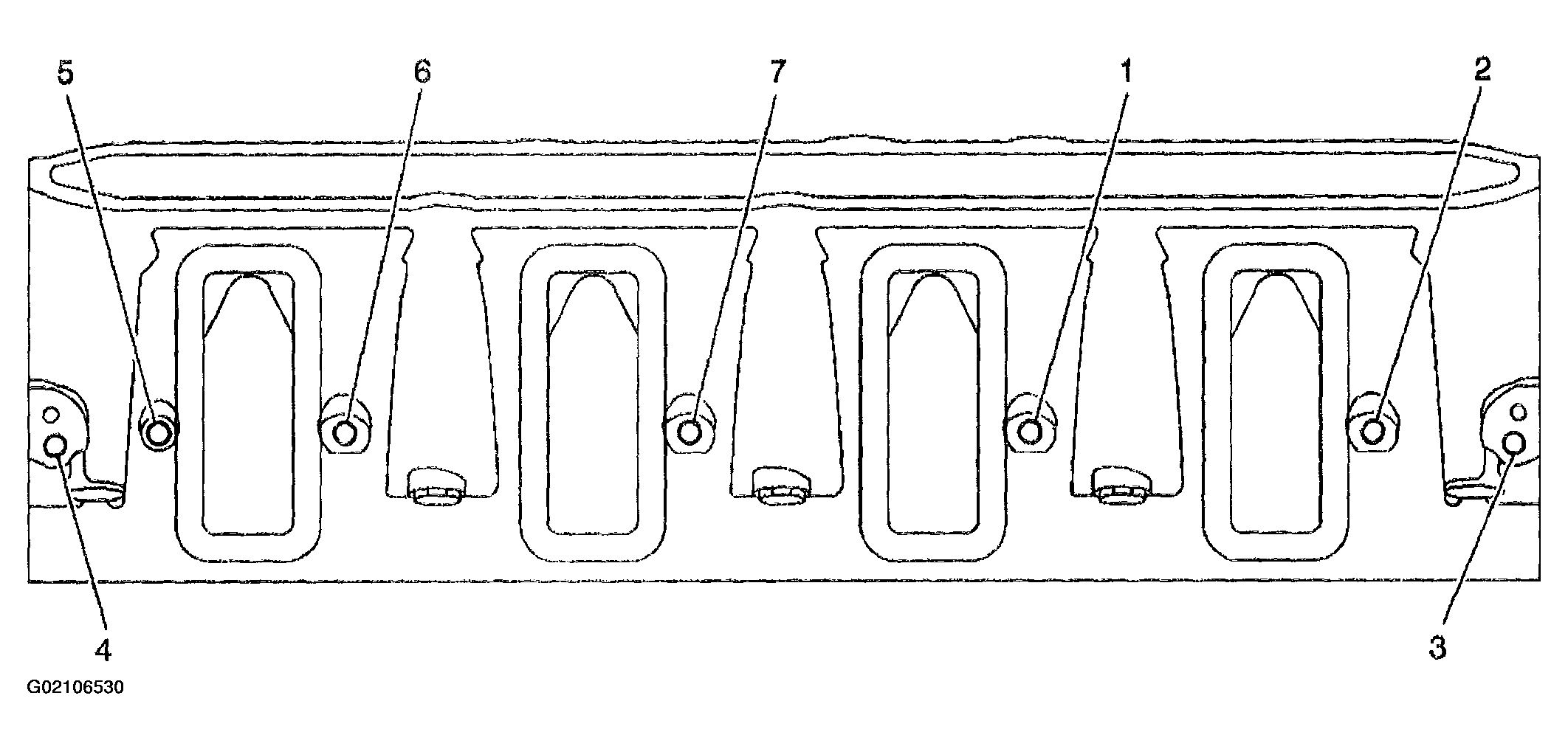

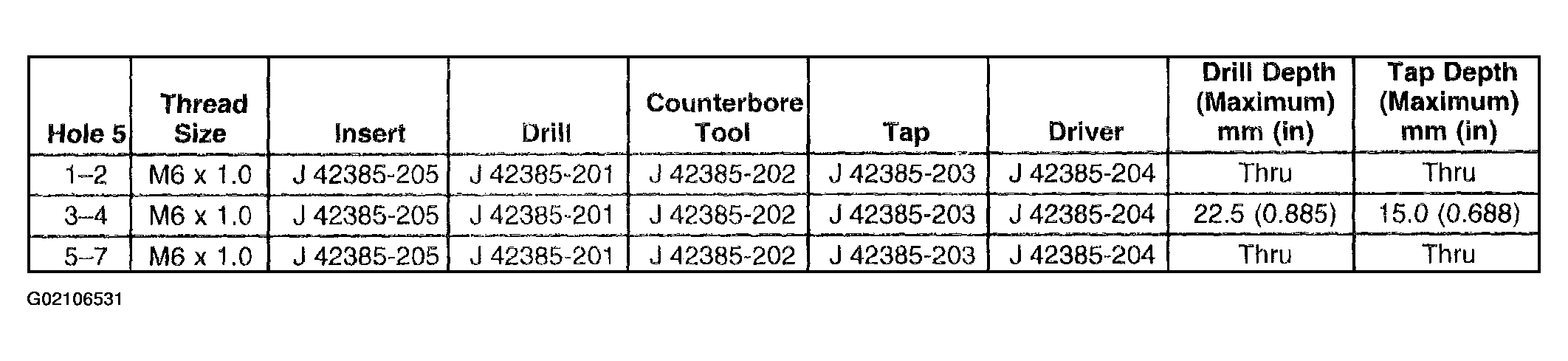

Fig 22: Cylinder Head - Intake Manifold Deck View
G02106530Courtesy of GENERAL MOTORS CORP.
Fig 23: Cylinder Head - Intake Manifold Deck View
G02106531Courtesy of GENERAL MOTORS CORP.
