Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head and gasket. Refer to Cylinder Head Replacement - Left  or Cylinder Head Replacement - Right .
  2. Remove the valve lifter guide bolts.

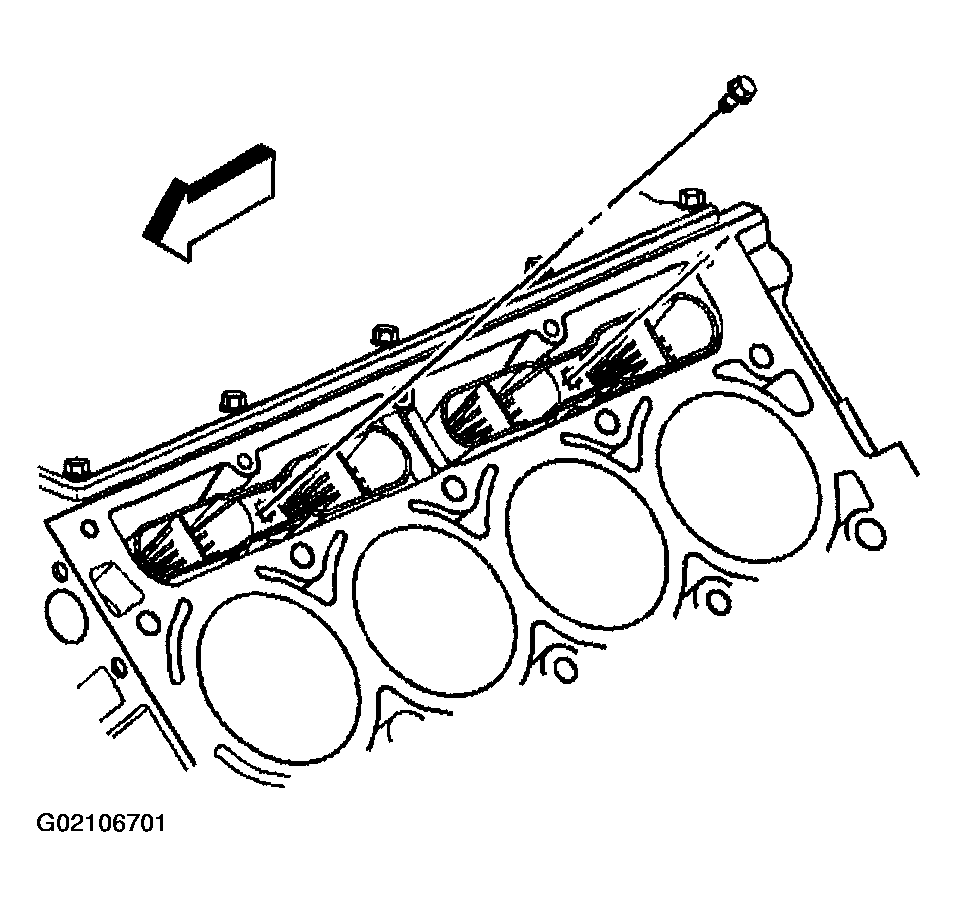

    Fig 1: Removing Valve Lifter Guide Bolts
    G02106701Courtesy of GENERAL MOTORS CORP.
  3. Remove the valve lifters and guide.

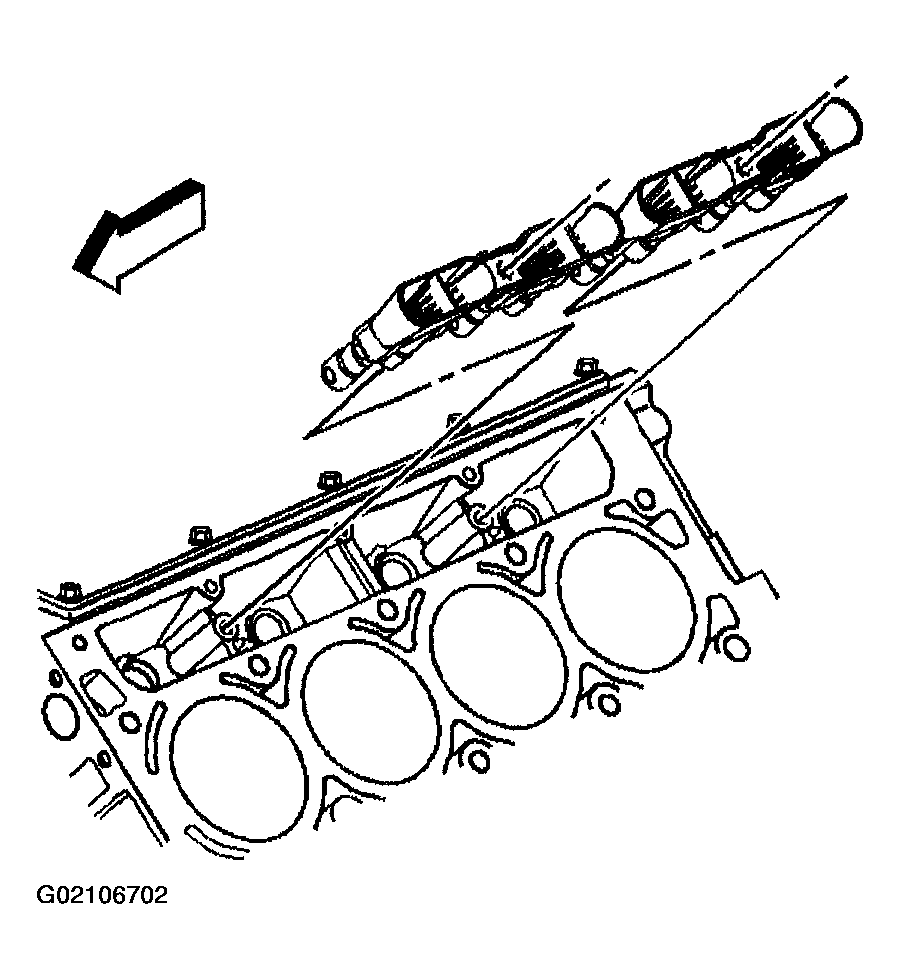

    Fig 2: Removing Valve Lifters & Guide
    G02106702Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Some valve lifters may be stuck in their bores because of gum or varnish deposits.
  4. Use J 3049-A  or equivalent in order to remove the valve lifters (if required).

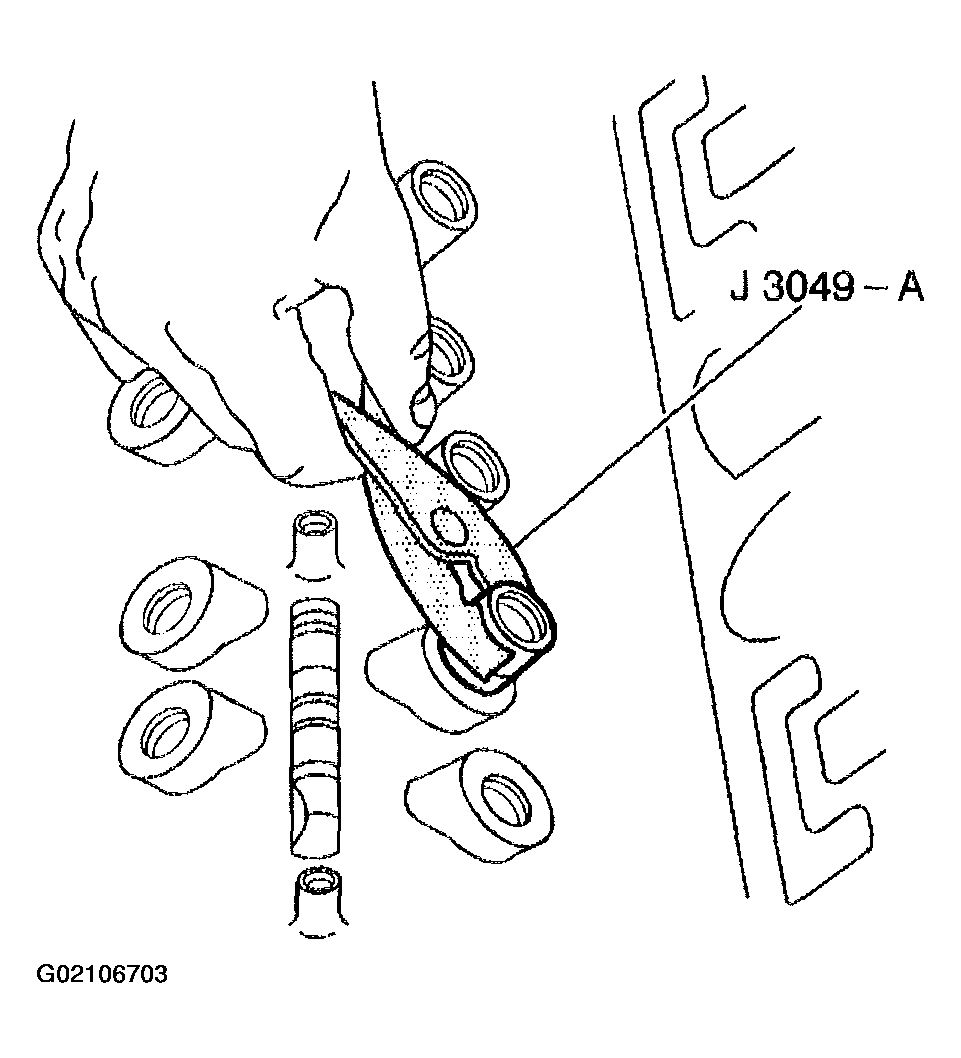

    Fig 3: Removing Valve Lifters Using J 3049-A
    G02106703Courtesy of GENERAL MOTORS CORP.
  5. Remove the valve lifters from the guide.
  6. Organize or mark the components so that they can be installed in the same location from which they were removed.
  7. Clean and inspect the valve lifters. Refer to Valve Lifters and Guides Cleaning and Inspection .
    Fig 4: Removing Valve Lifters
    G02106704Courtesy of GENERAL MOTORS CORP.
