Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.

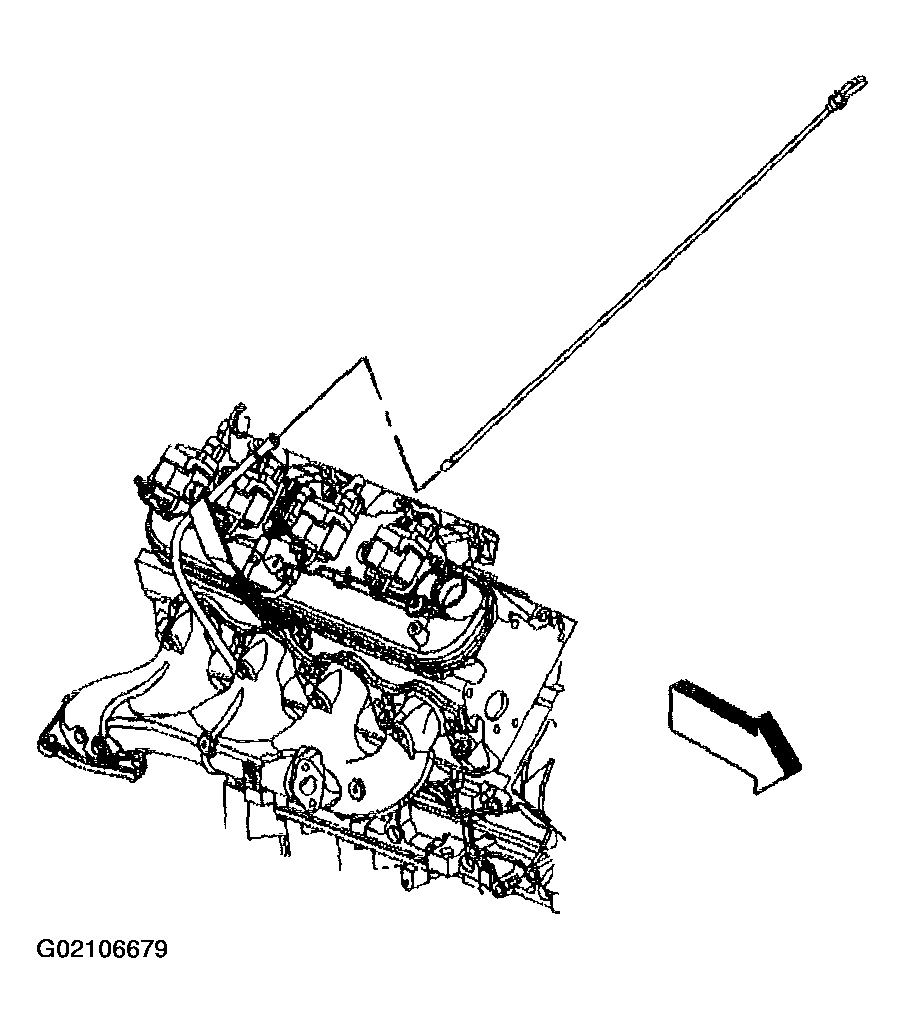

    Fig 1: Removing Oil Level Indicator
    G02106679Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube from the engine block.
    IMPORTANT: The O-ring seal may be reused if not cut or damaged.
  4. Inspect the O-ring seal for cuts or damage.
  5. Remove the O-ring seal from the tube, if required.

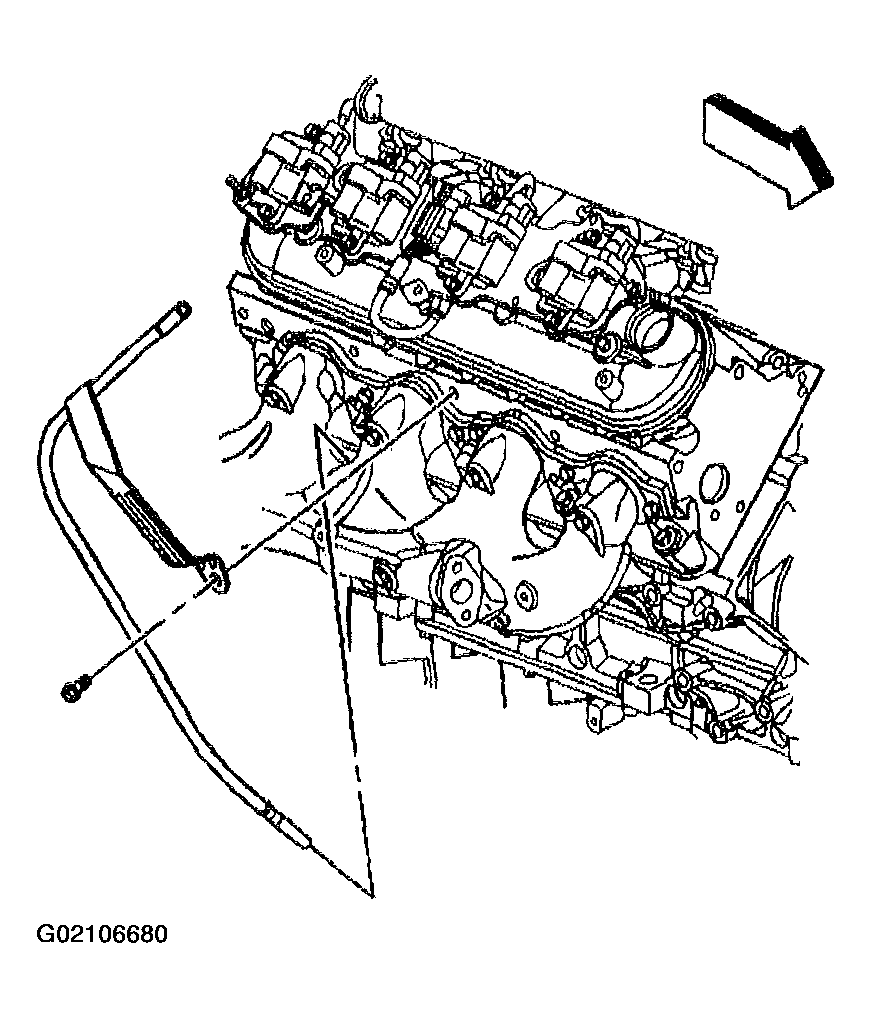

    Fig 2: Removing Oil Level Indicator Tube & Bolt
    G02106680Courtesy of GENERAL MOTORS CORP.
