Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the O-ring seal with clean engine oil.
  2. Install a NEW O-ring seal onto the oil level indicator tube, if required.
  3. Install the oil level indicator tube between the exhaust manifold and engine block.
  4. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING .
  5. Install the oil level indicator tube into the block. The tube must be installed with the collar flush to the block.
  6. Lower the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  7. Install the oil level indicator tube bolt

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

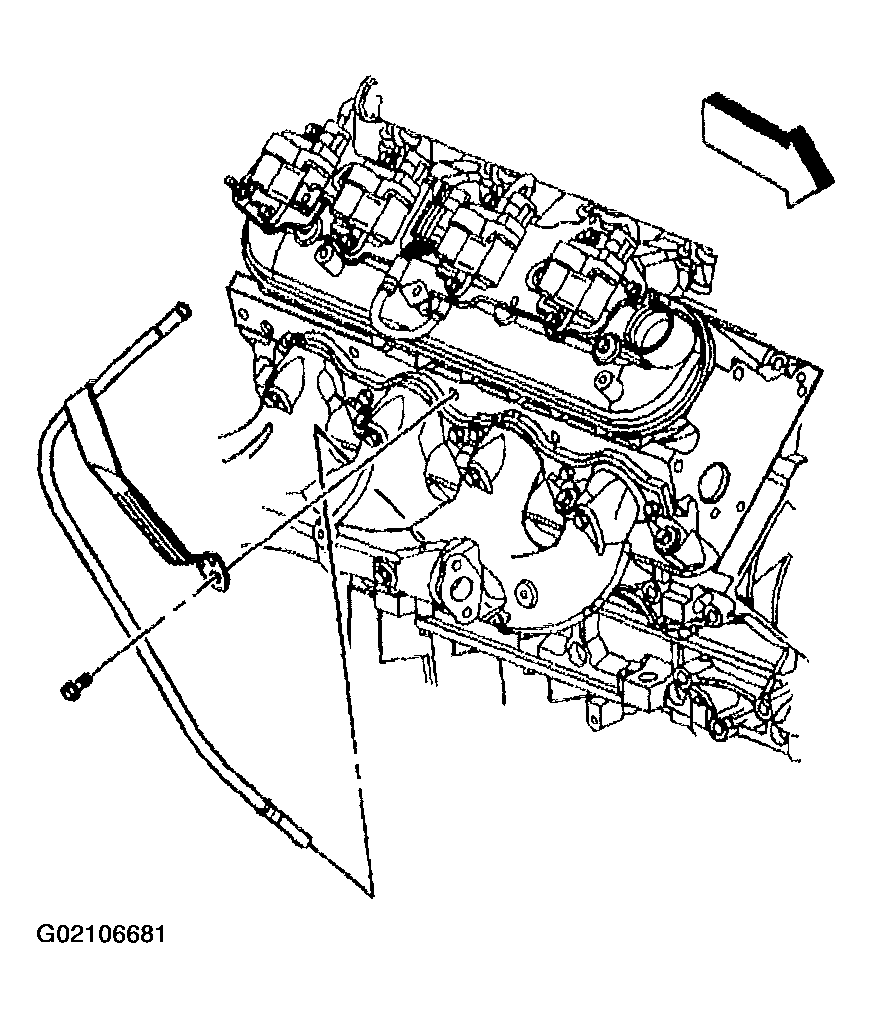

    Fig 1: Installing Oil Level Indicator Tube & Bolt
    G02106681Courtesy of GENERAL MOTORS CORP.
  8. Install the oil level indicator.

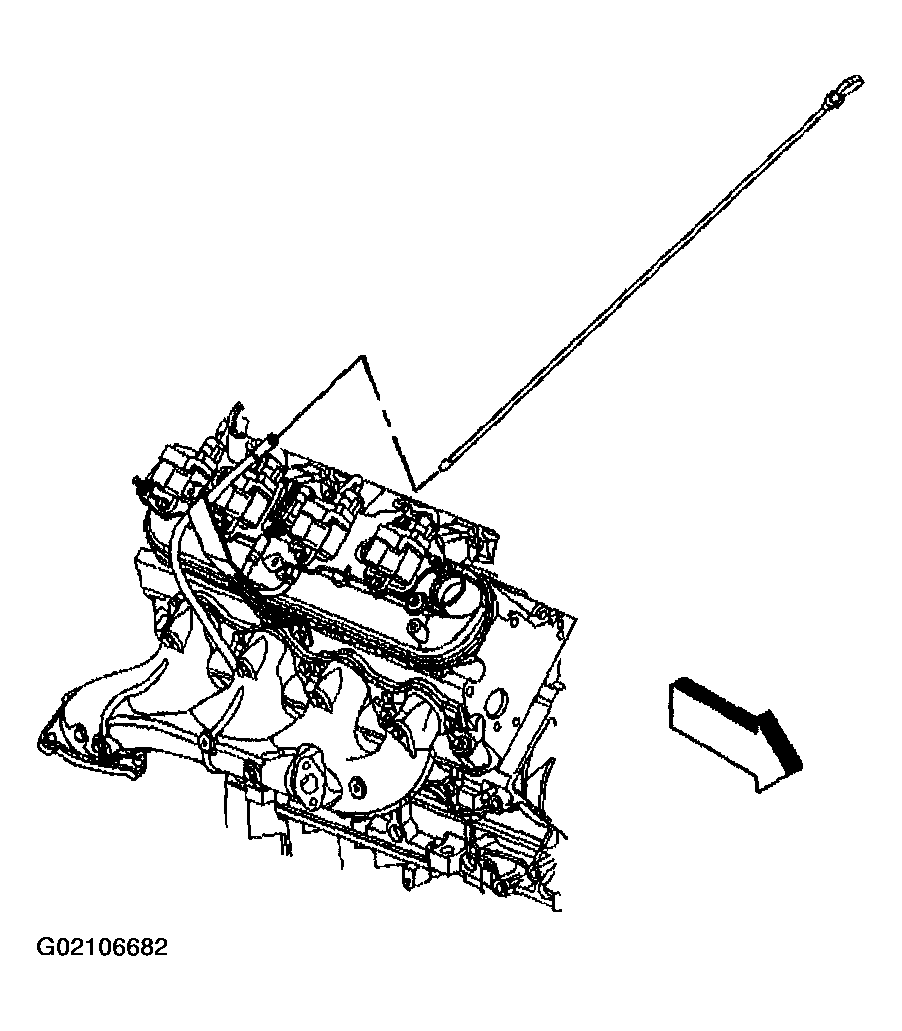

    Fig 2: Installing Oil Level Indicator
    G02106682Courtesy of GENERAL MOTORS CORP.
