Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the intake manifold sight shield bolt.
  2. Remove the sight shield from the sight shield retainer.
    Fig 1: Removing Sight Shield
    G02106600Courtesy of GENERAL MOTORS CORP.
  3. Remove the sight shield retainer bolts and the retainer, if required.

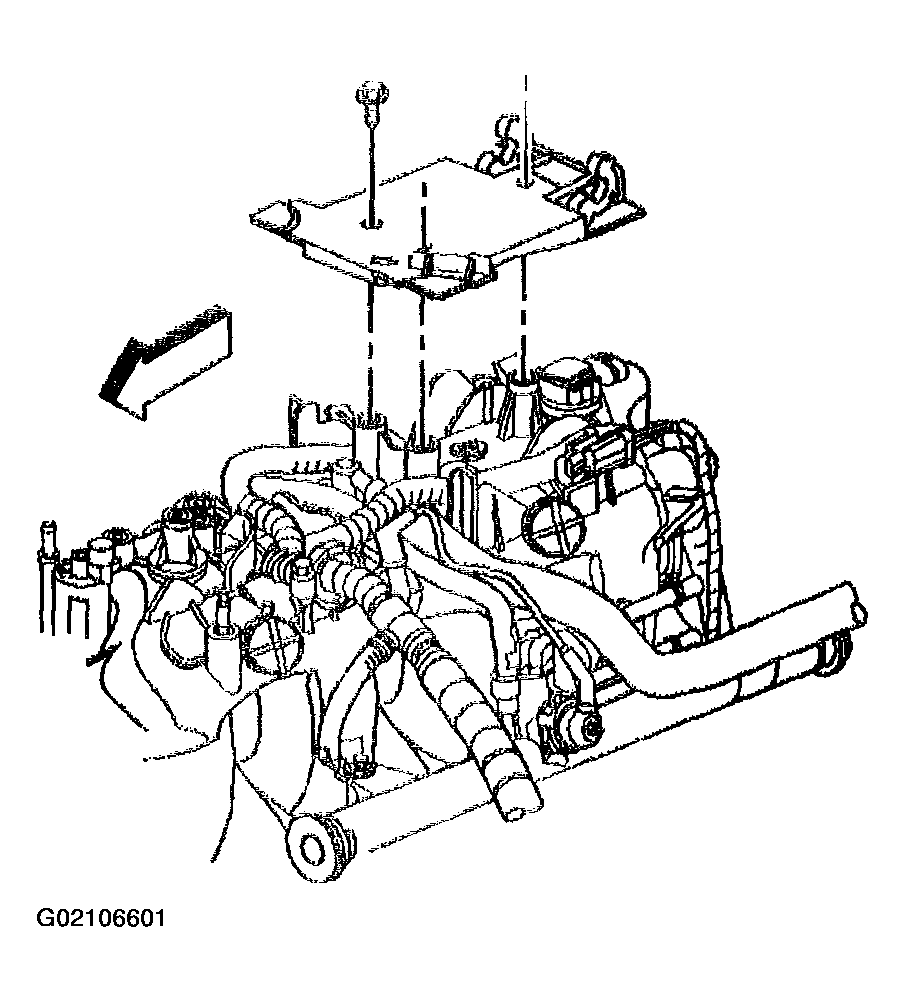

    Fig 2: Removing Sight Shield Retainer & Bolts
    G02106601Courtesy of GENERAL MOTORS CORP.
