Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the sight shield retainer and the bolts, if required.
Tighten

Tighten the bolts to 5 N.m (44 lb in).

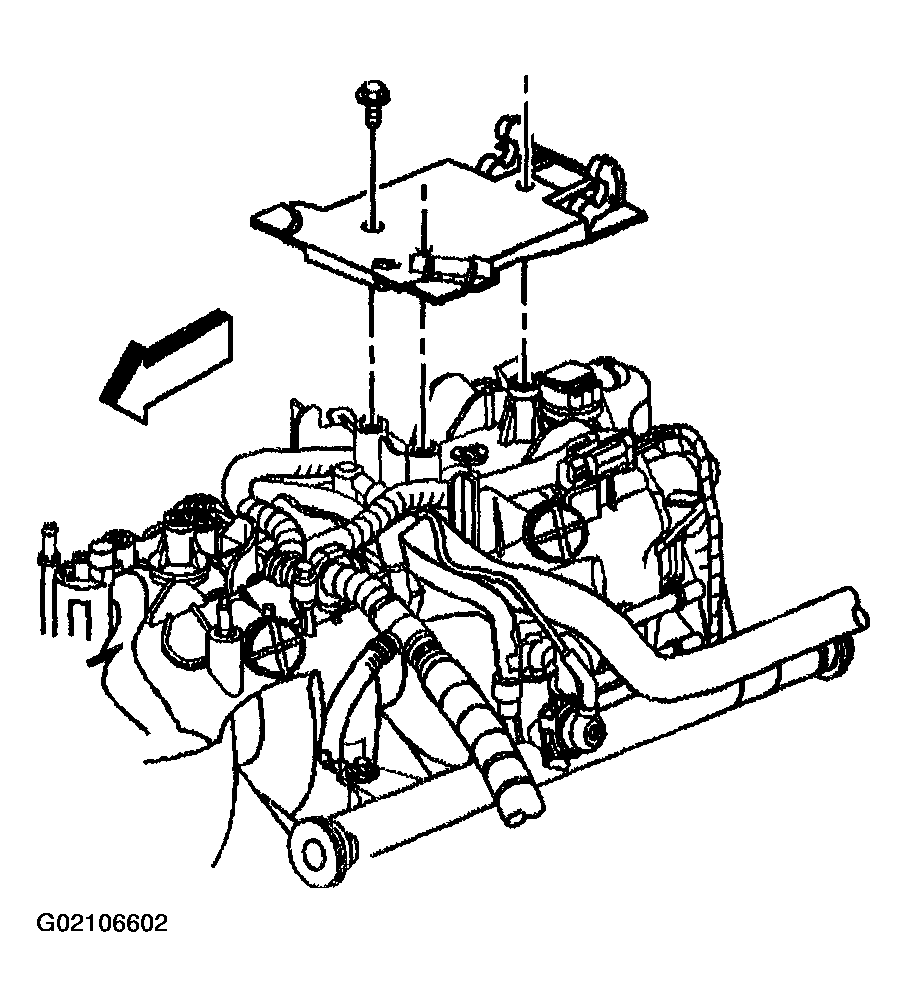

Fig 1: Installing Sight Shield Retainer & Bolts
Courtesy of GENERAL MOTORS CORP.

NOTE: Use care when installing the engine sight shield to avoid contacting the manifold absolute pressure (MAP) sensor wire harness connector. Loss of engine performance or engine damage may result.
Install the intake manifold sight shield to the retainer.
Tighten

Tighten the bolt to 10 N.m (89 lb in).

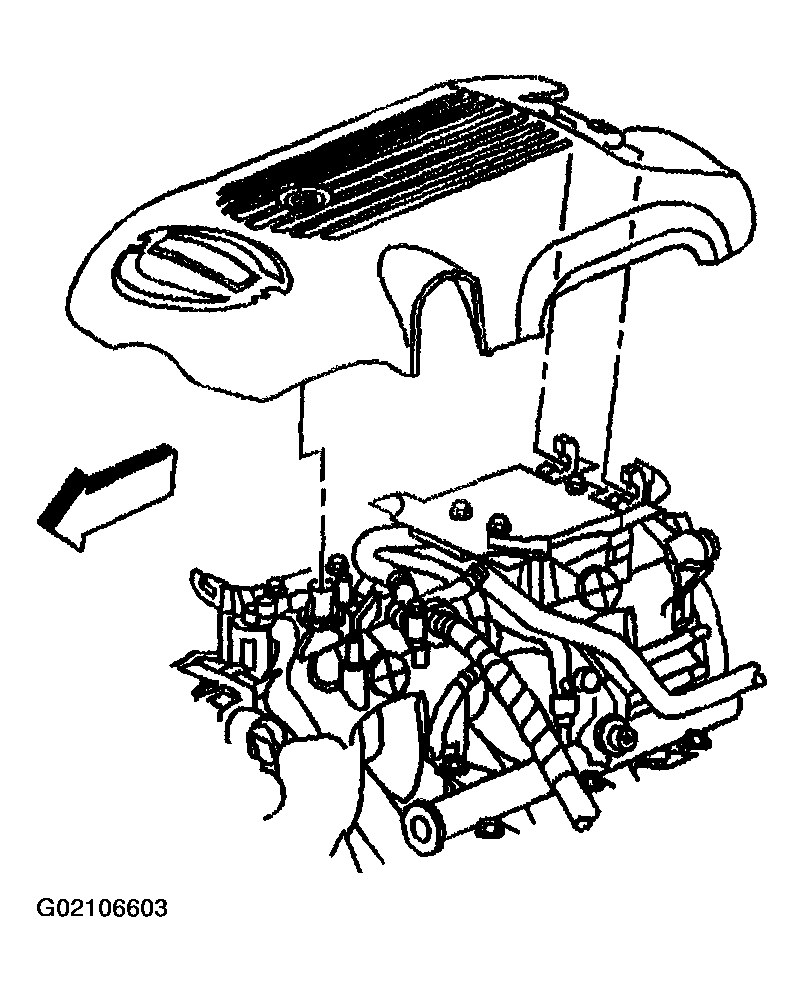

Fig 2: Installing Intake Manifold Sight Shield
Courtesy of GENERAL MOTORS CORP.
