Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel. Refer to Engine Flywheel Replacement .
  2. Remove the oil pan-to-rear cover bolts (1).

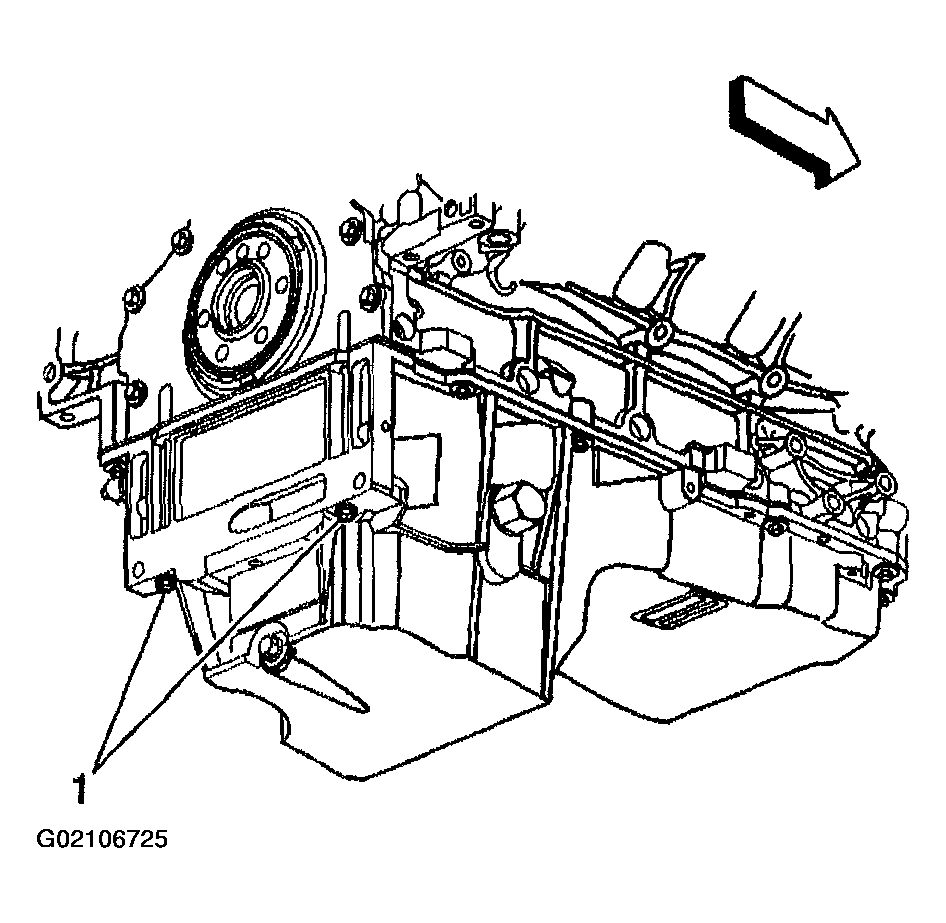

    Fig 1: Removing Oil Pan-To-Rear Cover Bolts
    G02106725Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear cover bolts.
  4. Remove the rear cover and gasket.
  5. Discard the rear cover gasket.
  6. If required, clean and inspect the rear cover. Refer to Engine Rear Cover Cleaning and Inspection .

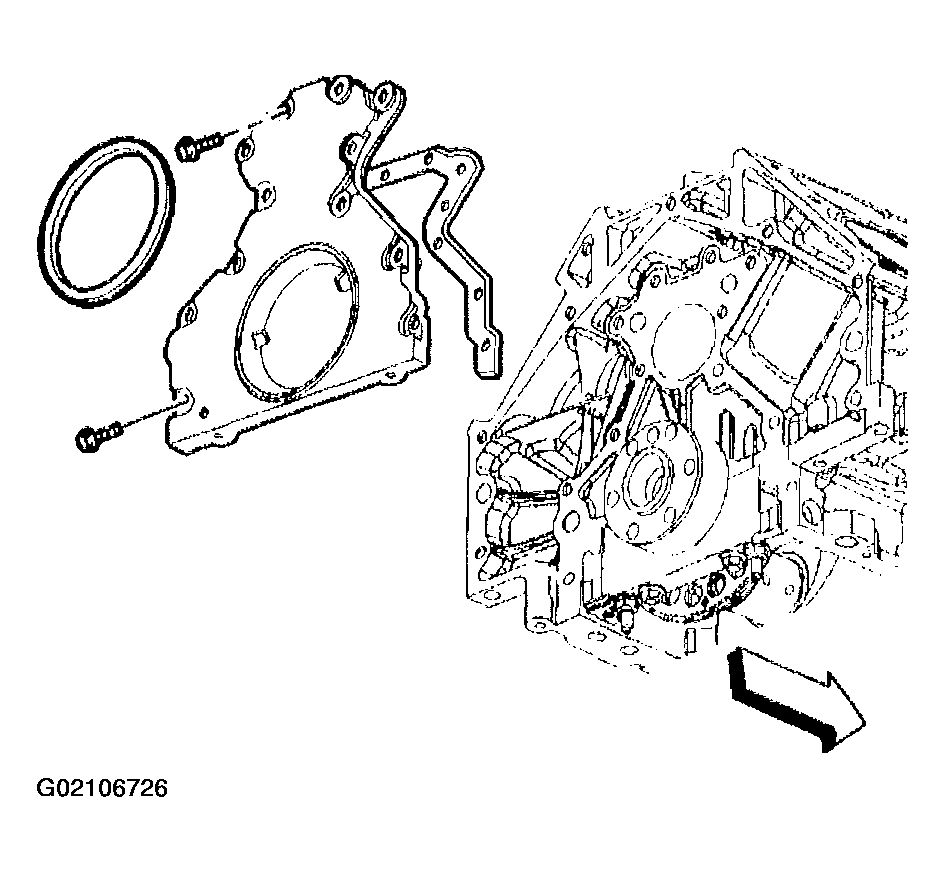

    Fig 2: Removing Rear Cover, Gasket & Bolts
    G02106726Courtesy of GENERAL MOTORS CORP.
