Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  2. Disconnect the oil level sensor electrical connector (6).

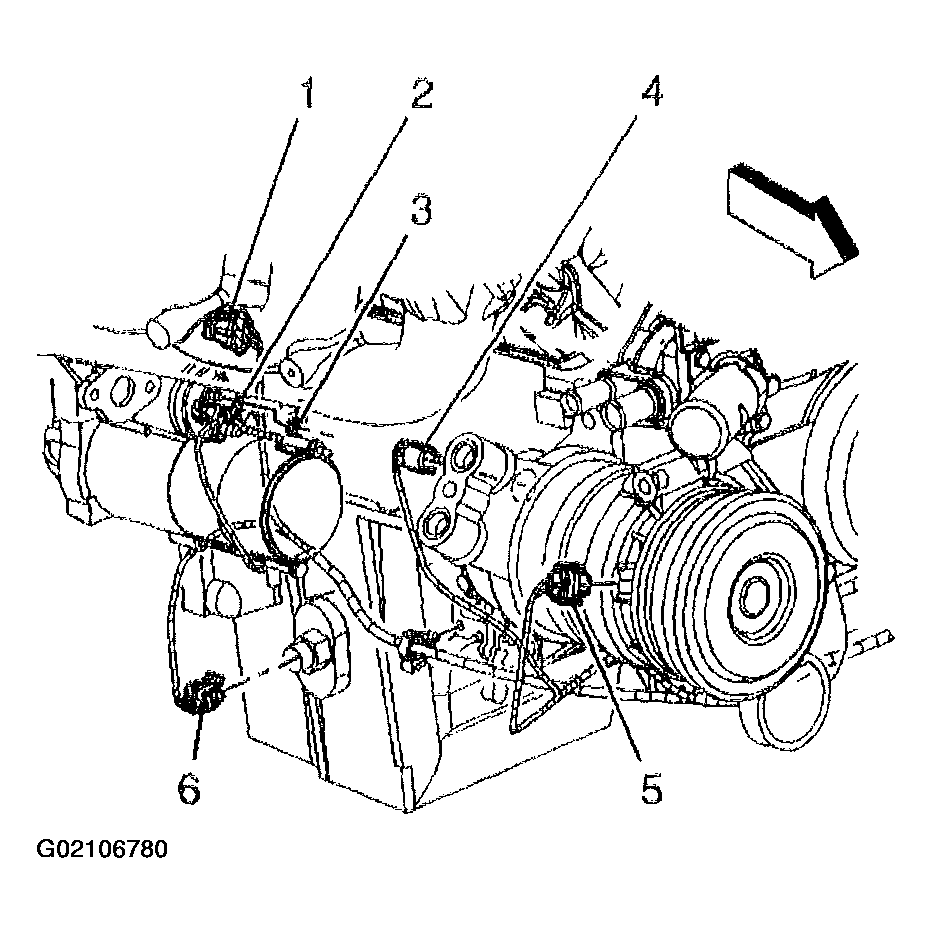

    Fig 1: Disconnect Oil Level Sensor Electrical Connector
    G02106780Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil level sensor from the oil pan.

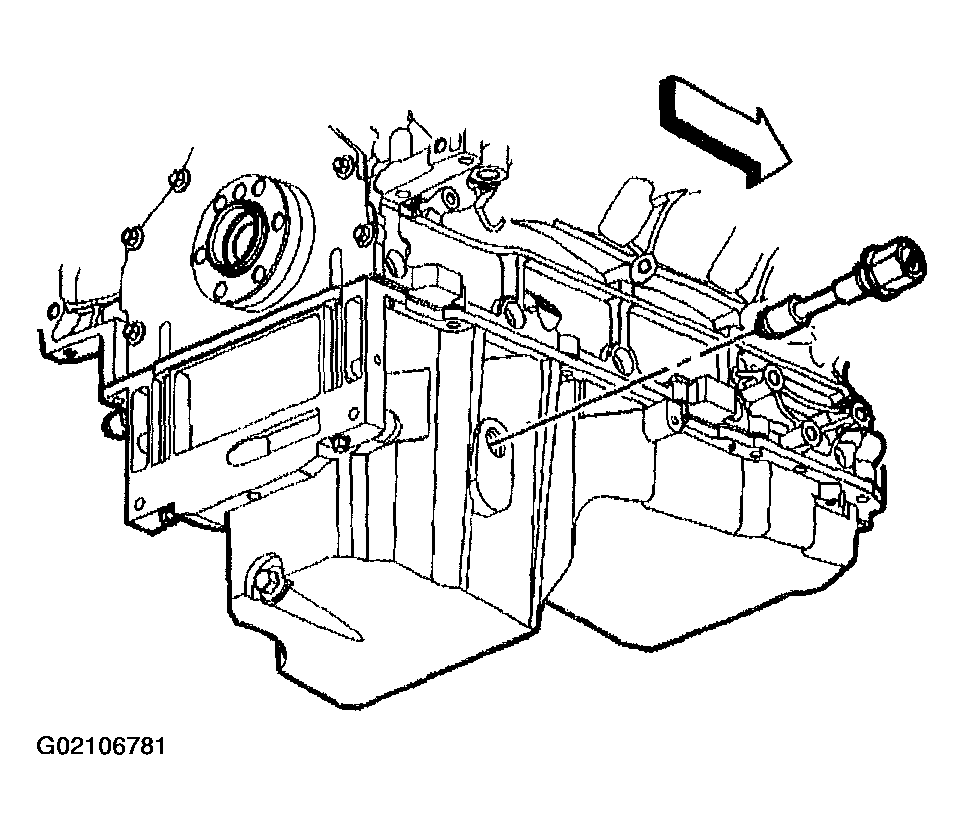

    Fig 2: Removing Oil Level Sensor
    G02106781Courtesy of GENERAL MOTORS CORP.
