Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the left engine mount to the engine.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine mount bolts.

    Tighten

    Tighten the engine mount bolts to 50 N.m (37 lb ft).

  3. Lower the engine.
  4. Remove the adjustable jack stands.
  5. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT .

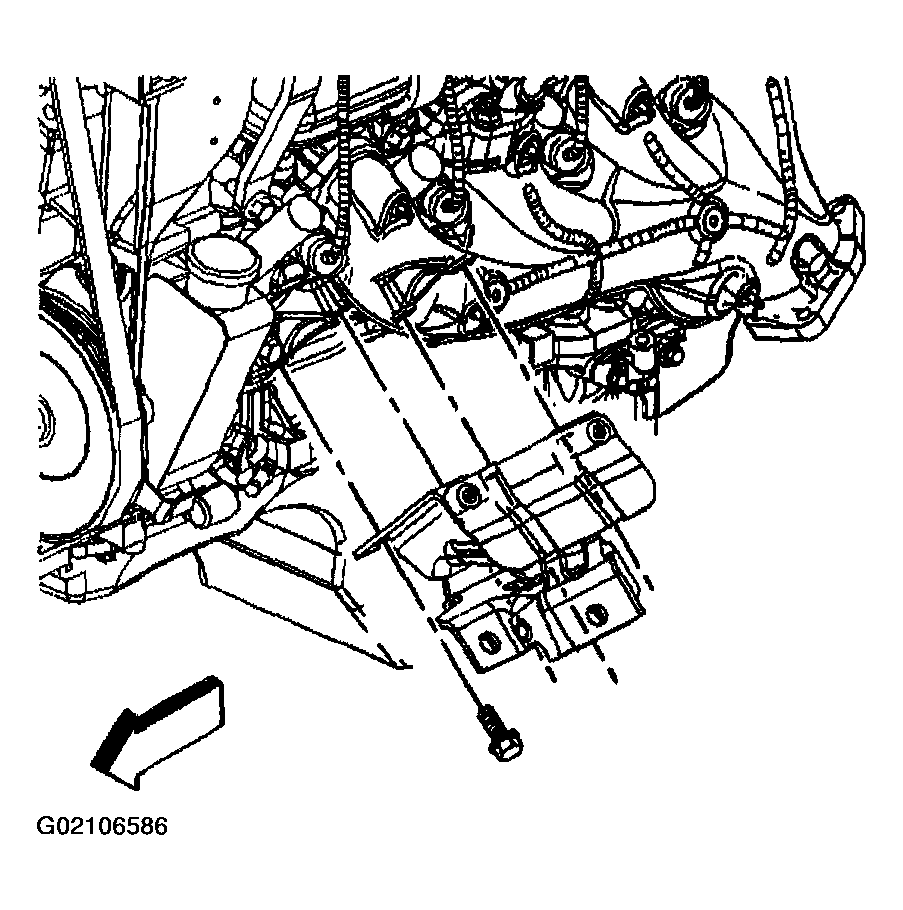

    Fig 1: Installing Left Engine Mount & Bolts
    G02106586Courtesy of GENERAL MOTORS CORP.
  6. Position the engine shield to the vehicle.
  7. Install the engine shield bolts.

    Tighten

    Tighten the engine shield bolts to 20 N.m (15 lb ft).

  8. Lower the vehicle.

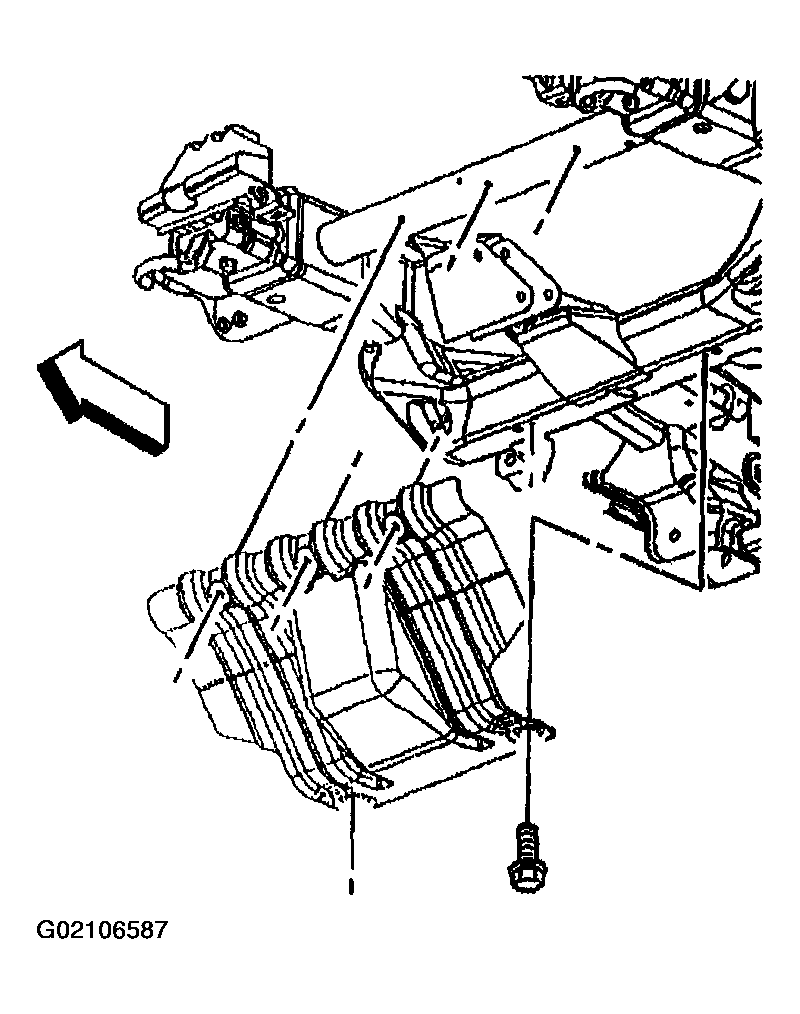

    Fig 2: Installing Engine Shield & Bolts
    G02106587Courtesy of GENERAL MOTORS CORP.
  9. Install the left front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  10. Install the wheelhouse inner panel push pin retainers (2).
  11. Install the wheelhouse inner panel (1).

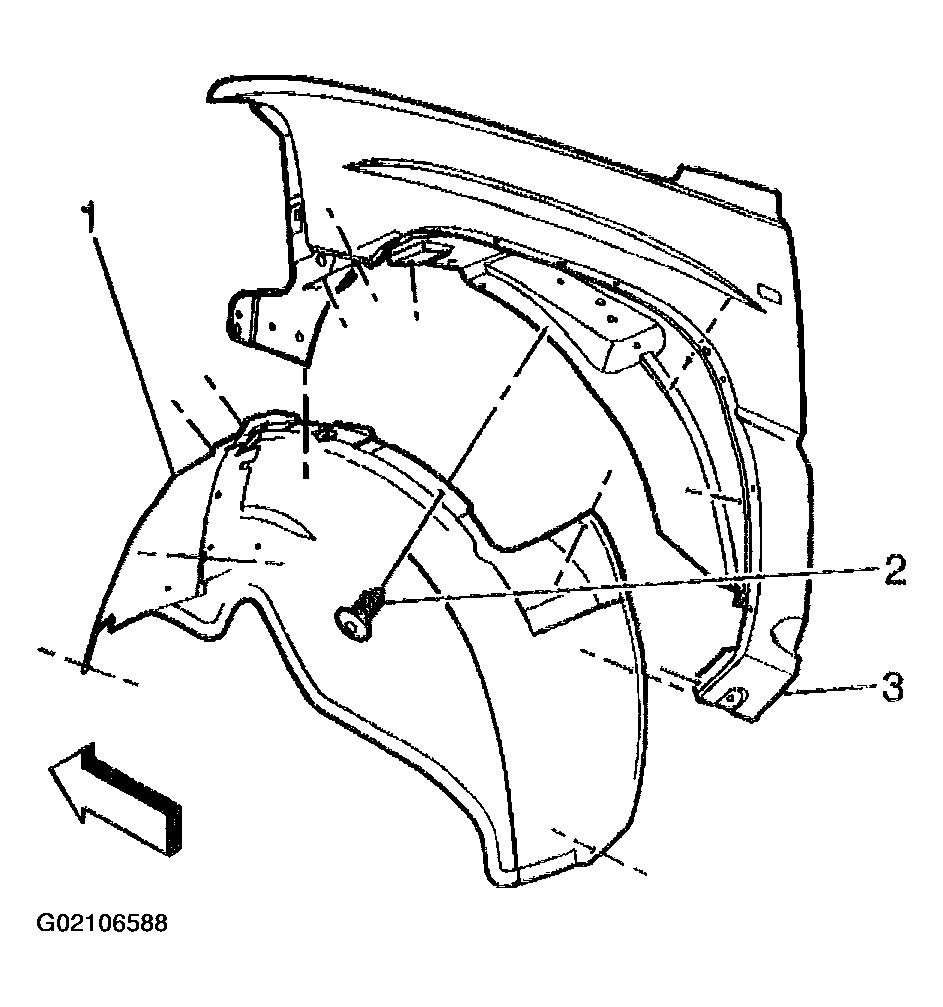

    Fig 3: Installing Wheelhouse Inner Panel & Push Pin Retainers
    G02106588Courtesy of GENERAL MOTORS CORP.
  12. Install the engine mount-to-engine mount bracket bolts. (Right side shown, left side similar).

    Tighten

    Tighten the engine mount-to-engine mount bracket bolts to 65 N.m (48 lb ft).

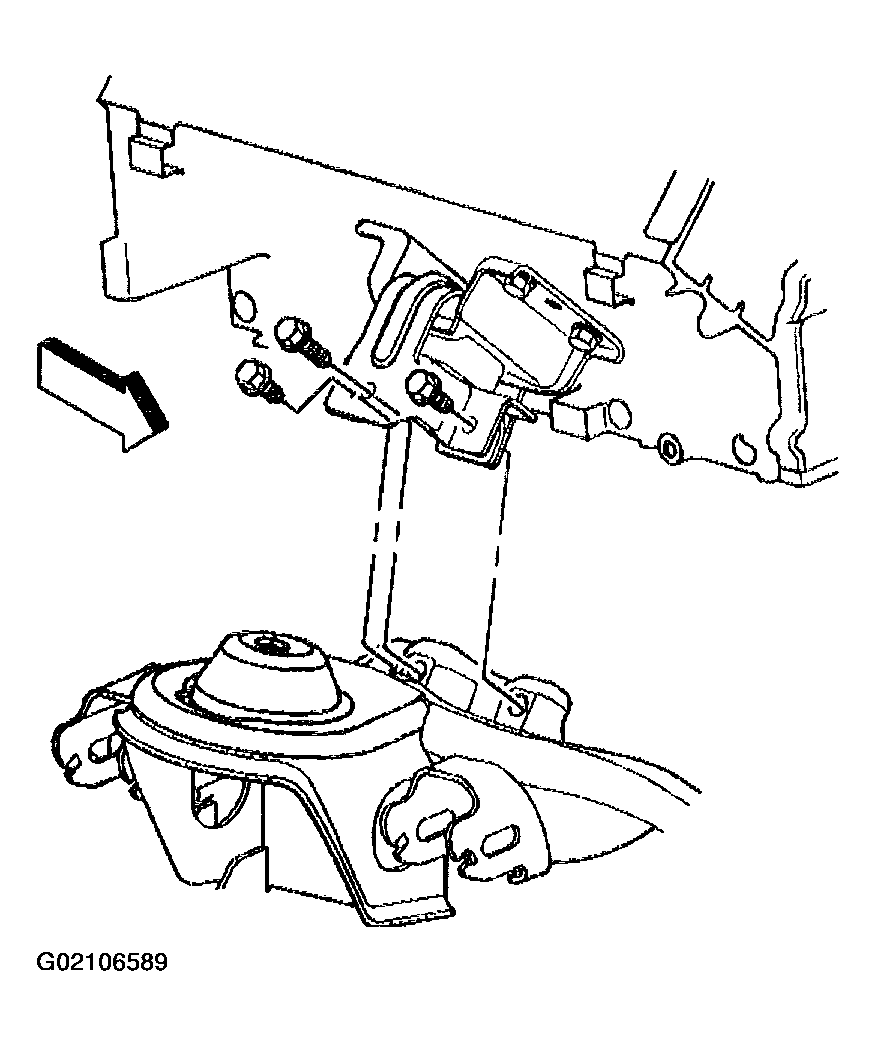

    Fig 4: Installing Engine Mount-To-Engine Mount Bracket Bolts
    G02106589Courtesy of GENERAL MOTORS CORP.
