Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C belt tensioner.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the A/C belt tensioner bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  3. Install the A/C drive belt. Refer to DRIVE BELT REPLACEMENT - AIR CONDITIONING .

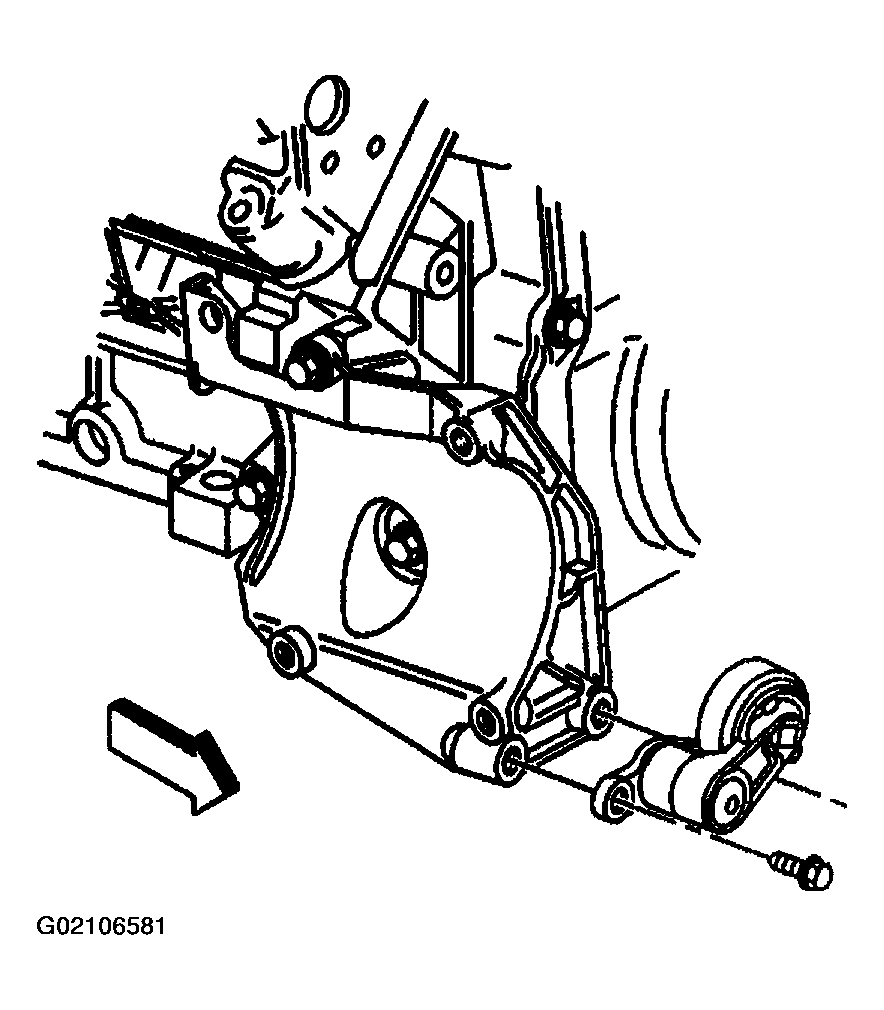

    Fig 1: Installing A/C Belt Tensioner & Bolts
    G02106581Courtesy of GENERAL MOTORS CORP.
