Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel. Refer to Engine Flywheel Replacement .
  2. Remove the crankshaft rear oil seal (1) from the rear cover.

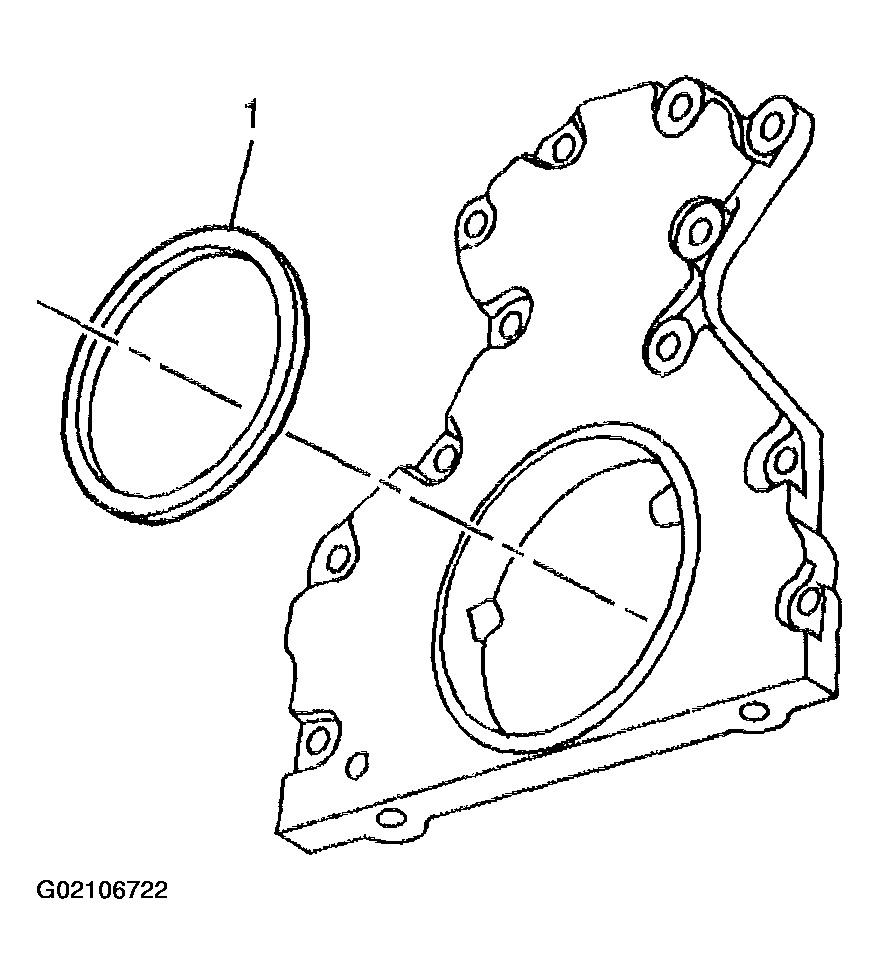

    Fig 1: Removing Crankshaft Rear Oil Seal
    G02106722Courtesy of GENERAL MOTORS CORP.
