Water Pump Removal

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump bolts.
  2. Remove the water pump and gaskets.
  3. Discard the water pump gaskets.

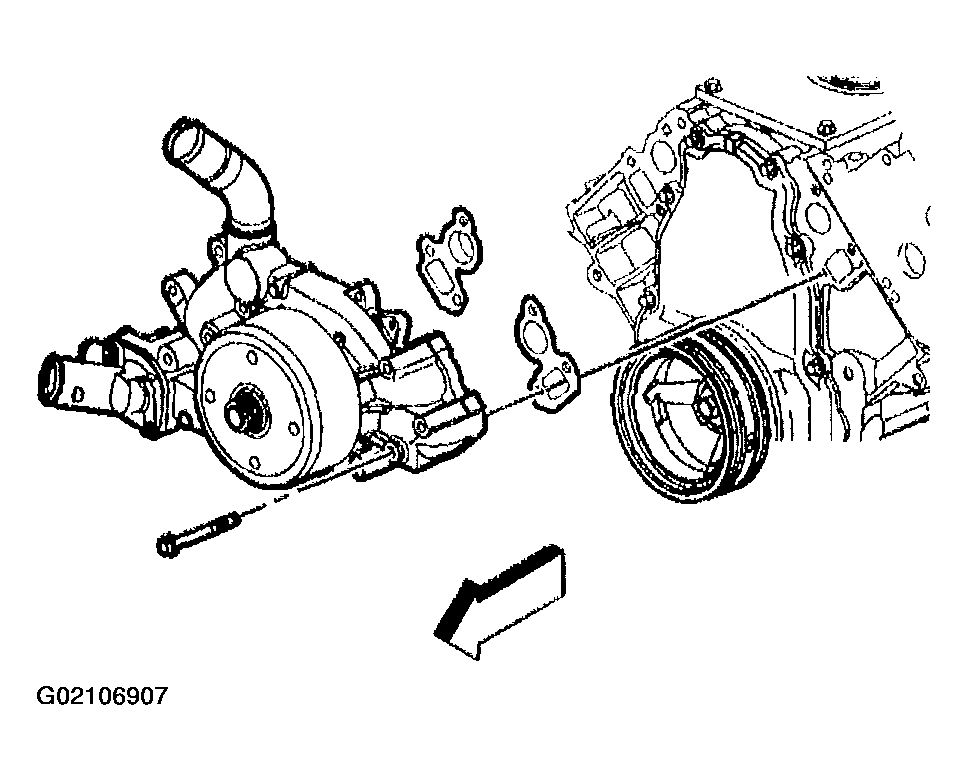

    Fig 1: Removing Water Pump, Gaskets & Bolts
    G02106907Courtesy of GENERAL MOTORS CORP.
