Main Cap Bolt Hole Thread Repair

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. The main cap bolt hole thread repair kit consists of the following items:
    • The drill (1)
    • The tap (2)
    • The installer (3)
    • The fixture plate (4)
    • The long bolts (5)
    • The short bolts (6)
    • The alignment pin (7)
    • The bushing (8)

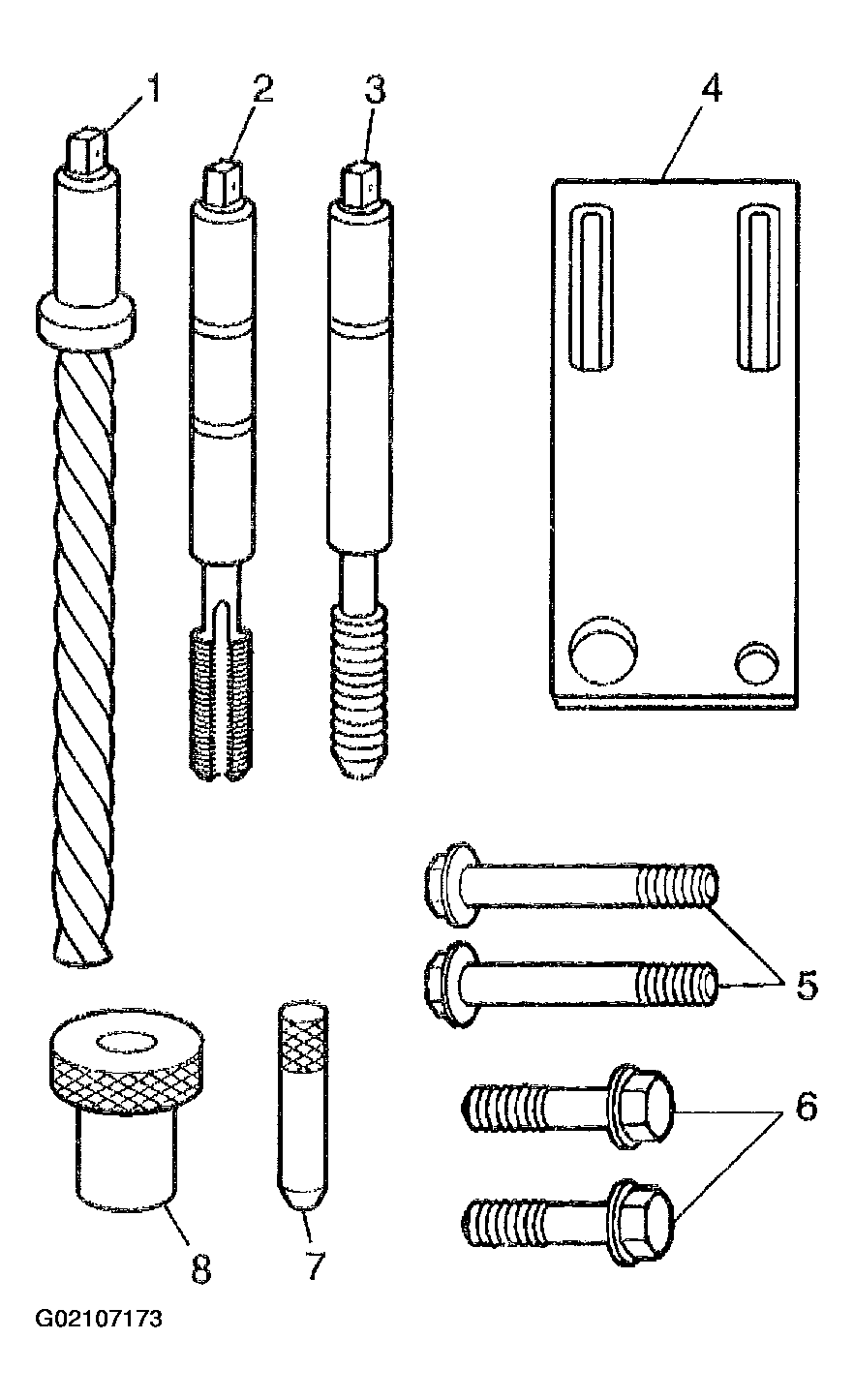

    Fig 1: Main Cap Bolt Hole Thread Repair Kit
    G02107173Courtesy of GENERAL MOTORS CORP.
  2. Install the fixture plate, bolt, and bushing, onto the engine block.

    Position the fixture plate and bushing over the hole that is to be repaired.

  3. Position the alignment pin in the desired hole and tighten the fixture retaining bolts.

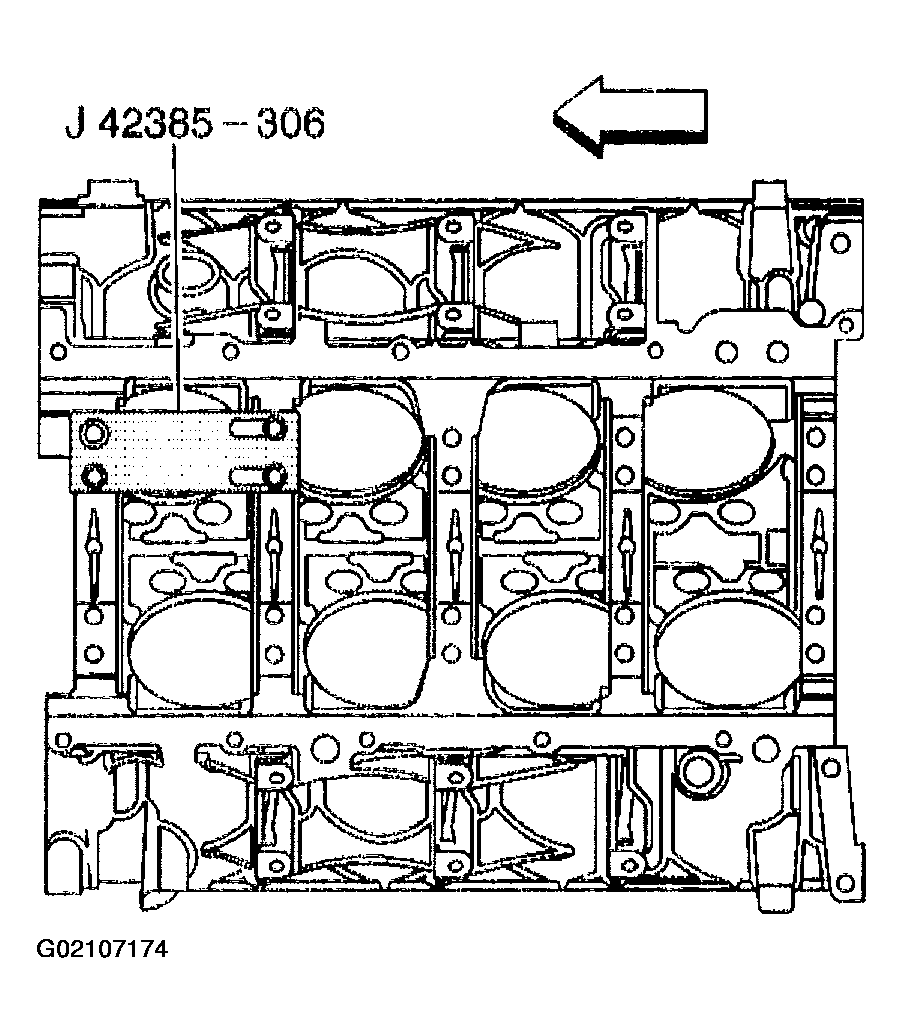

    Fig 2: J 42385-306
    G02107174Courtesy of GENERAL MOTORS CORP.
  4. Drill out the damaged hole.

    The outer bolt hole locations 11-20 have the shallower counterbores. Use sleeve J 42385-316 with the drill.

    Drill until the stop collar of the drill bit or the sleeve contacts the bushing.

  5. Using compressed air, clean out any chips.

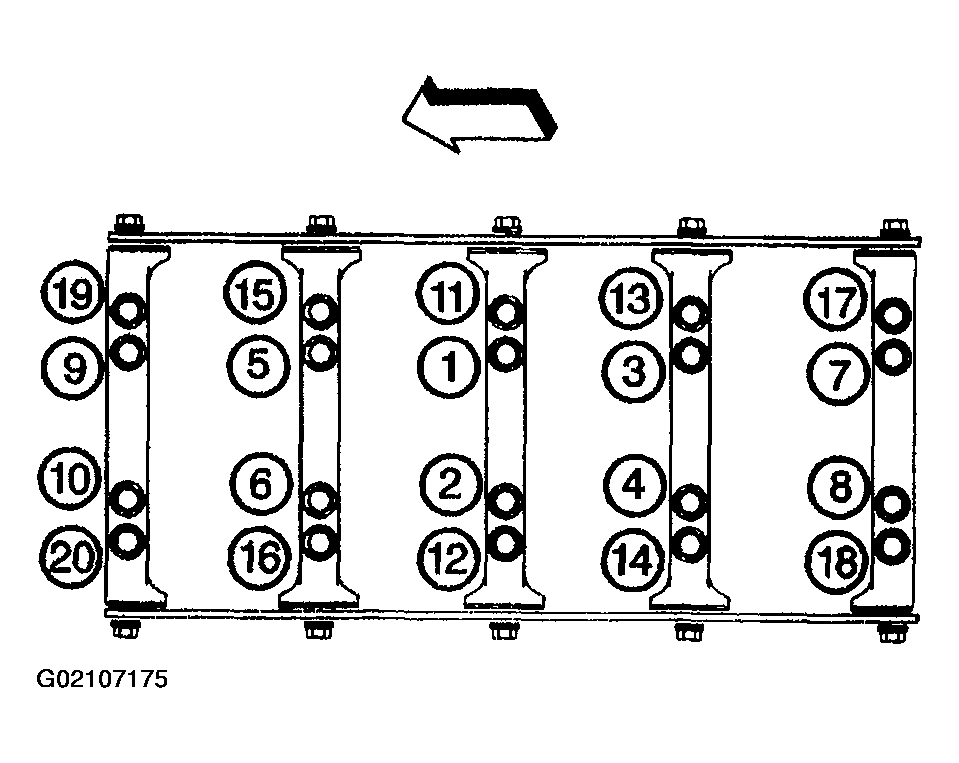

    Fig 3: Identifying Outer Bolt Holes
    G02107175Courtesy of GENERAL MOTORS CORP.
  6. Using a tap wrench, tap the threads of the drilled hole.

    In order to tap the new threads to the proper depth, rotate the tap into the hole until the mark on the tap aligns with the top of the bushing.

    For the deeper main cap holes 1-10, rotate the tap until the upper mark (4) on the tap aligns with the top of the bushing (3).

    For the shallower main cap holes 11-20, rotate the tap until the lower mark (1) on the tap aligns with top of the bushing (3).

  7. Using compressed air, clean out any chips.
  8. Spray cleaner GM P/N 12346139 (Canadian P/N 10953463) or equivalent into the hole.
  9. Using compressed air, clean any cutting oil and chips out of the hole.

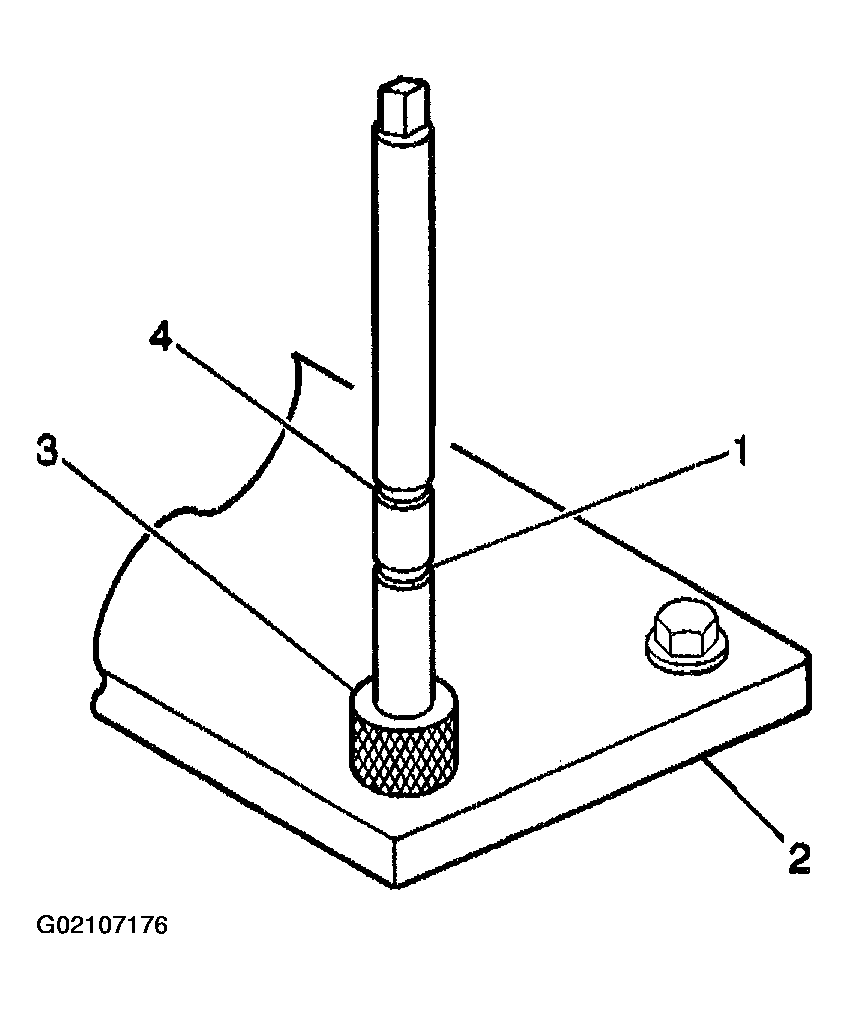

    Fig 4: Alignment Marks, Bushing & Fixture Plate
    G02107176Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not allow oil or other foreign material to contact the outside diameter (OD) of the insert.
  10. Lubricate the threads of the installer tool (2) with the driver oil (1).

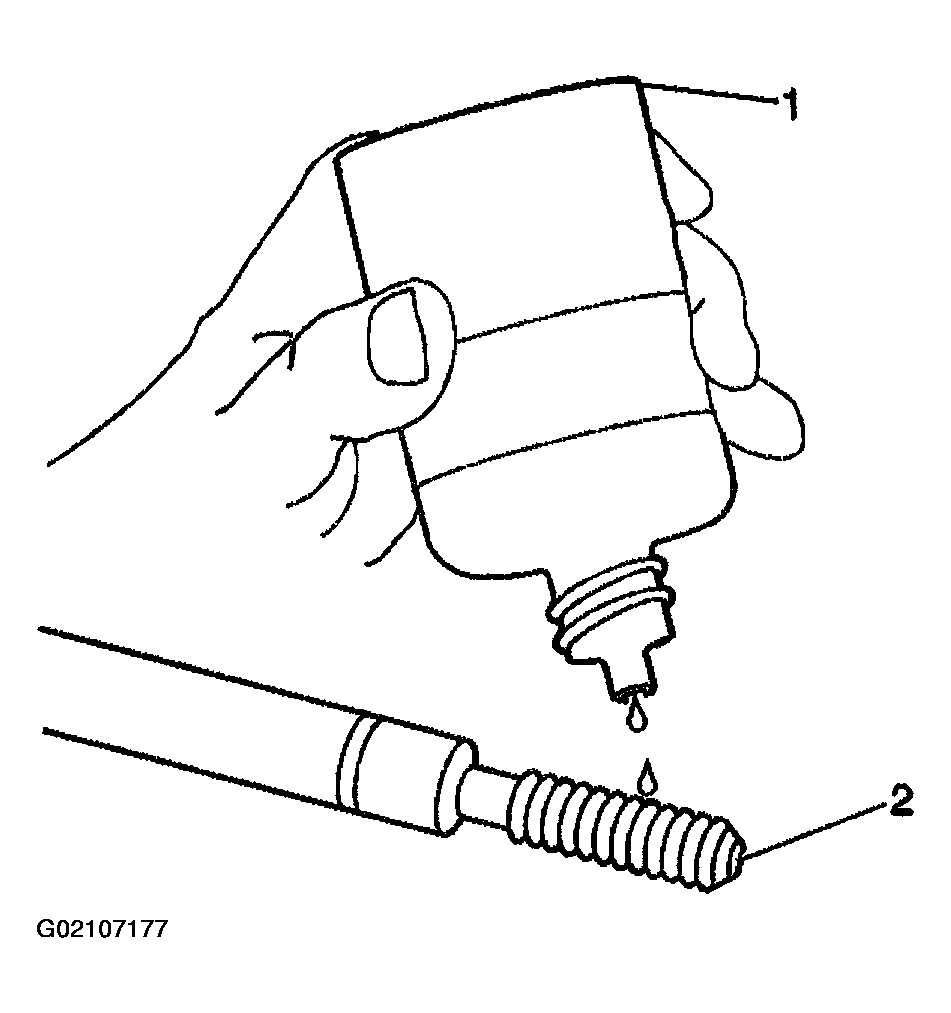

    Fig 5: Lubricating Threads Of Installer Tool With Driver Oil
    G02107177Courtesy of GENERAL MOTORS CORP.
  11. Install the insert (2) onto the driver tool (1).
    Fig 6: Driver Tool & Insert
    G02107178Courtesy of GENERAL MOTORS CORP.
  12. Apply threadlock LOCTITE™ 277, J 42385-109 (1), or equivalent to the insert OD threads (2).

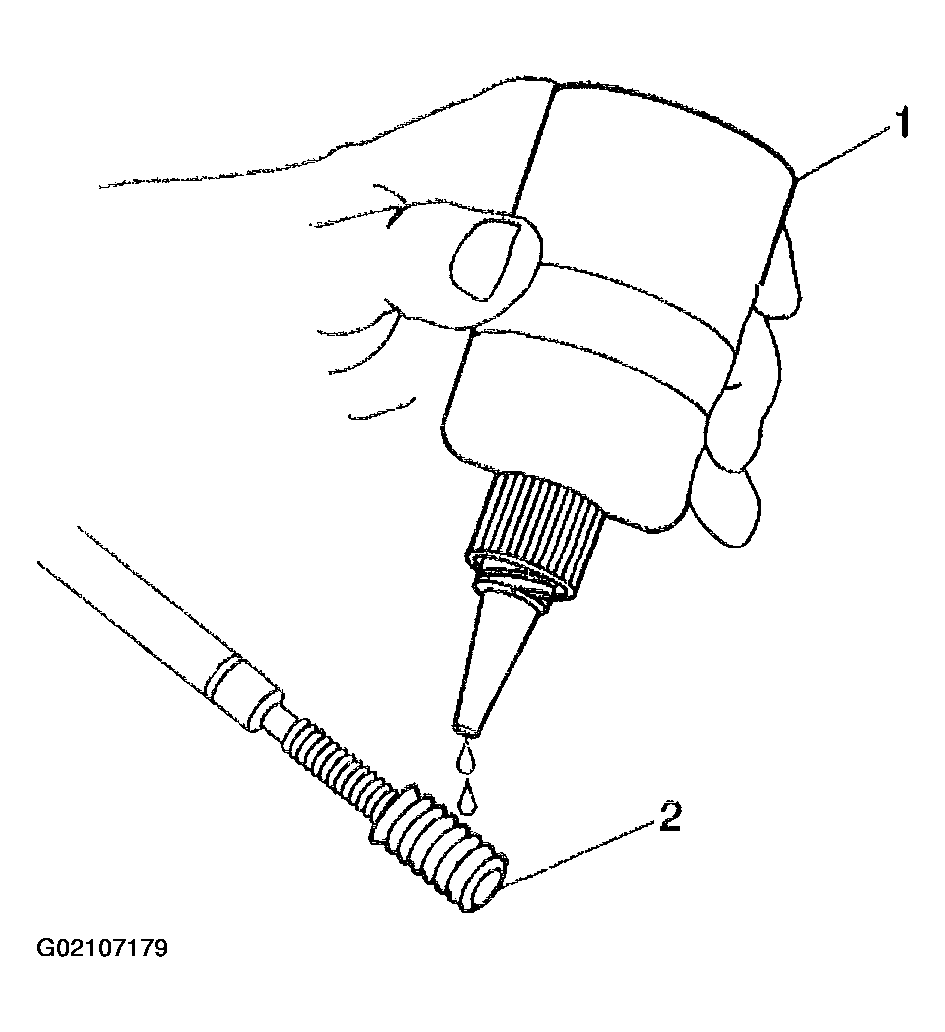

    Fig 7: Applying Thread Lock To OD Threads
    G02107179Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The fixture plate and bushing remains installed onto the engine block during the insert installation procedure.
  13. Install the insert and driver (1) through the fixture plate and bushing and into the hole.

    Rotate the driver tool until the mark on the tool (3) aligns with the top of the bushing (2).

    The installer tool will tighten up before screwing completely through the insert. This is acceptable. You are forming the bottom threads of the insert and mechanically locking the insert to the base material threads.

    Fig 8: Fixture Plate, Bushing & Alignment Marks
    G02107180Courtesy of GENERAL MOTORS CORP.
