Measuring Piston Ring End Gap

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
  • Do not attempt to file the end of the piston ring for fit in the cylinder bore.
  • Measure the piston ring in the cylinder in which the piston ring will be used.
  1. Place the piston ring into the cylinder bore.
  2. Push the piston ring into the bore 6.5 mm (0.25 in) below the piston ring travel area.
  3. Insert a feeler gage and measure the piston ring end gap. Refer to Engine Mechanical Specifications (LR4 VIN V)  or Engine Mechanical Specifications (LM7 VIN T)  or Engine Mechanical Specifications (L59 VIN Z)  or Engine Mechanical Specifications (LQ4 VIN U)  or Engine Mechanical Specifications (LQ9 VIN N) .

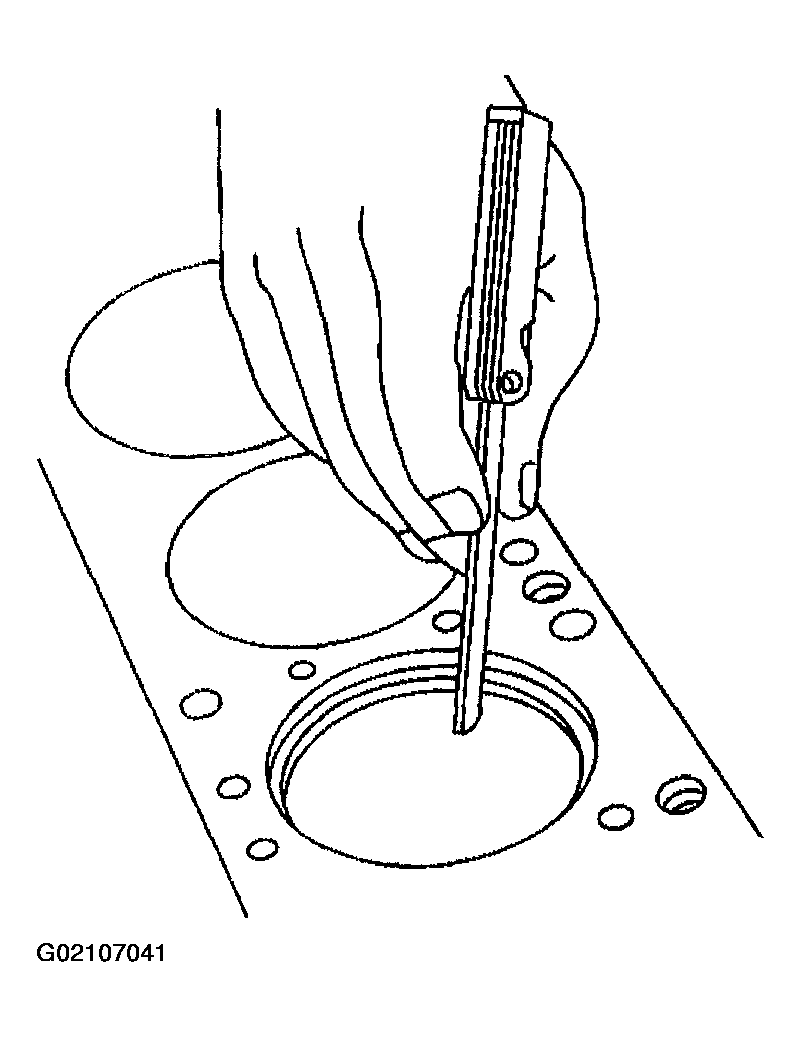

    Fig 1: Measuring Piston Ring End Gap
    G02107041Courtesy of GENERAL MOTORS CORP.
