Press Fit Piston Pin

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 24086-C Piston Pin Remover/Installer Set

Using piston ring pliers, remove the piston rings from the piston.

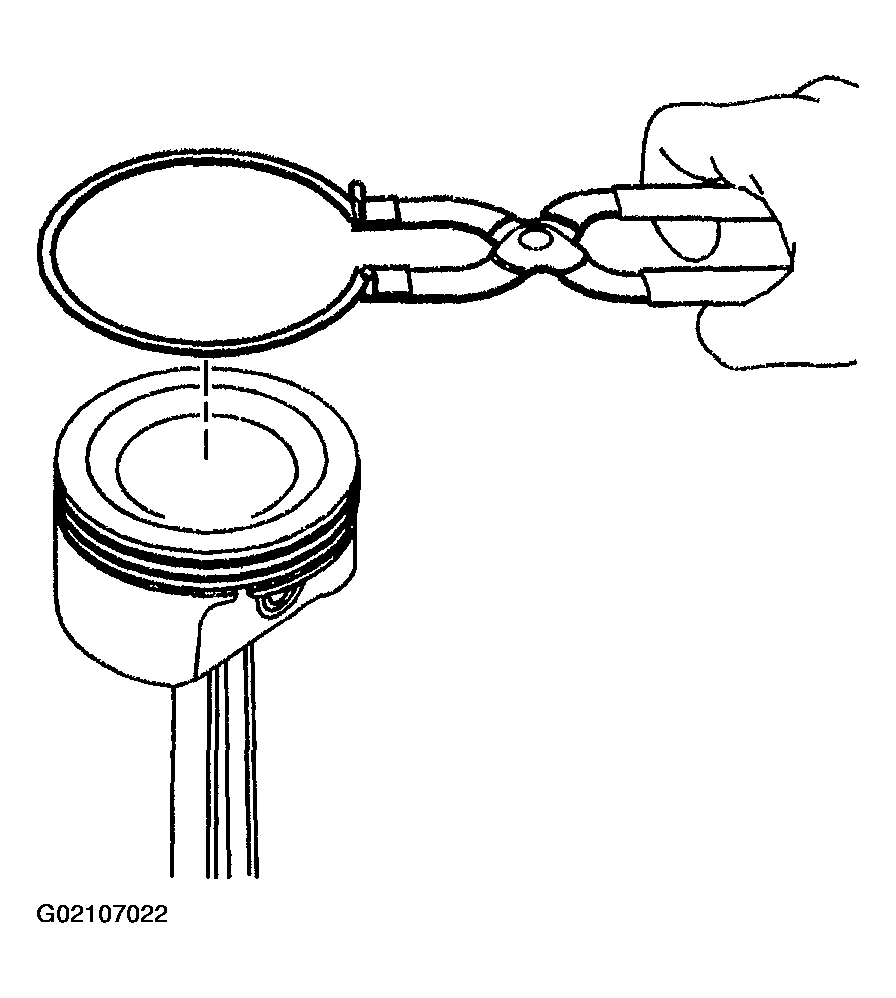

Fig 1: Removing Piston Rings Using J 24086-C
Courtesy of GENERAL MOTORS CORP.
Install fork insert J 24086-920A into fixture J 24086-10.

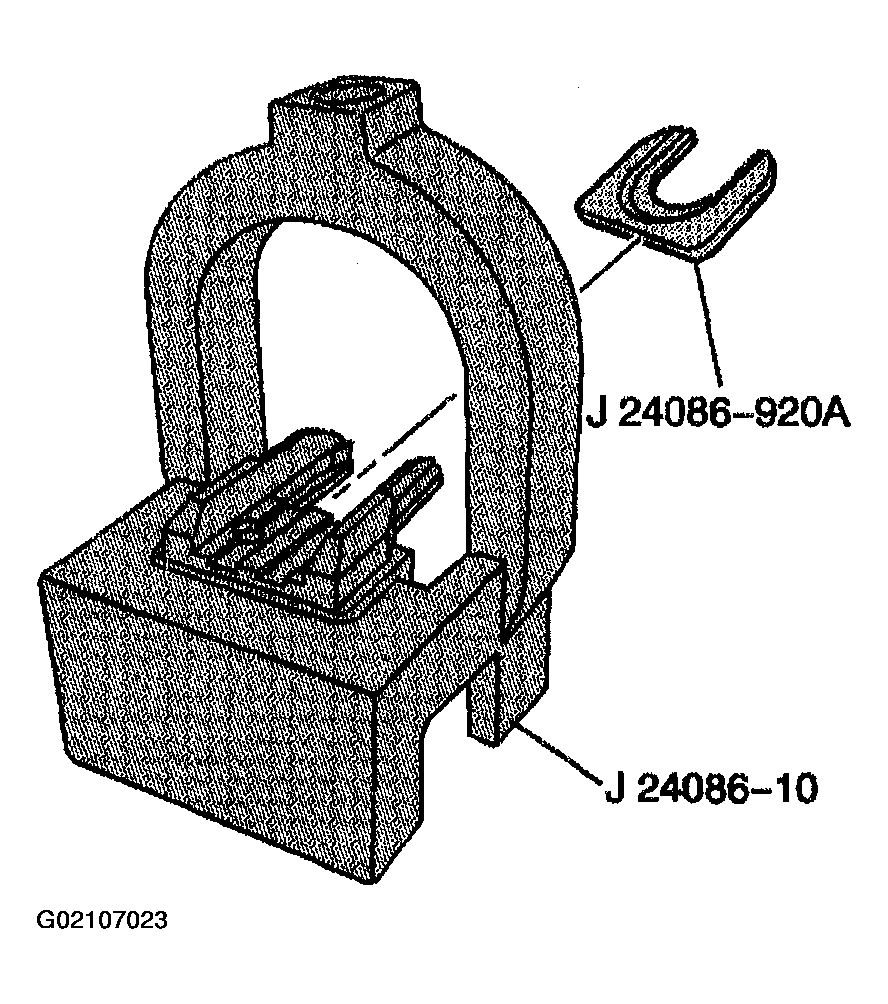

Fig 2: J 24086-920A & J 24086-10
Courtesy of GENERAL MOTORS CORP.
Install the piston and connecting rod assembly onto J 24086-10.
Install J 24086-107 into the piston pin and J 24086-88A through the fixture and into J 24086-107.

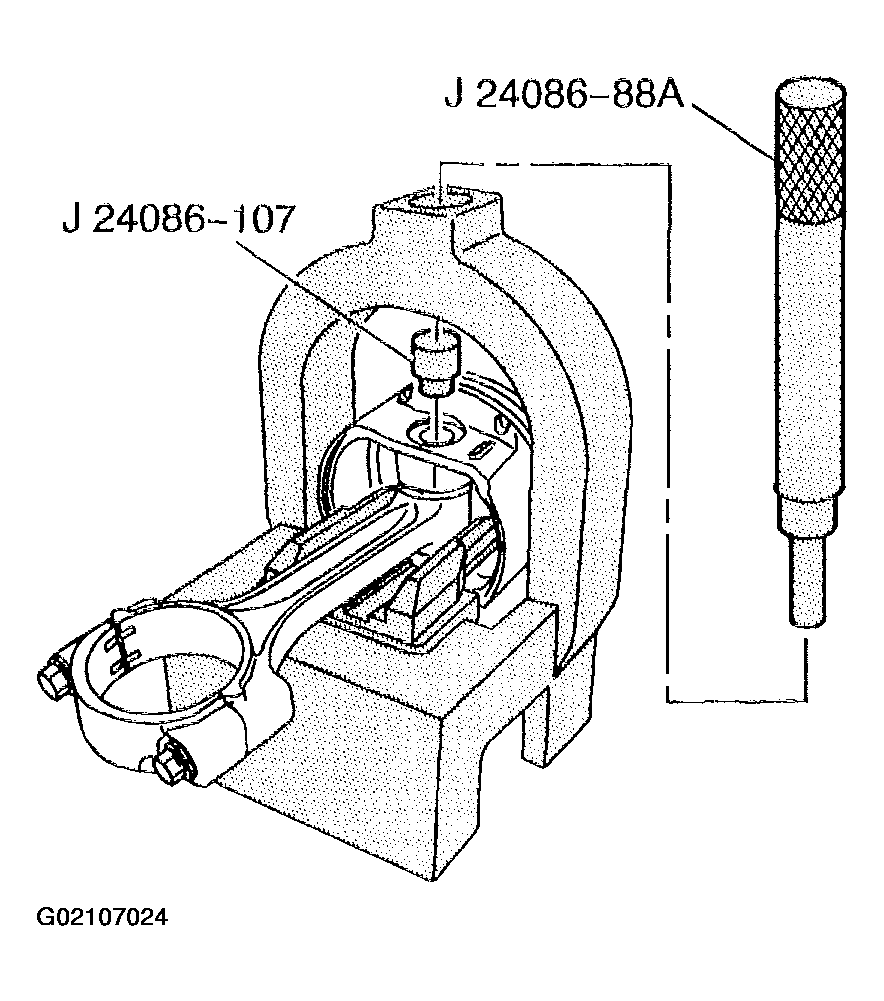

Fig 3: J 24086-88A & J 24086-107
Courtesy of GENERAL MOTORS CORP.

NOTE: After the installer hub bottoms on the support assembly, do not exceed 35 000 kPa (5,000 psi) pressure, this could cause damage to the tool.
Press the piston pin from the piston and connecting rod assembly.

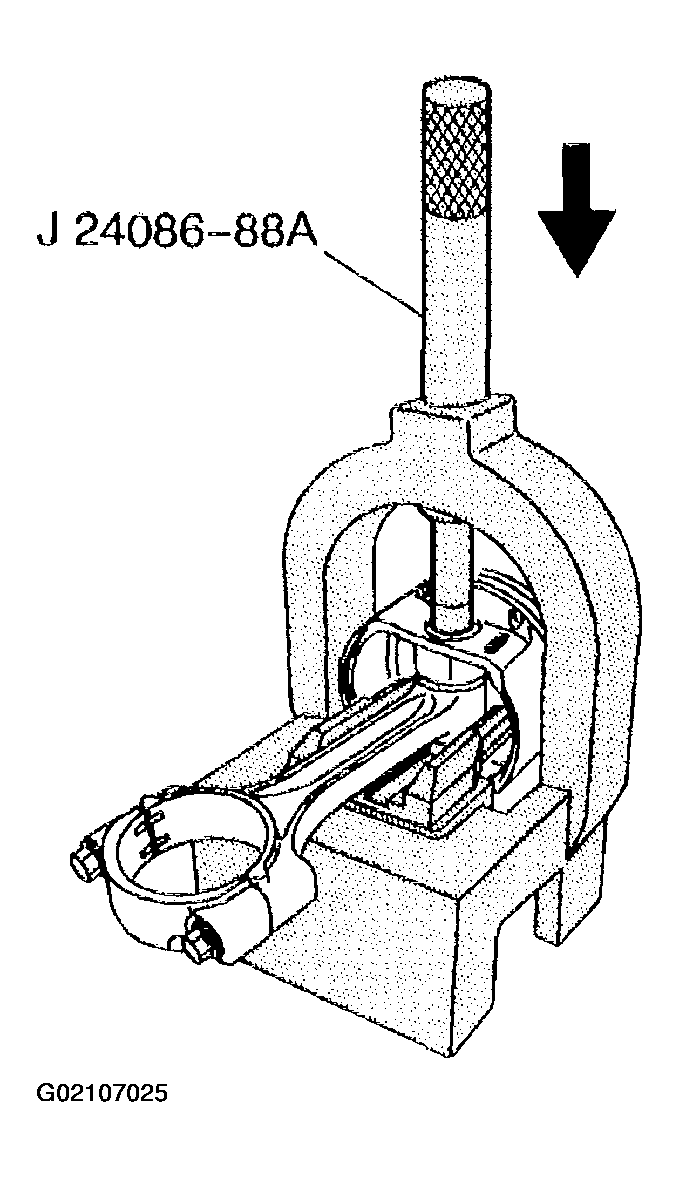

Fig 4: J 24086-88A
Courtesy of GENERAL MOTORS CORP.
