Oil Pump, Pump Screen and Deflector Removal

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump screen bolt (4) and nuts (2).
  2. Remove the oil pump screen (1) with O-ring seal (3).
  3. Remove the O-ring seal from the pump screen.
  4. Discard the O-ring seal.

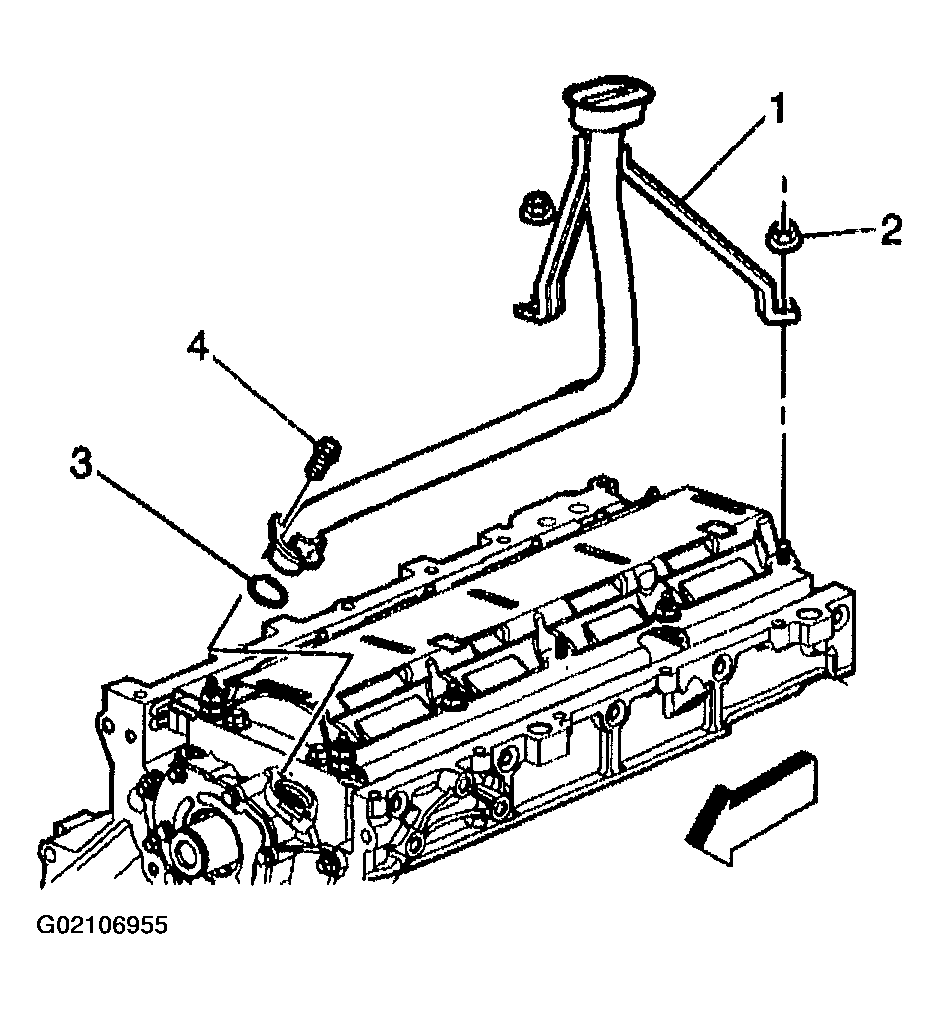

    Fig 1: Removing Oil Pump Screen, O-Ring Seal, Bolt & Nuts
    G02106955Courtesy of GENERAL MOTORS CORP.
  5. Remove the remaining crankshaft oil deflector nuts.
  6. Remove the crankshaft oil deflector.
    Fig 2: Removing Crankshaft Oil Deflector & Nuts
    G02106956Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil pump bolts.
    IMPORTANT: Do not allow dirt or debris to enter the oil pump assembly, cap ends as necessary.
  8. Remove the oil pump.
    Fig 3: Removing Oil Pump & Bolts
    G02106957Courtesy of GENERAL MOTORS CORP.
