Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wires from the spark plugs.

    Do not remove the spark plug wires from the ignition coils unless required.

  2. Remove the exhaust manifold, bolts, and gasket.
  3. Discard the gasket.

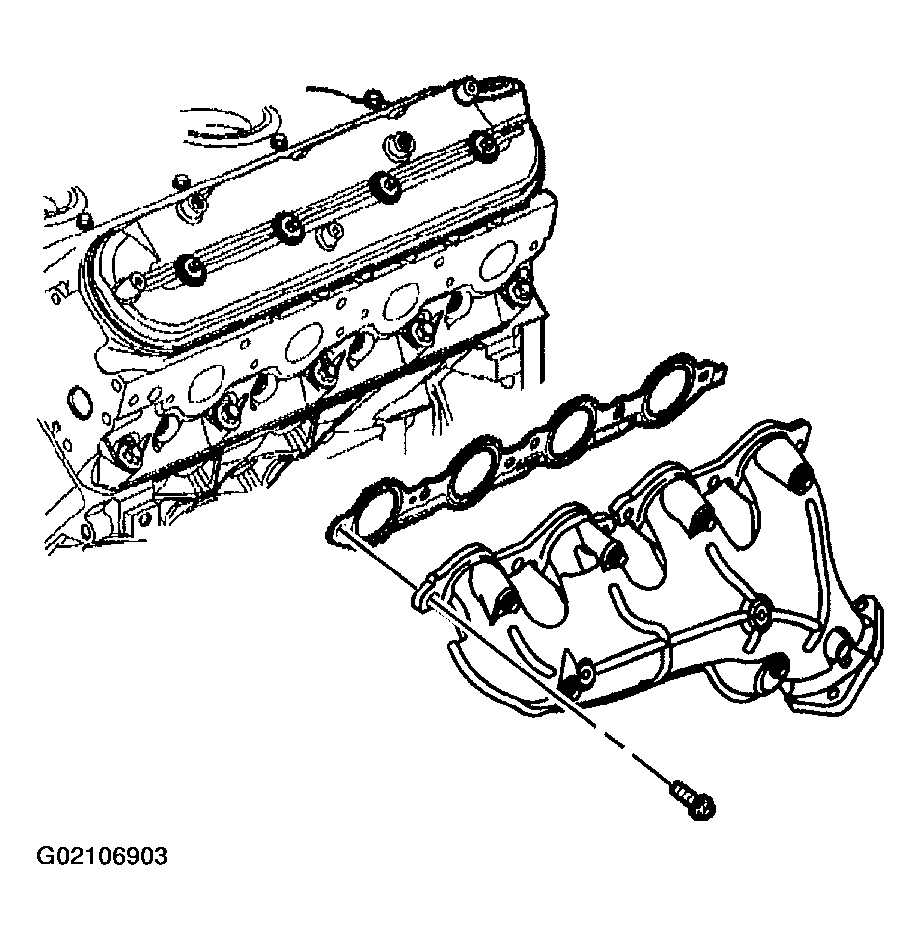

    Fig 1: Removing Exhaust Manifold, Bolts & Gasket
    G02106903Courtesy of GENERAL MOTORS CORP.
  4. Remove the heat shield (2) and bolts (3) from the manifold (1), if required.

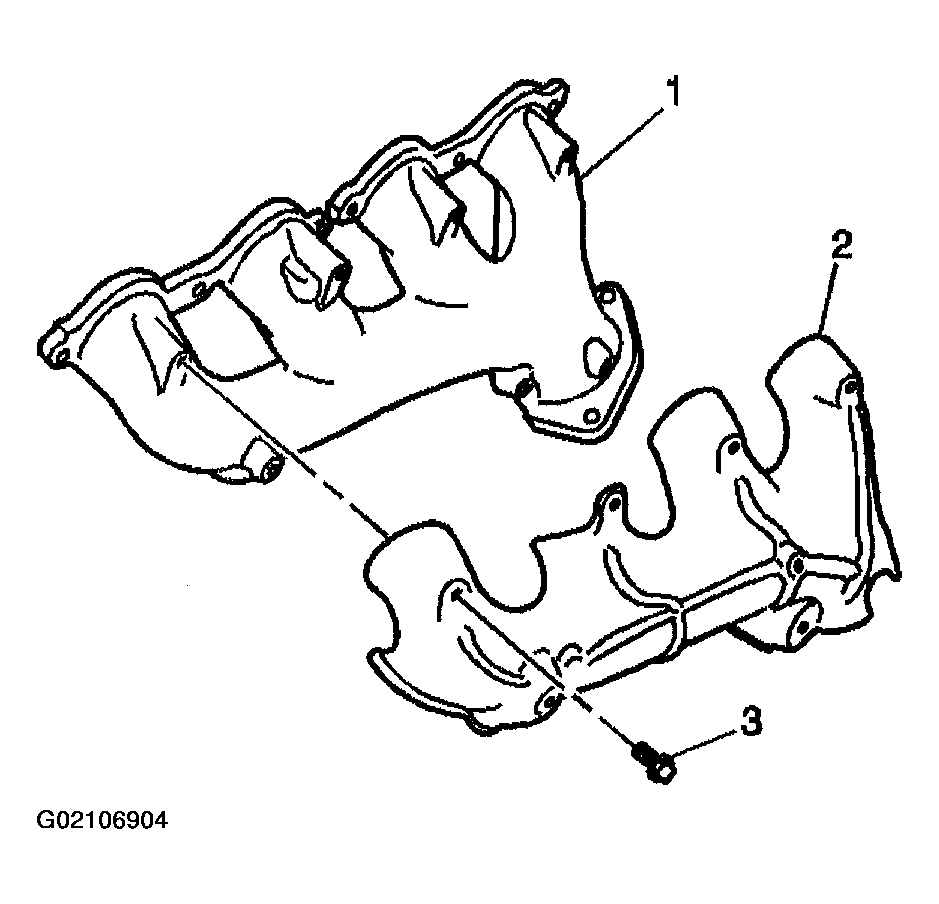

    Fig 2: Manifold, Heat Shield & Bolts
    G02106904Courtesy of GENERAL MOTORS CORP.
