Engine Rear Cover Removal

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear cover bolts.
  2. Remove the rear cover and gasket.
  3. Discard the rear cover gasket.

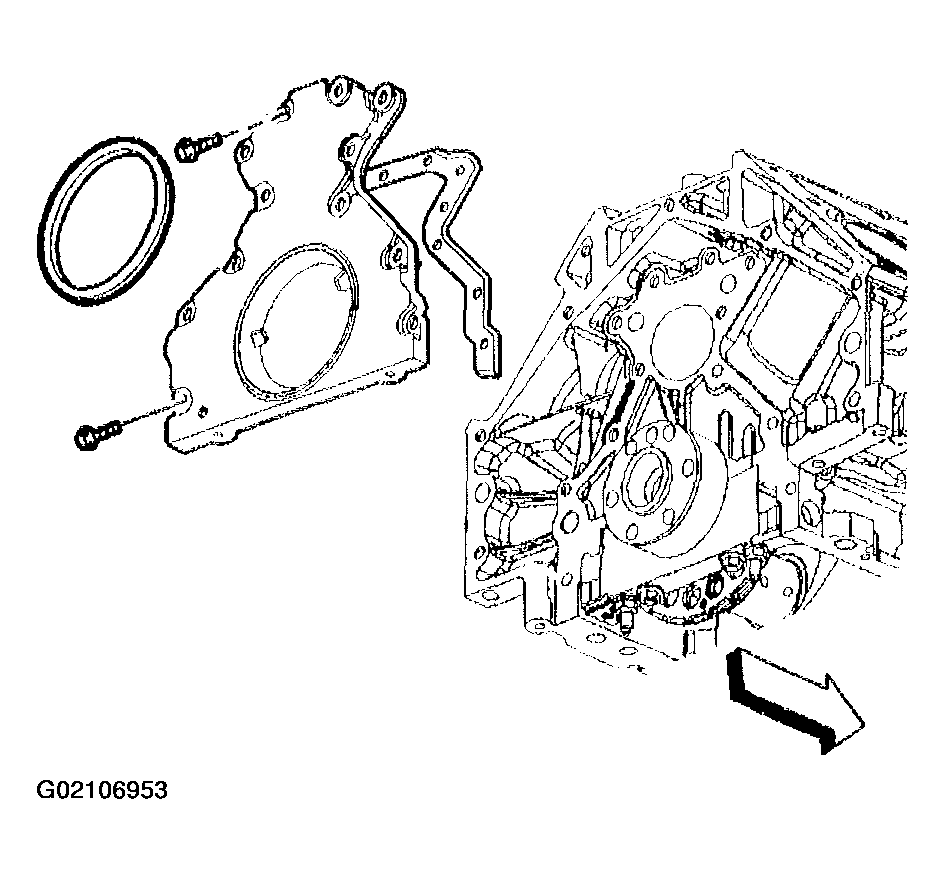

    Fig 1: Removing Rear Cover And Gasket
    G02106953Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft rear oil seal (1) from the cover.

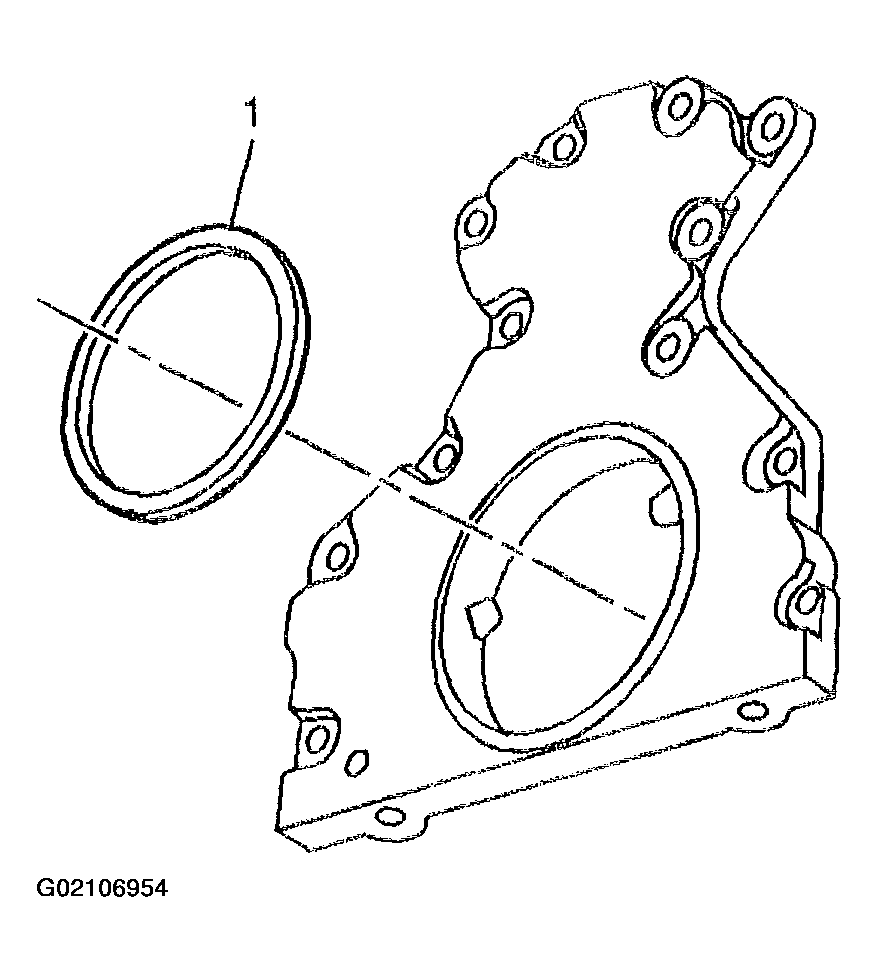

    Fig 2: Removing Crankshaft Rear Oil Seal
    G02106954Courtesy of GENERAL MOTORS CORP.
