Tools Required

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
  • Do not use the crankshaft rear oil seal or the engine rear cover gasket again.
  • Do not apply any type sealant to the rear cover gasket, unless specified.
  • The special tools in this procedure are used to properly align the engine rear cover at the oil pan surface and to center the crankshaft rear oil seal.
  • The crankshaft rear oil seal will be installed after the rear cover has been installed and aligned. Install the rear cover without the crankshaft oil seal.

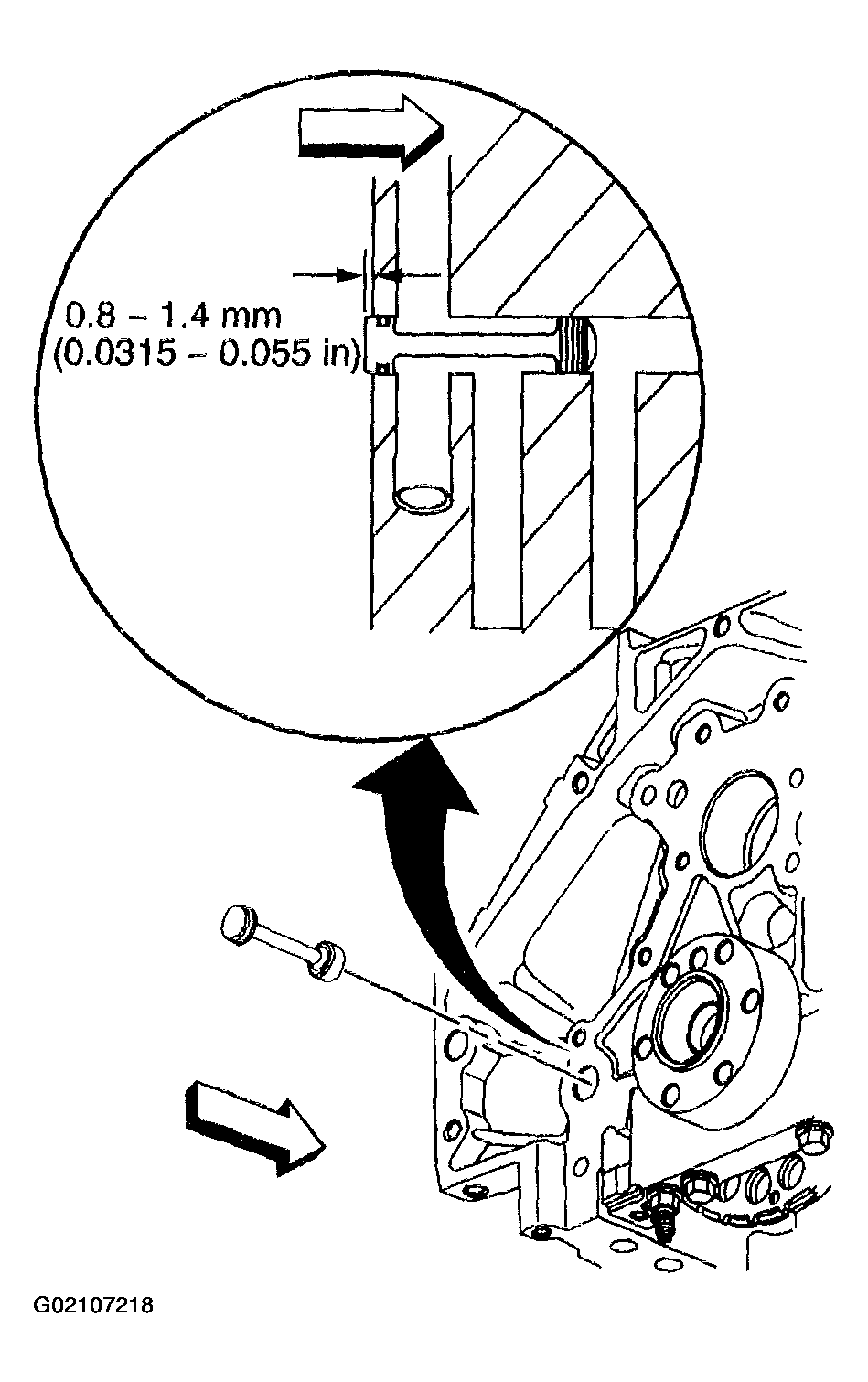

    Fig 1: Inspecting Rear Oil Gallery Plug For Proper Installation
    G02107218Courtesy of GENERAL MOTORS CORP.
    • The crankshaft rear oil seal MUST be centered in relation to the crankshaft.
    • The oil pan sealing surface at the rear cover and engine block MUST be aligned within specifications.
    • An improperly aligned rear cover may cause premature rear oil seal wear and/or engine assembly oil leaks.
  1. Inspect the rear oil gallery plug for proper installation.
  2. Install the rear cover gasket, rear cover and bolts.
  3. Tighten the bolts finger tight. Do not overtighten.

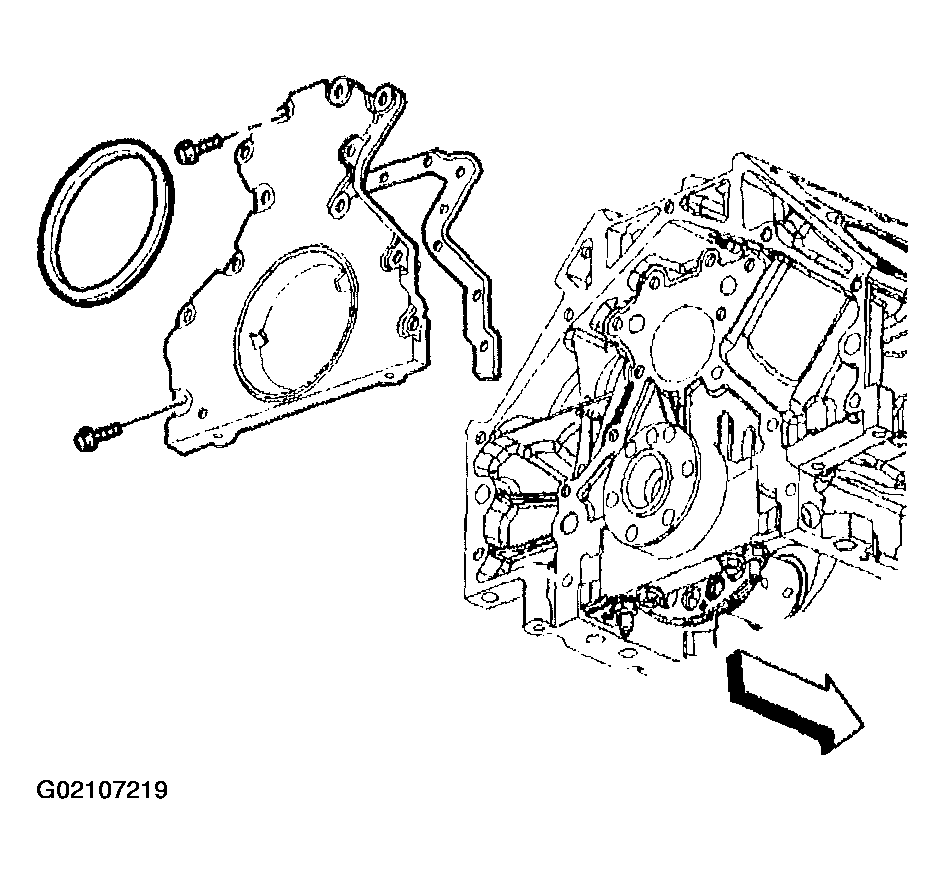

    Fig 2: Installing Rear Cover, Gasket & Bolts
    G02107219Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
    IMPORTANT: Start the J 41480  tool-to-rear cover bolts. Do not tighten the bolts at this time.
  4. Install the J 41480  and bolts.

    Tighten

    Tighten the tool-to-engine block bolts to 25 N.m (18 lb ft).

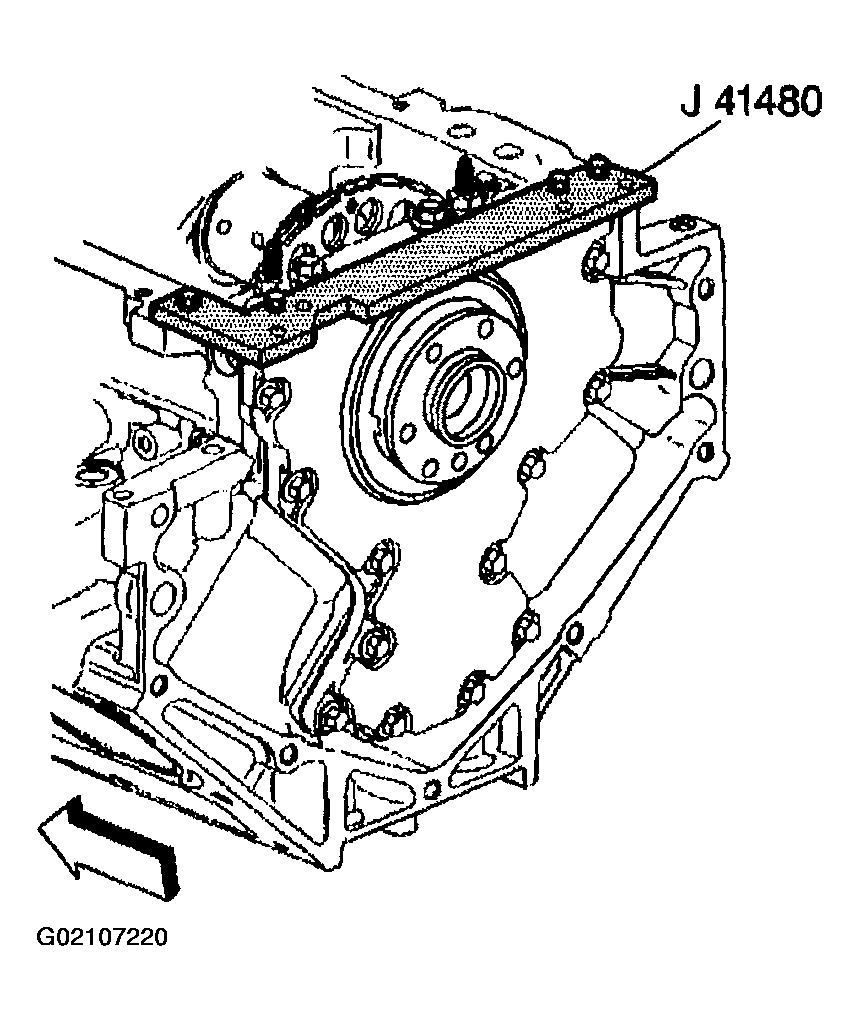

    Fig 3: Installing J 41480 & Bolts
    G02107220Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: To properly align the rear cover, the J 41476  must be installed onto the rear of the crankshaft with the tool mounting bolts parallel to the oil pan surface.
  5. Rotate the crankshaft until 2 opposing flywheel bolt holes are parallel to the oil pan surface.

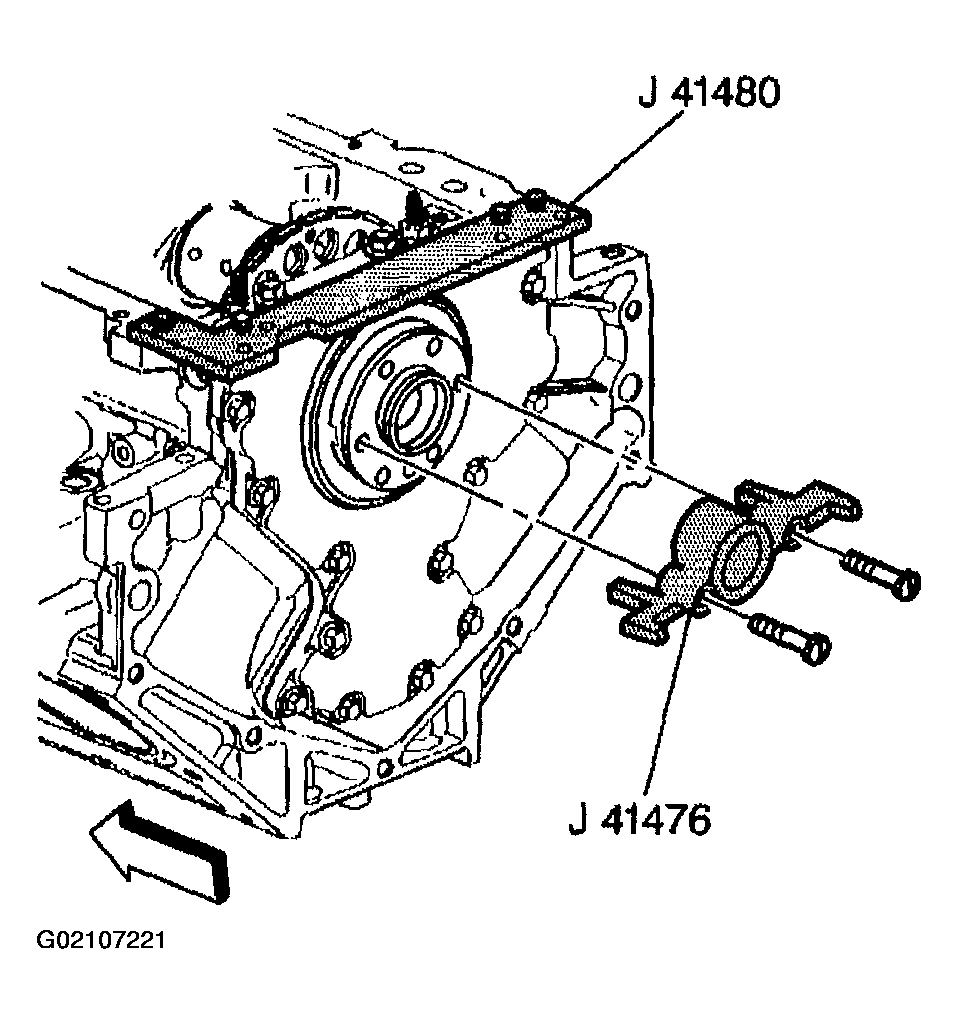

    Fig 4: J 41480 & J 41476
    G02107221Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The tapered legs of the alignment tool must enter the rear cover oil seal bore.
  6. Install the J 41476  and bolts onto the rear of the crankshaft.

    Tighten

    1. 6.1. Tighten the tool mounting bolts until snug. Do not overtighten.
    2. 6.2. Tighten the J 41480  tool-to-rear cover bolts evenly to 12 N.m (106 lb in).
    3. 6.3. Tighten the rear cover bolts to 25 N.m (18 lb ft).
  7. Remove the tools.

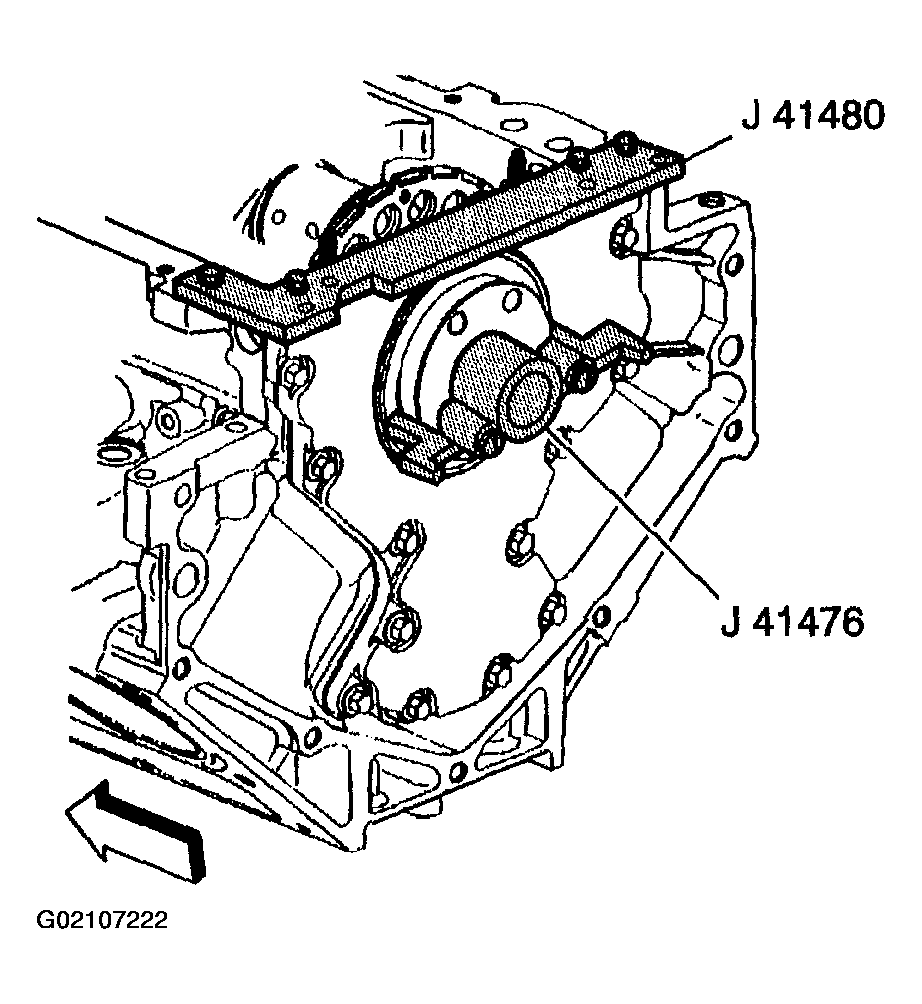

    Fig 5: J 41480 & J 41476
    G02107222Courtesy of GENERAL MOTORS CORP.
  8. Measure the rear cover-to-engine block oil pan surface for flatness.
    1. 8.1. Place a straight edge onto the engine block and rear cover oil pan sealing surfaces.

      Avoid contact with the portion of the gasket that protrudes into the oil pan surface.

    2. 8.2. Insert a feeler gage between the rear cover and the straight edge. The cover must be flush with the oil pan or no more than 0.5 mm (0.02 in) below flush.
  9. If the rear cover-to-engine block oil pan surface alignment is not within specifications, repeat the cover alignment procedure.
  10. If the correct rear cover-to-engine block alignment at the oil pan surface cannot be obtained, replace the rear cover.

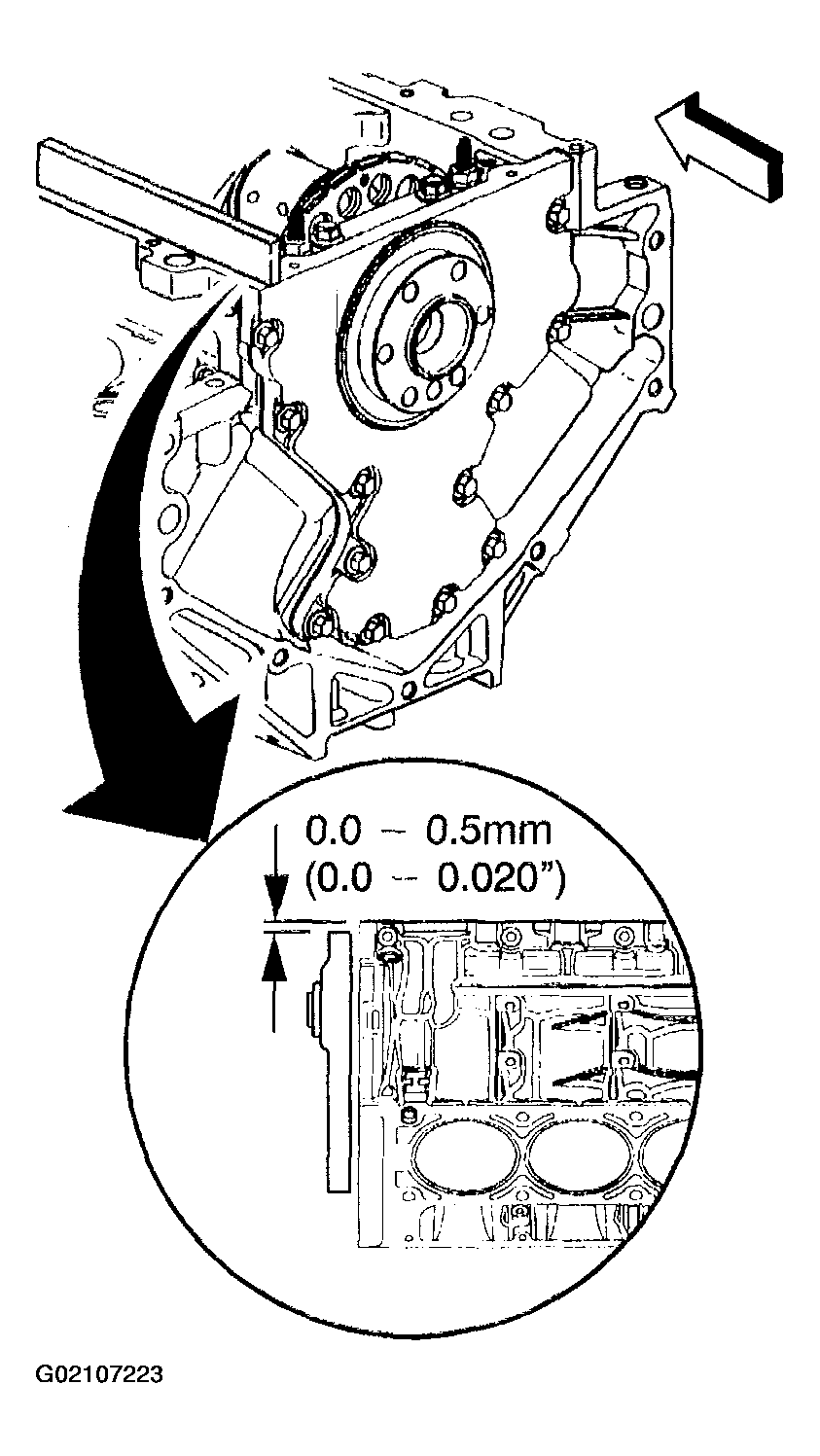

    Fig 6: Measure Rear Cover-To-Engine Block Oil Pan
    G02107223Courtesy of GENERAL MOTORS CORP.
