Engine Front Cover Removal

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

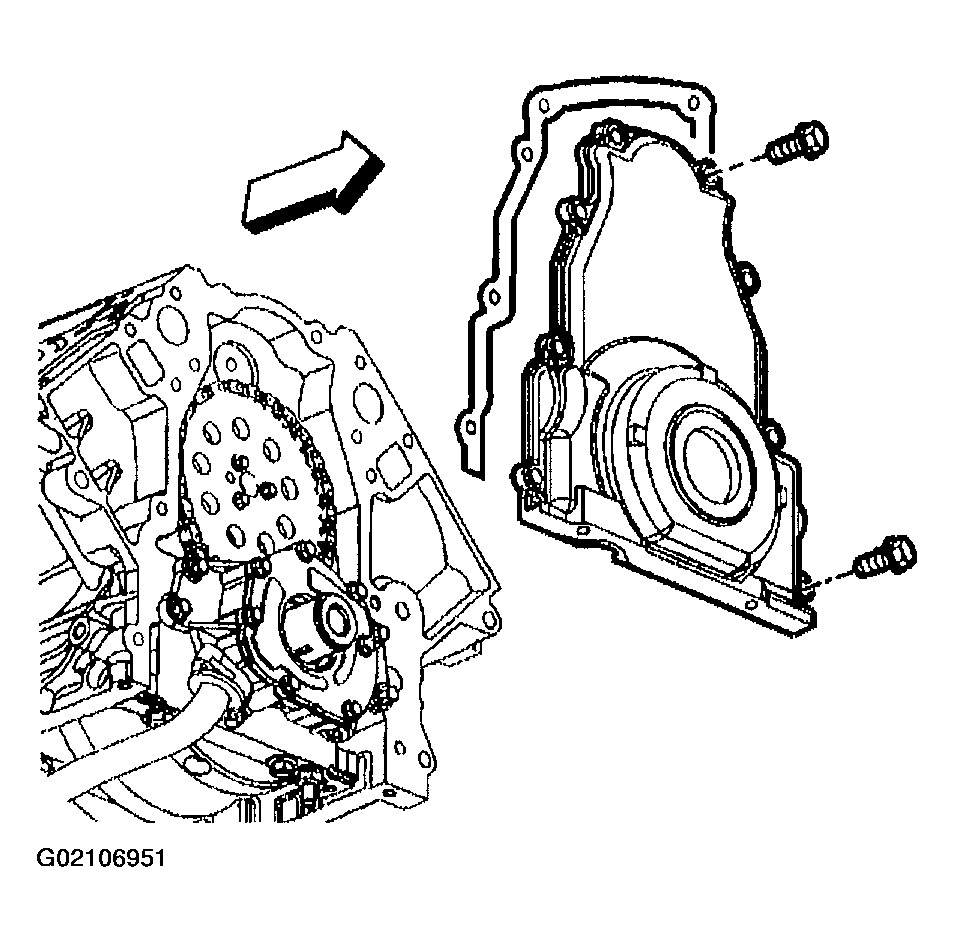

  1. Remove the front cover bolts.
  2. Remove the front cover and gasket.
  3. Discard the front cover gasket.
    Fig 1: Removing Front Cover, Bolts & Gasket
    G02106951Courtesy of GENERAL MOTORS CORP.

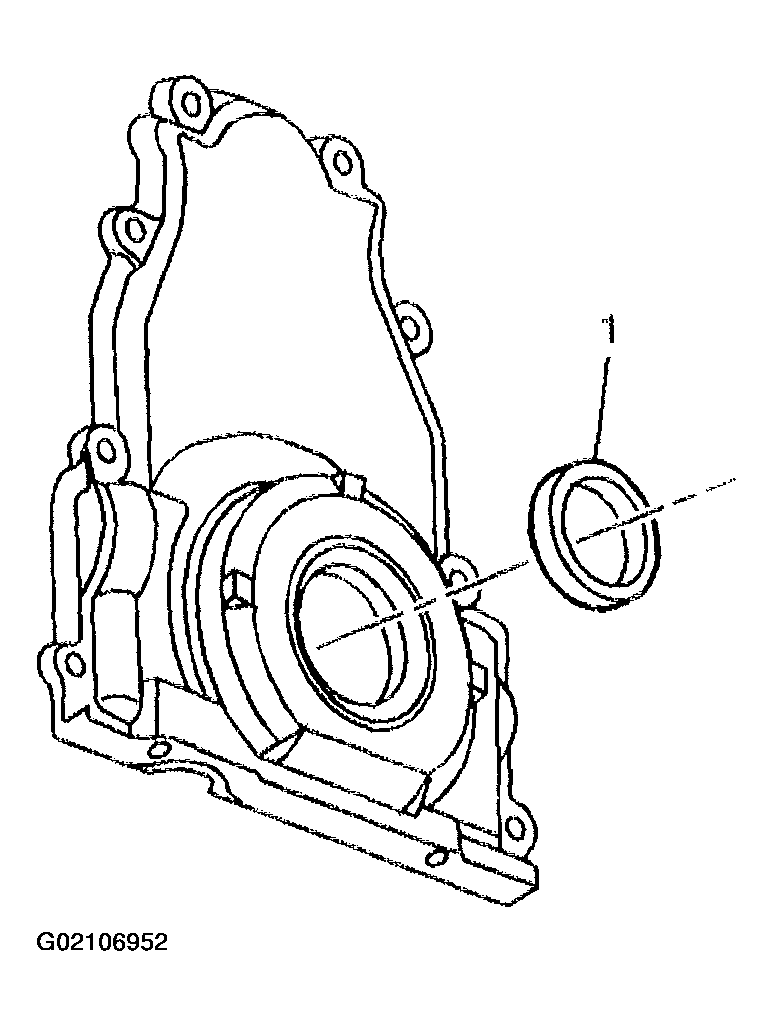

  4. Remove the crankshaft front oil seal (1) from the cover.
    Fig 2: Removing Crankshaft Front Oil Seal
    G02106952Courtesy of GENERAL MOTORS CORP.
