Tools Required

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The crankshaft bearing caps are machined with the engine block for the proper clearances. Mark or identify each crankshaft bearing cap location and direction before removal. The crankshaft bearing caps MUST be installed to their original position and direction.

Do not use the bearing cap M8 side bolts again.

Remove the bearing cap M8 side bolts prior to cap removal.

  1. Remove the crankshaft position sensor bolt.
  2. Remove the crankshaft position sensor.

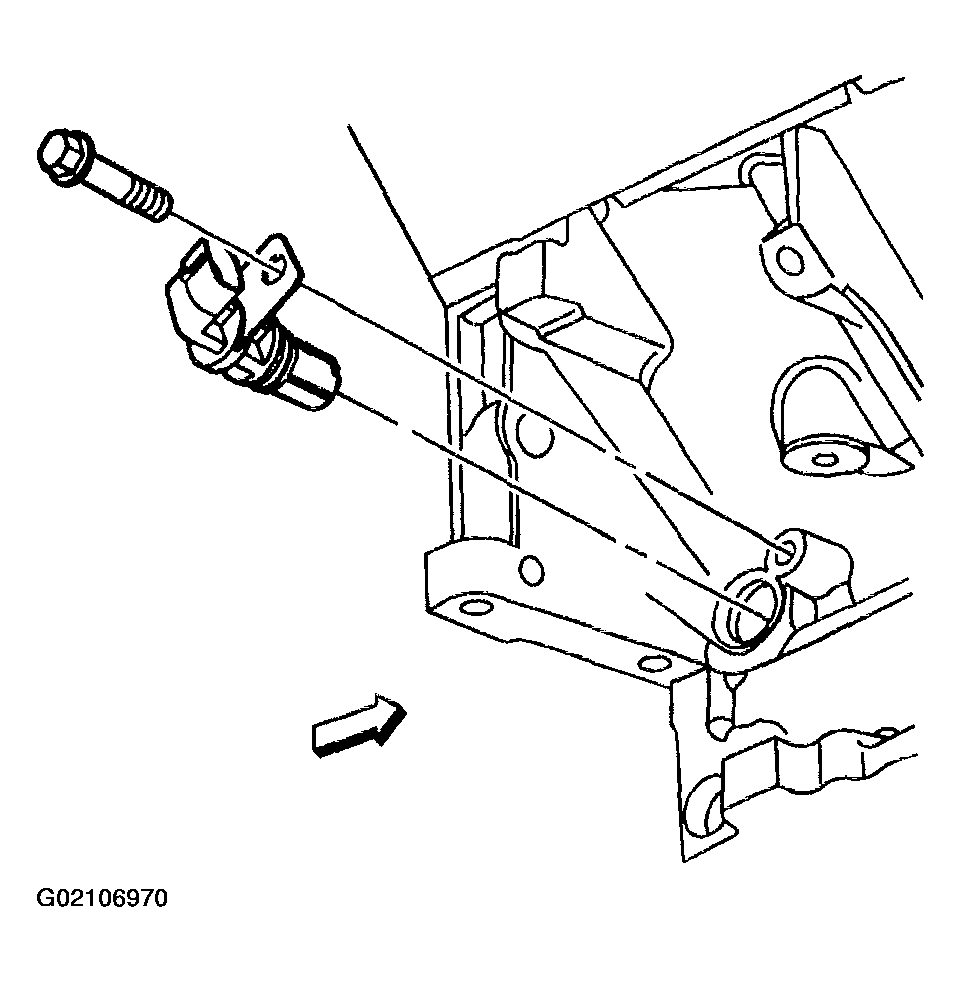

    Fig 1: Removing Crankshaft Position Sensor & Bolt
    G02106970Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft bearing cap M8 side bolts.
  4. Remove the bearing cap M10 bolts and bolt/studs. Note the M10 bolt/stud locations.

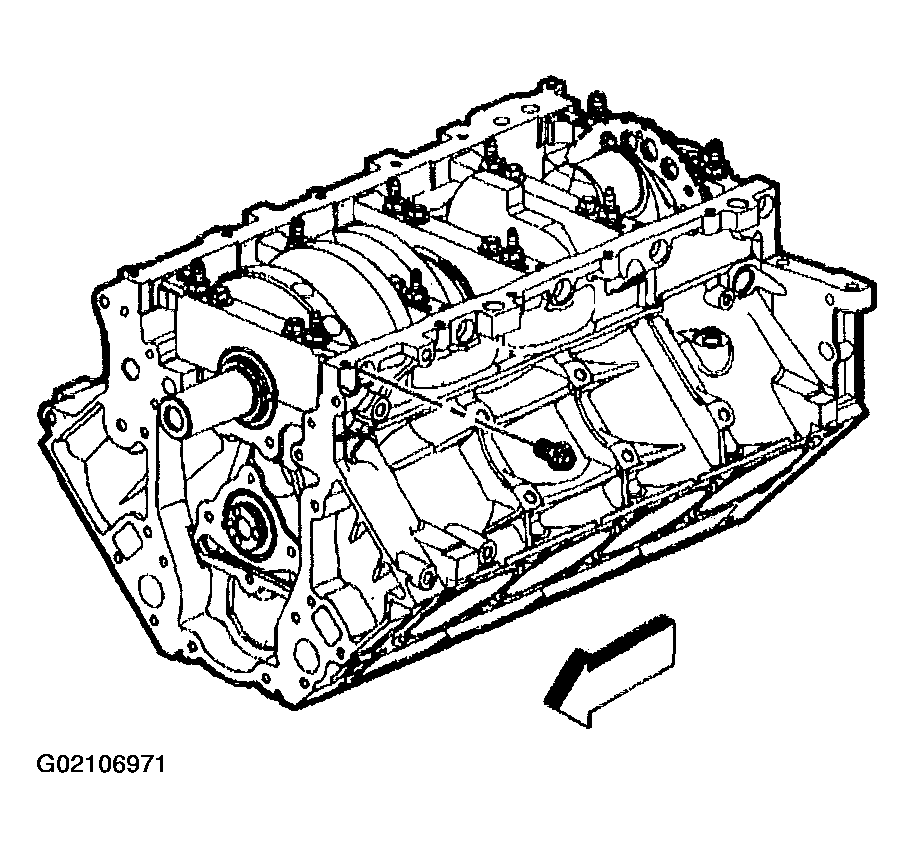

    Fig 2: Removing Crankshaft Bearing Cap Side Bolts
    G02106971Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the J 41818.

    Tighten

    Tighten the J 41818  bolts to 11 N.m (100 lb in).

  6. Install the J 6125-1B  to the J 41818  in order to remove the crankshaft bearing caps.

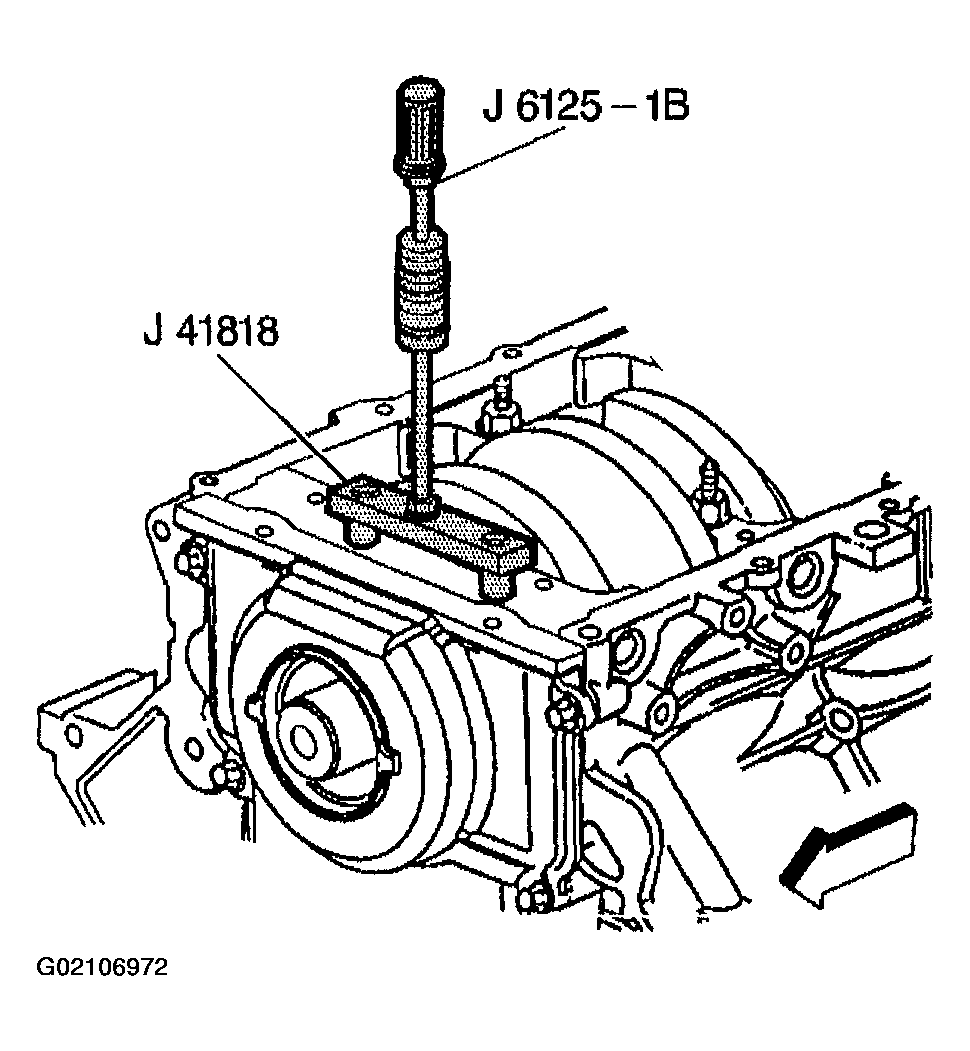

    Fig 3: Removing Crankshaft Bearing Caps Using J 6125-1B & J 41818
    G02106972Courtesy of GENERAL MOTORS CORP.
  7. Remove the bearing caps.

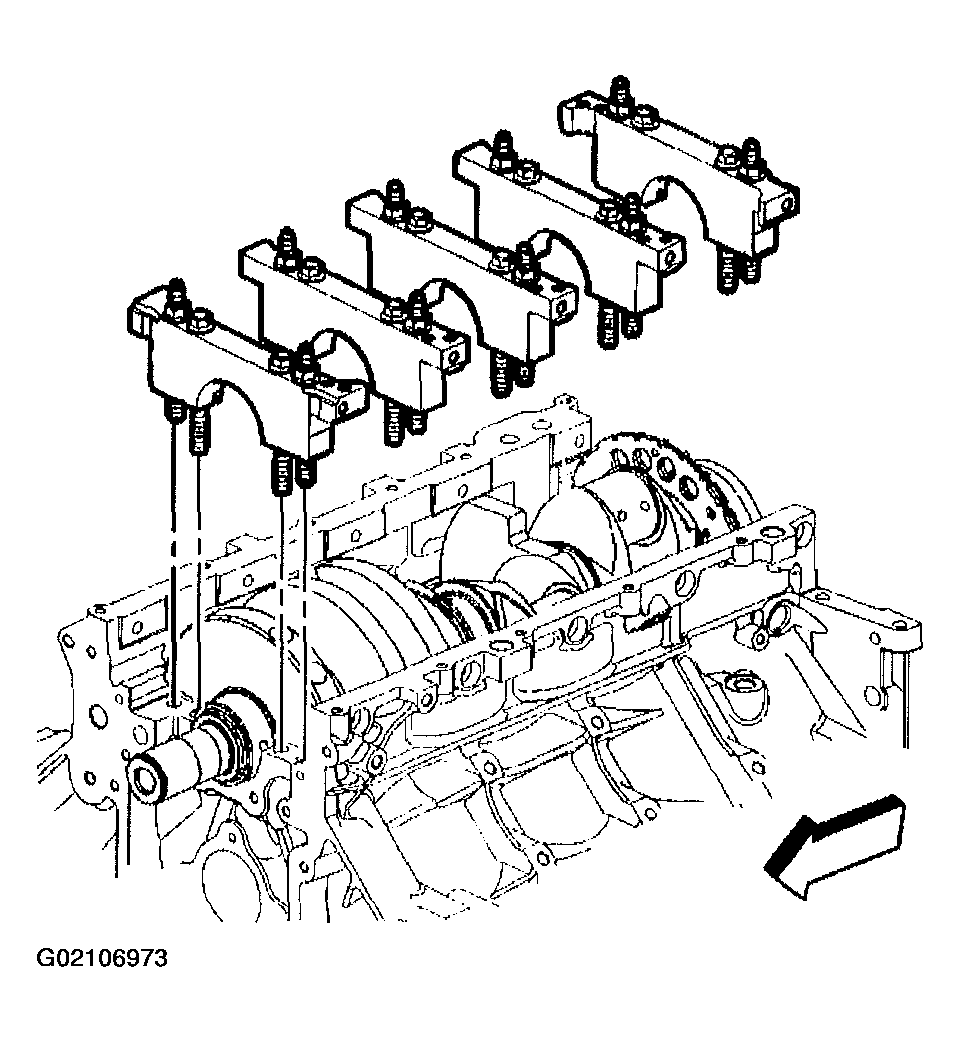

    Fig 4: Removing Bearing Caps
    G02106973Courtesy of GENERAL MOTORS CORP.
  8. Remove the crankshaft.

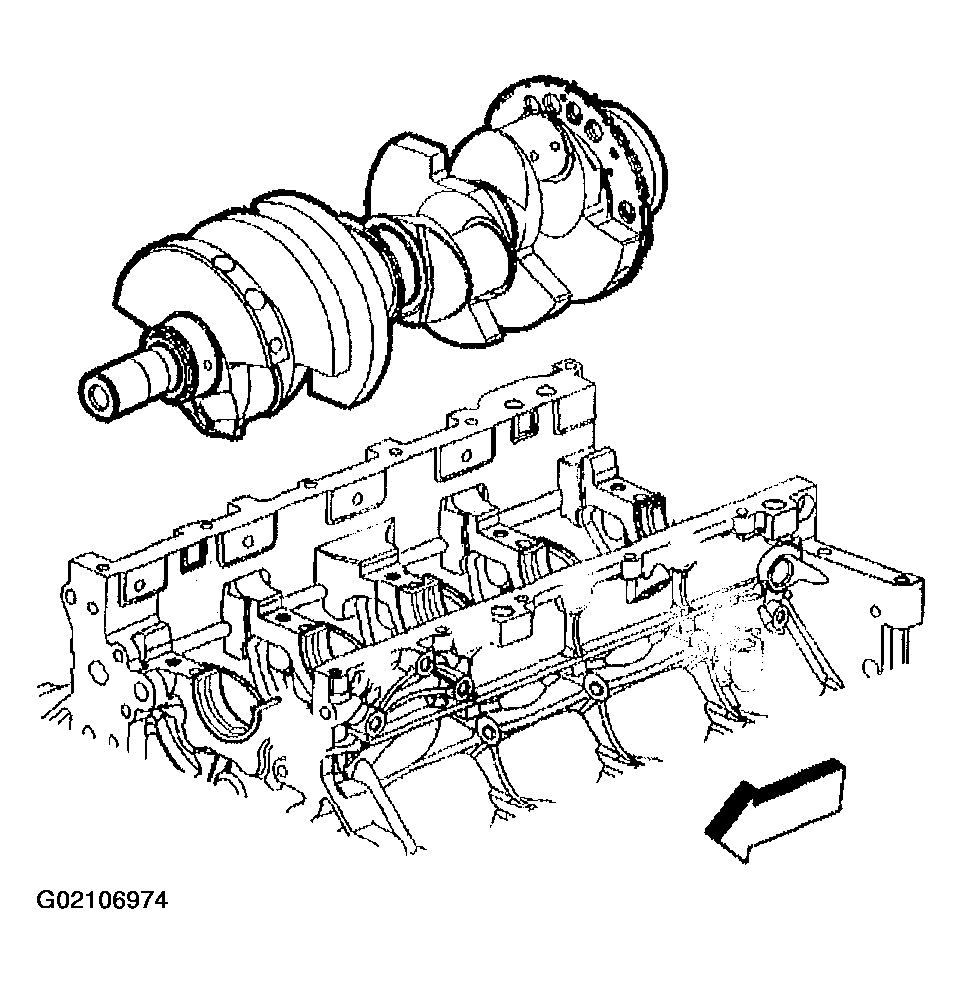

    Fig 5: Removing Crankshaft
    G02106974Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Use care when handling the crankshaft. Avoid damage to the crankshaft position sensor reluctor ring teeth. Nicks, burrs or other damage to the teeth may effect On-Board Diagnostics (OBD) II system performance.
  9. Lay the crankshaft onto two wooden V blocks or other protective surface.

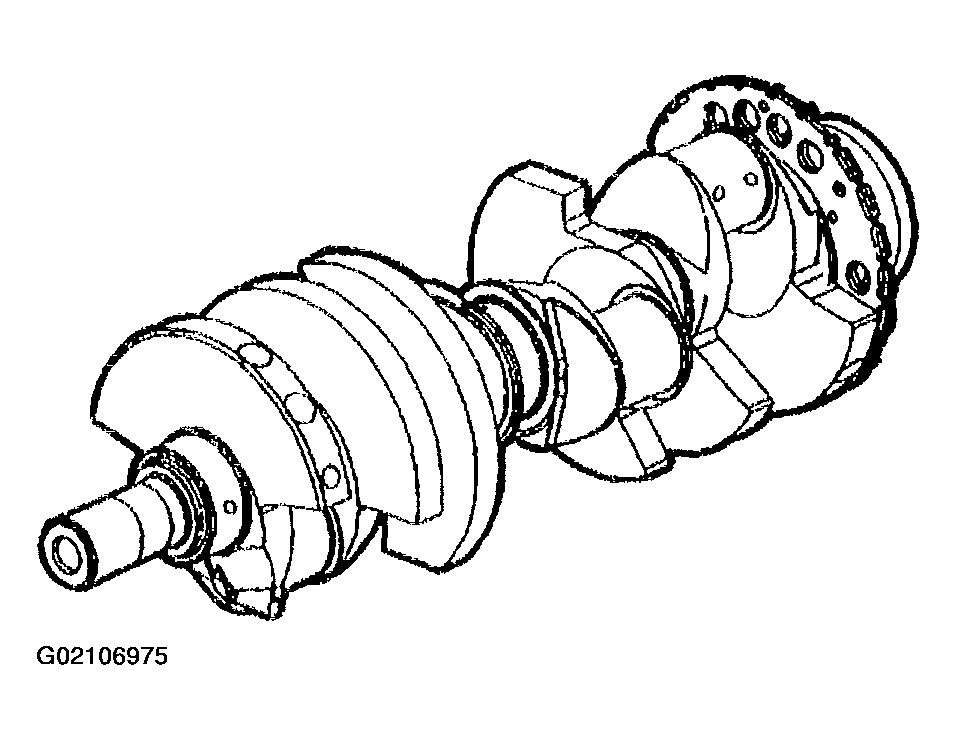

    Fig 6: View Of Crankshaft
    G02106975Courtesy of GENERAL MOTORS CORP.
  10. Remove the crankshaft bearings from the bearing caps and the engine block.
  11. Mark, sort, or organize the crankshaft bearings so they may be installed to their original position and location. Refer to Separating Parts .

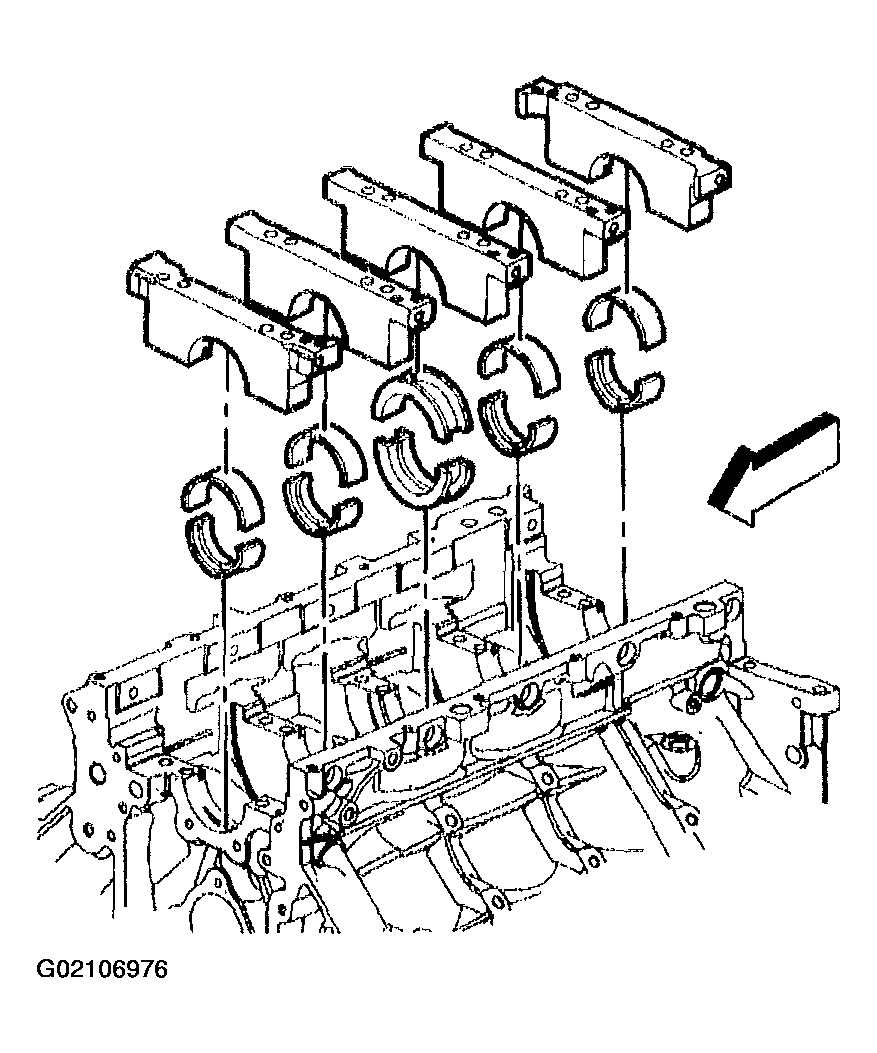

    Fig 7: Removing Crankshaft Bearings & Bearing Caps
    G02106976Courtesy of GENERAL MOTORS CORP.
