Lower Engine Noise, Regardless of Engine Speed

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

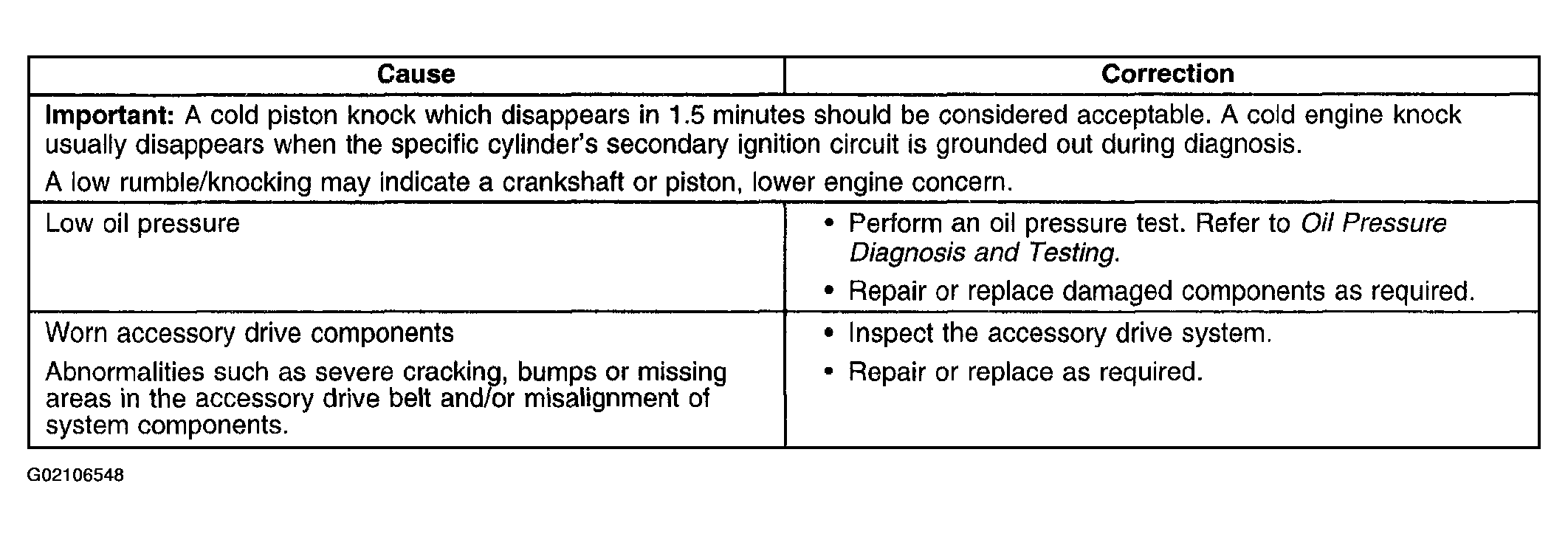

Fig 1: Lower Engine Noise, Regardless Of Engine Speed (1 Of 2)
G02106548Courtesy of GENERAL MOTORS CORP.

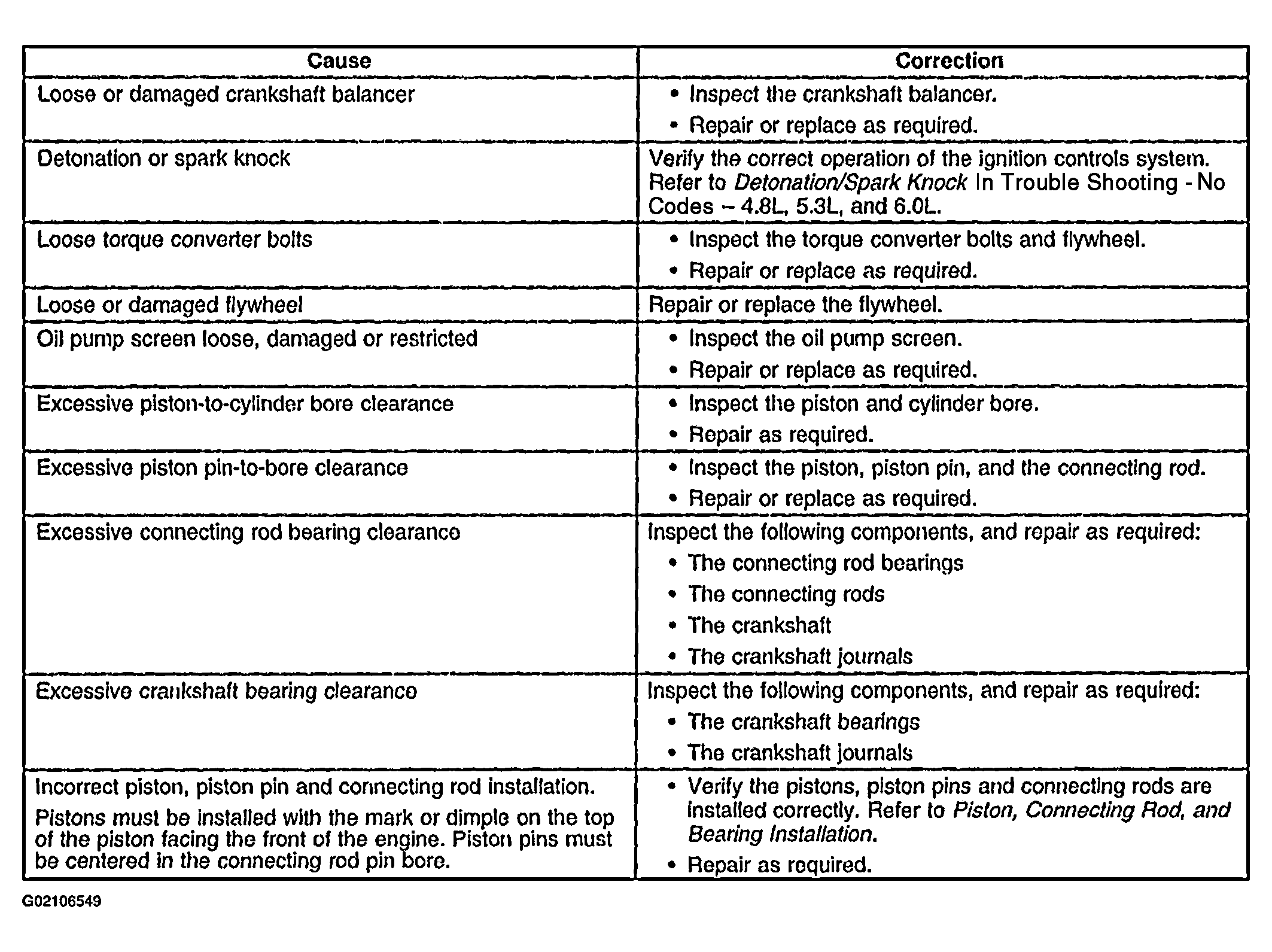

Fig 2: Lower Engine Noise, Regardless Of Engine Speed (2 Of 2)
G02106549Courtesy of GENERAL MOTORS CORP.
