Special Tools and Equipment

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

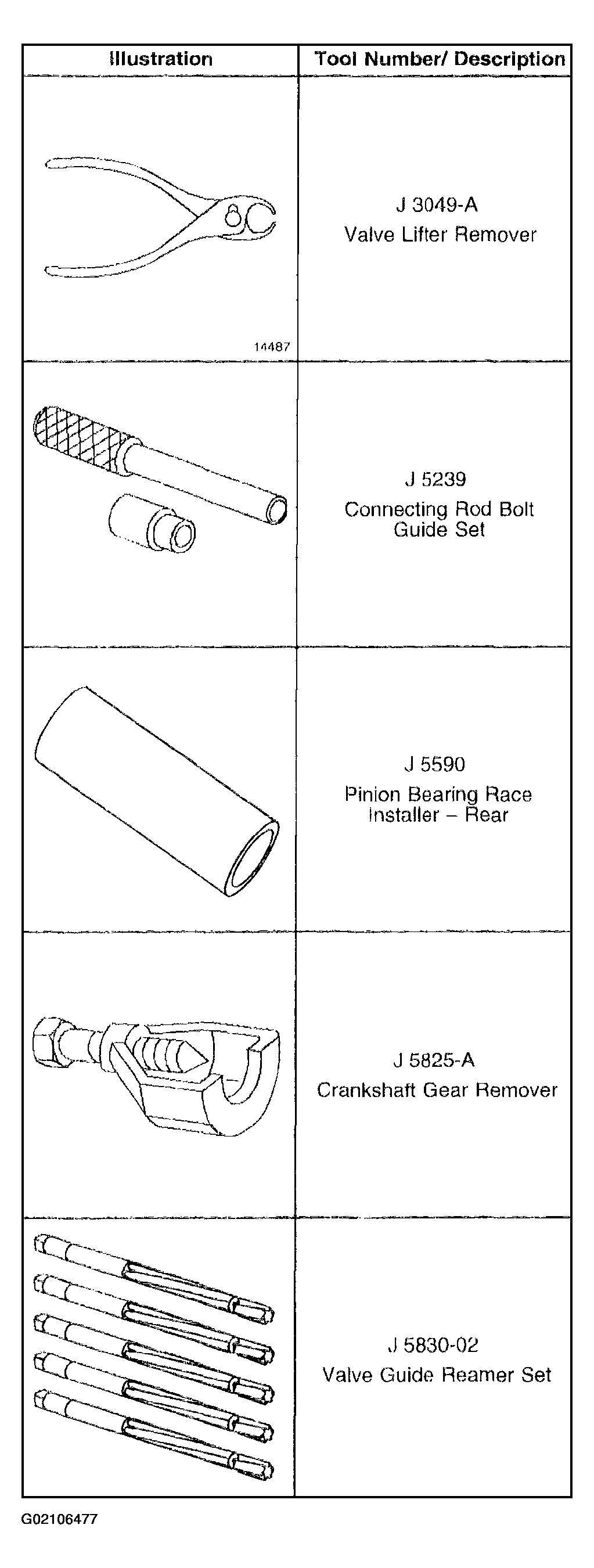

Fig 1: Special Tools & Equipment (1 Of 8)

Courtesy of GENERAL MOTORS CORP.

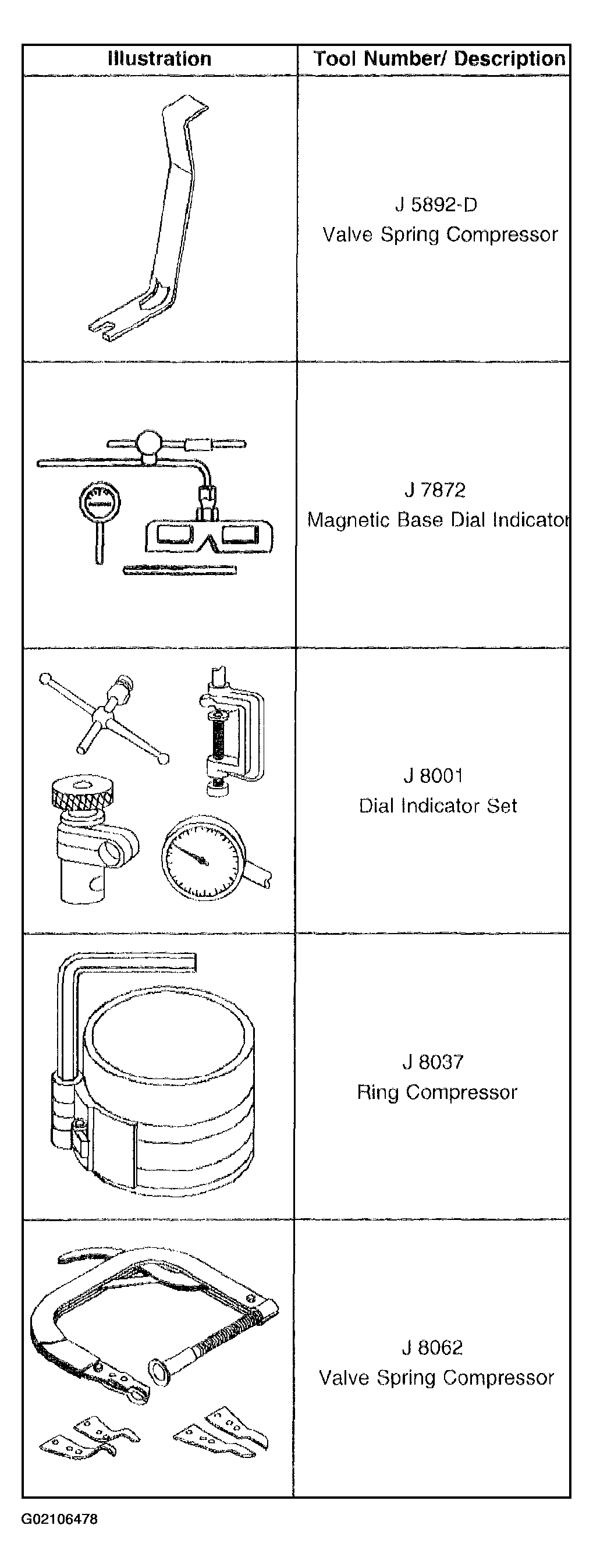

Fig 2: Special Tools & Equipment (2 Of 8)

Courtesy of GENERAL MOTORS CORP.

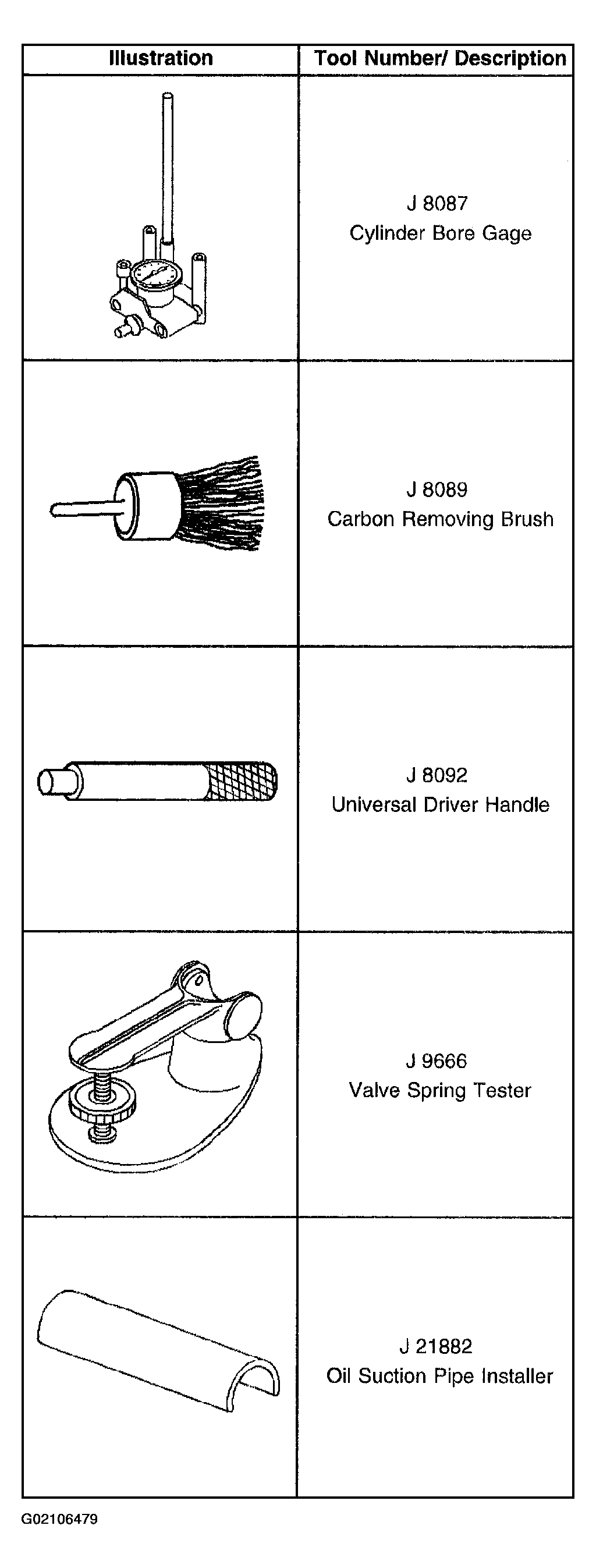

Fig 3: Special Tools & Equipment (3 Of 8)

Courtesy of GENERAL MOTORS CORP.

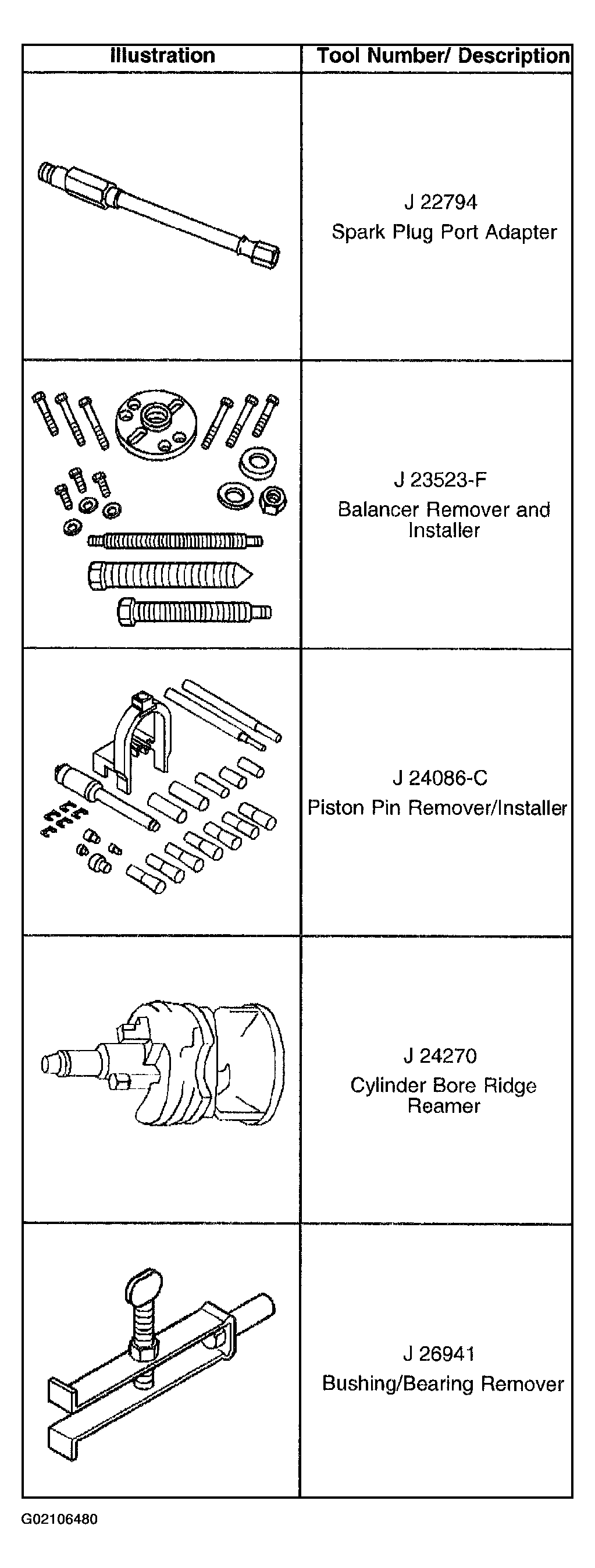

Fig 4: Special Tools & Equipment (4 Of 8)

Courtesy of GENERAL MOTORS CORP.

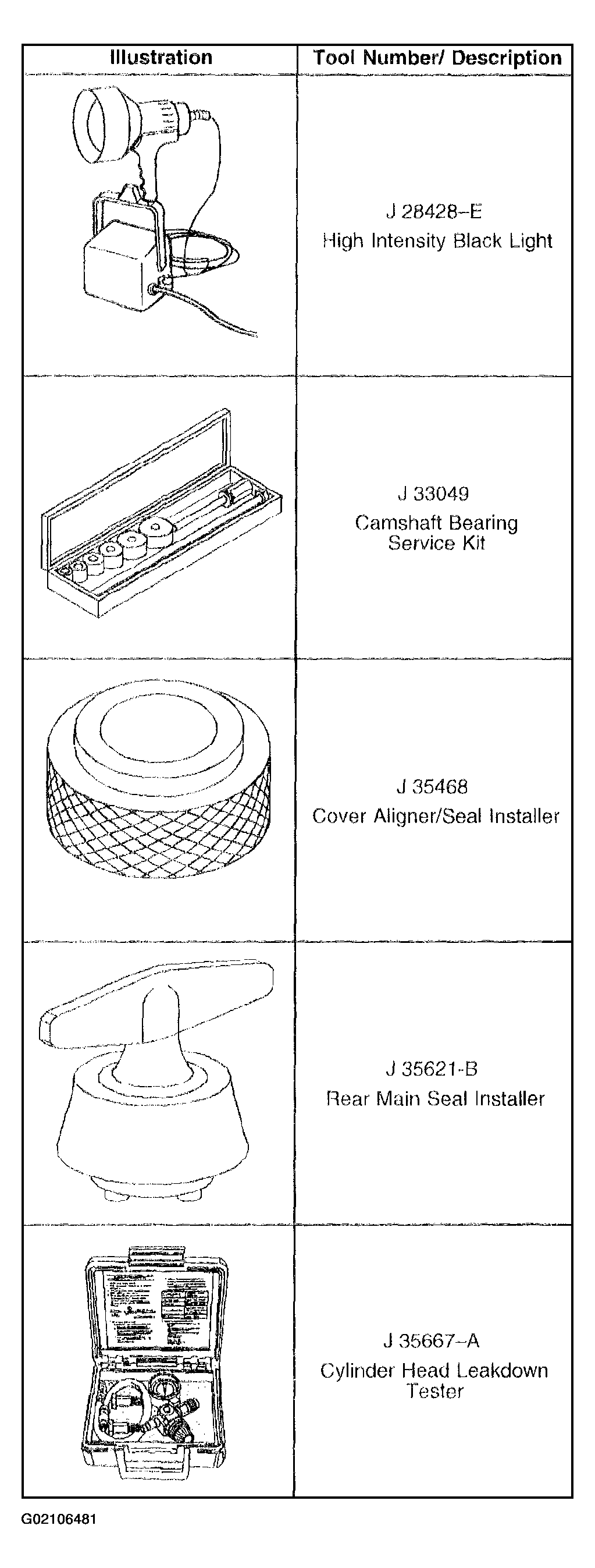

Fig 5: Special Tools & Equipment (5 Of 8)

Courtesy of GENERAL MOTORS CORP.

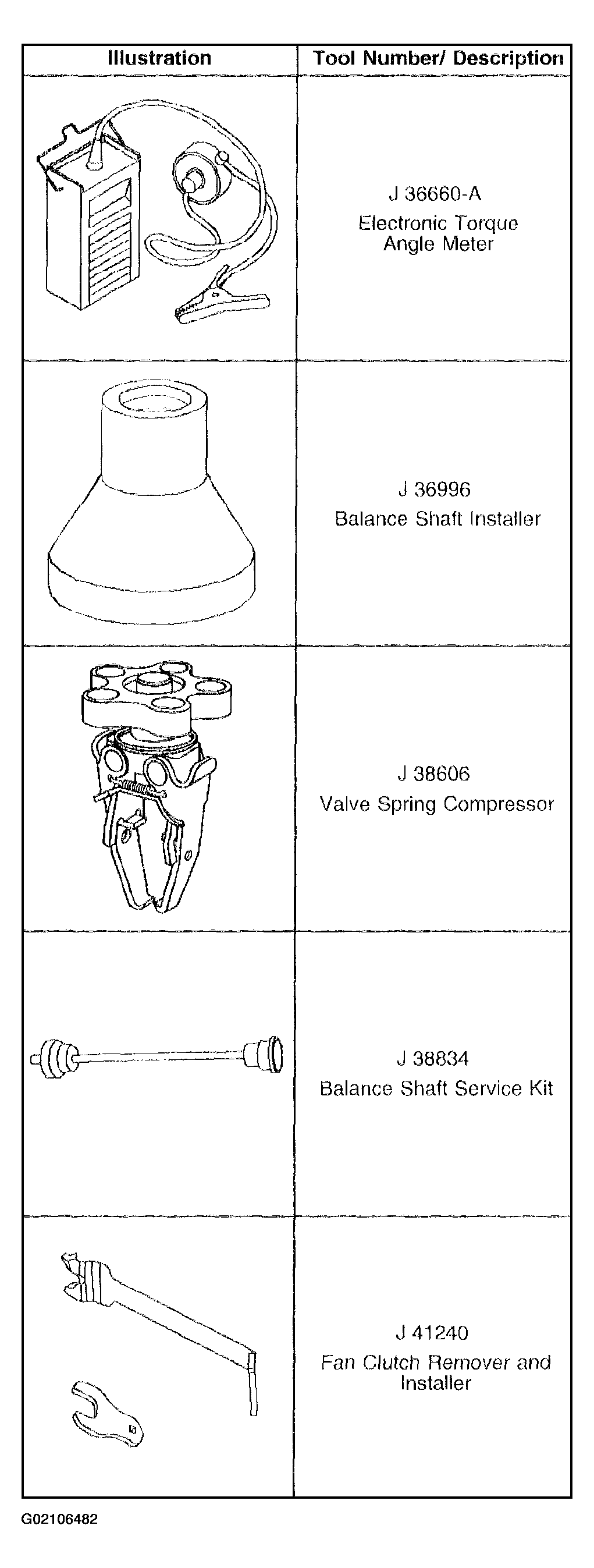

Fig 6: Special Tools & Equipment (6 Of 8)

Courtesy of GENERAL MOTORS CORP.

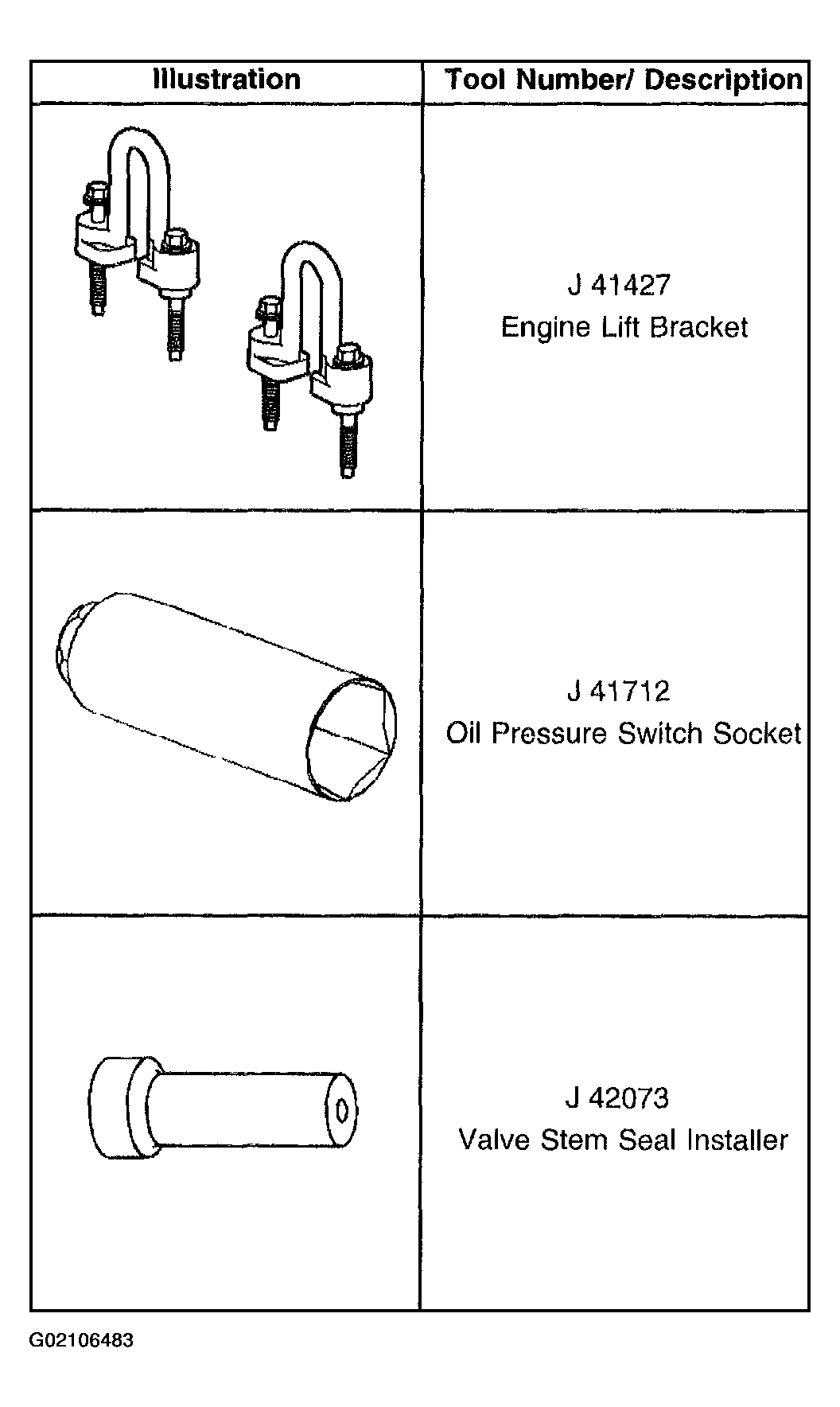

Fig 7: Special Tools & Equipment (7 Of 8)

Courtesy of GENERAL MOTORS CORP.

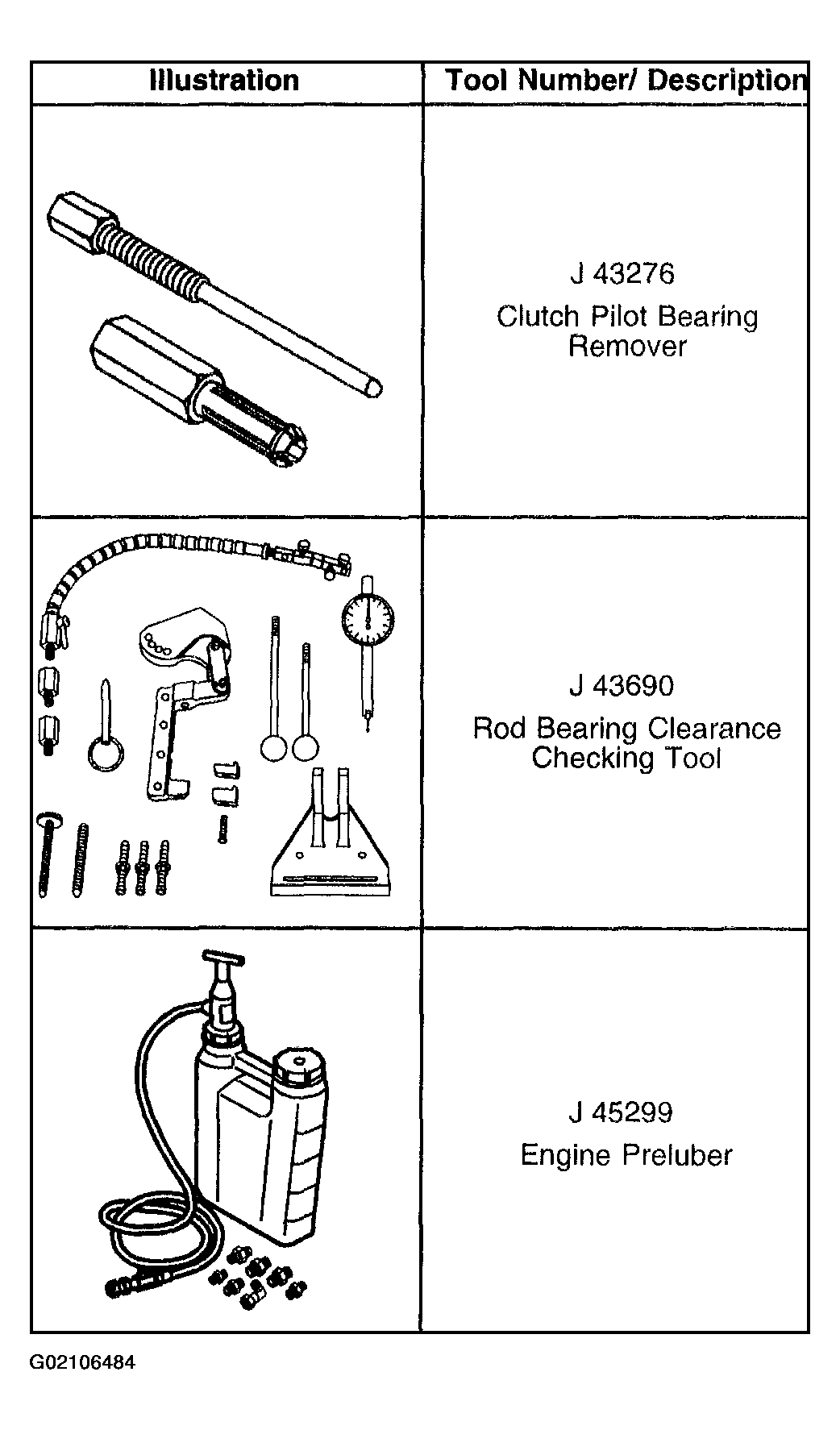

Fig 8: Special Tools & Equipment (8 Of 8)

Courtesy of GENERAL MOTORS CORP.
