Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Mark, sort, and organize all the components for assembly.
  1. Remove the rocker arm cover. Refer to Valve Rocker Arm Cover Replacement - Left  or Valve Rocker Arm Cover Replacement - Right .
  2. Remove the rocker arms.

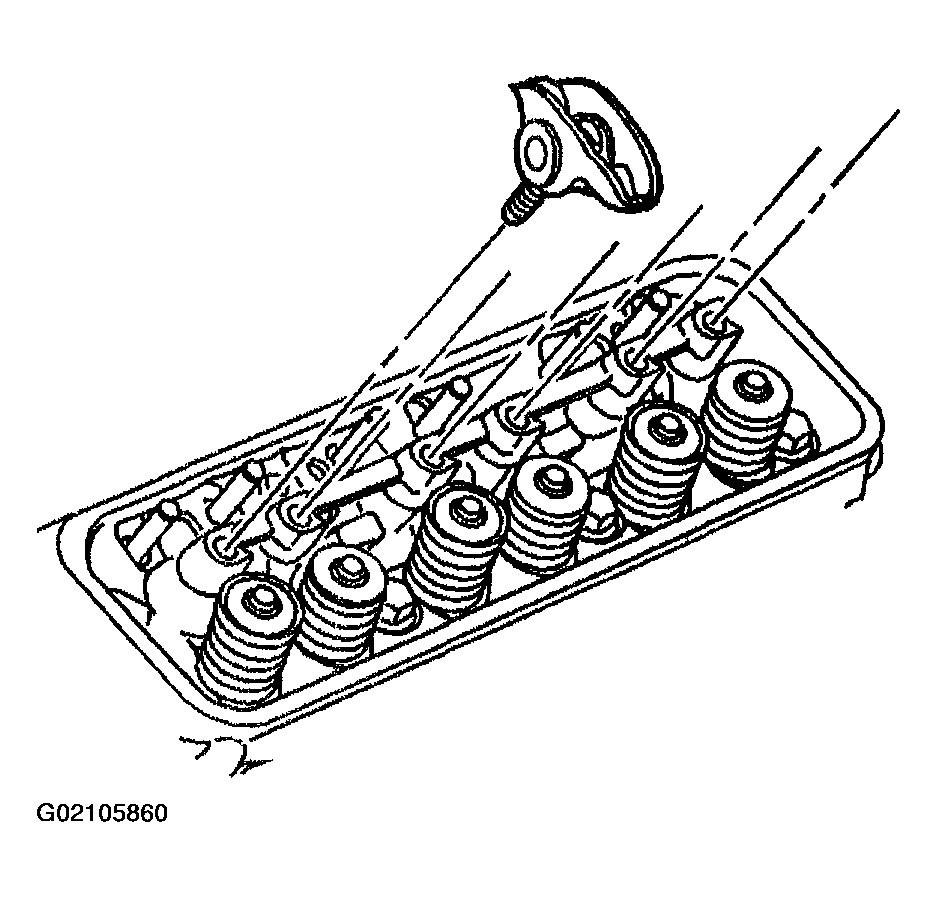

    Fig 1: Rocker Arms
    G02105860Courtesy of GENERAL MOTORS CORP.
  3. Remove the rocker arm supports.

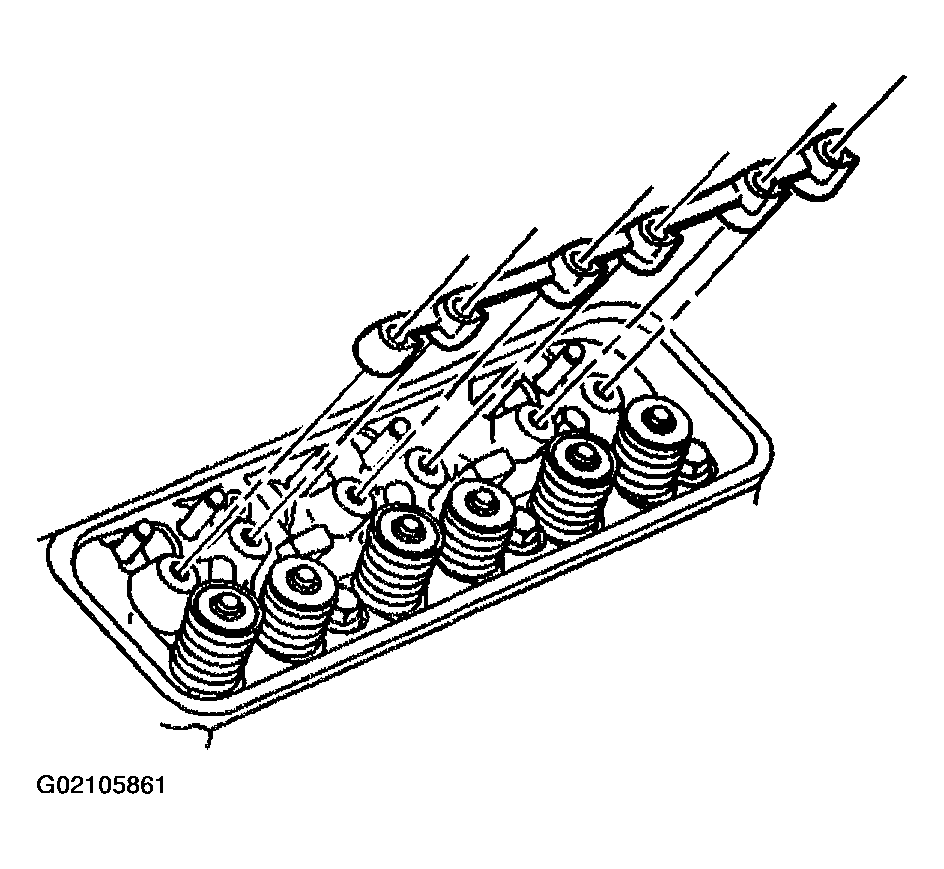

    Fig 2: Rocker Arm Supports
    G02105861Courtesy of GENERAL MOTORS CORP.
  4. Remove the pushrods.
  5. Clean and inspect the rocker arms and/or pushrods, if necessary. Refer to Valve Rocker Arm and Push Rods Cleaning and Inspection .

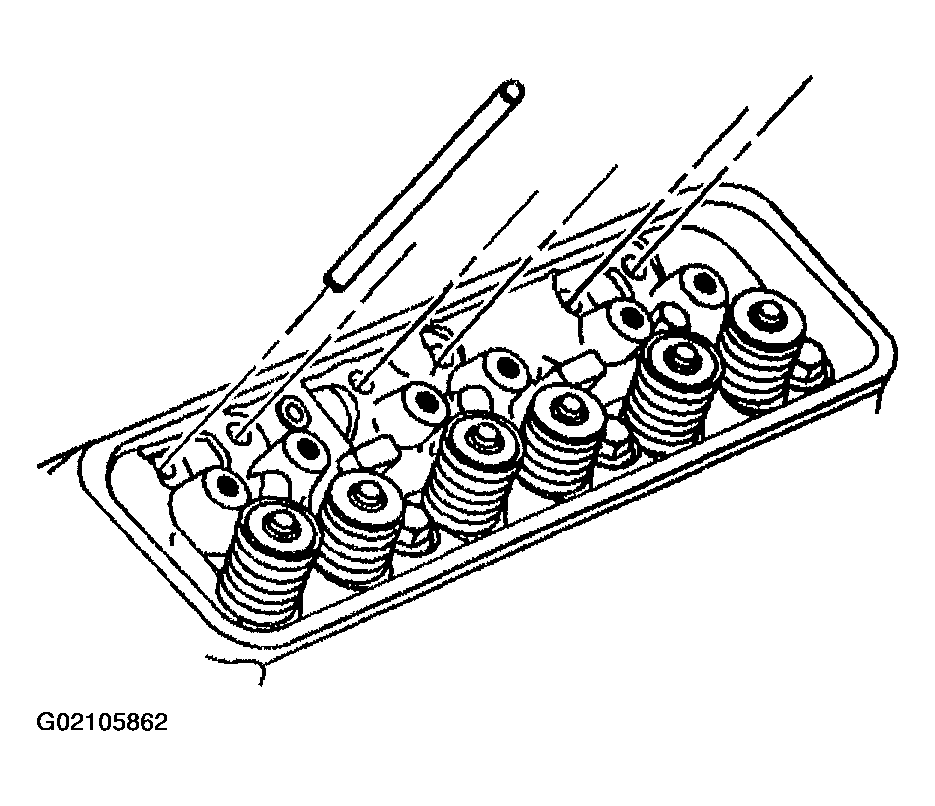

    Fig 3: Pushrods
    G02105862Courtesy of GENERAL MOTORS CORP.
