Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: It is normal for NEW lifters to make a slight ticking noise when the engine is first started. Increasing the engine RPMs slightly to raise oil pressure should stop the noise.
  1. Apply lubricant GM P/N 12345501, (Canadian P/N 992704), or equivalent to the lifter rollers.
    IMPORTANT: If reusing the lifters, install the lifters to their original positions.
  2. Install the lifters.

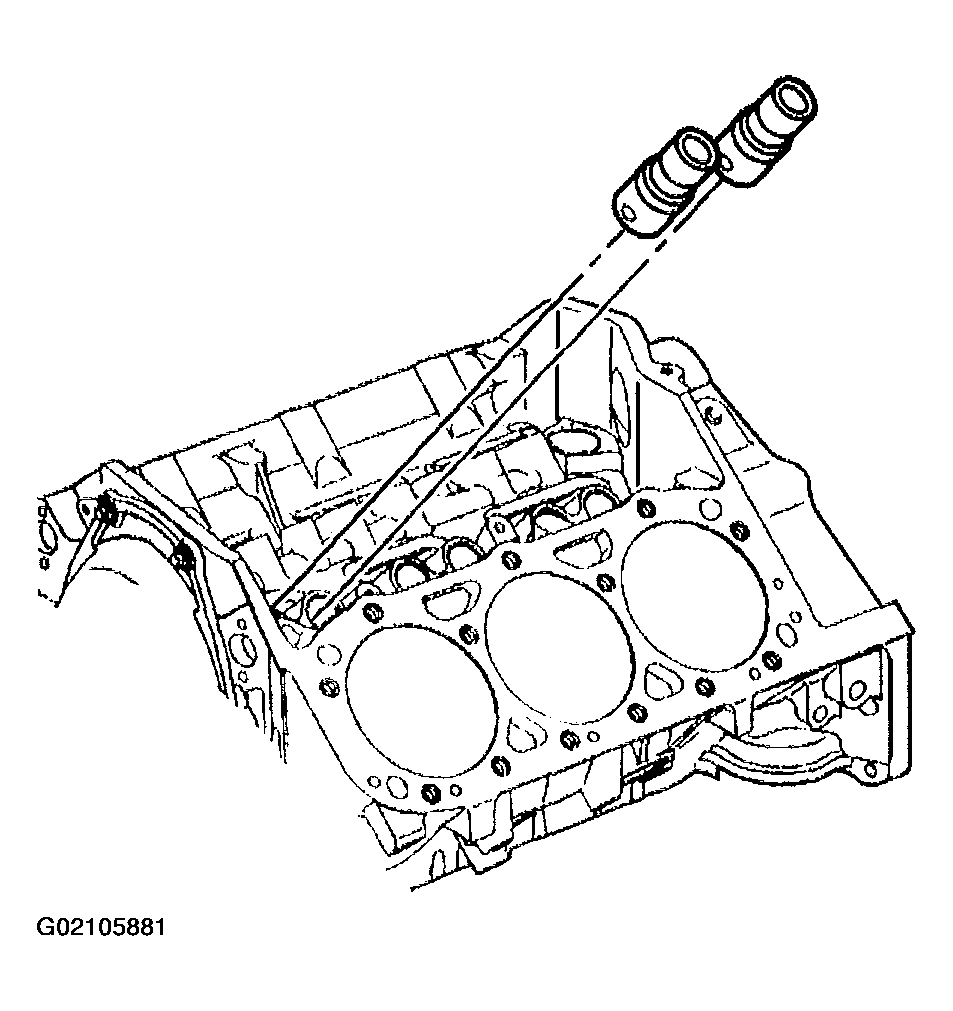

    Fig 1: Valve Lifters
    G02105881Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the lifter pushrod guides.

    Tighten

    Tighten the bolts to 16 N.m (12 lb ft).

  4. Install the pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
  5. Install the intake manifold. Refer to Intake Manifold Replacement - Lower .

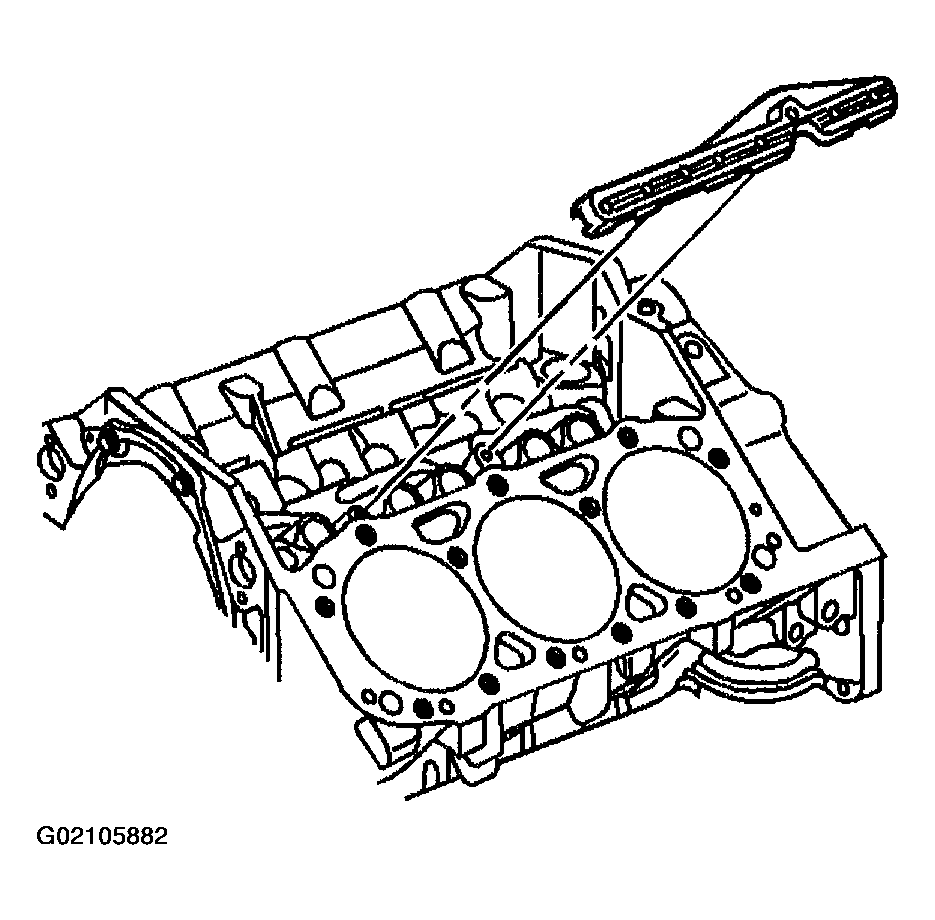

    Fig 2: Lifter Pushrod Guides
    G02105882Courtesy of GENERAL MOTORS CORP.
