Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Remove the right exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - RIGHT (4.3L ENGINE) .

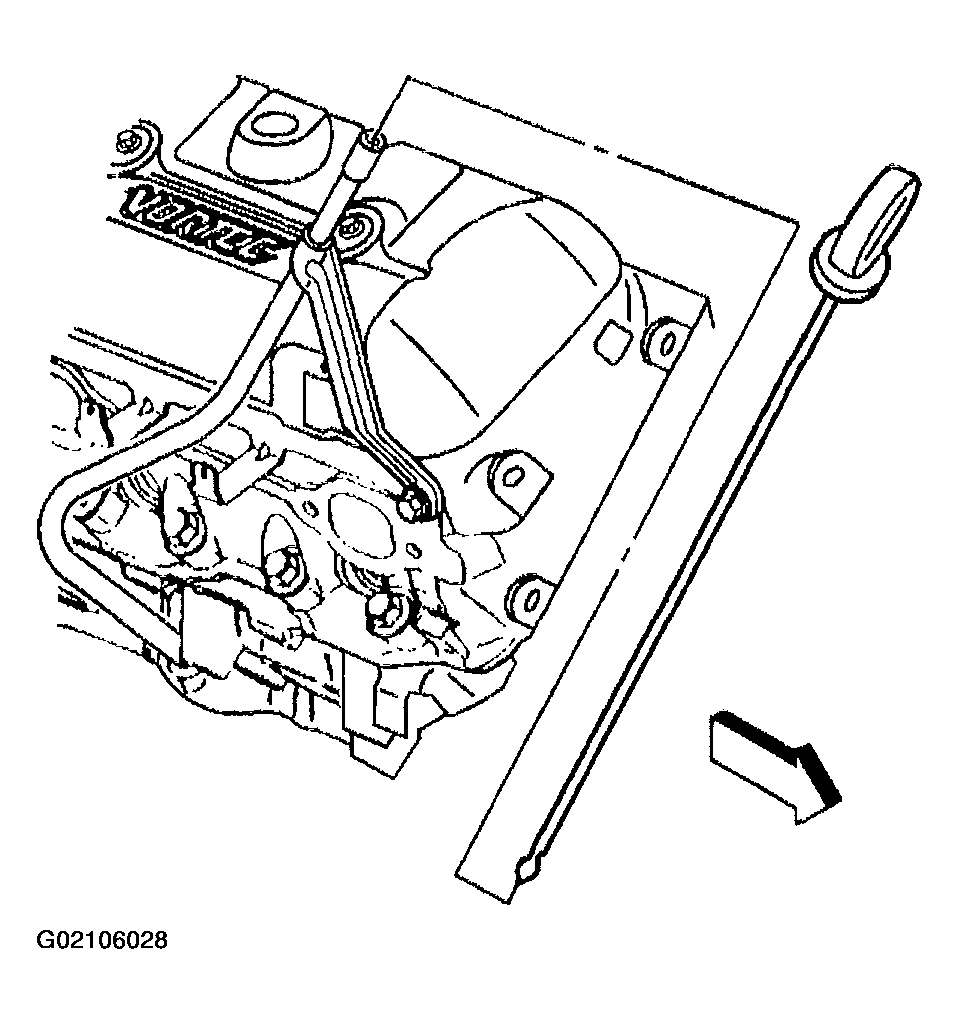

    Fig 1: Oil Level Indicator
    G02106028Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil level indicator tube bolt.
  4. Remove the oil level indicator tube using a twisting motion.
  5. Clean the old sealer from the indicator tube and engine block.

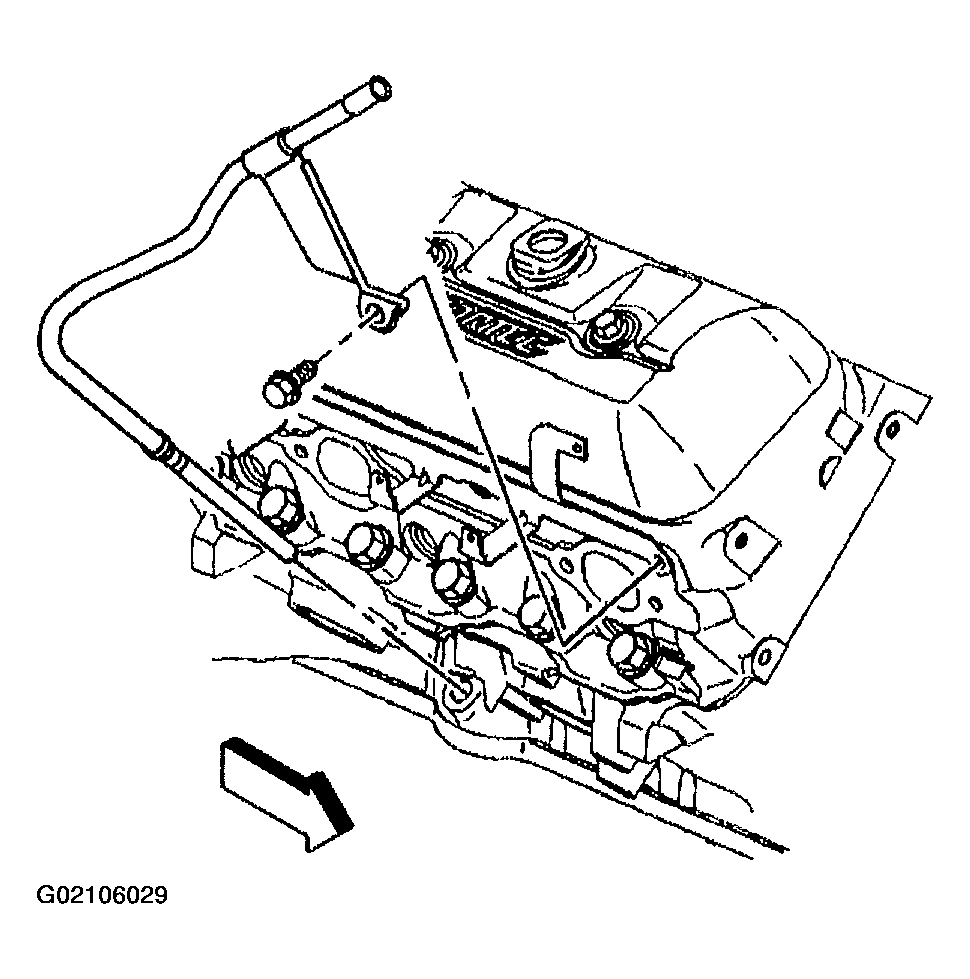

    Fig 2: Oil Level Indicator Tube & Bolt
    G02106029Courtesy of GENERAL MOTORS CORP.
