Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Apply sealant GM P/N 12346004, (Canadian P/N 10953480), or equivalent around the indicator tube 13 mm (0.5 in) below the tube bead.
Install the indicator tube. Rotate the oil level indicator tube into position.
NOTE: Refer to FASTENER NOTICE .
Install the indicator tube bolt.
Tighten

Tighten the bolt to 12 N.m (106 lb in).

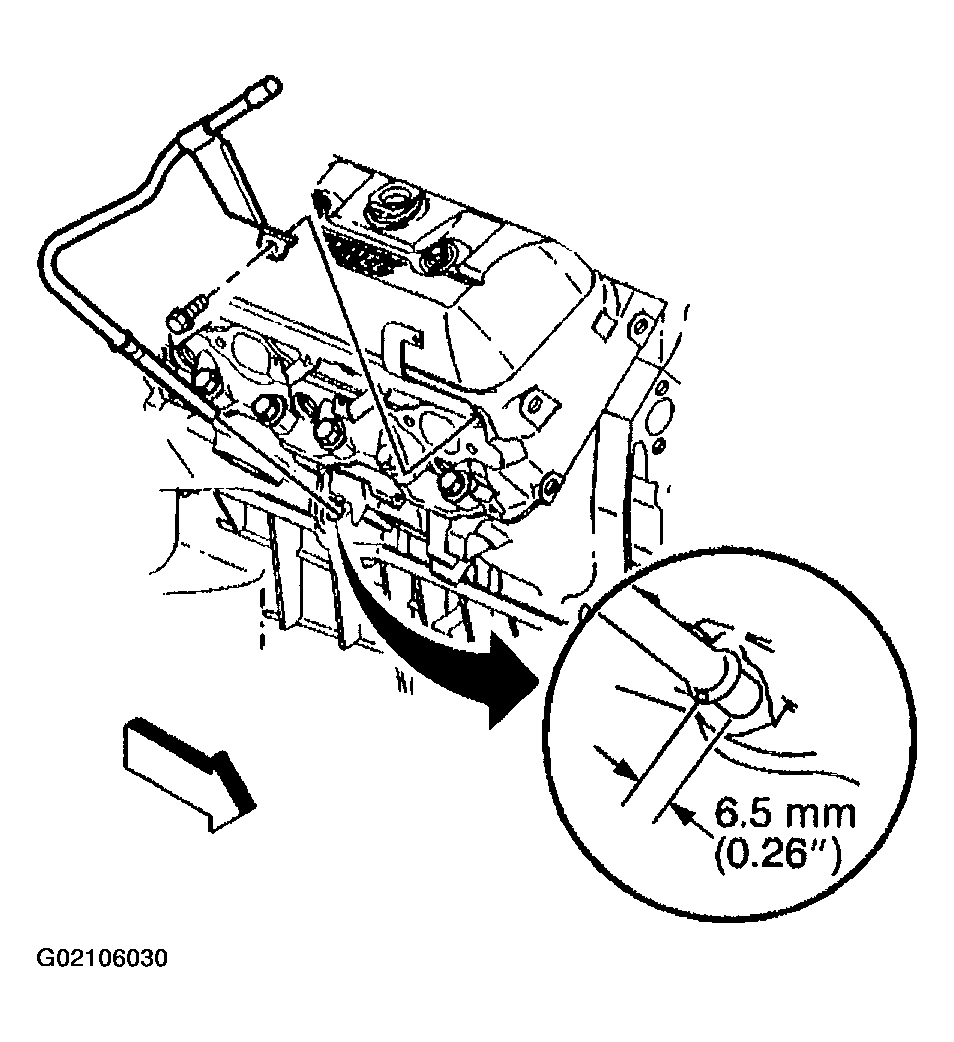

Fig 1: Oil Level Indicator Tube & Bolt
Courtesy of GENERAL MOTORS CORP.
Install the right exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - RIGHT (4.3L ENGINE) .
Install the oil level indicator.

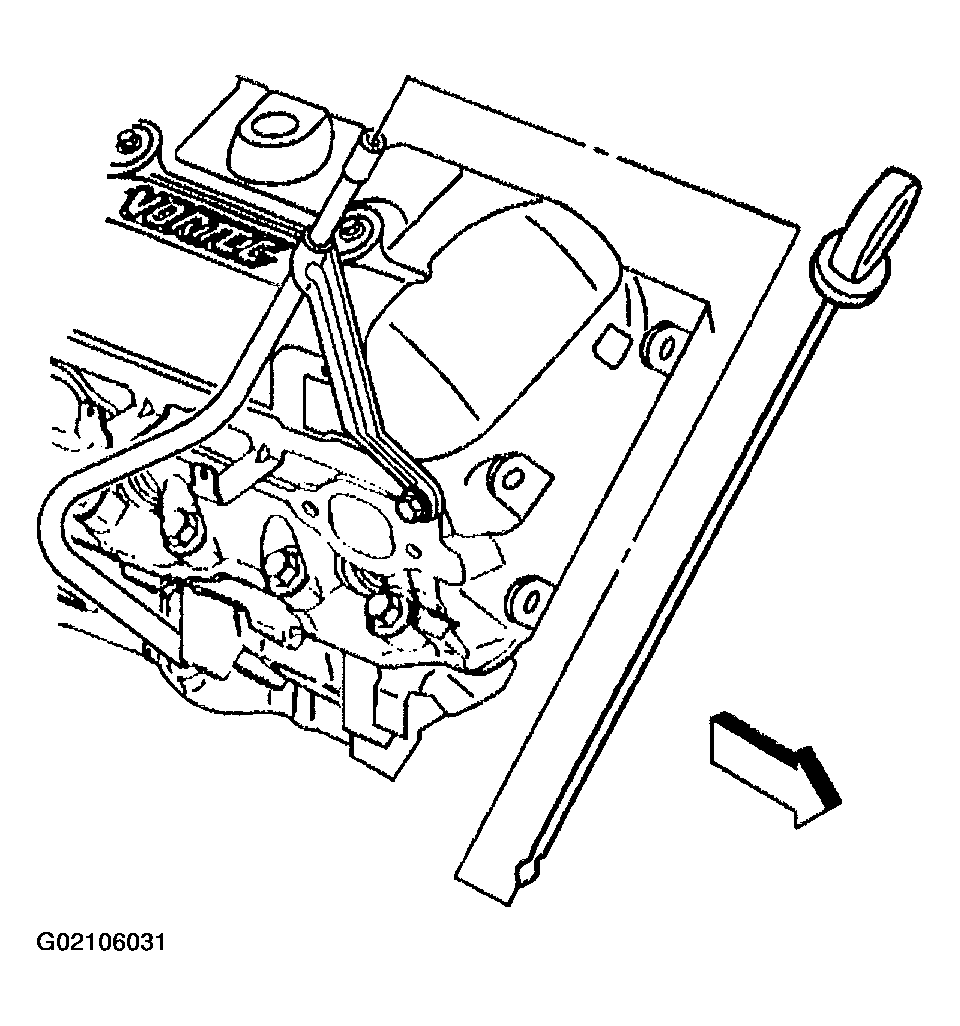

Fig 2: Oil Level Indicator
Courtesy of GENERAL MOTORS CORP.
