Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Clean the area around the oil pressure sensor. Do not allow debris to enter the engine.
  1. Disconnect the fuel pump/oil pressure sensor electrical connector (3).

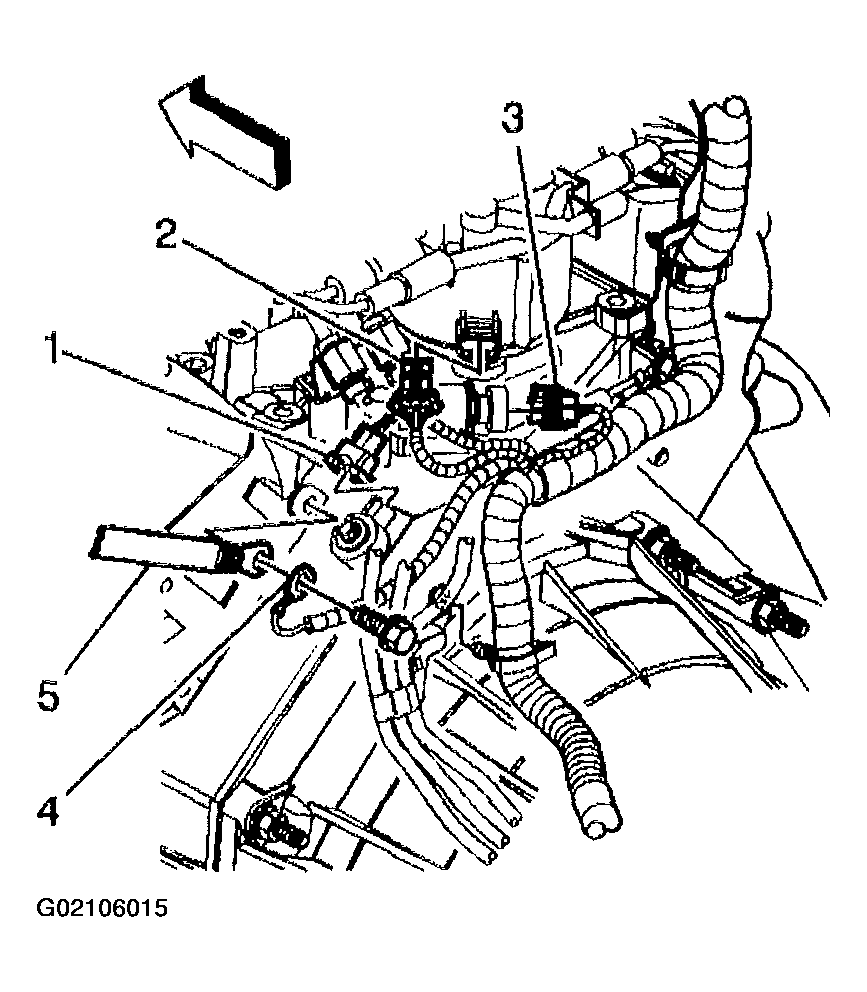

    Fig 1: Fuel Pump/Oil Pressure Sensor Electrical Connector
    G02106015Courtesy of GENERAL MOTORS CORP.
  2. Using J 41712  , remove the fuel pump/oil pressure sensor.

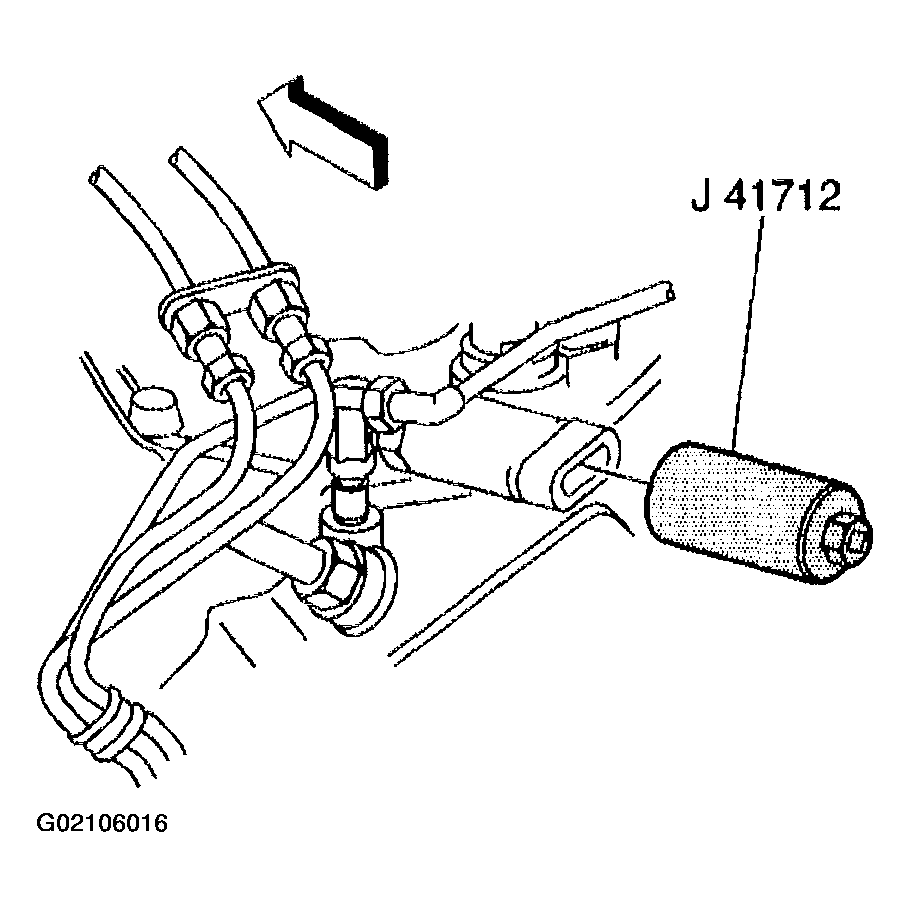

    Fig 2: Remove Fuel Pump/Oil Pressure Sensor Using J 41712
    G02106016Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Note the alignment of the engine oil pressure sensor fitting prior to removal.
  3. Remove the fuel pump/oil pressure sensor fitting, if necessary.

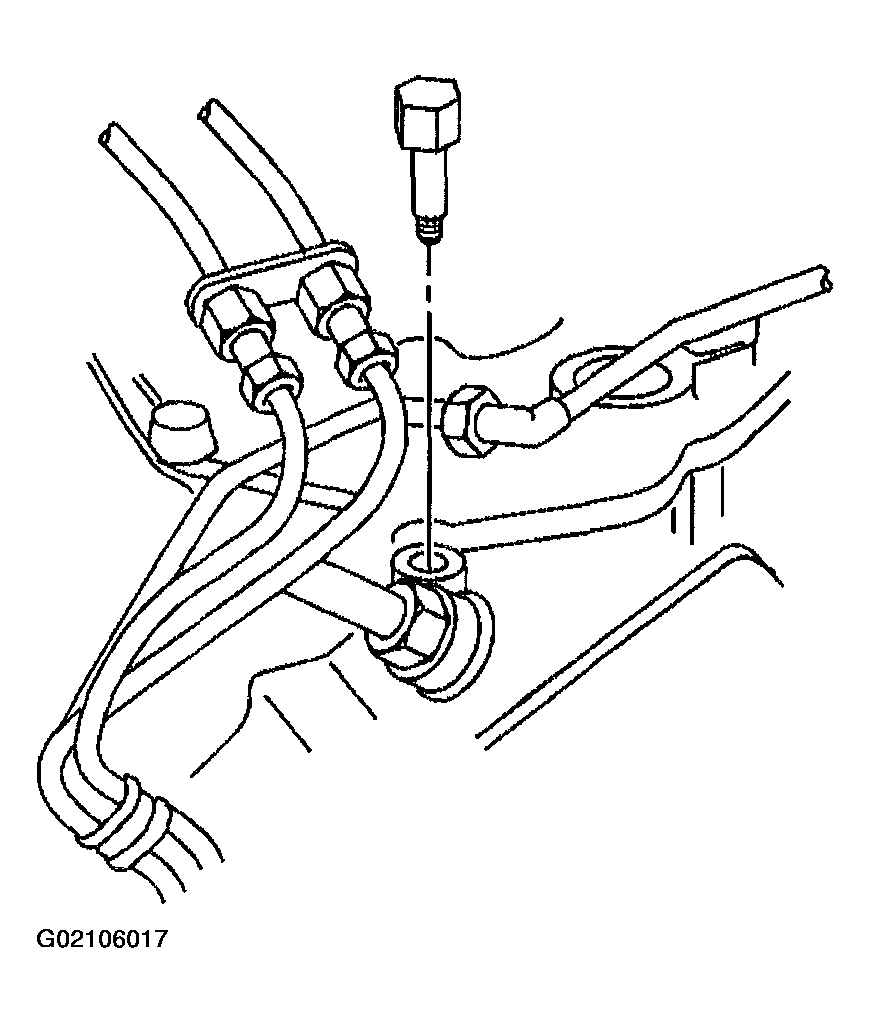

    Fig 3: Fuel Pump/Oil Pressure Sensor Fitting
    G02106017Courtesy of GENERAL MOTORS CORP.
