Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING .
  2. Remove the drain plug and drain the oil into a suitable container.

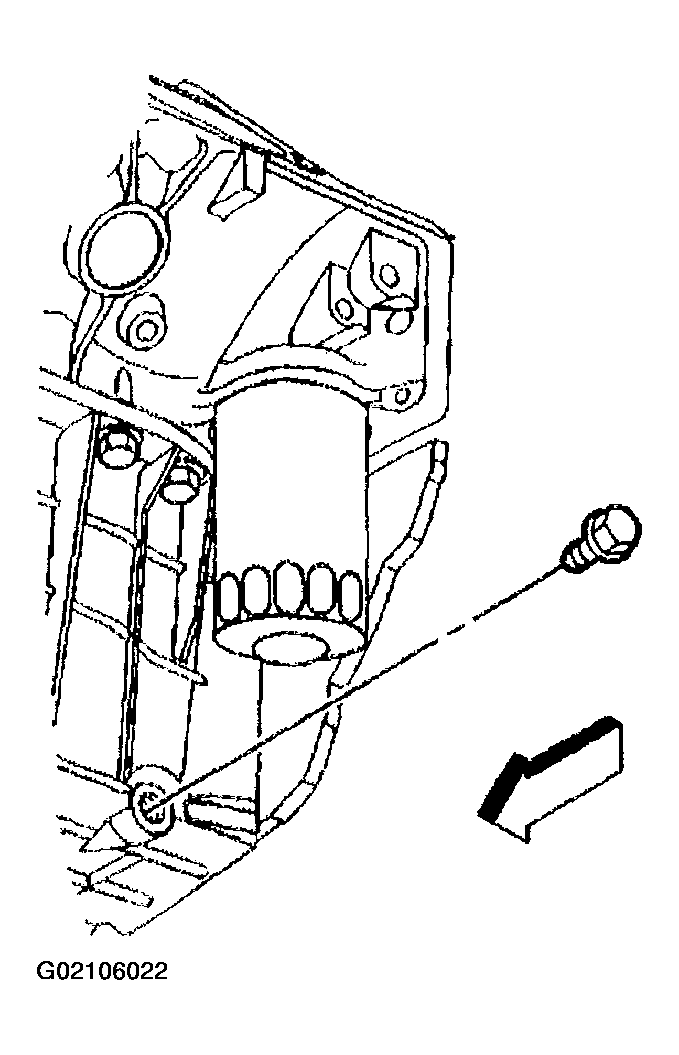

    Fig 1: Drain Plug
    G02106022Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the oil level sensor electrical connector (7).

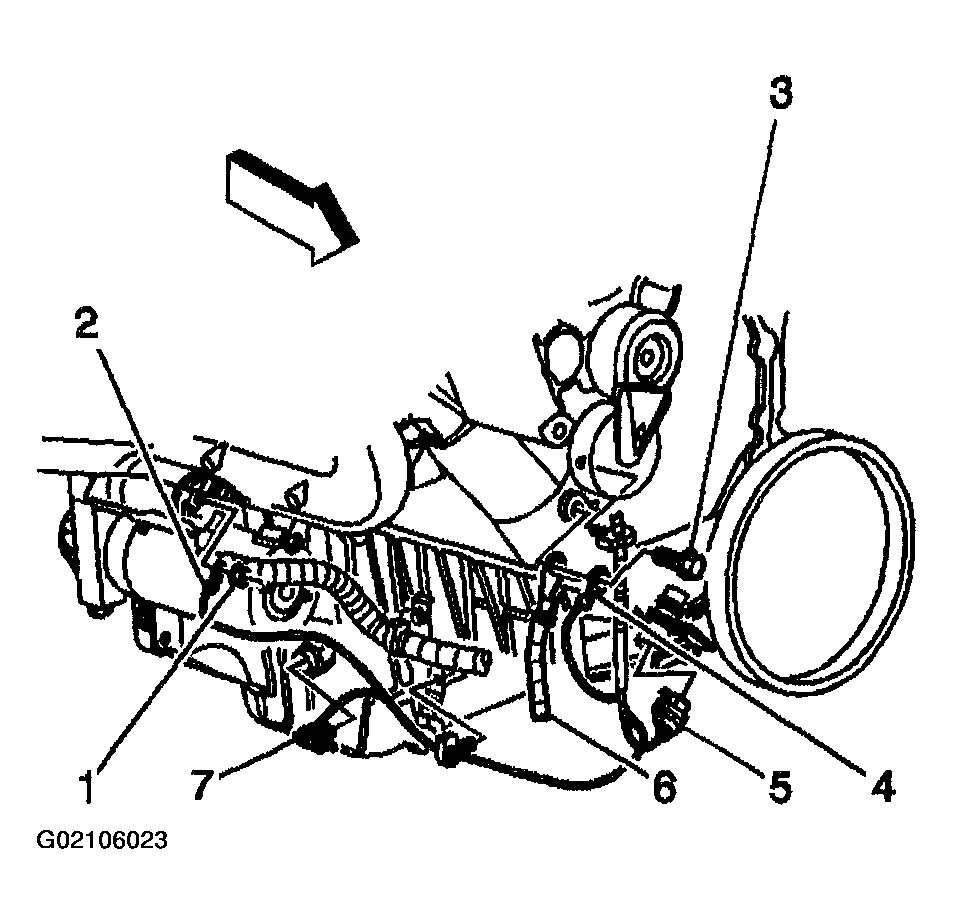

    Fig 2: Oil Level Sensor Electrical Connector
    G02106023Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil level sensor.

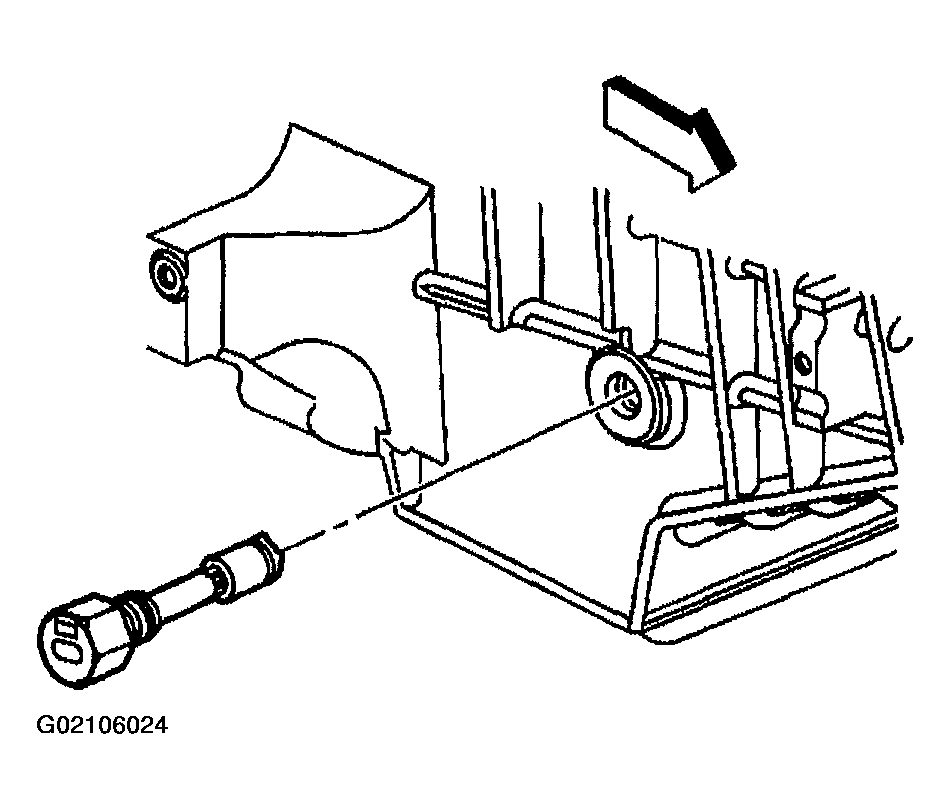

    Fig 3: Oil Level Sensor
    G02106024Courtesy of GENERAL MOTORS CORP.
