Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the engine mount bracket.
NOTE: Refer to FASTENER NOTICE .
Install the engine mount bracket bolts.
Tighten

Tighten the engine mount bracket bolts to 75 N.m (55 lb ft).

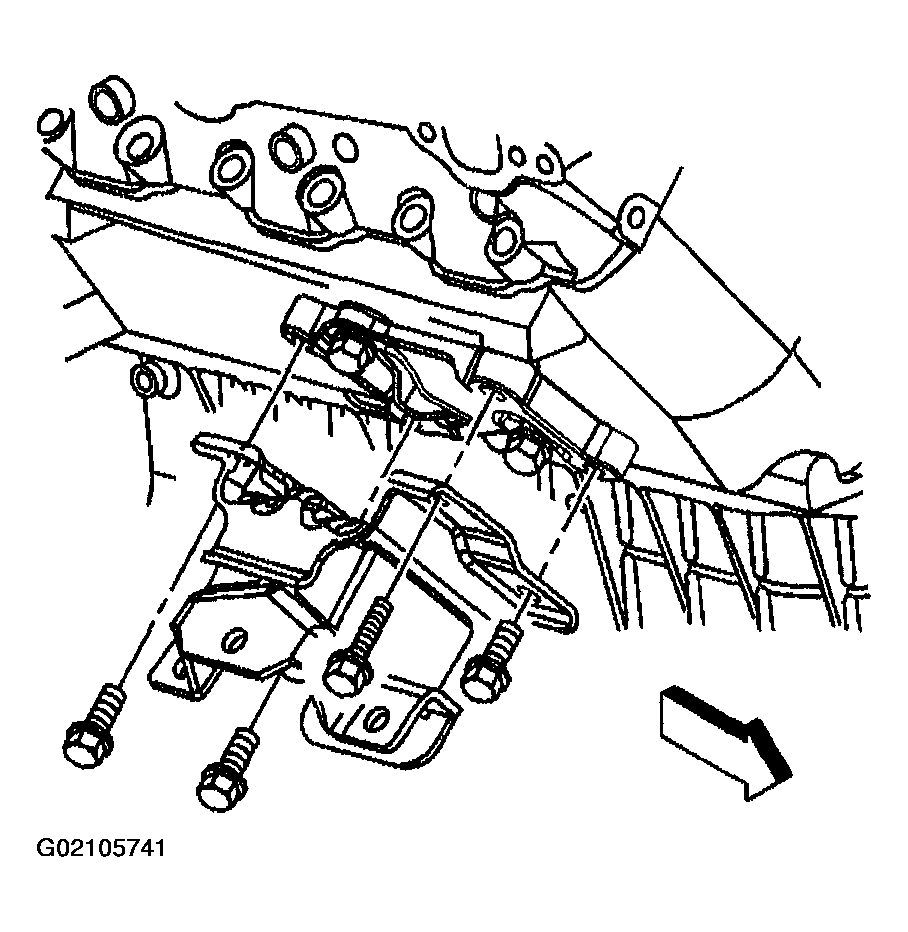

Fig 1: Engine Mount Bracket & Bolts)
Courtesy of GENERAL MOTORS CORP.
Position the engine mount side bracket to the engine, if removed.
Install the engine mount side bracket bolts.
Tighten

Tighten the engine mount side bracket bolts to 50 N.m (37 lb ft).

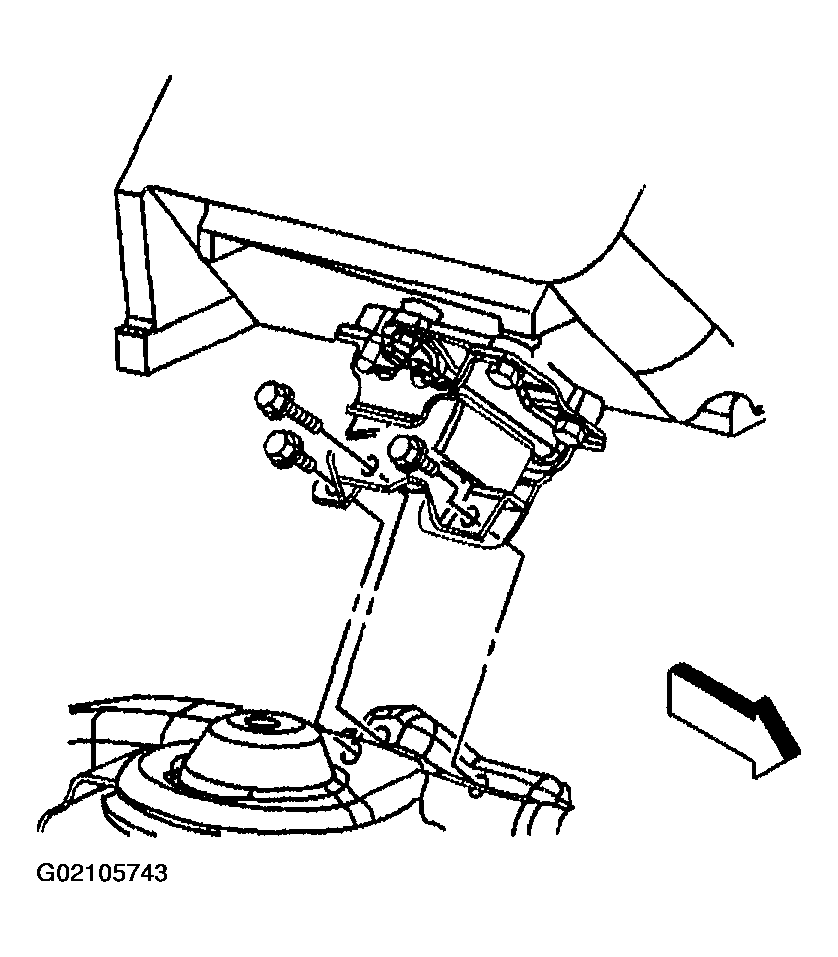

Fig 2: Engine Mount Side Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the engine mount.
Install the engine mount bolts.
Tighten

Tighten the engine mount bolts to 50 N.m (37 lb ft).
Lower the engine.
Install the starter. Refer to STARTER MOTOR .

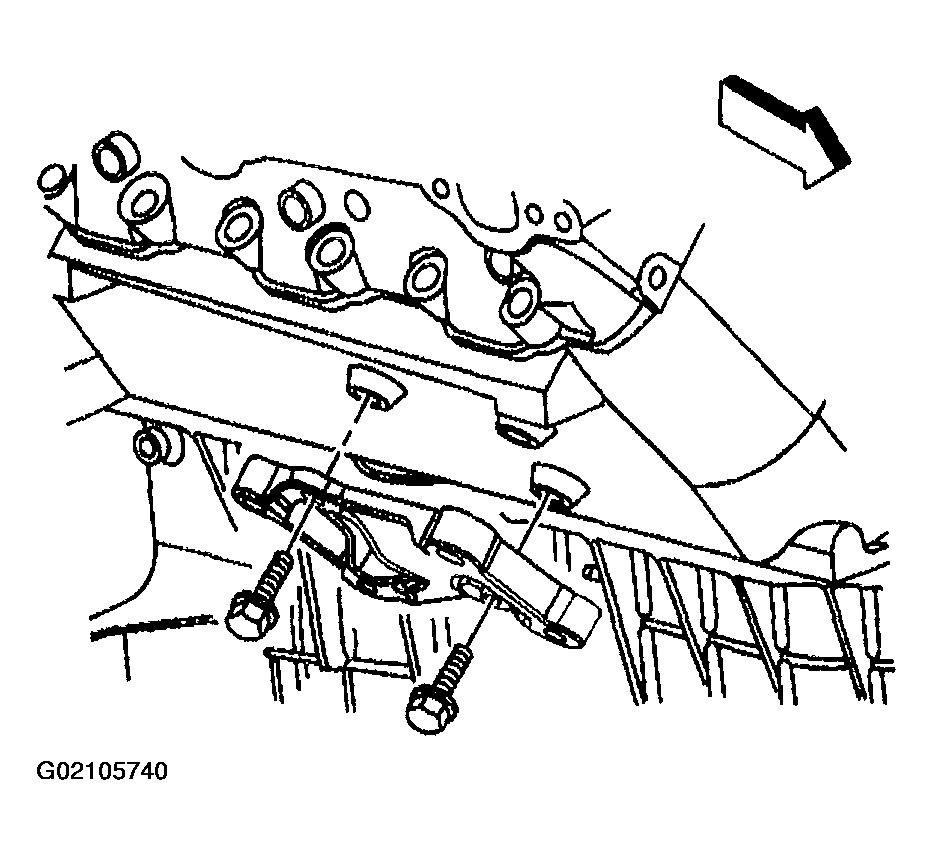

Fig 3: Engine Mount & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the oil pan skid plate and bolts.
Tighten

Tighten the oil pan skid plate bolts to 20 N.m 15 lb ft).
Lower the vehicle.

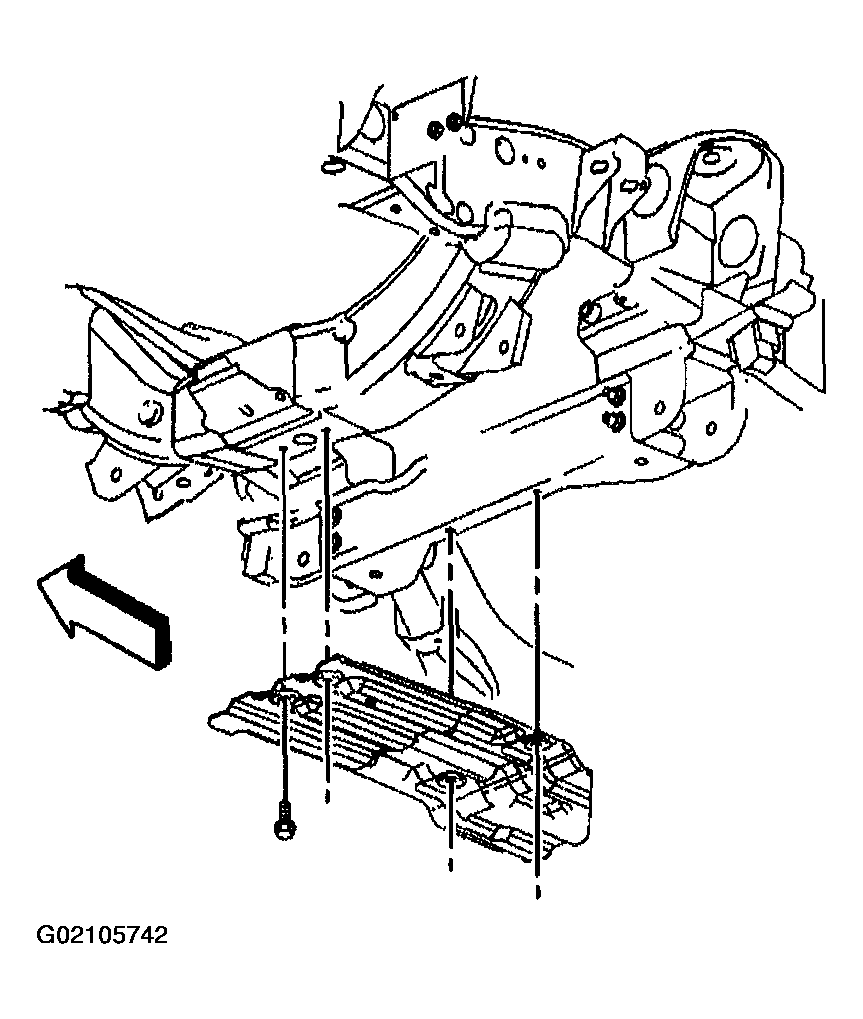

Fig 4: Oil Pan Skid Plate & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the engine mount to engine mount bracket bolts.
Tighten

Tighten the engine mount to engine mount bracket bolts to 65 N.m (48 lb ft).

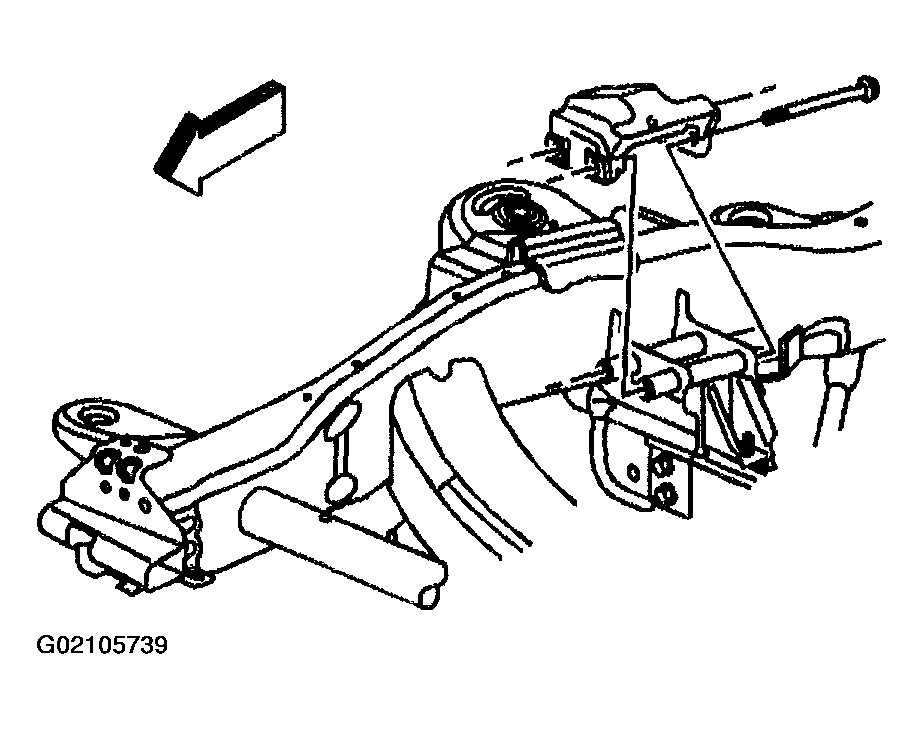

Fig 5: Engine Mount To Engine Mount Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
